Description

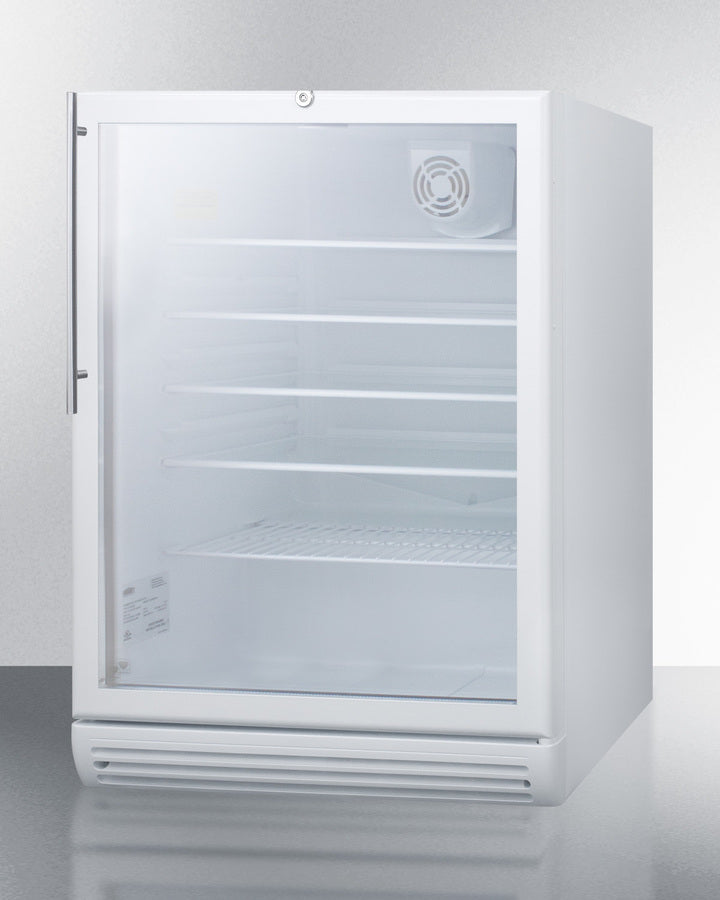

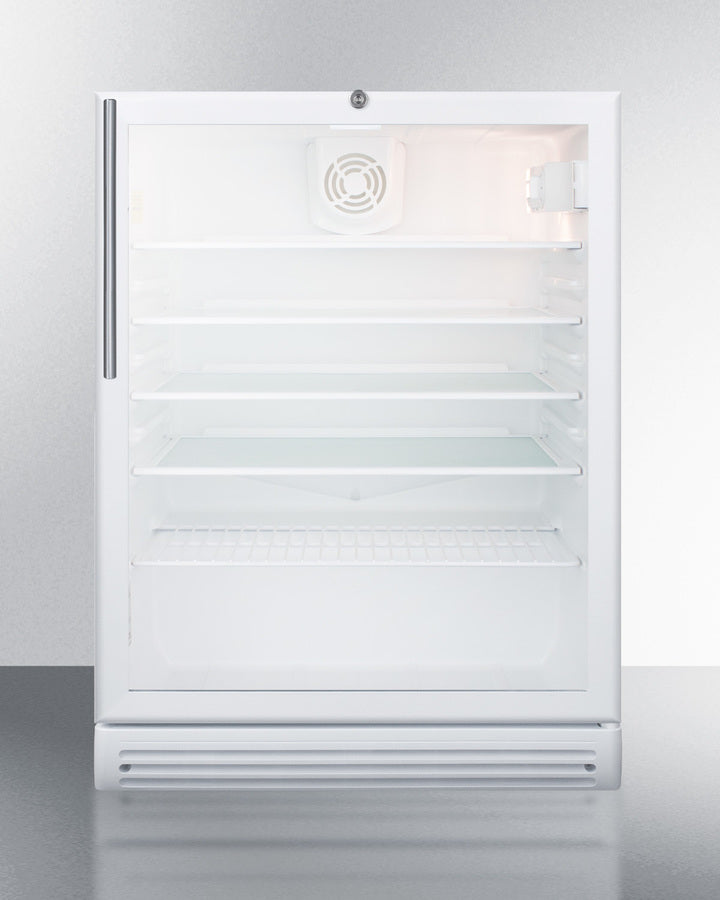

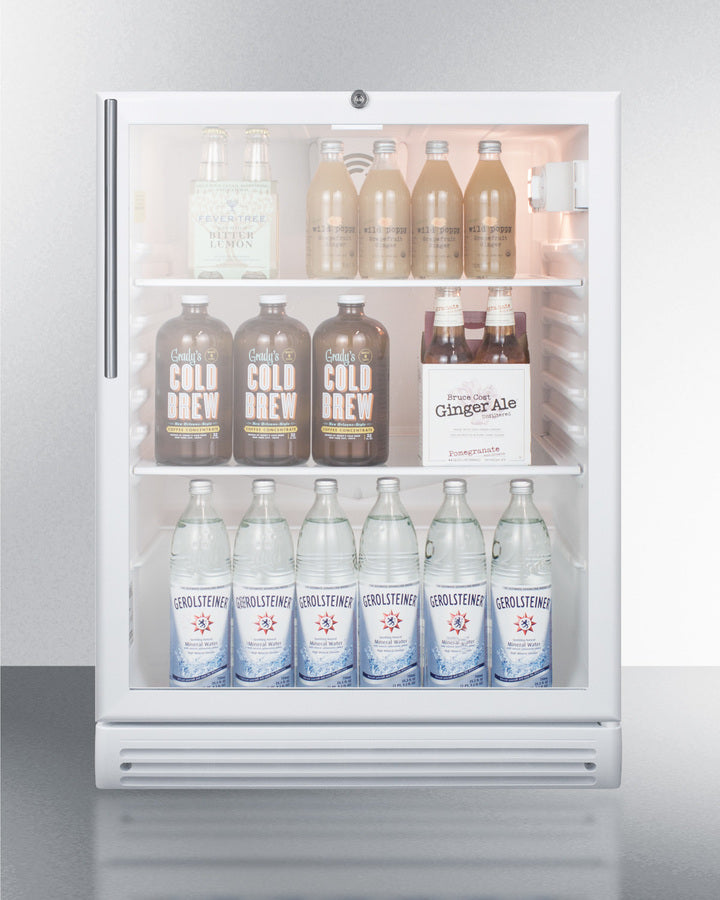

Summit 24" Wide Built-In Beverage Center with Thin Handle ADA Compliant - SCR600GLBIHVADA
SUMMIT COMMERCIAL's SCR600GLBIADA Series features 32" high beverage refrigerators designed and manufactured in Europe for built-in installation under lower ADA compliant counters in commercial settings.
The SCR600GLBIHVADA comes in a convenient 24" footprint with a generous 5.5 cu.ft. capacity. It has a front-breathing design for built-in installation and a fully finished white cabinet that also allows freestanding use. The door features double pane tempered glass for added protection, with a vertically mounted stainless steel handle. The factory-installed front lock is located towards the top of the door for easier access.
Inside, the SCR600GLBIHVADA includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature.
This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.
Made in Europe, the SCR600GLBIHVADA is ETL-S listed to NSF-7 commercial standards. With its ADA compliant design, this unit is the perfect choice for any setting in need of a reliable commercial display refrigerator that fits in ADA compliant applications. Additional handle styles are available.
Features
- ADA Compliant: 32 inch height is designed to fit under ADA compliant counters
- Commercially approved: ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
- Built-in capable: Front-breathing design allows you to install the unit under counters with minimum clearance
- Factory installed lock: Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Double pane tempered glass door: Heat resistant design provides clear display to promote impulse buys
- Professional handle: Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry
- White interior finish: Interior offers more visibility with a brighter look
- Automatic defrost: Reduced user maintenance with automatic defrost
- Internal fan: Fan-forced cooling helps to maintain a more evenly cooled interior
- Adjustable glass shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Half-sized wire shelf: Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
- Interior light on rocker switch: Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat
- Hidden evaporator: SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
- One piece interior liner: Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
- Adjustable thermostat: Dial thermostat for easy and intuitive temperature management
- Fully finished white cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.38" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.5" (60 cm)
- Depth with Handle: 25.38" (64 cm)
- Depth with door at 90°: 45.63" (116 cm)
- Capacity: 5.5 cu.ft. (156 L)
- Defrost Type: Automatic
- Door: Glass
- Cabinet: White
- US Electrical Safety: UL
- Canadian Electrical Safety: ULC
- Sanitation: ETL-S
- Amps: 1.8
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 100.0 lbs. (45 kg)
- Shipping Weight: 105.0 lbs. (48 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101064574
Refrigerator Features
- Door Swing: RHD
- Reversible: Factory Reversible
- Shelf Type: Glass
- Shelf Qty: 4
- Adjustable Shelves: Yes
- Thermostat Type: Dial
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.67oz.
- High Side PSI: 124.0
- Low Side PSI: 30.0
- Level Legs Qty: 4
- Interior Light: Yes
Dimensions
- Interior Height: 26.0" (66 cm)
- Interior Width: 20.75" (53 cm)
- Interior Depth: 17.5" (44 cm)
- Compressor Step Height: 6.0" (15 cm)
- Compressor Step Width: 20.75" (53 cm)
- Compressor Step Depth: 5.0" (13 cm)
Available Upgrades
Handle
- TB
- SH
- HV
- HH
- TBC Copper Towel Bar Handle Upgrade
Exterior
- PH: Probe Hole
- DT: Digital thermostat
- Alarm/Thermometer
- Extra key
- SCD: Self-closing door
- LHD: Left hand door swing
- Latch for door
- SSK
-
HG: Hospital grade cord
- TH: Installed thermometer
- ODA: Open door alarm
- CAS3 3" casters
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
Door
- T4 Door Tint
- T3 Door Tint
- T2 Door Tint
- T1 Door Tint
- T1S Door Tint
- STO: Step-To-Open Door Pedal
Interior
- LockBox24: Interior locking compartment
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
