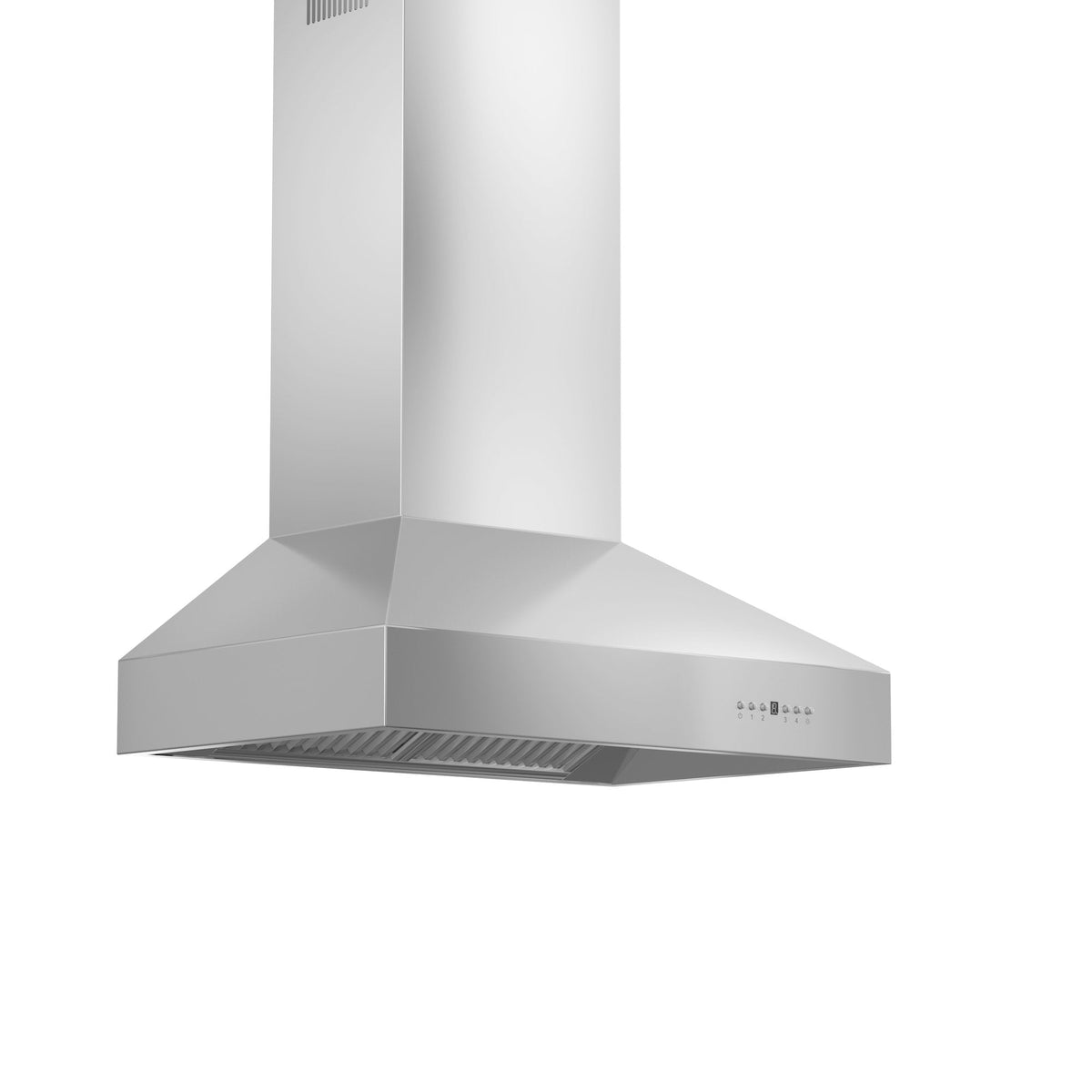

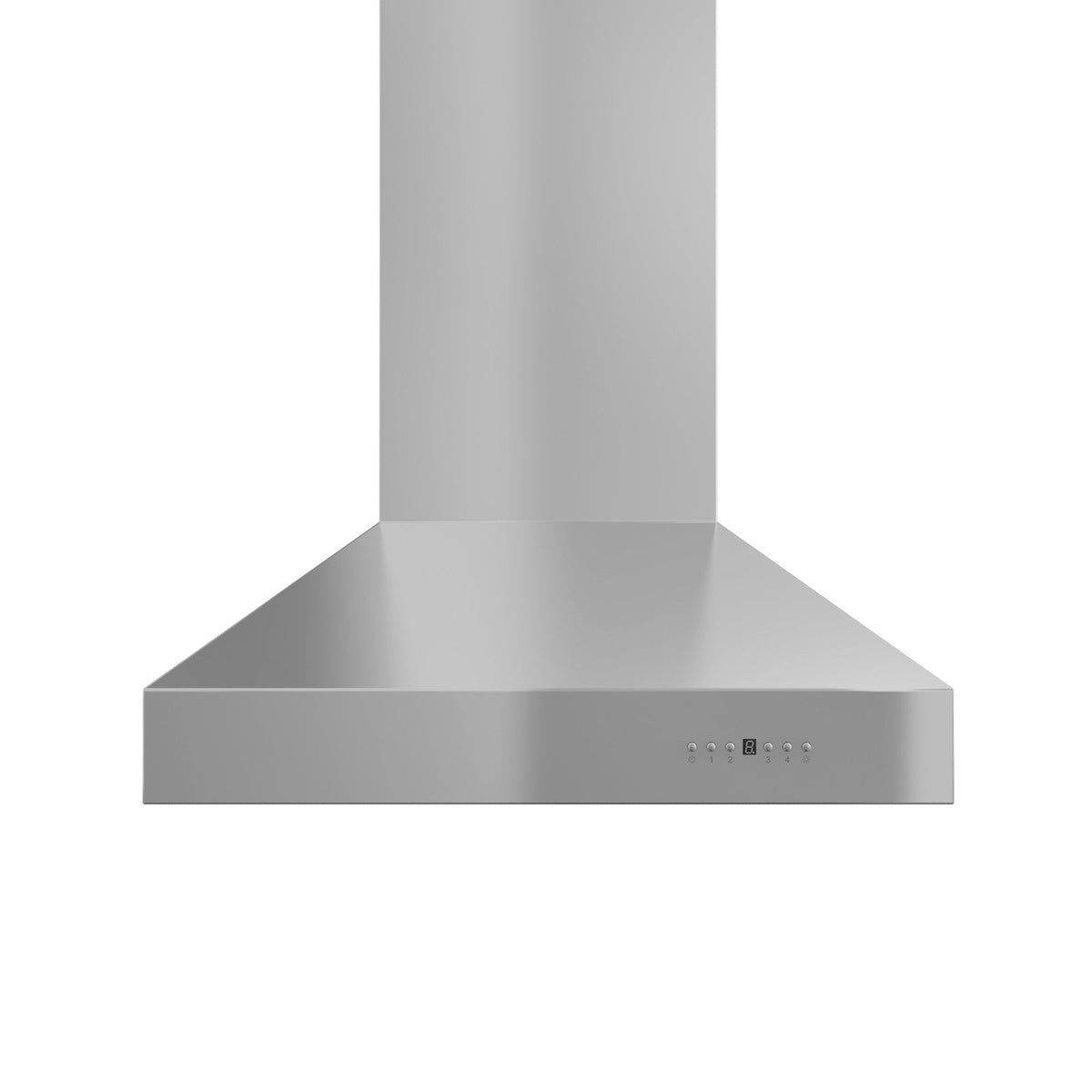

ZLINE Professional Wall Mount Range Hood in Stainless Steel - 697

In Stock-Ready to Ship!
SKU: 697-30
Save $900.00

Size: 30 Inch
Sale price$1,099.95 Regular price$1,999.95

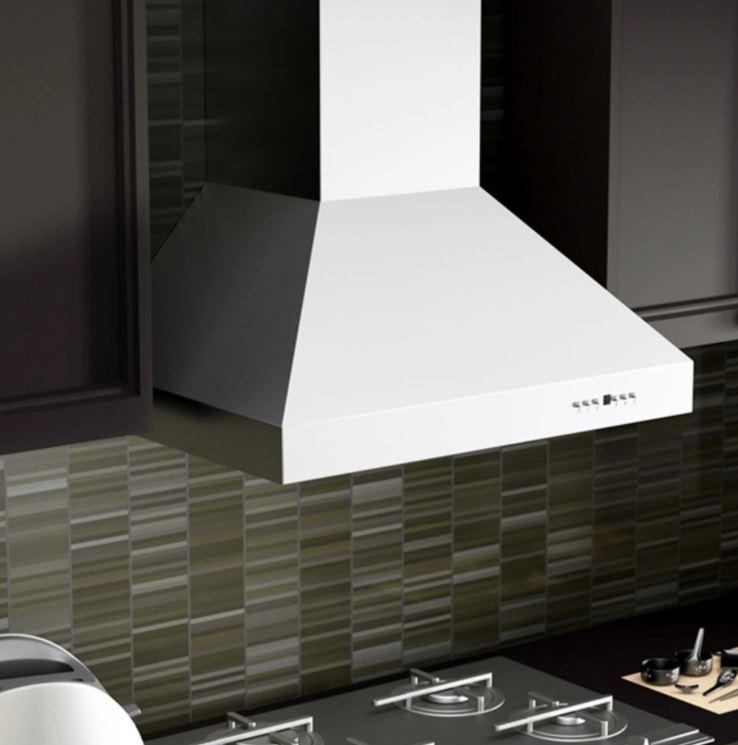

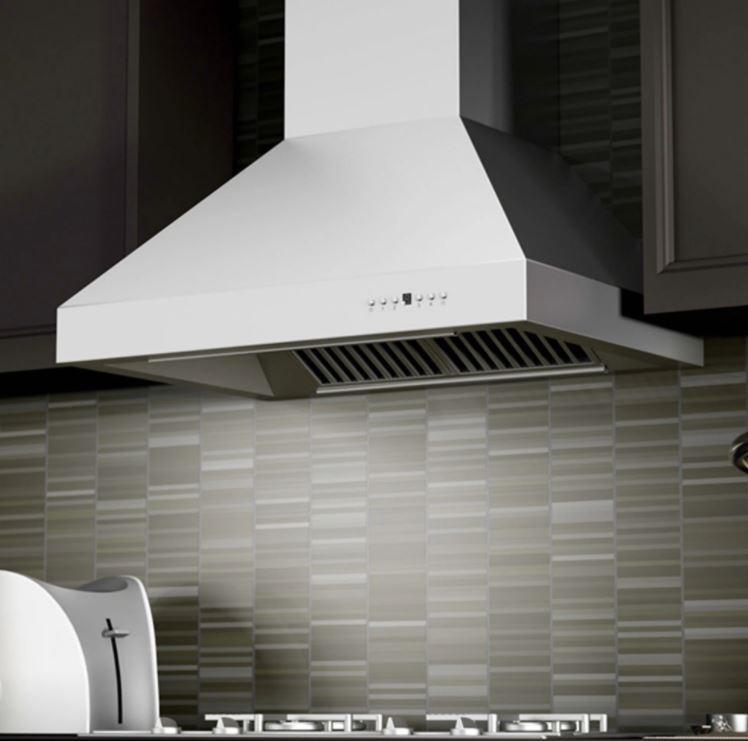

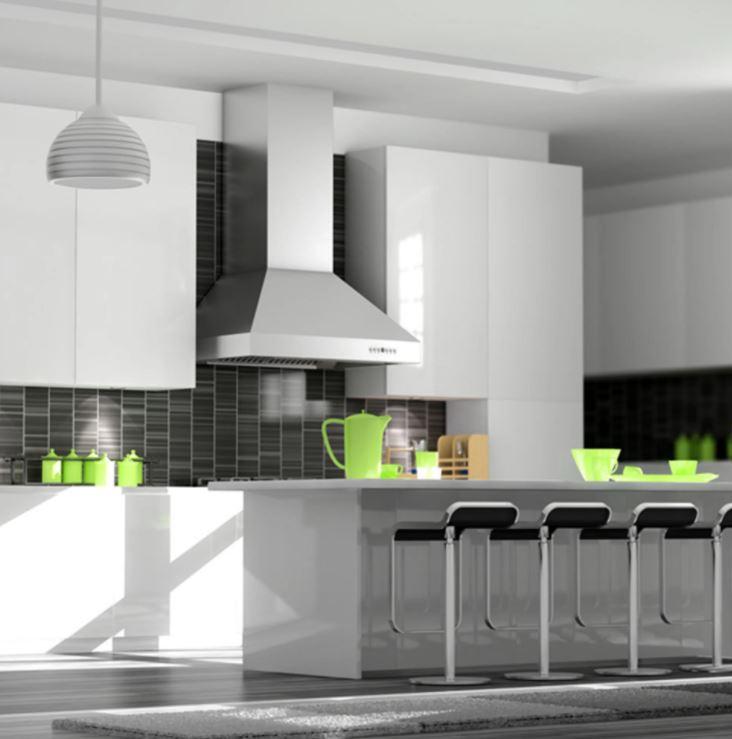

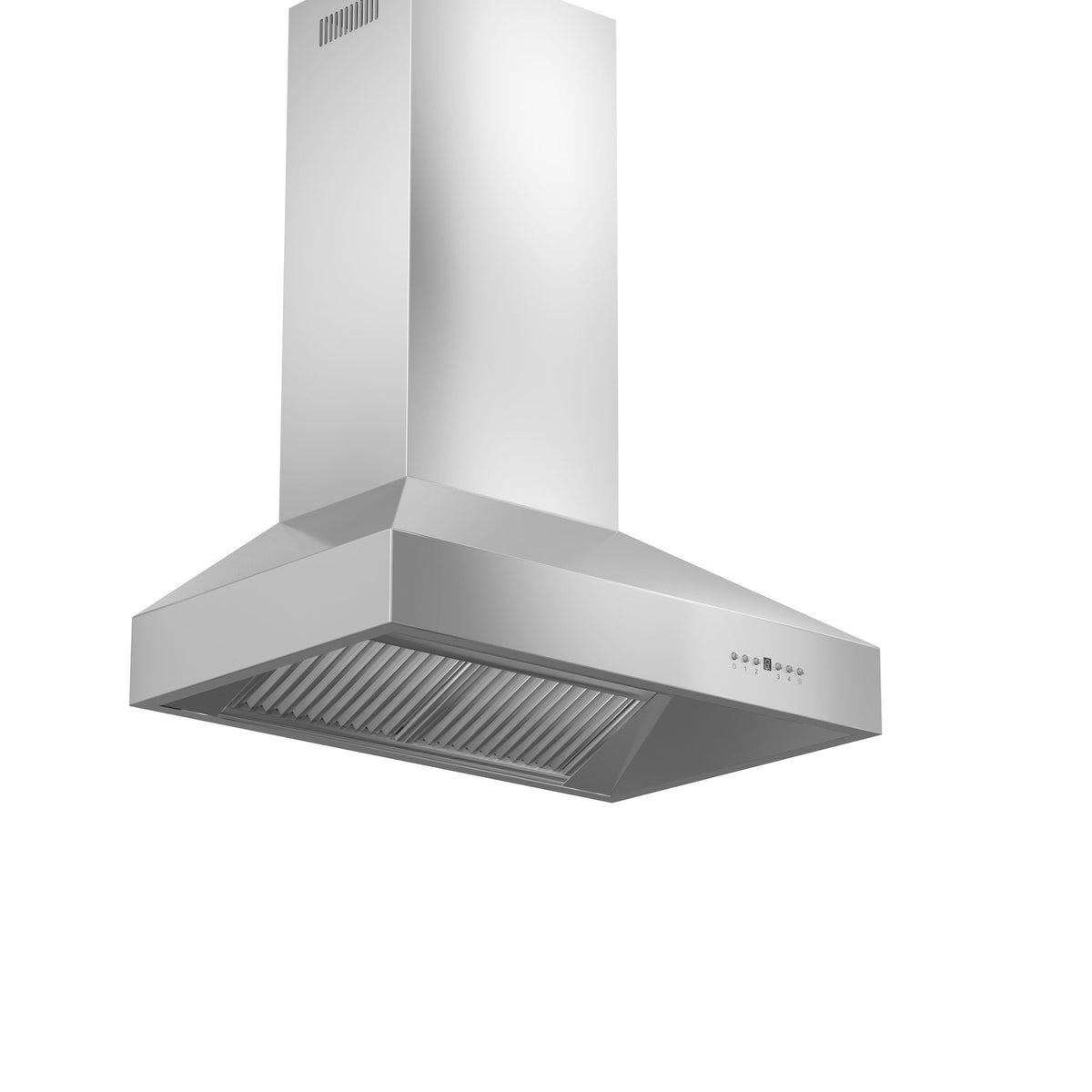

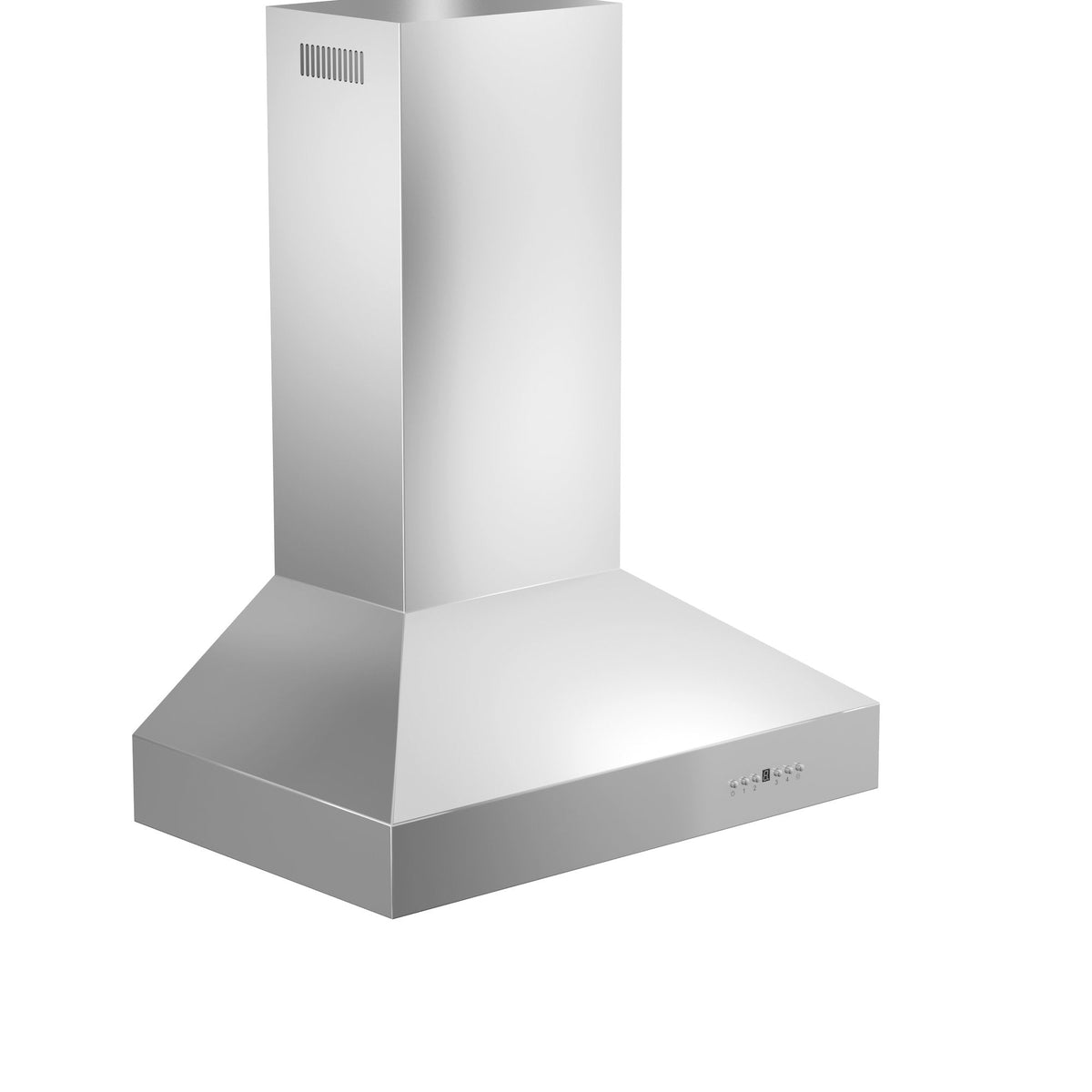

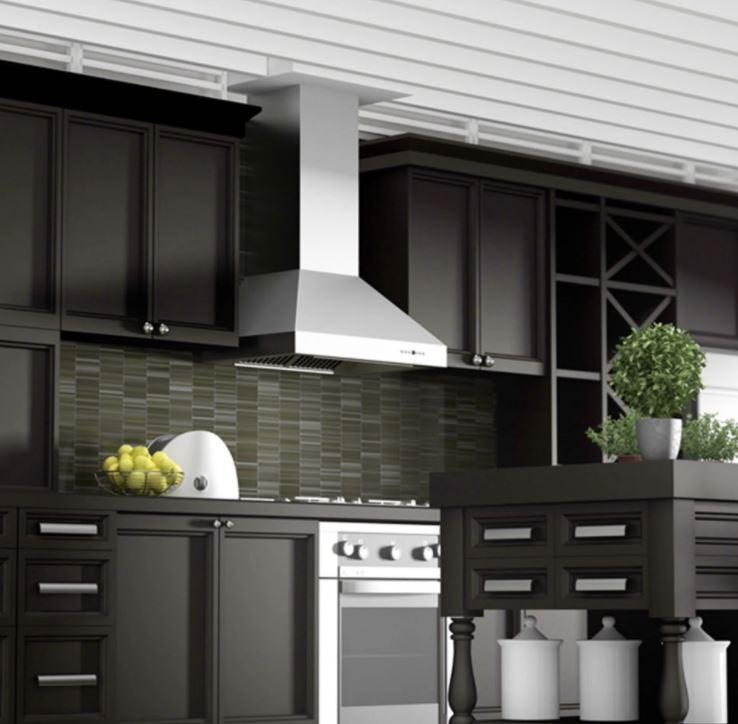

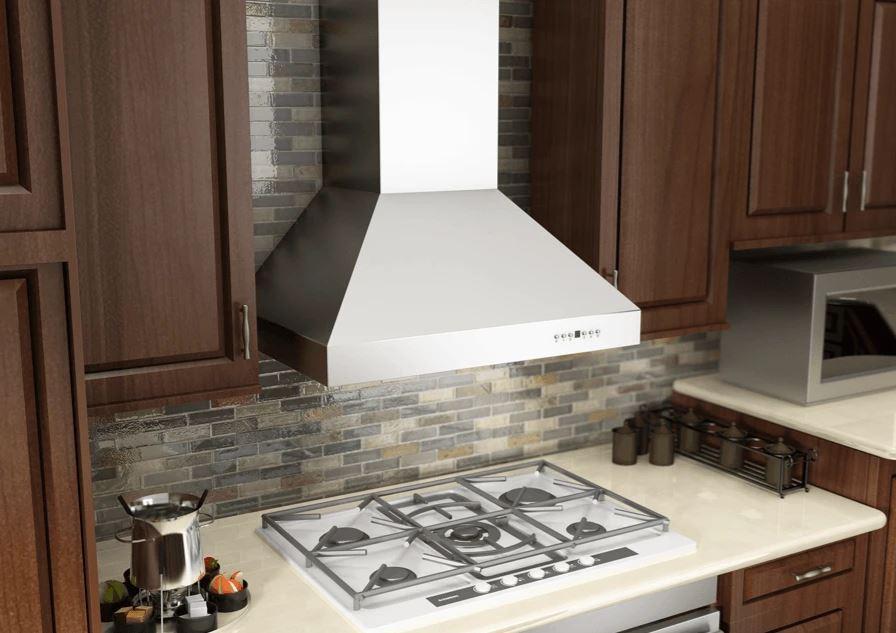

ZLINE Professional Wall Mount Range Hood in Stainless Steel - 697

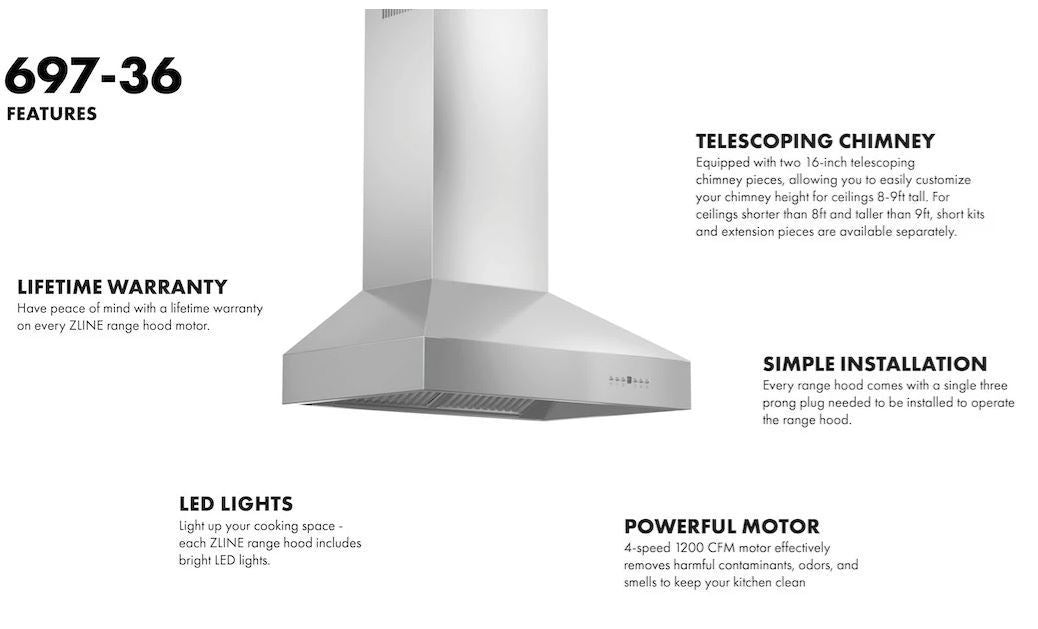

The ZLINE 697 is a professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430 grade stainless steel and is a ZLINE classic. Convertible range hood - this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:

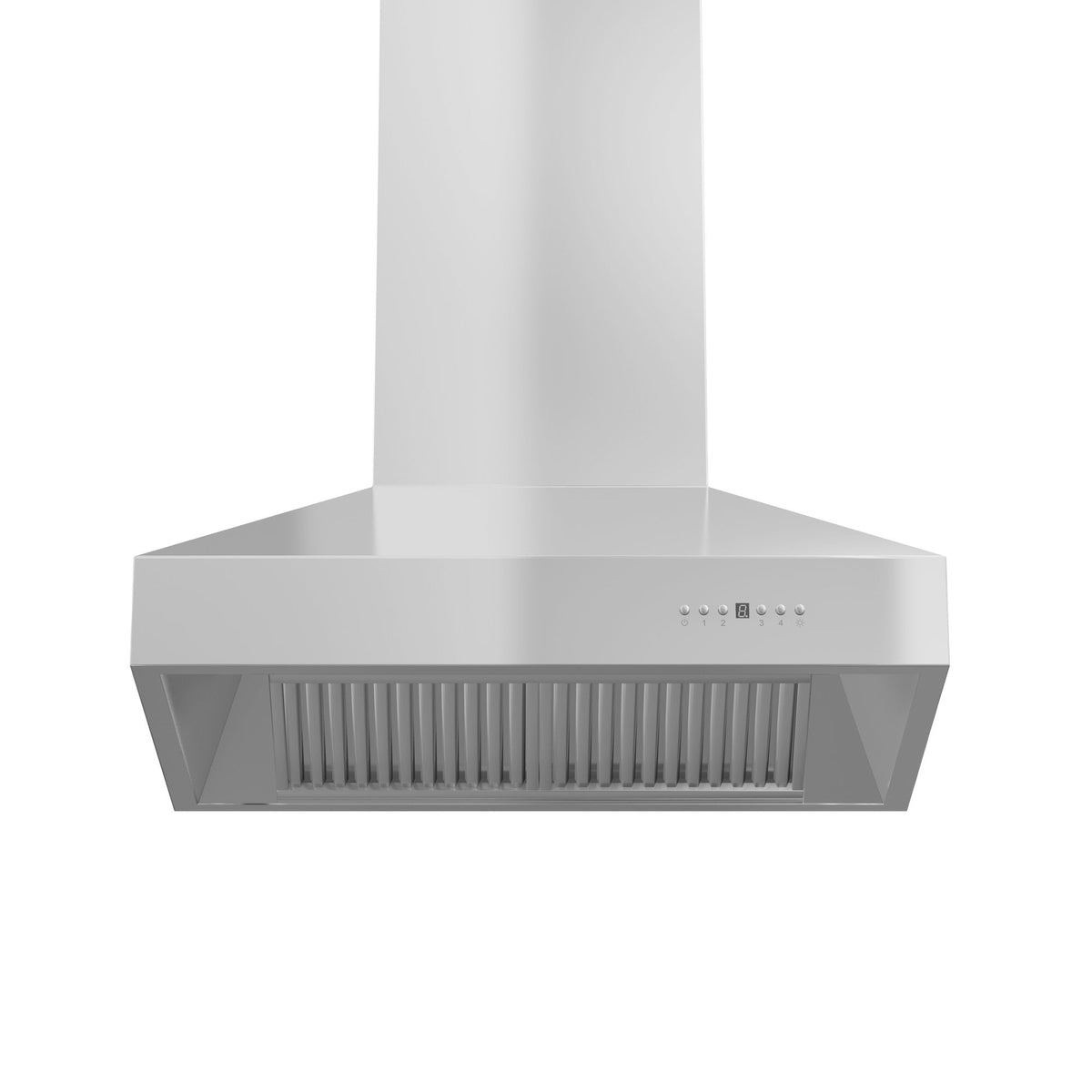

  • Dishwasher-safe stainless steel baffle filters
  • Built-in LED lighting
  • High performance 4-speed motor
  • Includes chimney
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods.


Brand: ZLINE Kitchen and Bath

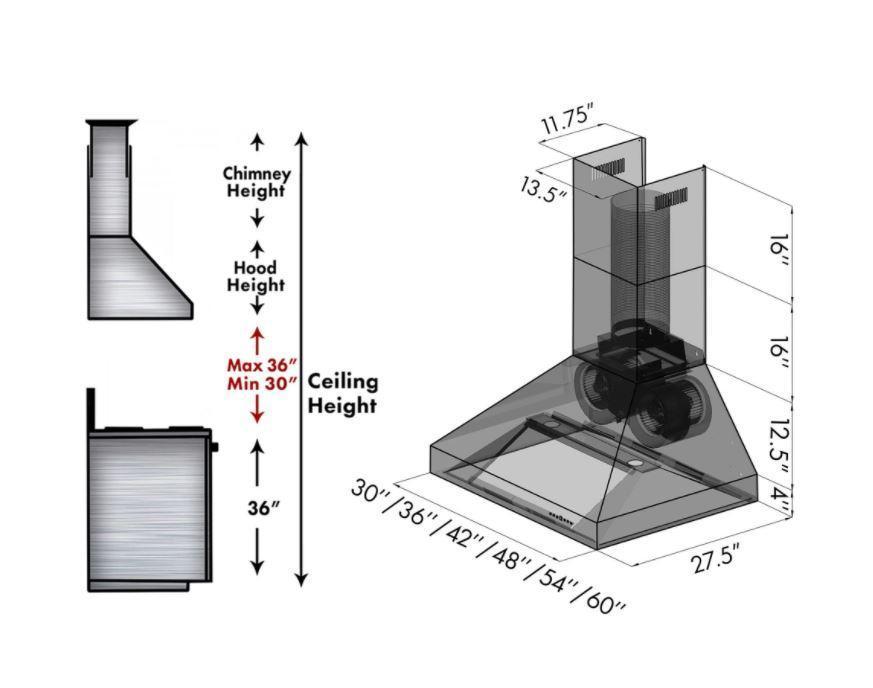

  • 697-30: 30" W x 27.5" D x 16.375" H
  • 697-36: 36" W x 27.5" D x 16.375" H
  • 697-42: 42" W x 27.5" D x 16.375" H
  • 697-48: 48" W x 27.5" D x 16.375" H
  • 697-54: 54" W x 27.5" D x 16.375" H
  • 697-60: 60" W x 27.5" D x 16.375" H


  • 13.5" W x 11.75" D x 16" H (x2) (Telescoping)
  • Chimney Short Kit and Extension(s) Available:
  • Short Kit (2-12") ~7-8 ft. Ceilings
  • 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
  • 2 PC Extension (2-36") ~10-12 ft. Ceilings

Venting Size:

  • 6" Outlet (Transition piece with backdraft damper to round ducting included)
  • Charcoal Filters (not included) available for ductless/recirculating option.
  • Airflow (Q/L/M/H): 120/240/320/400
  • Lighting: LED Lights
  • Noise Level: 20/29/34/41 (Decibels)
  • Voltage: 110V/60HZ
  • Motor: 697-30: 120/240/320/400

          697-36/42/48/60: 280/420/560/700

  • Mount Type: Wall Mounted
  • Speeds: 4 Speeds
  • Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
  • Material: 21g #430 Stainless Steel
  • Warranty: 3 Year Parts Warranty
