Description
Summit 24" Wide Single Zone Wine Cellar - SWC1127B
Summit offers a unique selection of built-in capable full-sized wine cellars for convenient wine storage in the home.

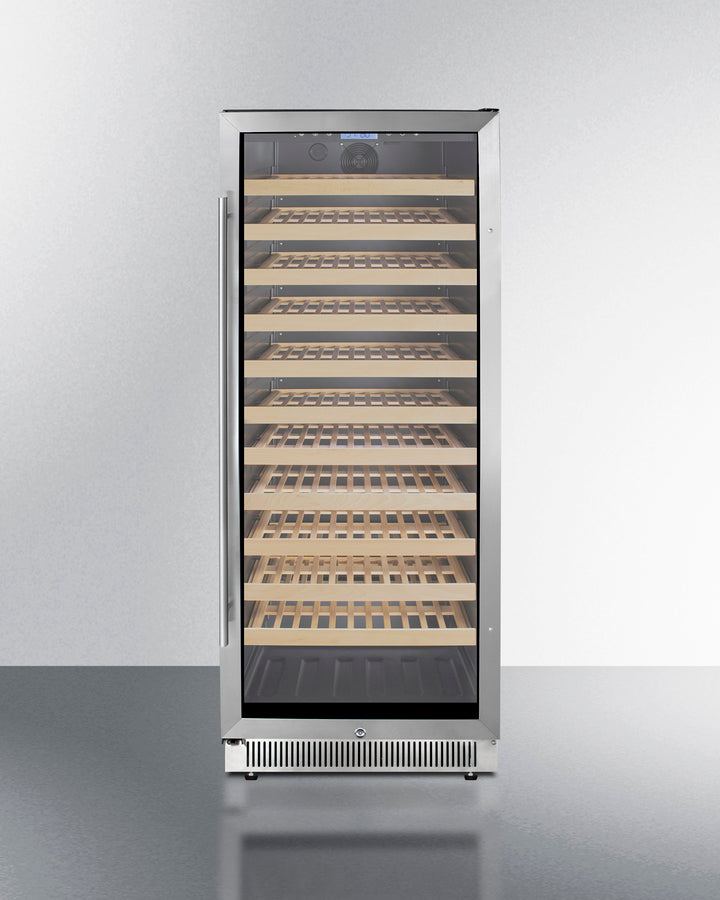

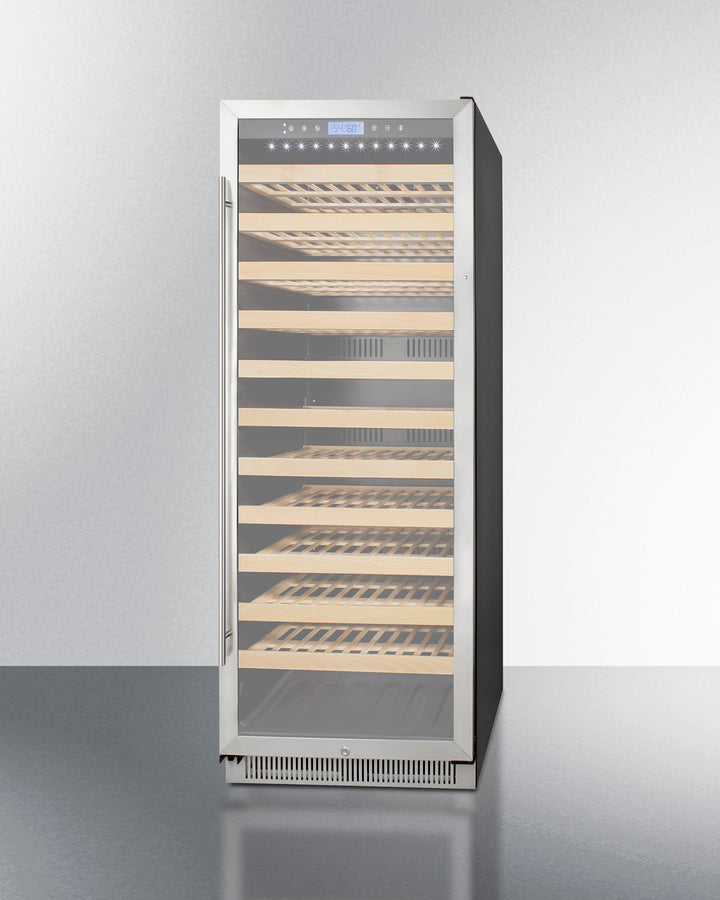

The SWC1127B is a 24" wide wine cellar featuring a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The exterior features a double pane tempered glass door with stainless steel trim.
A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings.

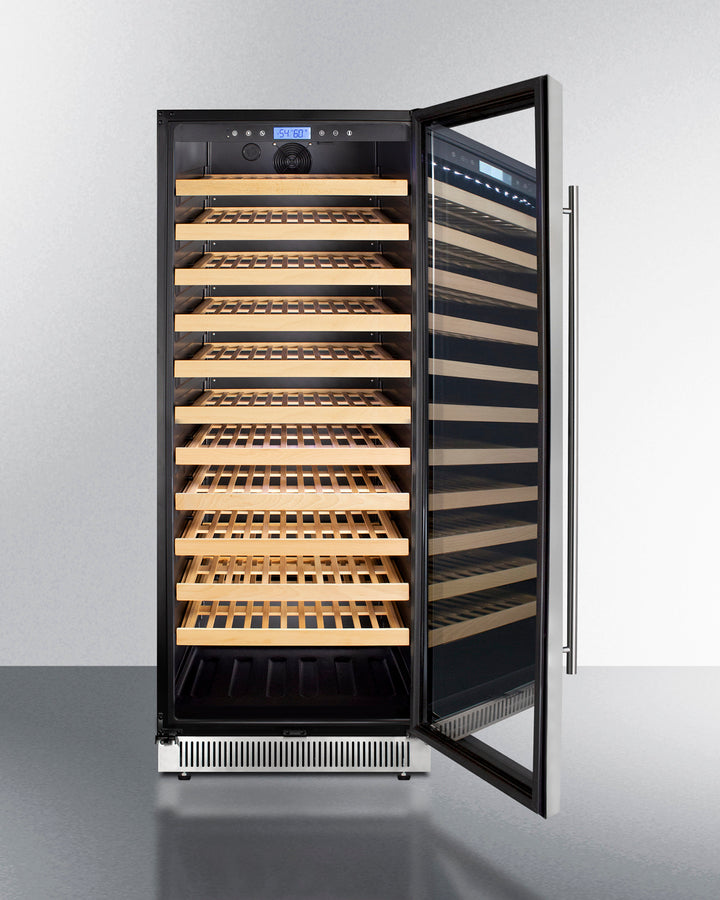

Inside, the SWC1127B includes 11 wooden shelves that slide out 50% for easy loading and unloading. Optimal storage capacity accommodates up to 127 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWC1127B can hold up to 116 bottles.
This has a single temperature zone with digital controls that can be adjusted from 41-65°F to accommodate red or white wine as needed. White LED lighting positioned at the top of the unit attractively illuminates your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.
With its convenient size, advanced features, and elegant design, the SWC1127B is the perfect addition to any home bar or kitchen seeking full capacity wine storage with a modern presentation.

Features
- Built-in capable: Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 55.75" H x 23.88"W x 28" D)

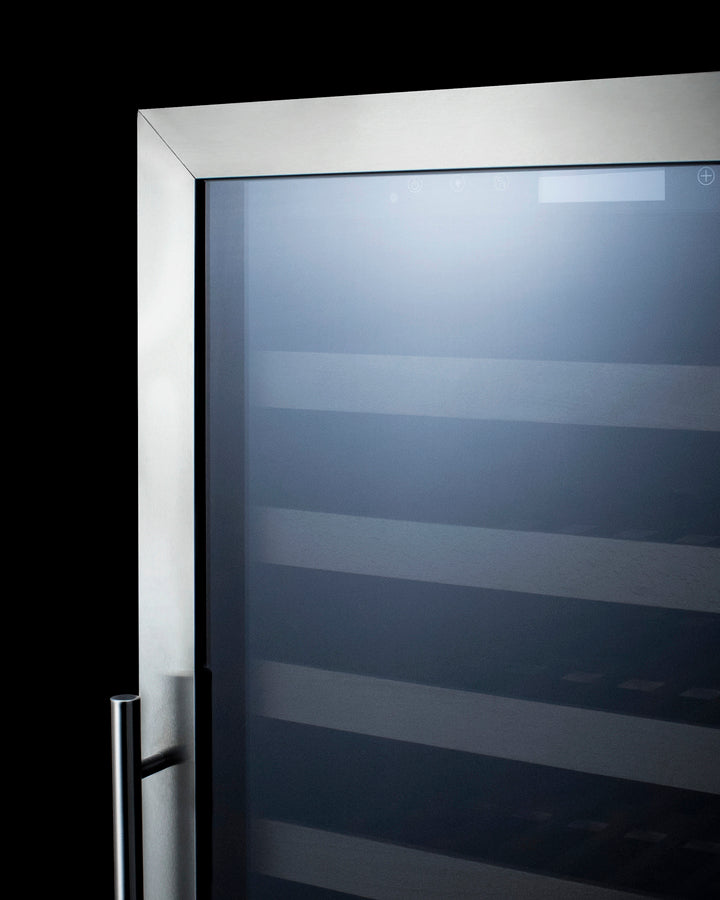

- Stainless steel trimmed glass door: Provides a full display of the interior, with two levels of glass for added protection

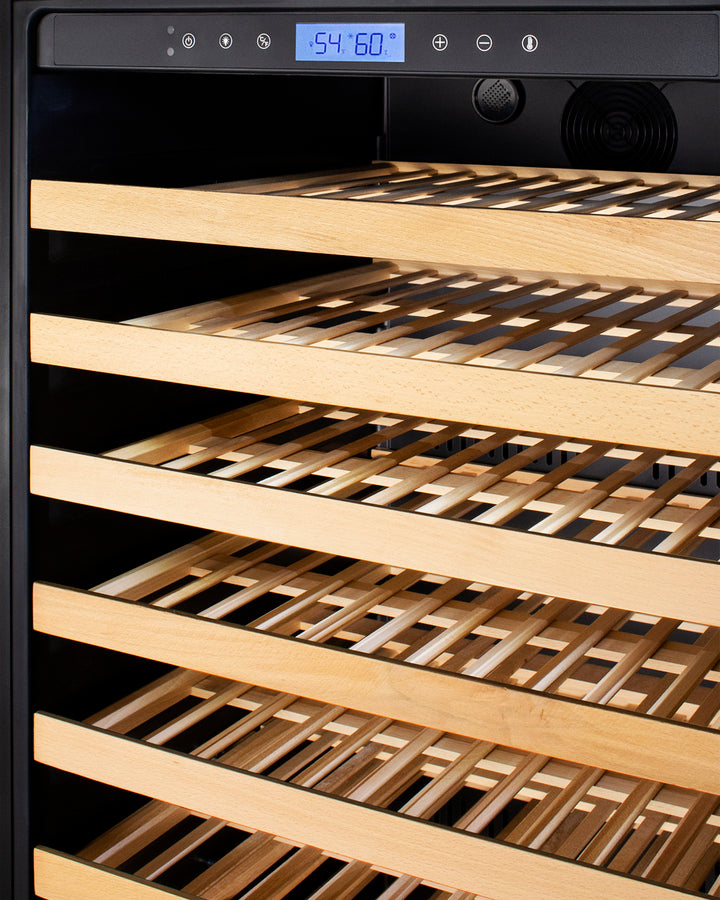

- Digital thermostat: Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

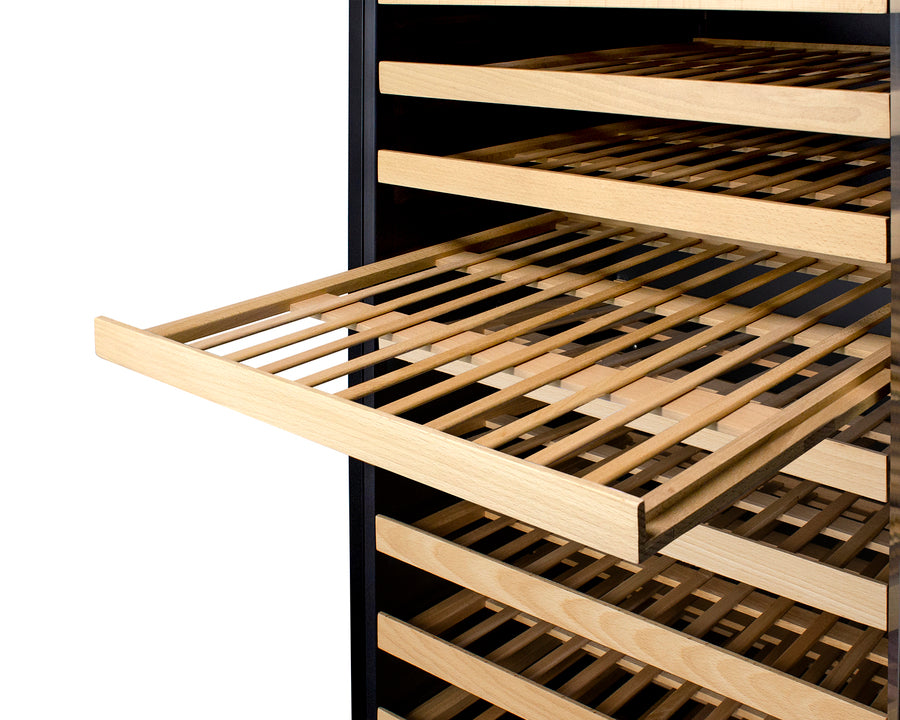

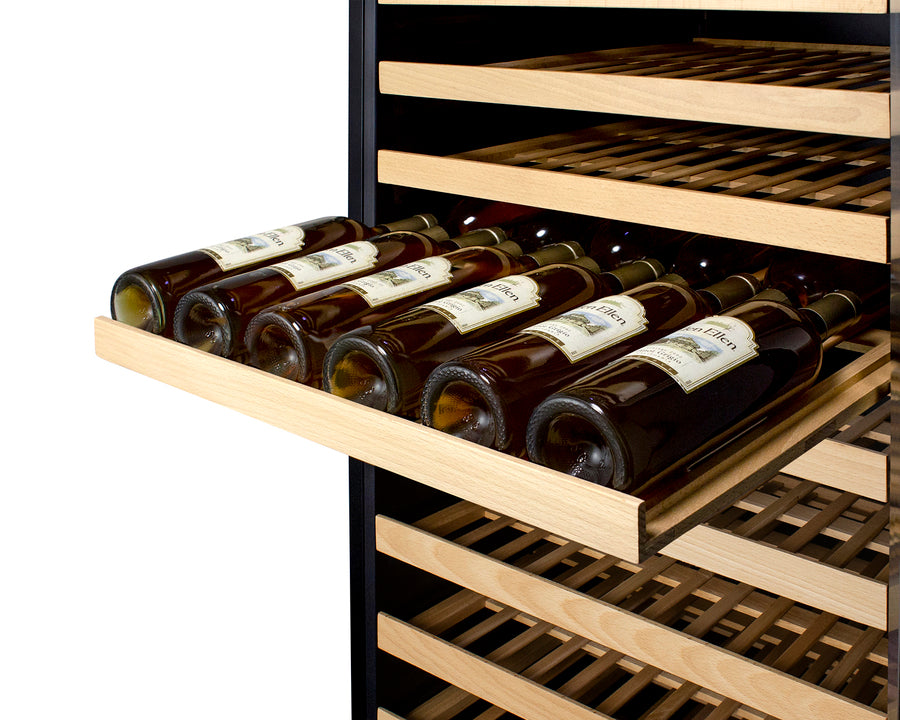

- Slide-out wooden shelving: 11 shelves slide out 50% for easier loading and optimum capacity

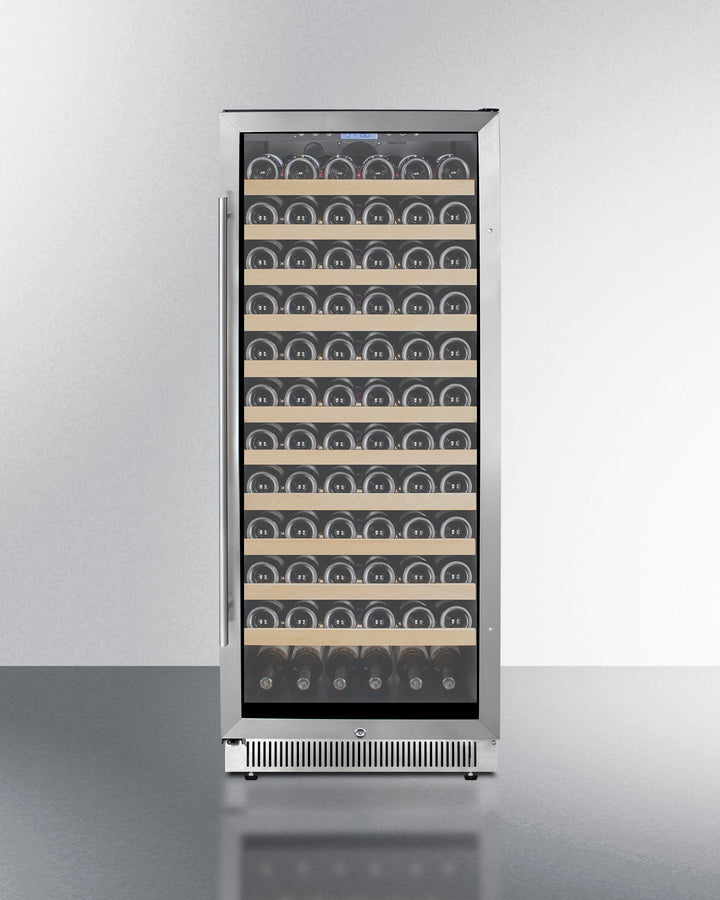

- Versatile storage: Interior can hold up to 127 standard 750ml Bordeaux style bottles (11 bottles per shelf and 6 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (11 on shelves 2-11 and 6 on the slotted floor)
- Professional handle: 37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
- LED lighting: LED lighting located at the top of the unit provides an attractive and energy-efficient illumination of your collection in a gentle white hue
- Factory-installed lock: Keyed lock secures both zones (2 keys included)
- Temperature range: Temperature range of 41-65°F for storing your collection under the proper conditions
- Ventilated stainless steel kickplate: Allows for front ventilation in an elegant design
- Charcoal filtration system: Helps to purify air for an odor-free interior
- High/low temperature alarms: Audibly sounds if the interior rises or falls out of recommended range
- Open door alarm: Alerts if unit door is ajar for more than 5 minutes
- Magnetic door gasket: Ensures a tight seal for energy savings and improved performance
- Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Sealed back: Flush back allows for a better fit and easier cleanability
- Fully finished black cabinet: Allows the unit to be used freestanding
- 100% CFC free:Environmentally friendly design with no ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 55.25" (140 cm)
- Width: 23.63" (60 cm)
- Depth: 26.5" (67 cm)
- Depth with Handle: 28.25" (72 cm)
- Depth with door at 90°: 48.75" (124 cm)
- Bottles: 127 bottles
- Defrost Type: Automatic
- Door: Glass
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 1.8
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 161.0 lbs. (73 kg)
- Shipping Weight: 186.0 lbs. (84 kg)
- Parts & Labor Warranty:1 Year
- Compressor Warranty: 5 Years
- UPC: 761101066394

Wine Cellar
- Number of Zones: 1
- Door Swing: RHD
- Reversible Factory: Reversible
- Shelf Type: Wood
- Shelf Qty: 11
- Thermostat Type: Digital
- Interior Light: Yes
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.58 oz.
- High Side PSI: 320.0
- Low Side PSI: 120.0
- Interior Height 1: 46.0" (117 cm)
- Interior Width 1: 20.38" (52 cm)
- Interior Depth 1: 21.0" (53 cm)
- Level Legs: 2
- Temperature Range: 41-65°F
Available Upgrades
Exterior
- LHD - Left hand door swing
Door
- T3F Door Tint
- T1SF Door Tint
- T4F Door Tint
- T2F Door Tint
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
