Description

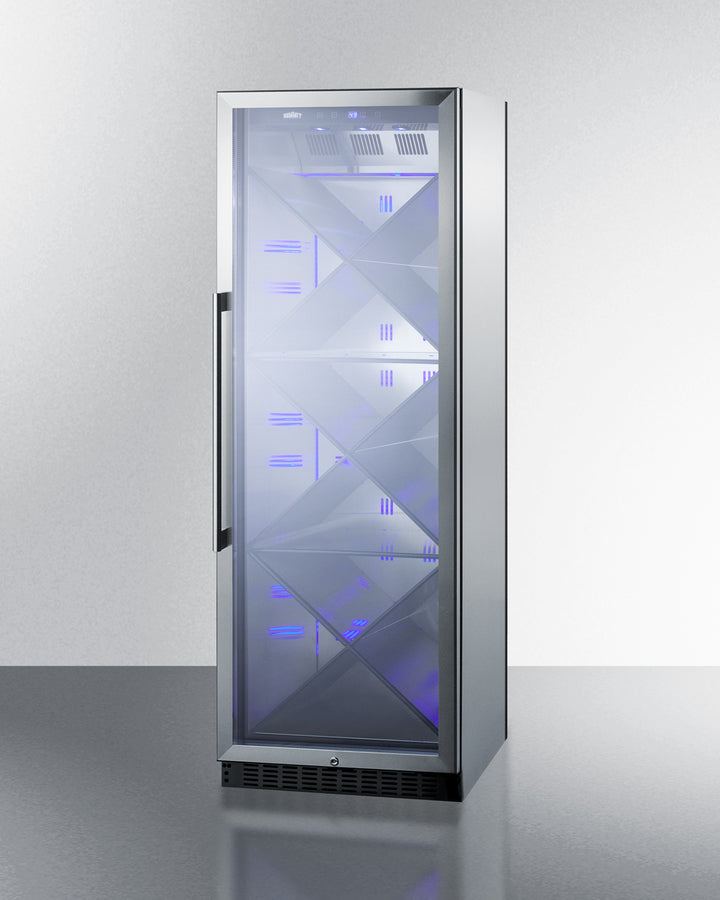

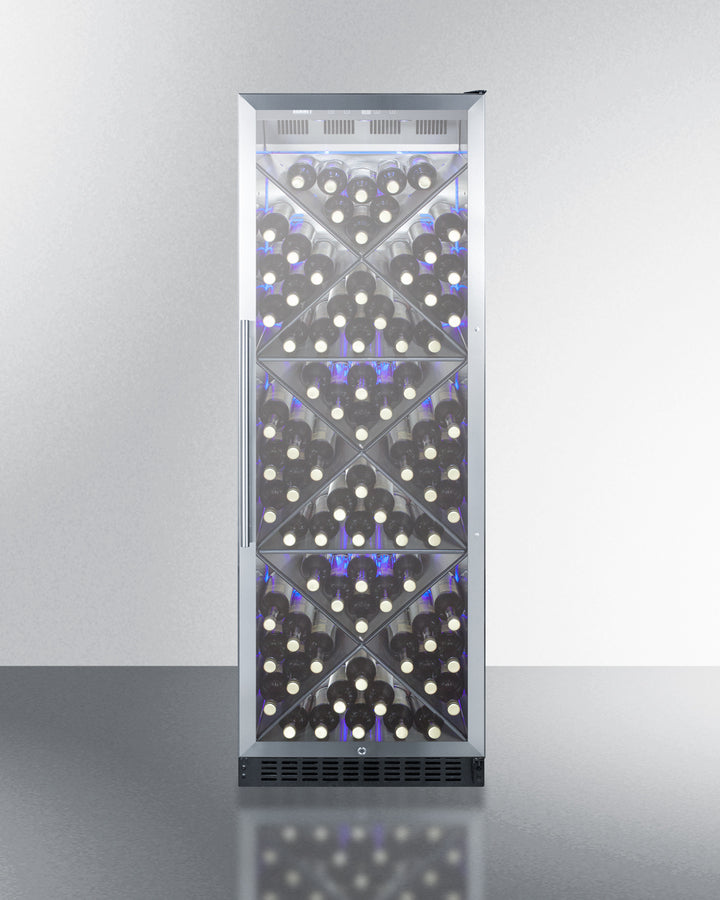

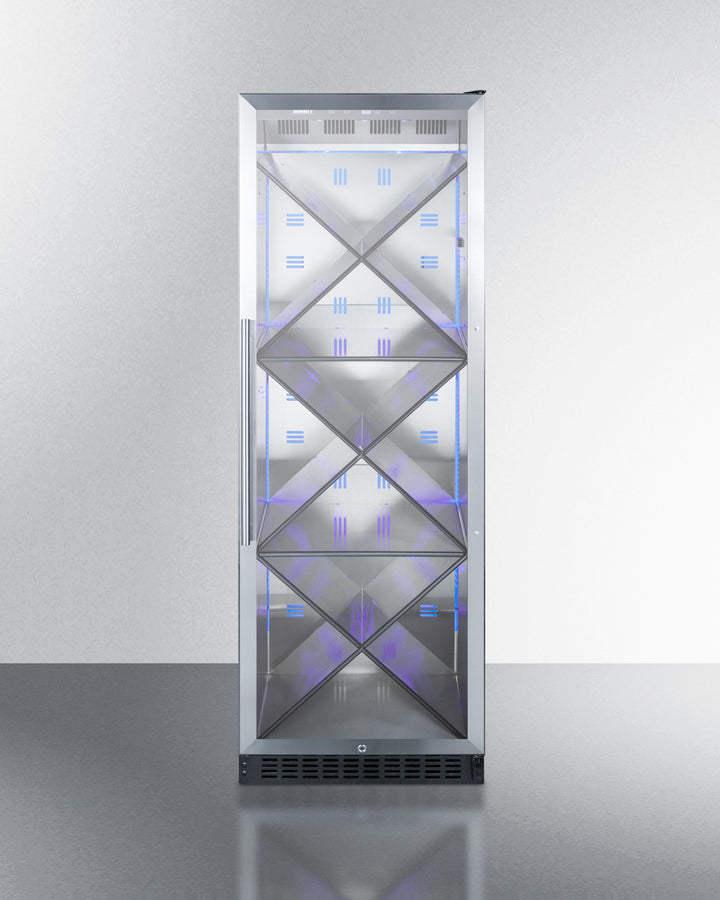

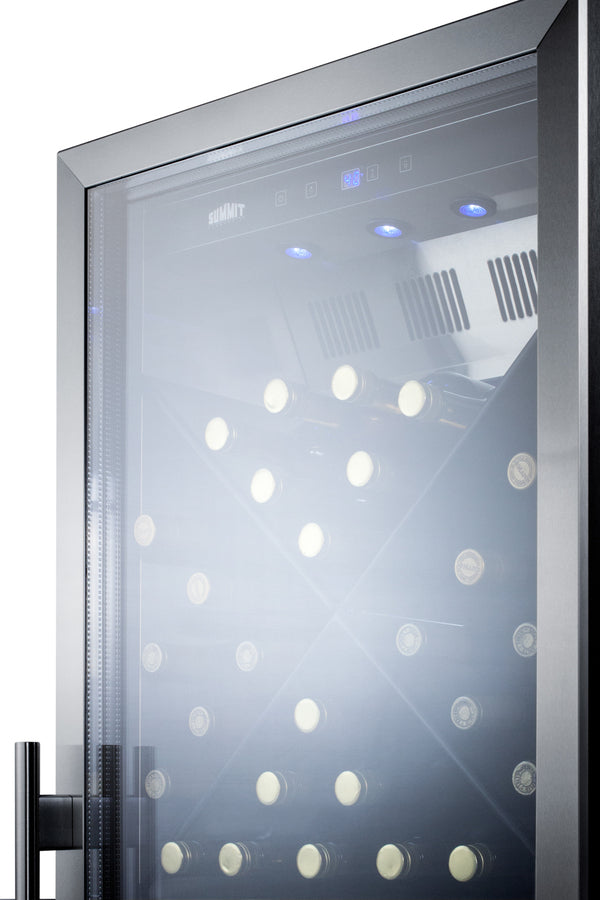

Summit 24" Wide Single Zone Commercial Wine Cellar - SCR1401XCSS
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.
The SCR1401XCSS is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. interior accommodates up to 80 Bordeaux style wine bottles. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This model comes with a right hand door swing. For a left hand version, see the SCR1401LHXCSS.
Inside, the SCR1401XCSS features Summit Commercial's unique diamond style racking system, providing a stunning cellar-style presentation that offers easy bottle access for staff. The shelving and interior walls are constructed from stainless steel for lasting durability in busy commercial settings, with a black rubberized trim built to NSF commercial standards.
This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel is conveniently located towards the top of the unit, with a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.
The SCR1401XCSS comes with stainless steel wrapped cabinet. For a similar unit designed to store champagne bottles, see the SCR1401CHCSS.
Features
- Commercially approved: Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
- Slim fit: Just 24" wide and deep for an easy fit in any setting
- Diamond style wine racks: Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation
- Rubberized safety trim: Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look
- Stainless steel interior: Walls are constructed from stainless steel for added strength and easy cleanup
- Double pane tempered glass door: Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
- Interior LED lighting: Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
- Self-closing door: Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
- Digital thermostat: Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
- Wide temperature range: Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
- Frost-free operation: No-frost convenience requires no manual defrosting
- Factory installed lock: Keyed lock for a secure interior (2 keys included)
- Fan-forced cooling: Internal fan ensures the interior is evenly cooled from top tobottom
- High temperature alarm: Alarm sounds if the interior temperature rises out of suggested range
- Professional handle: Attractive design in stainless steel to complete the look
- Right hand door swing: For a left hand version, see the SCR1401LHXCSS
- Sabbath mode setting: Optional setting lets you disable the lighting and alarm for up to 48 hours
- Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Temperature Memory Function: Unit will retain its last settings when power is restored in the event of power loss
- Stainless steel wrapped cabinet: Allows the unit to be used freestanding
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 69.75" (177 cm)
- Width: 23.63" (60 cm)
- Depth: 23.75" (60 cm)
- Depth with Handle: 25.63" (65 cm)
- Depth with door at 90°: 46.75" (119 cm)
- Capacity: 12.6 cu.ft. (357 L)
- Bottles: 80 bottles
- Defrost Type: Frost-Free
- Door: Glass
- Cabinet: Stainless Steel
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.7
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 330.0 lbs. (150 kg)
- Shipping Weight :360.0 lbs. (163 kg)
- Parts & Labor Warranty :1 Year
- Compressor Warranty: 5 Years
- UPC: 761101065045
Wine Cellar
- Number of Zones: 1
- Door Swing: RHD
- Reversible; No
- Shelf Type: Steel
- Thermostat Type: Digital
- Interior Light: Yes
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.76 oz.
- High Side PSI: 270.0
- Low Side PSI: 105.0
- Interior Height 1: 59.75" (152 cm)
- Interior Width 1: 19.5" (50 cm)
- Interior Depth 1: 11.25" (29 cm)
- Compressor Step Height: 4.5" (11 cm)
- Compressor Step Width: 19.5" (50 cm)
- Compressor Step Depth: 4.5" (11 cm)
- Temperature Range: 36 to 68ºF
- Sabbath Mode: Yes
Available Upgrades
Door
- T3F Door Tint
- T1SF Door Tint
- T4F Door Tint
- T2F Door Tint
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
