Summit 24" Wide Single Zone Built-In Commercial Wine Cellar - SCR610BLCHPNR

Call for availability
SKU: SCR610BLCHPNR
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$3,140.00

Description

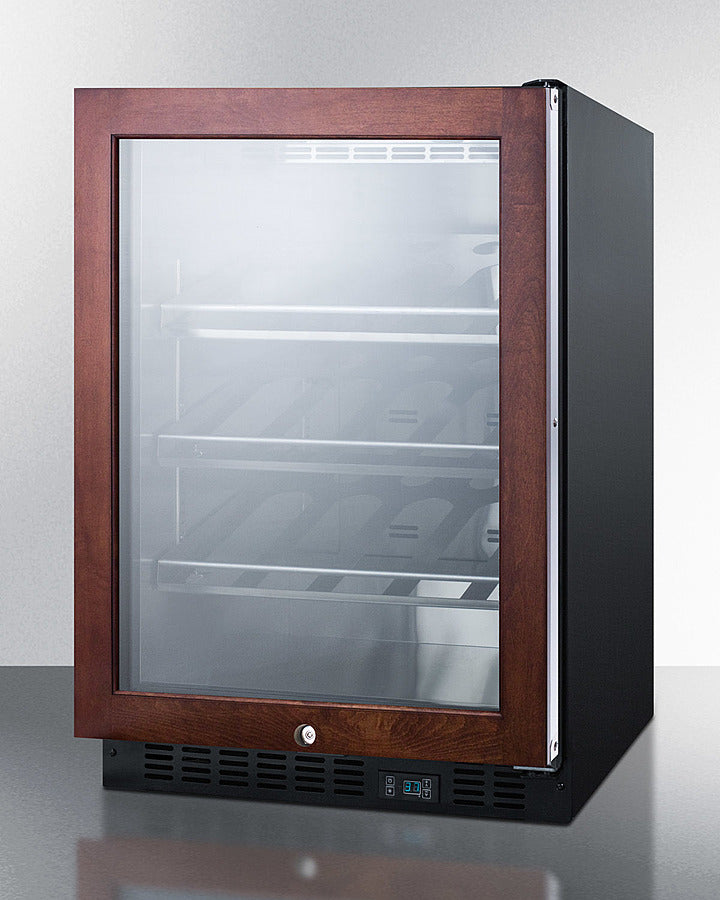

Summit 24" Wide Single Zone Built-In Commercial Wine Cellar - SCR610BLCHPNR


Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

The SCR610BLCHPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use.

The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.

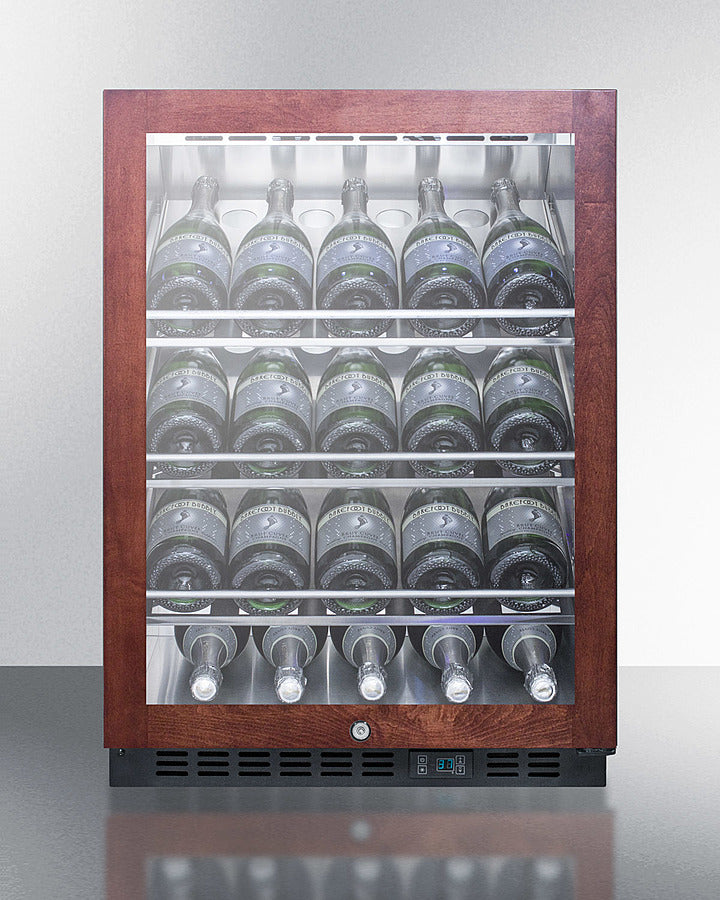

Inside, the SCR610BLCHPNR includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior.

With its unique design and commercial grade construction, the SCR610BLCHPNR is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.

Summit 24" Wide Single Zone Built-In Commercial Wine Cellar

Features

  • Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Built-in capable: Make the best use of space by installing this unit under the counter and flush with other cabinetry
  • Champagne racks: Stainless steel shelves are specially sized to store wider wine and champagne bottles
  • Panel-ready door trim: Door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)
  • Bottle display: Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

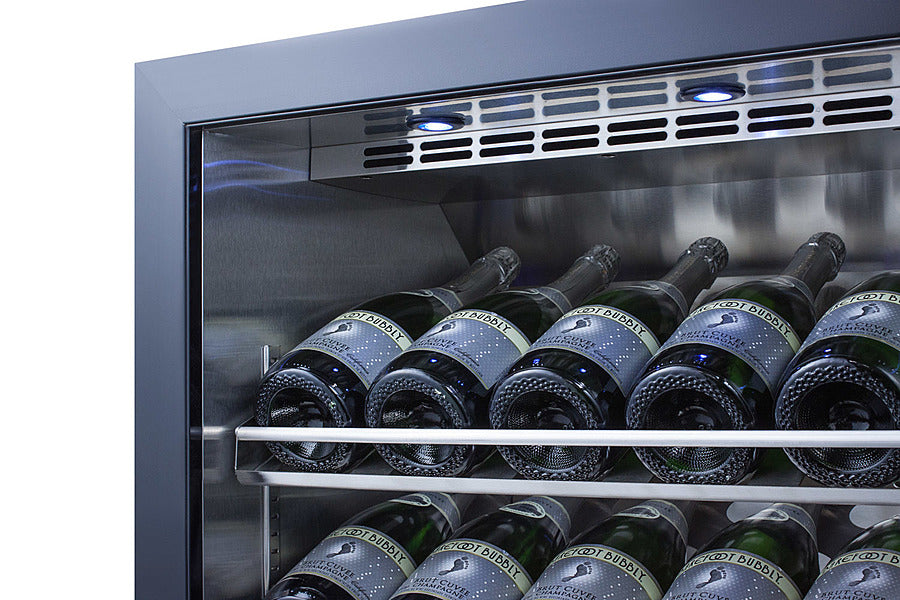

  • Interior LED lighting: Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
  • Double pane tempered glass door: Stainless steel trimmed glass door offers a full display of stored items
  • Stainless steel interior: Walls are constructed from stainless steel for added strength and easy cleanup
  • Factory installed lock: Keyed lock for a secure interior
  • Digital thermostat: Intuitive digital controls ensure easy temperature management
  • Factory reversible door: Door ships with a right hand door swing. For a left hand version, add option "LHD"
  • Automatic defrost: Reduced user maintenance with automatic defrost
  • Fan-forced cooling: Internal fan ensures the interior is evenly cooled from top to bottom
  • Sealed back: Space saving design with easier cleanability
  • Fully finished black cabinet: Allows the unit to be used freestanding
  • 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
  • CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

  • Height of Cabinet:  34.0" (86 cm)
  • Width: 23.63" (60 cm)
  • Depth: 23.5" (60 cm)
  • Depth with door at 90°: 45.5" (116 cm)
  • Capacity: 5.0 cu.ft. (142 L)
  • Bottles: 20 bottles
  • Defrost Type: Automatic
  • Door: Glass/Panel-Ready Frame
  • Cabinet: Black
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
  • Sanitation: ETL-S
  • Amps: 0.8
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 140.0 lbs. (64 kg)
  • Shipping Weight: 145.0 lbs. (66 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • UPC: 761101065502
Summit 24" Wide Single Zone Built-In Commercial Wine Cellar

Wine Cellar

  • Number of Zones: 1
  • Door Swing: RHD
  • Reversible Factory:Reversible
  • Shelf Type: Steel
  • Shelf Qty: 3
  • Thermostat Type: Digital
  • Interior Light: Yes
  • Fan Type: Interior and Exterior
  • Refrigerant Type: R600a
  • Refrigerant Amount: 0.99 oz.
  • High Side PSI: 270.0
  • Low Side PSI: 105.0
  • Interior Height 1: 25.0" (64 cm)
  • Interior Width 1: 19.38" (49 cm)
  • Interior Depth 1: 17.38" (44 cm)
  • Compressor Step Height: 3.75" (10 cm)
  • Compressor Step Width: 19.38" (49 cm)
  • Compressor Step Depth: 4.63" (12 cm)
  • Temperature Range: 36 to 43ºF
  • Sound Level: 37.4 dB

Available Upgrades

Exterior

  • CAS6 6" casters
  • Extra key
  • LHD - Left hand door swing
  • SSK - Stainless steel kickplate

Door

  • T4 Door Tint
  • T3 Door Tint
  • T2 Door Tint
  • T1S Door Tint
  • T1 Door Tint

Manufacturer Resources



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
