Description

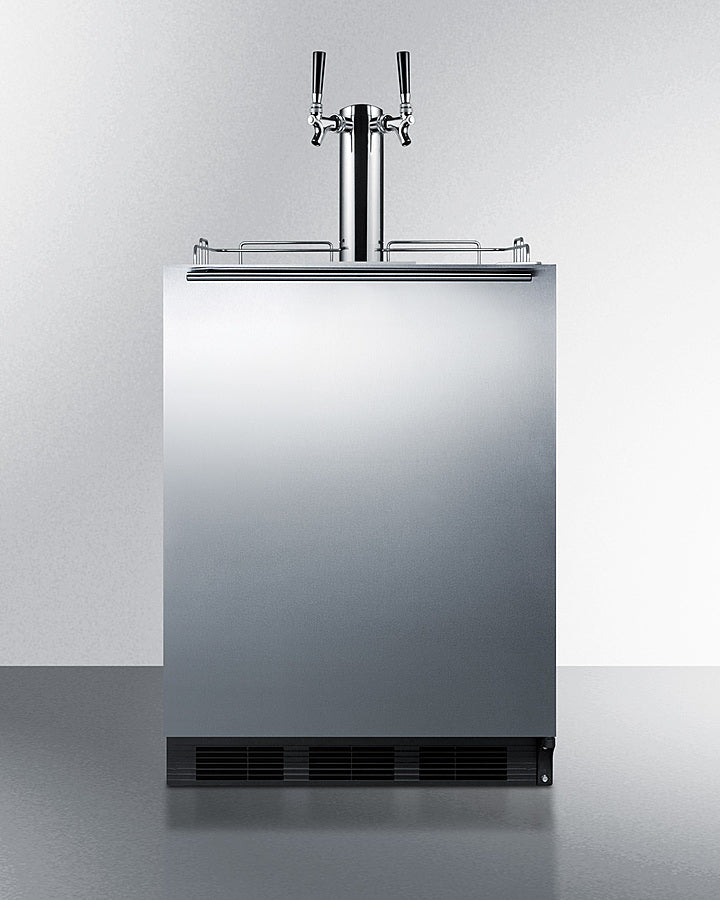

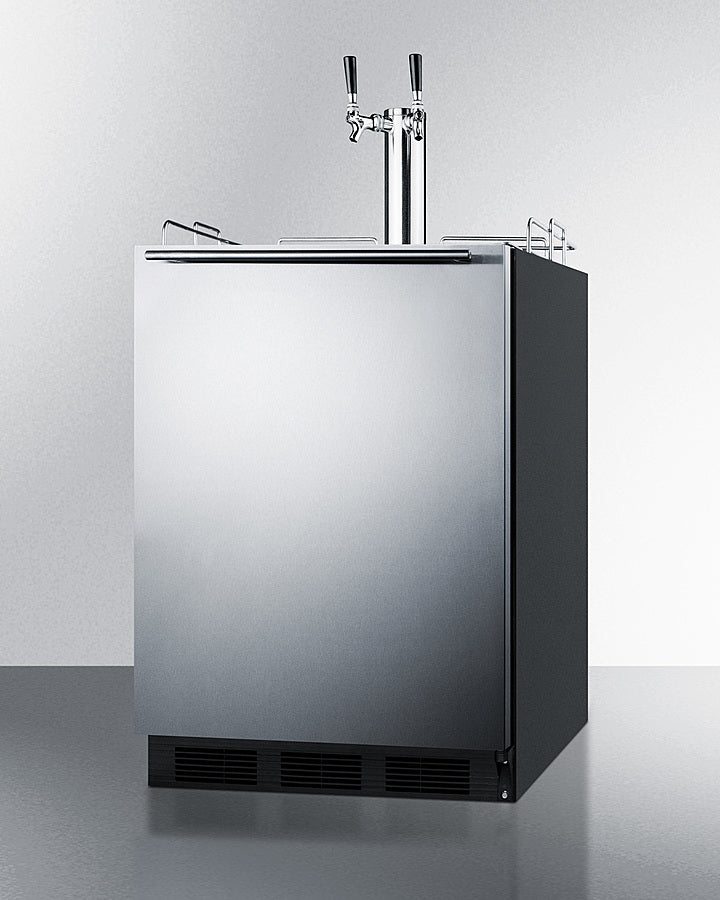

Summit 24" Wide Built-In Wine Kegerator, ADA Compliant - SBC58BLBIADAWKDTWIN
Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial wine dispensers made in Europe.

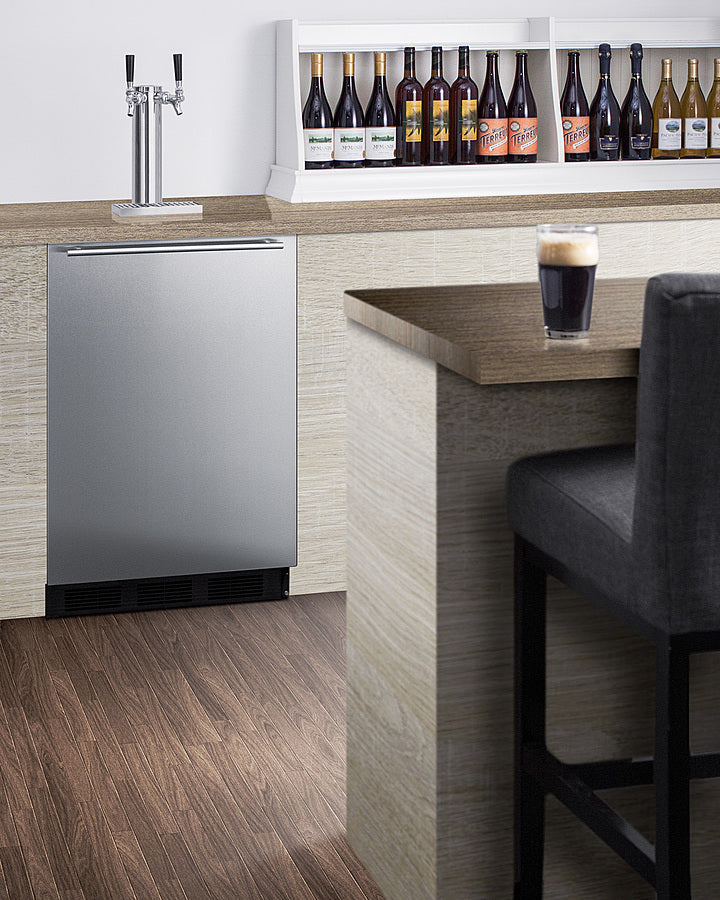

Sized at 32 inches high, the SBC58BLBIADAWKDTWIN is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features a user-reversible 304 grade stainless steel wrapped door complete with a stainless steel handle mounted horizontally for a modern look.

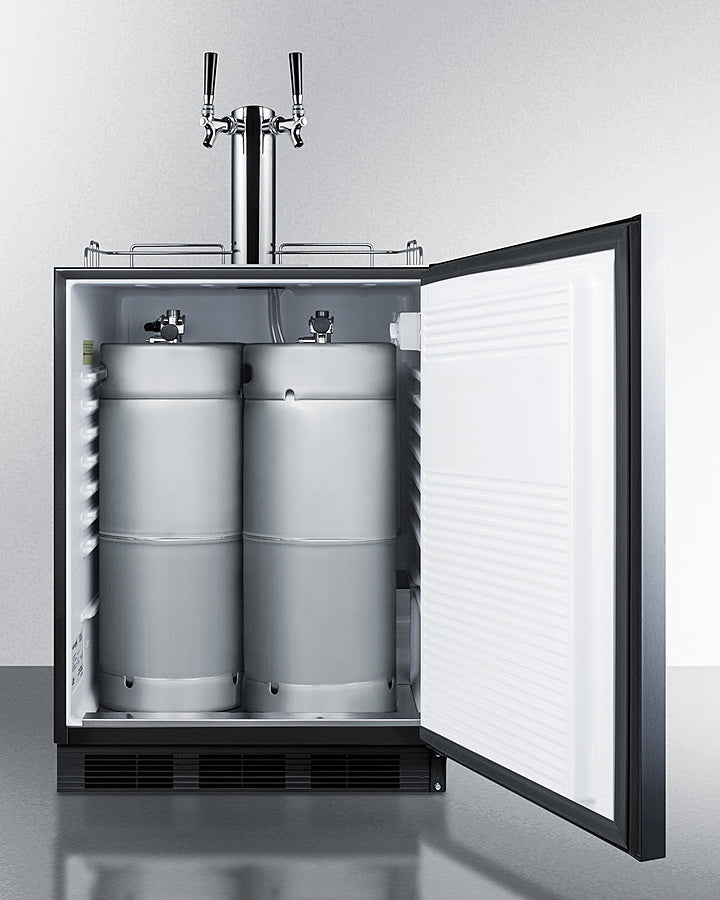

We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. The SBC58BLBIWKDTWINADA ships with a complete Sankey American dual tap kit complete with a draft tower, 5 lb. nitrogen/CO2 tank and regulator, and all the equipment you need to serve white wine on tap. Inside, the SBC58BLBIADAWKDTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning.
The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A bracket is located inside, allowing you to keep the tank inside and save on exterior depth.
The SBC58BLBIADAWKDTWIN is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors, as well as coffee and beer dispensing options. Browse our complete line for more choices.
Features
- ADA compliant height: Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
-
Commercially approved: ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
-
Built-in capable: Front-breathing design allows fully recessed installation under counters
-
Complete dual tap kit: Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg
-
Stainless steel wrapped door: 304 grade stainless steel for a professional look with lasting durability
-
Professional handle: Thin handle with common 14mm diameter in brushed stainless steel mounted horizontally
-
Adjustable thermostat: Interior dial thermostat ensures easy temperature management
-
Automatic defrost: No-frost operation for minimum user maintenance
-
Reversible door: User-reversible door swing allows you to easily adjust to better accommodate your setting
-
Stainless steel drip tray: Removable two-piece drip tray included for added convenience
-
Stainless steel guard rail: Durable railing makes it easier to neaten service
- Interior light: Turn the light on when you need it and off when you're done with a convenient rocker switch
-
Nitrogen/CO2 tank included: Canister is best suited for a 75% nitrogen/25% CO2 mixture
-

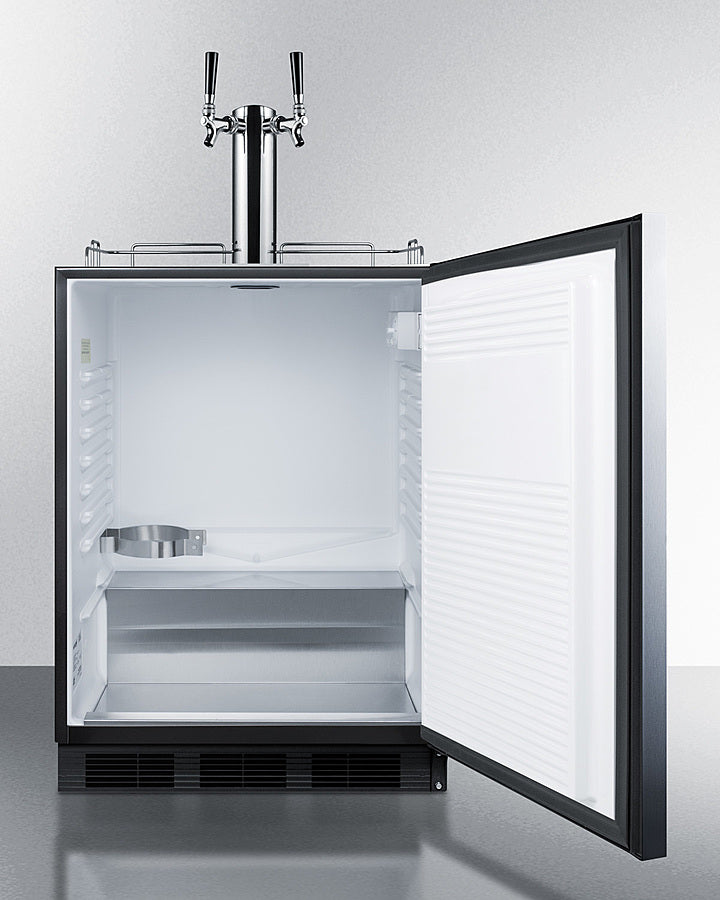

Interior CO2 holder: Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
-
Stainless steel floor cover: Interior includes steel cover to protect the floor when loading kegs
-
One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
-
Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
-
Fully finished cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.25" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 22.75" (58 cm)
- Depth with Handle: 24.25" (62 cm)
- Depth with door at 90°: 45.0" (114 cm)
- Capacity: 5.5 cu.ft. (156 L)
- Defrost Type: Automatic
- Door: Stainless Steel
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.2
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 110.0 lbs. (50 kg)
- Shipping Weight: 120.0 lbs. (54 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101069746
Kegerator
- Door: Swing RHD
- Reversible: Yes
- Tap Kit: Yes
- Height with Tap: 47.5" (121 cm)
- Number of Taps: 2
- Thermostat Type: Dial
- Interior Light: Yes
- Fan Type: Exterior
- Refrigerant: R600a
- Refrigerant Amount: 0.64 oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Inter Height: 25.75" (65 cm)
- Interior Width: 21.0" (53 cm)
- Interior Depth: 17.75" (45 cm)
- Compressor Step Height: 6.5" (17 cm)
- Compressor Step Width: 21.0" (53 cm)
- Compressor Step Depth: 5.5" (14 cm)
- Temperature Range: 34º to 43ºF
Available Upgrades
Lock
- L-Installed Lock
Exterior
- SSK - Stainless steel kickplate
- DT - Digital thermostat
- LHD - Left hand door swing
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
