Summit 24" Wide Built-In Refrigerator-Freezer (Panel Not Included) - CT663BKBIIF

Call for availability
SKU: CT663BKBIIF
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$1,765.00

Description

Summit 24" Wide Built-In Refrigerator-Freezer (Panel Not Included) - CT663BKBIIF


SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration. The CT663BBI Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage in any home kitchen.

Sized with a 24” footprint, CT663BKBIIF refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, a larger interior than many units in this size class. The front-breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use.

Summit 24" Wide Built-In Refrigerator-Freezer (Panel Not Included)

This model features a black exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to match your own cabinetry style. Customers provide their own handle.

Inside, the CT663BKBIIF features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.

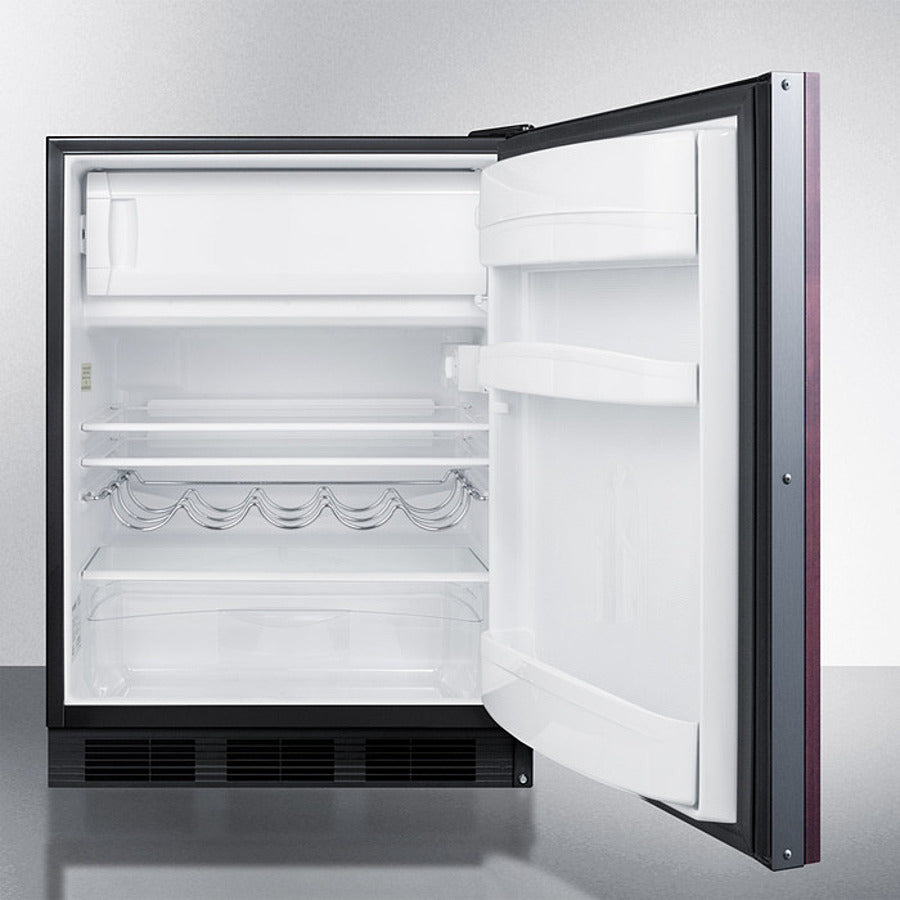

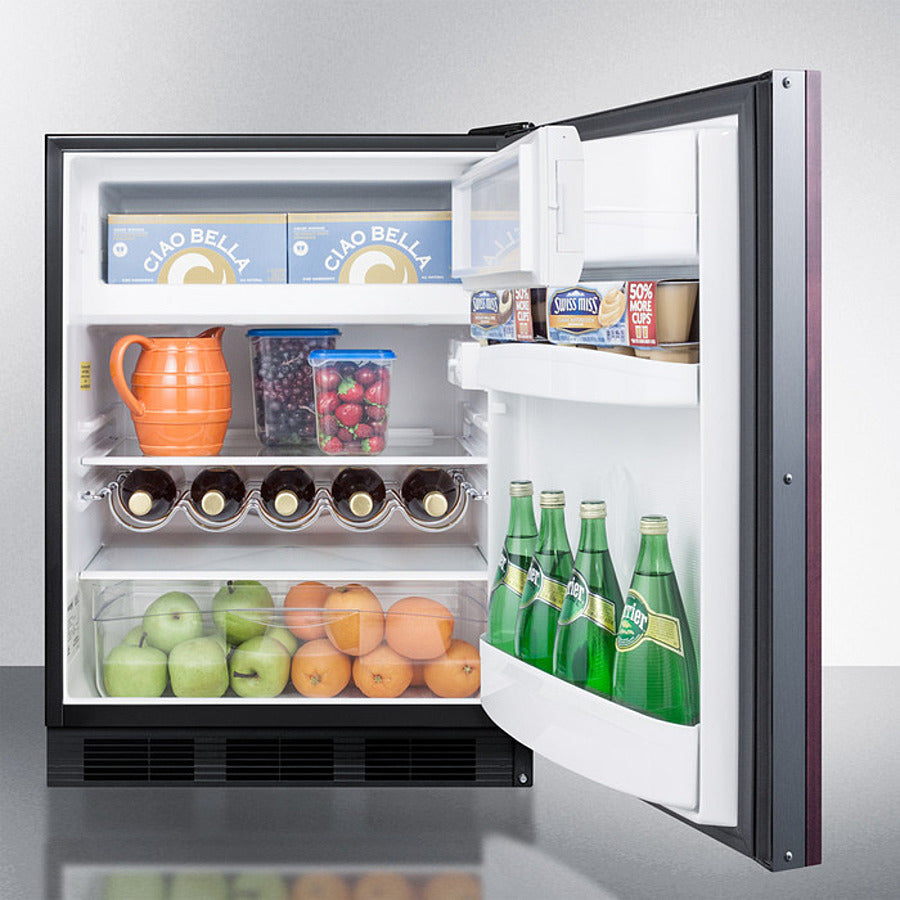

The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT663BKBIIF is the perfect refrigerator-freezer for any home in need of versatile storage under the counter.

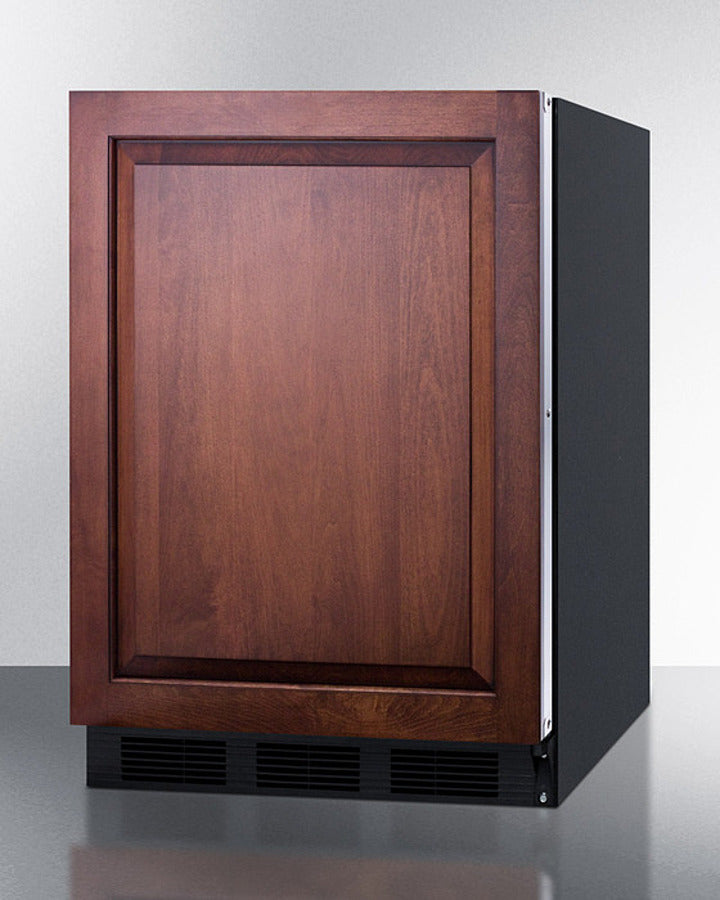

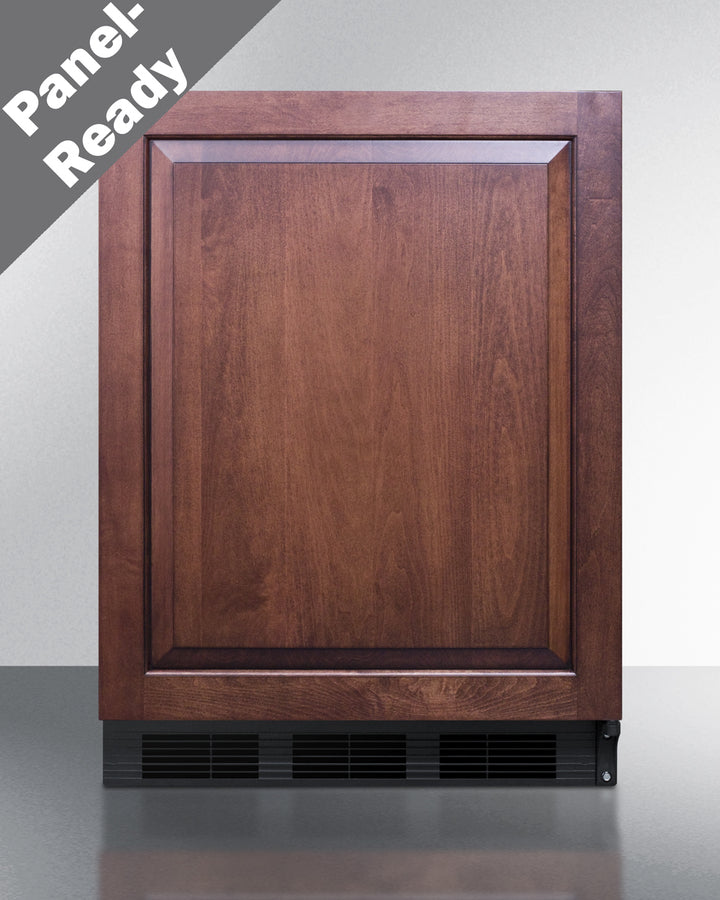

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Features

  • Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
  • Slim under-counter dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
  • Panel-ready door: Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
  • Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
  • Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
  • Adjustable glass shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
  • Door shelves: Store tall bottles and condiments right on the door for convenient access
  • Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
  • Crisper drawer: Get the longest life and best taste out of produce by storing greens in lower slide drawer
  • Interior light: Automatically illuminates when the door is opened
  • Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
  • Adjustable thermostat: Dial thermostat located inside for easy temperature management
  • Fully finished black cabinet: Allows the unit to be used freestanding
  • Height Adjustable: Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
  • 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
  • CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

  • Height of Cabinet: 33.25" (84 cm)
  • Width: 23.63" (60 cm)
  • Depth: 23.5" (60 cm)
  • Depth with door at 90°: 45.38" (115 cm)
  • Capacity: 5.1 cu.ft. (144 L)
  • Defrost Type: Cycle
  • Door: Panel-Ready
  • Cabinet: Black
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
  • Energy Usage/Year: 365.0kWh/year
  • Amps: 1.4
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 100.0 lbs. (45 kg)
  • Shipping Weight: 105.0 lbs. (48 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • UPC: 761101068541

Refrigerator-Freezer

  • Door Swing: RHD
  • Reversible: Factory Reversible
  • Adjustable Shelves: Yes
  • Crisper Qty: 1
  • Crisper Finish: Transparent
  • Crisper Cover: Glass
  • Wine Bottle Shelving: Yes
  • Interior Light: Yes
  • Refrigerator - Interior Height: 18.0" (46 cm)
  • Refrigerator - Interior Width: 21.0" (53 cm)
  • Refrigerator - Interior Depth: 18.0" (46 cm)
  • Refrigerator - Capacity: 4.5 cu.ft
  • Refrigerator - Shelf Type: Glass
  • Refrigerator - Shelf Qty: 2
  • Refrigerator - Full Door Shelves: 3
  • Freezer - Interior Height: 5.25" (13 cm)
  • Freezer - Interior Width: 19.0" (48 cm)
  • Freezer - Interior Depth: 11.5" (29 cm)
  • Freezer - Capacity: 0.6 cu.ft
  • Thermostat Type: Dial
  • Fan Type: Exterior
  • Refrigerant Type: R600a
  • Refrigerant Amount: 0.92 oz.
  • High Side PSI: 180.0
  • Low Side PSI: 80.0
  • Level Legs: 4
  • Compressor Step Height: 5.5" (14 cm)
  • Compressor Step Width: 21.0" (53 cm)
  • Compressor Step Depth: 6.0" (15 cm)
Summit 24" Wide Built-In Refrigerator-Freezer (Panel Not Included)

Available Upgrades

Exterior

  • DL2B: Factory installed NIST calibrated digital data logger (DDL)
  • TT: Installed thermometer
  • PH: Probe Hole
  • Legs to raise unit height
  • CAS6 6" casters
  • CAS3 3" casters
  • Alarm
  • ODA: Open door alarm
  • LHD: Left hand door swing
  • SSK
  • HG: Hospital grade cord

Interior

  • FCGP: Internal fan with gel packs
  • FC: Internal Fan

Manufacturer Resources



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
