Description
Summit 24" Wide Built-In Refrigerator-Freezer ADA Compliant - CT661WBISSHHADA
SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The CT661BIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters.

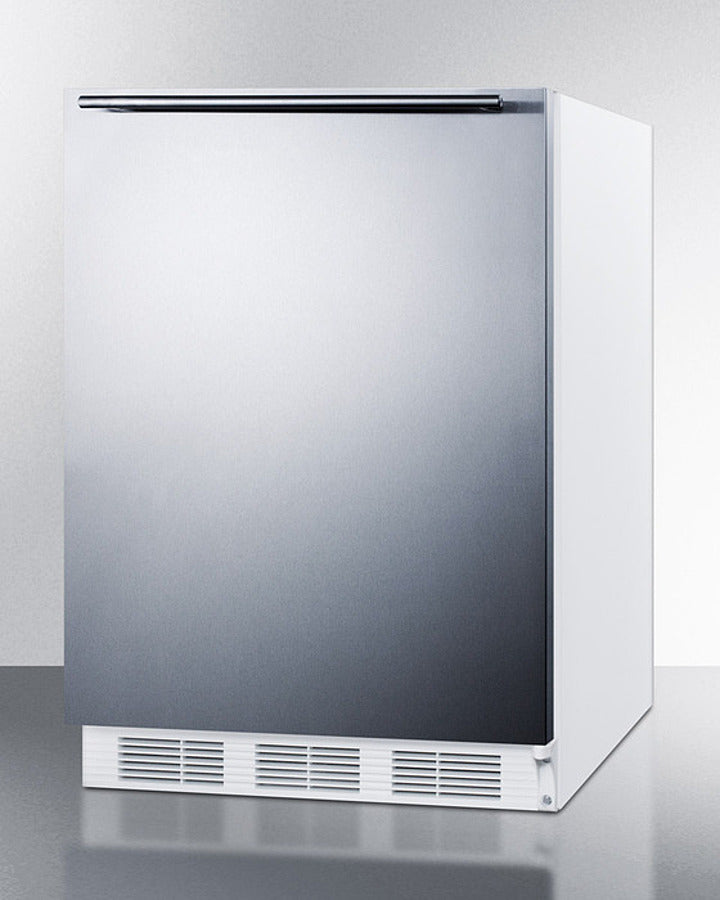

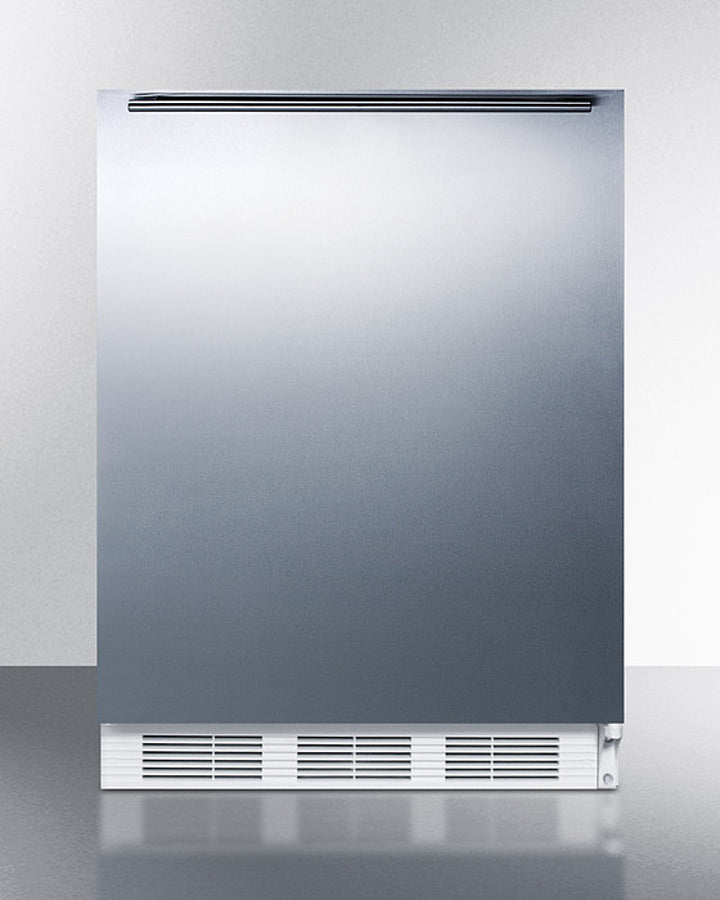

Sized with a 24” footprint, the CT661WBISSHHADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes with a white cabinet and stainless steel wrapped door. A thin stainless steel handle is mounted horizontally for a sleek, modern look.
Inside, the CT661WBISSHHADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.

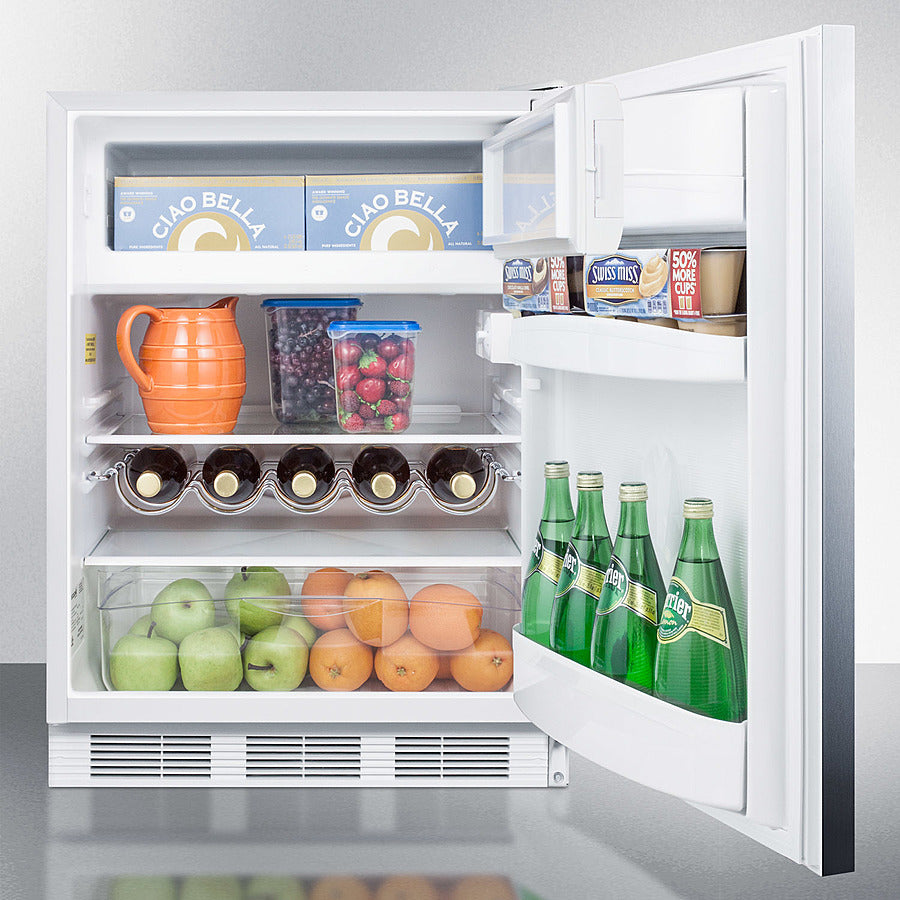

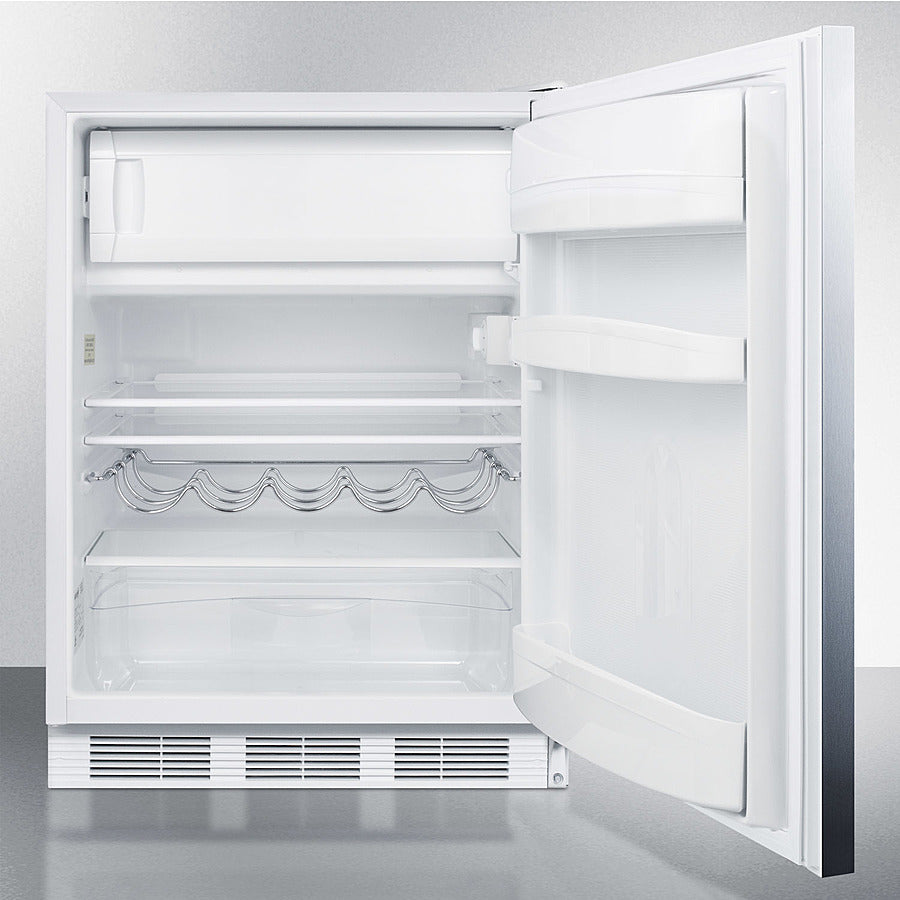

The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.
With its ideal dimensions and user-friendly features, the CT661WBISSHHADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter. For this unit with a black cabinet finish, see the CT663BKBISSHHADA.
Features
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Slim under-counter dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Stainless steel wrapped door: Durable 304 grade wrapping
- Professional horizontal handle: Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Adjustable glass shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Clear crisper drawer: Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
- Door storage: Store tall bottles and condiments right on the door for convenient access
- Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Interior light: Automatically illuminates when you open the door
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Reversible door: User-reversible door swing for added flexibility
- Fully finished white cabinet: Allows the unit to be used freestanding
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.38" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.0" (58 cm)
- Depth with door at 90°: 45.38" (115 cm)
- Capacity> 5.1 cu.ft. (144 L)
- Defrost Type: Cycle
- Door: Stainless Steel
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Energy Usage/Year: 365.0kWh/year
- Amps: 1.4
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 100.0 lbs. (45 kg)
- Shipping Weight: 105.0 lbs. (48 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101068350
Refrigerator-Freezer
- Door Swing: RHD
- Reversible: Yes
- Adjustable Shelves: Yes
- Crisper Qty: 1
- Crisper Finish: Transparent
- Crisper Cover: Glass
- Wine Bottle Shelving: Yes
- Interior Light: Yes
- Refrigerator - Interior Height: 18.0" (46 cm)
- Refrigerator - Interior Width: 21.0" (53 cm)
- Refrigerator - Interior Depth: 18.0" (46 cm)
- Refrigerator - Capacity: 4.5 cu.ft
- Refrigerator - Shelf Type: Glass
- Refrigerator - Shelf Qty: 2
- Refrigerator - Full Door Shelves: 3
- Freezer - Interior Height: 5.25" (13 cm)
- Freezer - Interior Width: 19.0" (48 cm)
- Freezer - Interior Depth: 11.5" (29 cm)
- Freezer - Capacity: 0.6 cu.ft
- Thermostat Type: Dial
- Fan Type: Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.92 oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Level Legs: 4
- Compressor Step Height: 5.5" (14 cm)
- Compressor Step Width: 21.0" (53 cm)
- Compressor Step Depth: 6.0" (15 cm)
Available Upgrades
Exterior
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
- TT: Installed thermometer
- PH: Probe Hole
- Alarm
- SS Hinges
- SCD: Self-closing door
- ODA: Open door alarm
- LHD: Left hand door swing
- Latch for door
- SSK
- HG: Hospital grade cord
Lock
- L-Installed Lock
- KEYPAD
- AC Keypad
Interior
- FCGP: Internal fan with gel packs
- FC: Internal Fan
Door
- STO: Step-To-Open Door Pedal
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
