Summit 20" Wide Built-in Refrigerator-Freezer ADA Compliant - ALRF49BIF


Summit Appliance offers a wide range of built-in under-counter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

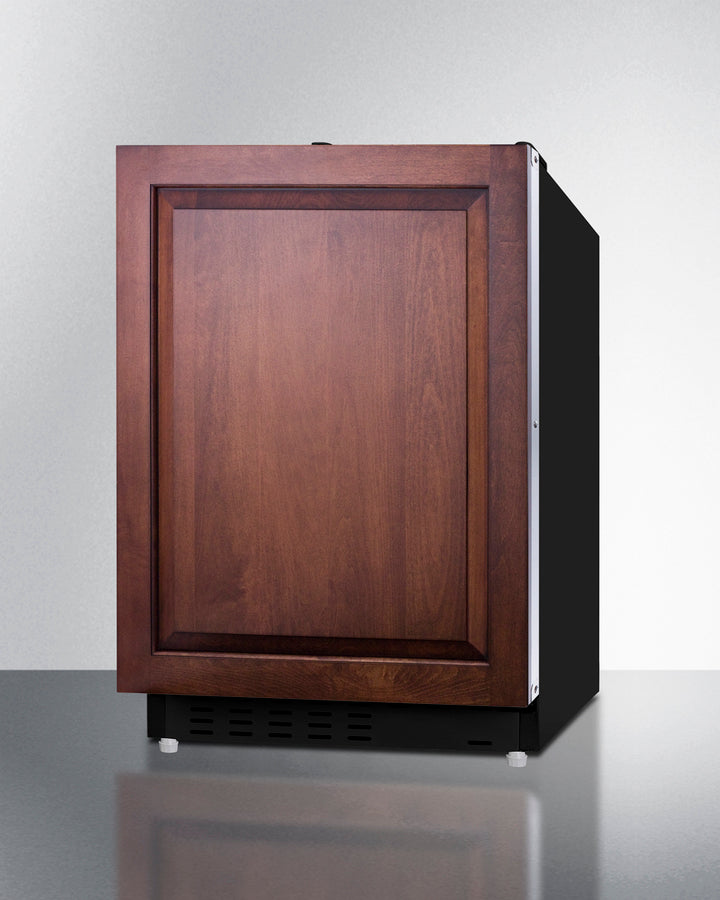

The ALRF49BIF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance.

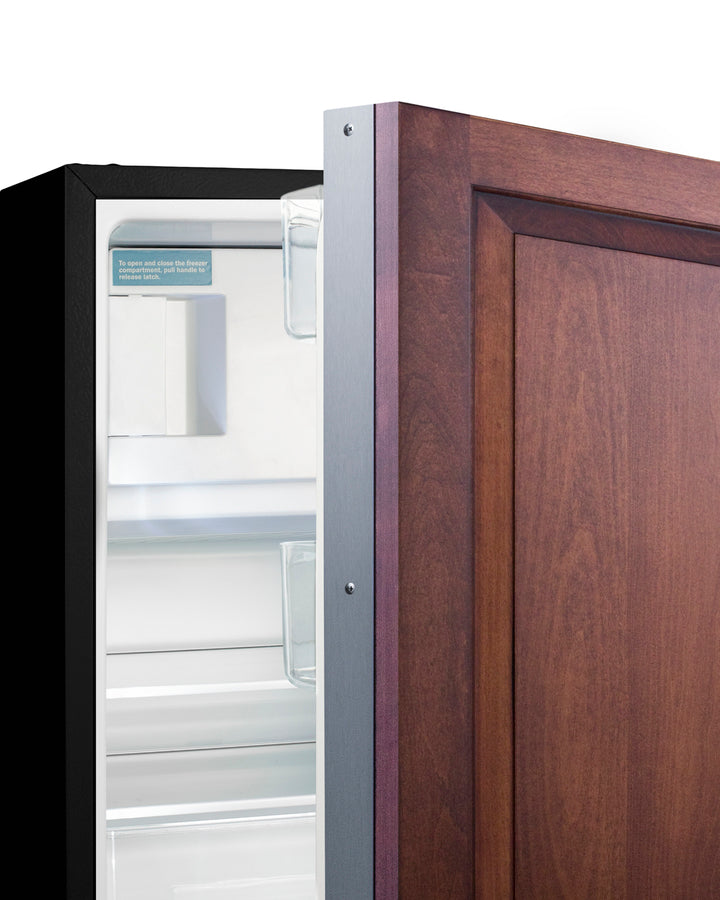

The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth.

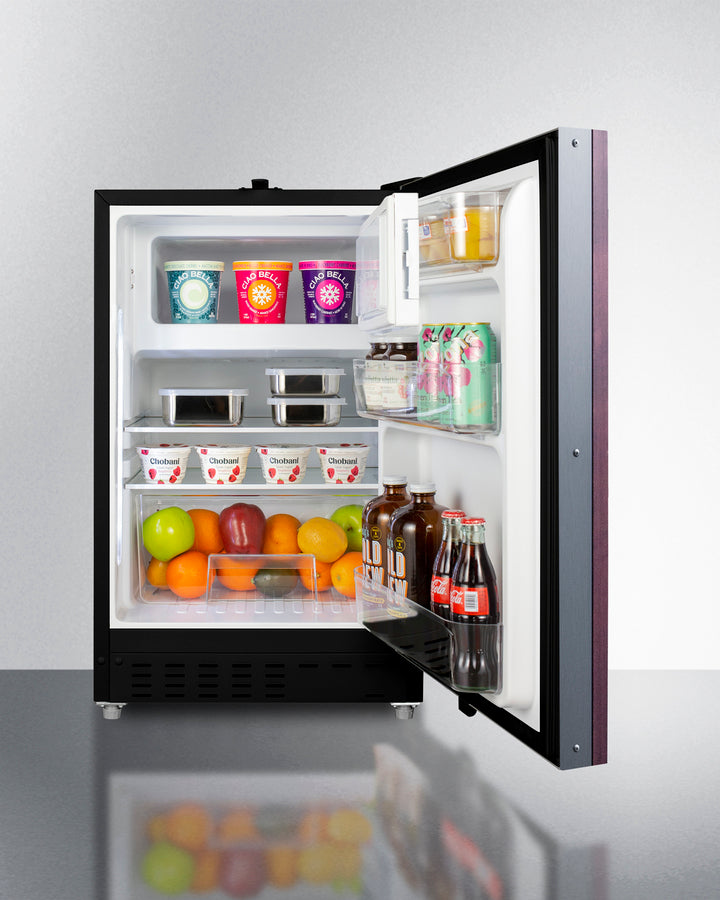

Summit 20" Wide Built-in Refrigerator-Freezer ADA Compliant

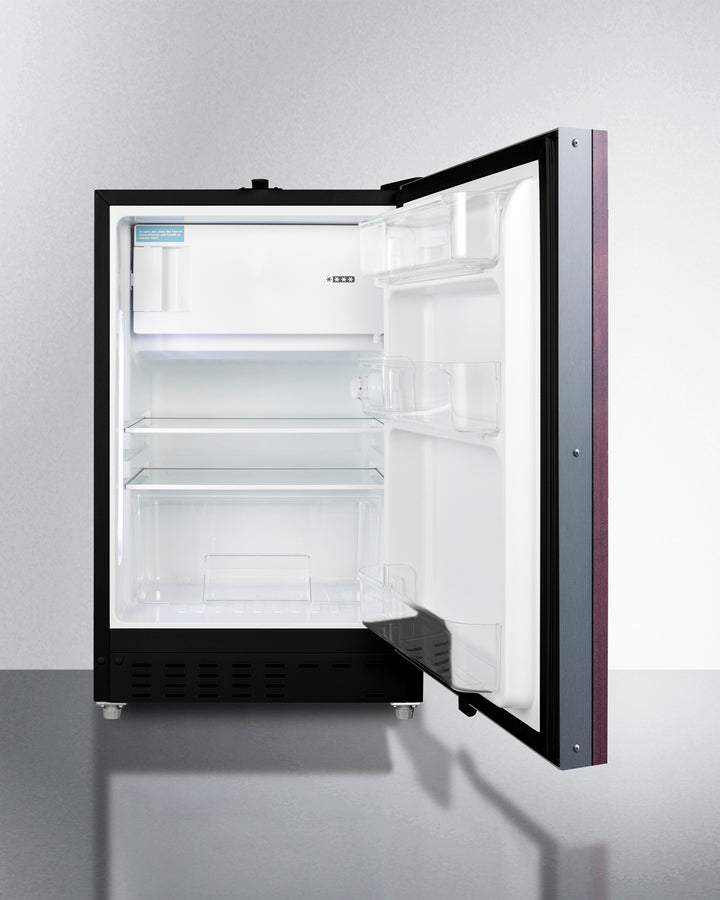

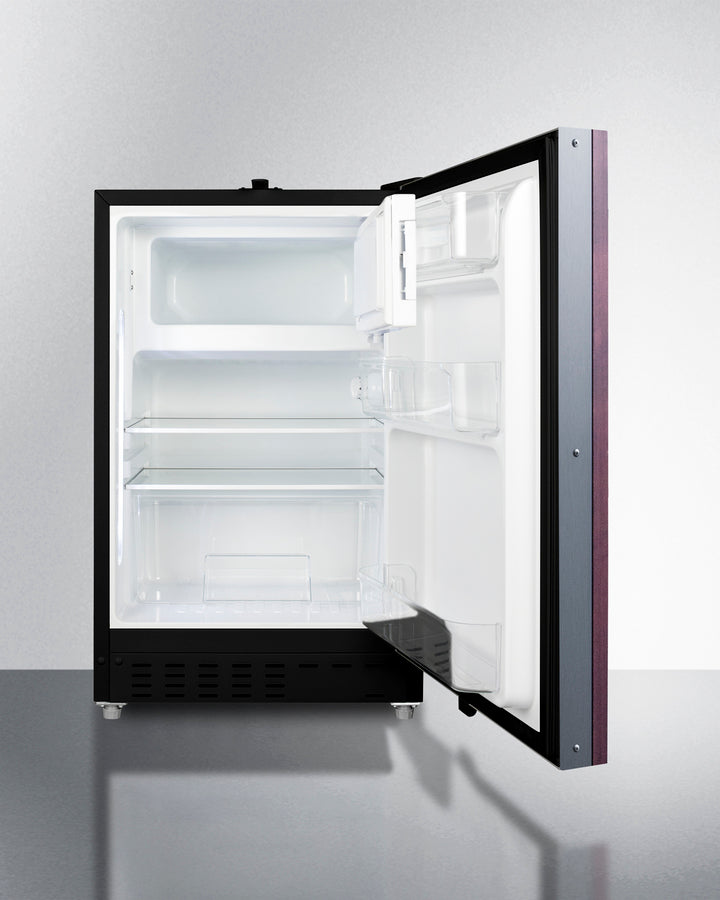

Inside, the ALRF49BIF features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens.

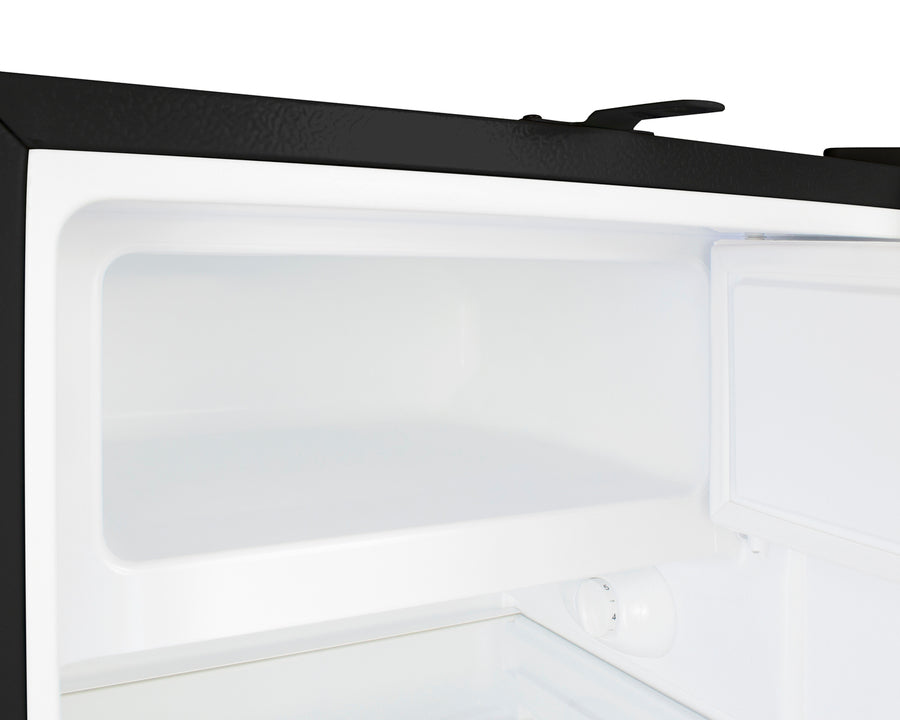

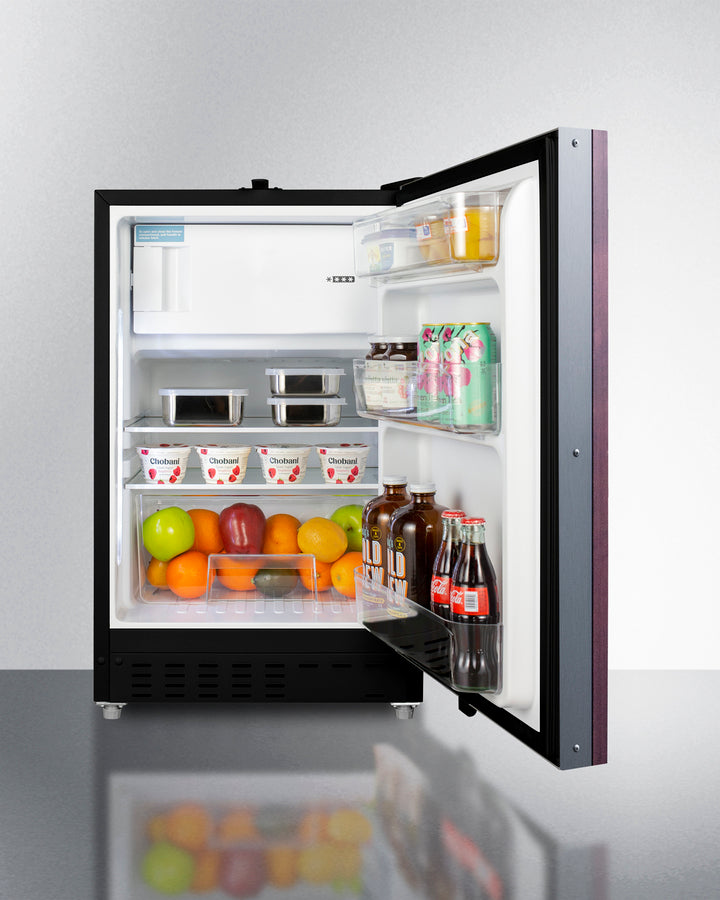

Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.

With its compact size and convenient features, the ALRF49BIF is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

Features

  • ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
  • Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter

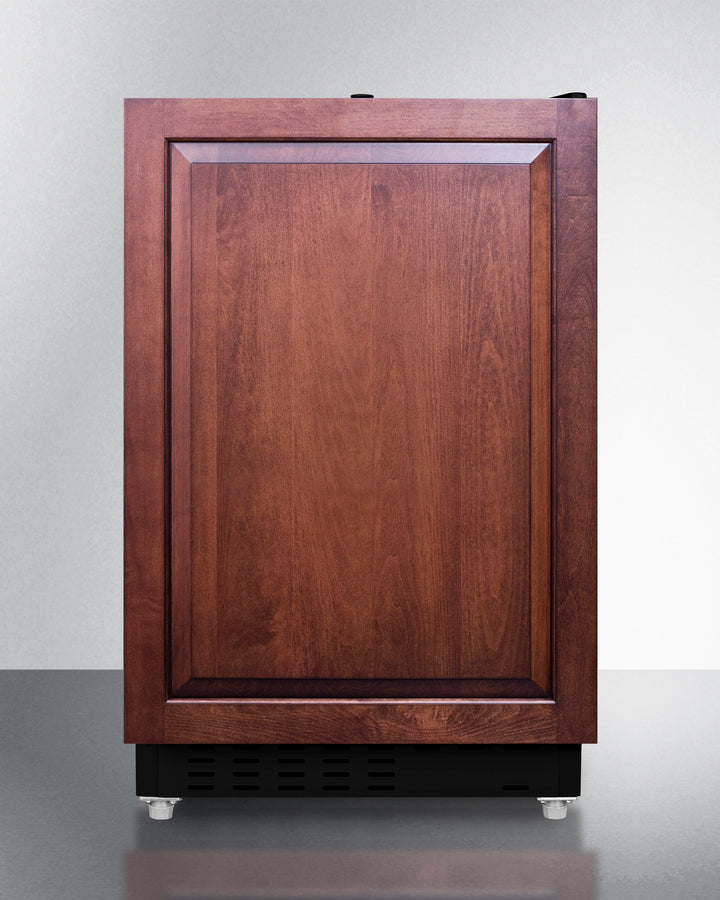

  • Panel-ready door: Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles

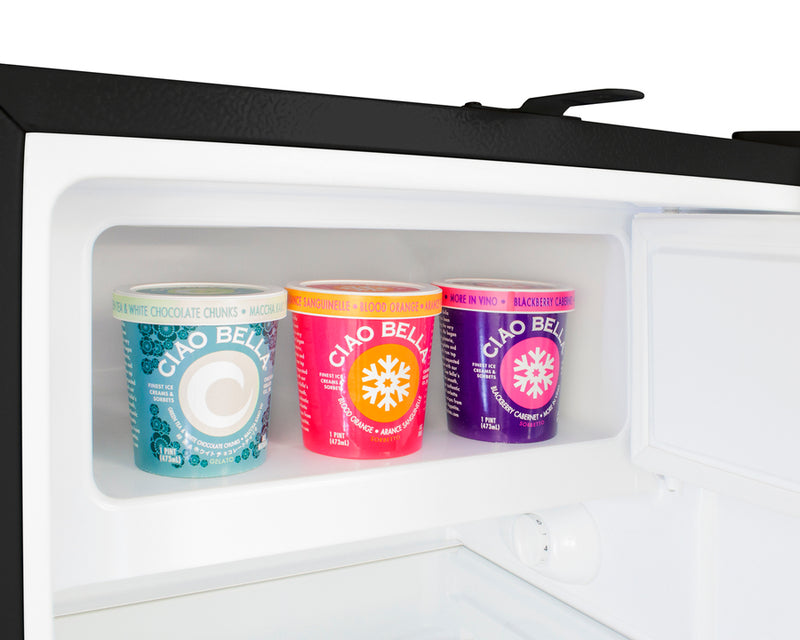

  • Freezer compartment: Interior freezer compartment offers convenient storage for frozen items

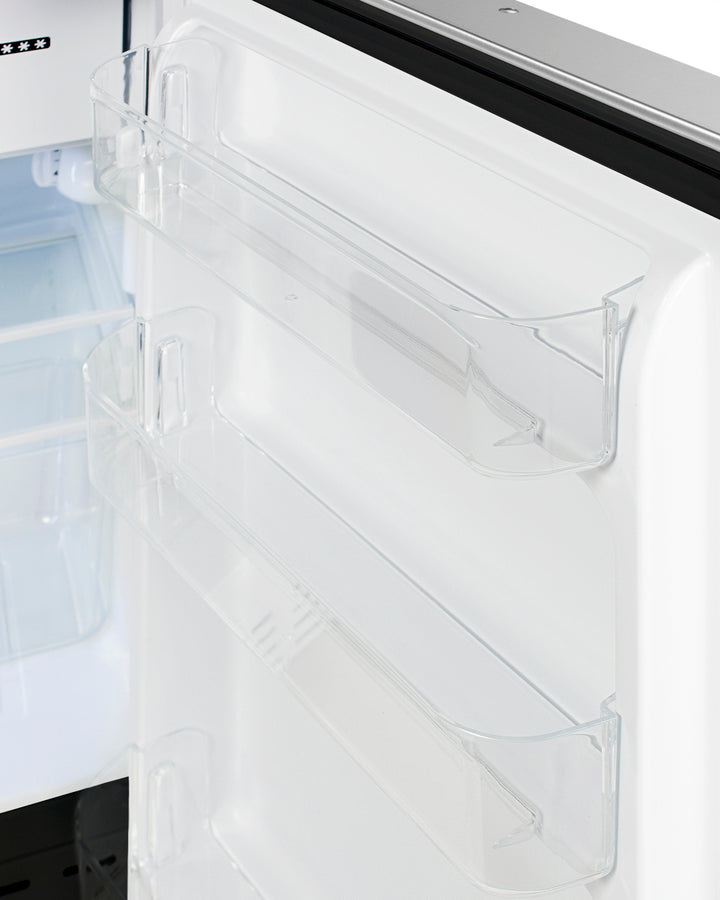

  • Door shelves: Three removable door racks for additional storage of larger items
  • Adjustable shelves: Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
  • Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
  • Adjustable thermostat: Dial thermostat located inside for easy temperature management
  • 3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
  • Sealed back: Space-saving design that offers easier clean-ability
  • Right-angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Manual defrost: Efficient performance with reliable temperature stability
  • Interior light: Front-located LED light ensures entire interior is lit when door opens
  • Fully finished black cabinet: Allows the unit to be used freestanding
  • CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals

Specifications

Overview

  • Height of Cabinet: 31.75" (81 cm)
  • Height to Hinge Cap: 32.0" (81 cm)
  • Width: 19.75" (50 cm)
  • Width with Door Open: 20.25" (51 cm)
  • Depth: 23.0" (58 cm)
  • Depth with Handle: 24.38" (62 cm)
  • Depth with door at 90°: 40.25" (102 cm)
  • Capacity: 2.68 cu.ft. (76 L)
  • Defrost Type: Manual
  • Door: Panel-Ready
  • Cabinet: Black
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
  • Energy Usage/Year: 259.0kWh/year
  • Amps: 1.1
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 75.0 lbs. (34 kg)
  • Shipping Weight: 80.0 lbs. (36 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • UPC: 761101076560

Refrigerator-Freezer

  • Door Swing: RHD
  • Reversible: Factory Reversible
  • Adjustable Shelves: Yes
  • Crisper Qty: 1
  • Crisper Finish: Transparent
  • Crisper Cover: Glass
  • Interior Light: Yes
  • Refrigerator - Interior Height: 17.5" (44 cm)
  • Refrigerator - Interior Width: 16.25" (41 cm)
  • Refrigerator - Interior Depth: 17.0" (43 cm)
  • Refrigerator - Shelf Type: Glass
  • Refrigerator - Shelf Qty: 3
  • Refrigerator - Full Door Shelves: 3
  • Refrigerator - Temperature Range: 35-46º F
  • Refrigerator - Refrigerant Type: R600a
  • Refrigerator - Refrigerant Amount: 0.92 oz.
  • Freezer - Interior Height: 5.75" (15 cm)
  • Freezer - Interior Width: 16.25" (41 cm)
  • Freezer - Interior Depth: 11.25" (29 cm)
  • Thermostat Type: Dial
  • Refrigerant Type: R600a
  • Refrigerant Amount: 0.92 oz.
  • High Side PSI: 180.0
  • Low Side PSI: 80.0
  • Level Legs: 2
  • Compressor Step Height: 6.25" (16 cm)
  • Compressor Step Width: 16.25" (41 cm)
  • Compressor Step Depth: 6.0" (15 cm)
Summit 20" Wide Built-in Refrigerator-Freezer ADA Compliant

Available Upgrades

Exterior

  • LHD: Left hand door swing
  • ODA: Open door alarm
