Summit 20" Wide Built-In All-Freezer ADA Compliant - ALFZ37BSSHV

Call for availability
SKU: ALFZ37BSSHV
filler

Price:
Sale price$1,555.00

Description

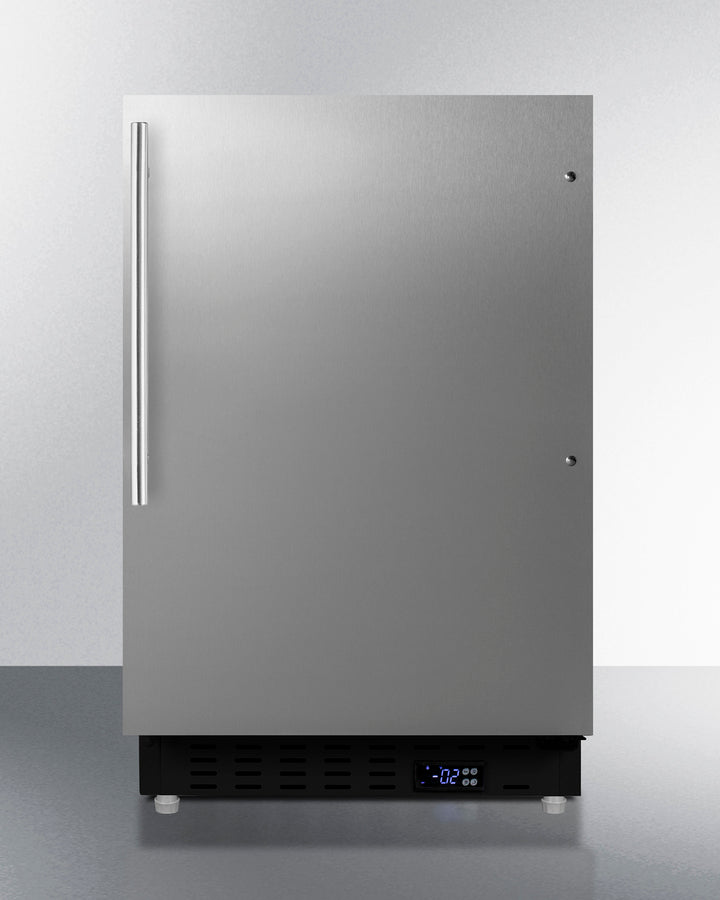

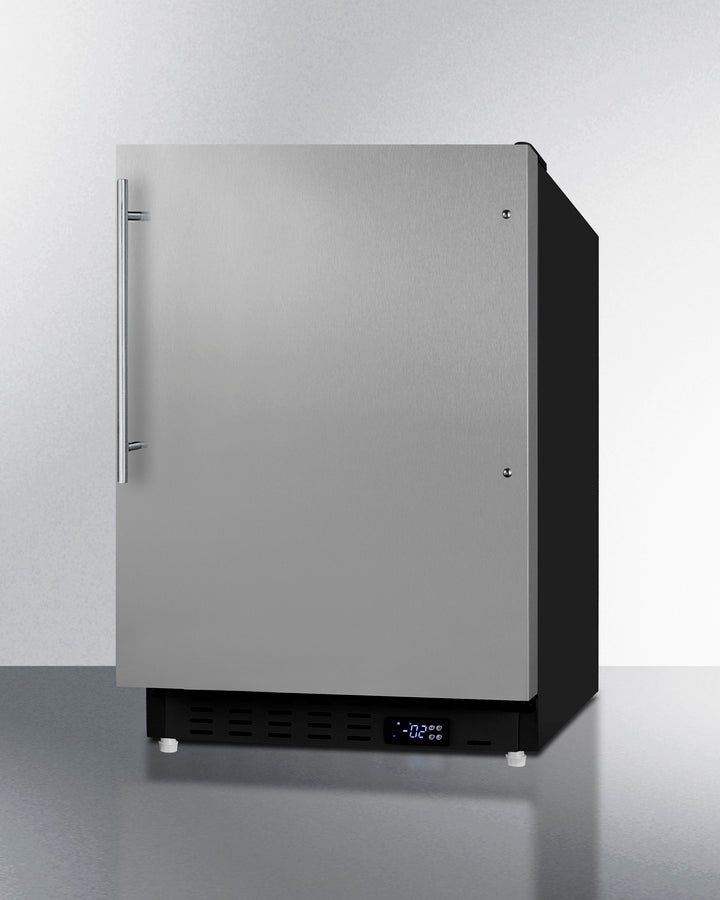

Summit 20" Wide Built-In All-Freezer ADA Compliant - ALFZ37BSSHV


Summit Appliance offers a quality selection of 20" wide built-in under-counter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALFZ37BSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance.

The stainless steel, user-reversible door is 3" thick for efficient insulation, with a sleek handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

Summit 20" Wide Built-In All-Freezer ADA Compliant

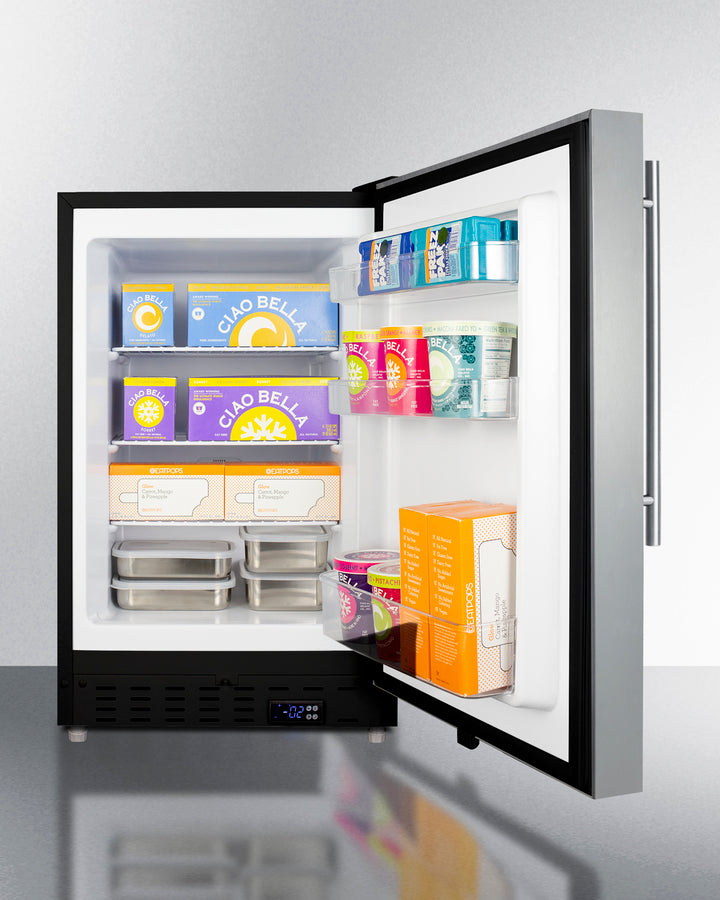

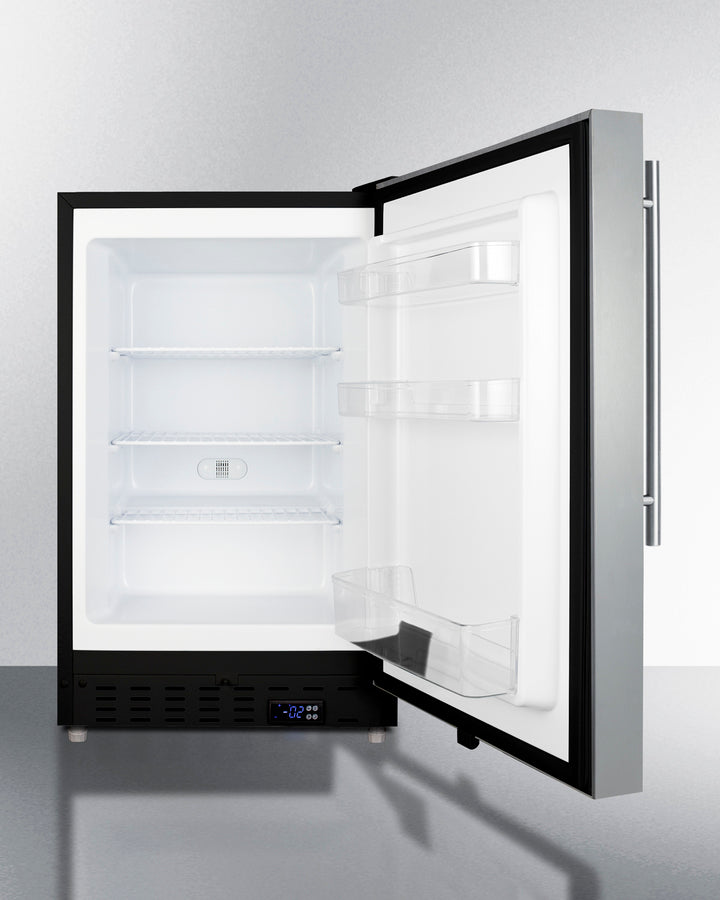

Inside, the ALFZ37BSSHV features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed.

The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 20" wide, the ALFZ37BSSHV is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47BSSHV all-refrigerator. Additional choices are available with a stainless steel cabinet and panel-ready exterior finishes.

Features

  • ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
  • Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Adjustable thermostat: Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

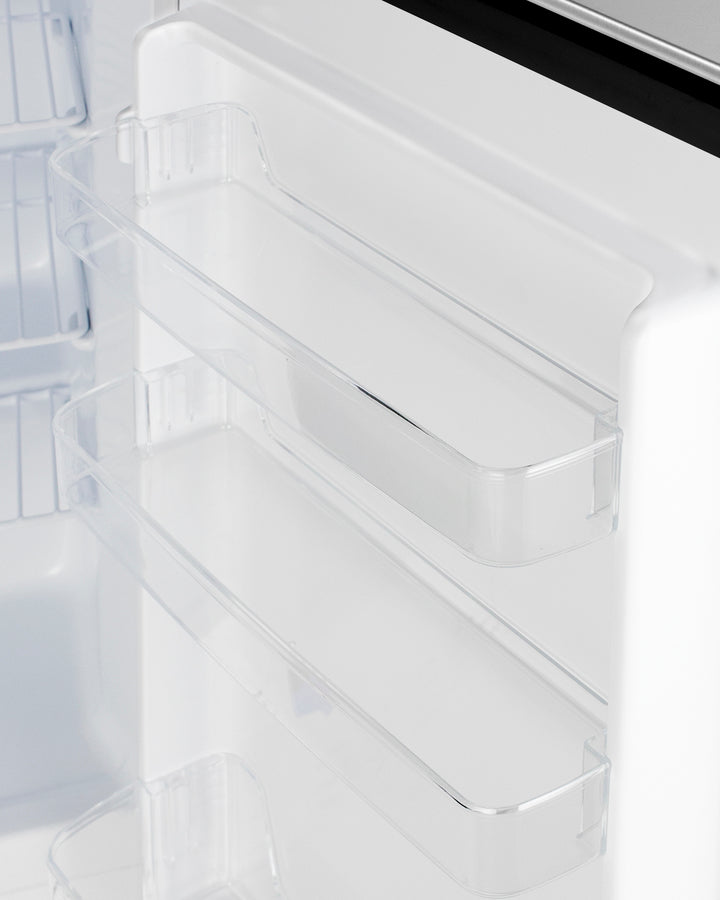

  • Door shelves: Three removable door racks for additional storage of larger items
  • Adjustable shelves: Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
  • Reversible stainless steel door: Stainless steel, user-reversible door for added flexibility to best accommodate your setting
  • 3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
  • Temperature alarms: User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Open door alarm: Audible alarm will sound if the door is left ajar for over a minute
  • Sealed back: Space-saving design that offers easier cleanability
  • Right-angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

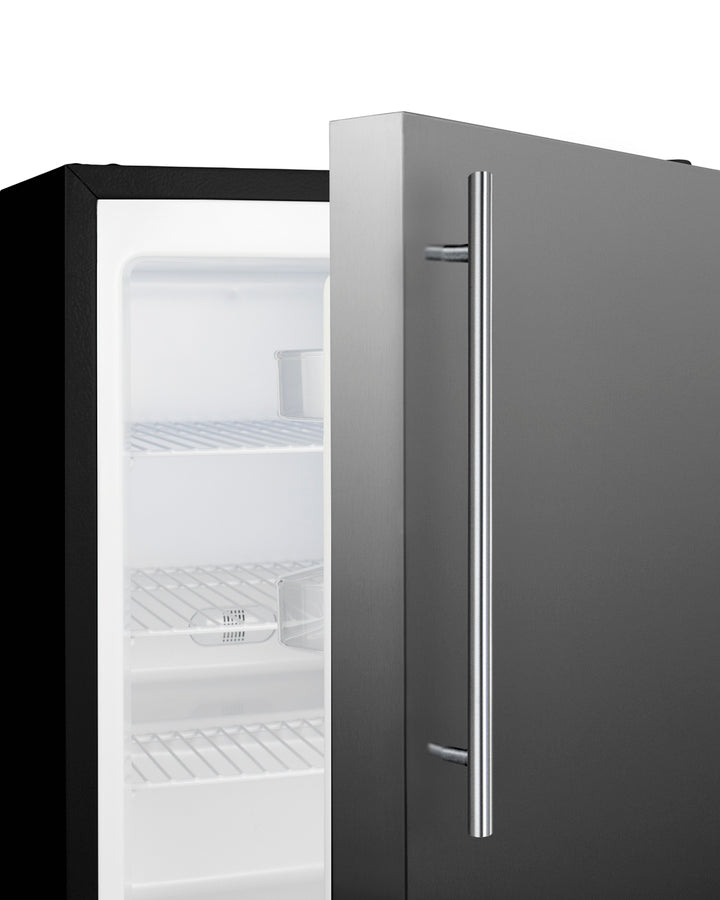

  • Professional handle: Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look
  • Manual defrost: More temperature stability with an energy efficient manual defrost system
  • Matching all-refrigerator: This unit can be paired with the ALR47BSSHV all-refrigerator for a complete set
  • Fully finished black cabinet: Allows the unit to be used freestanding
  • 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
  • CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

  • Height of Cabinet: 31.75" (81 cm)
  • Height to Hinge Cap: 32.0" (81 cm)
  • Width: 19.88" (50 cm)
  • Width with Door Open: 20.88" (53 cm)
  • Depth: 22.5" (57 cm)
  • Depth with Handle: 24.0" (61 cm)
  • Depth with door at 90°: 40.25" (102 cm)
  • Capacity: 2.68 cu.ft. (76 L)
  • Defrost Type: Manual
  • Door: Stainless Steel
  • Cabinet: Black
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
  • Energy Usage/Year: 266.0kWh/year
  • Amps: 0.6
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 85.0 lbs. (39 kg)
  • Shipping Weight: 90.0 lbs. (41 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • UPC: 761101076584

Freezer

  • Door Swing: RHD
  • Reversible: Yes
  • Interior Height: 23.75" (60 cm)
  • Interior Width: 14.5" (37 cm)
  • Interior Depth: 17.0" (43 cm)
  • Shelf Type: Wire
  • Shelf Qty: 3
  • Full Door Shelves: 3
  • Adjustable Shelves: Yes
  • Thermostat Type: Digital
  • Fan Type: Exterior
  • Refrigerant Type: R600a
  • Refrigerant Amount: 1.83 oz.
  • High Side PSI: 180.0
  • Low Side PSI: 80.0
  • Level Legs: 2
  • Wheels: 2
  • Compressor Step Height: 5.75" (15 cm)
  • Compressor Step Width: 14.5" (37 cm)
  • Compressor Step Depth: 6.0" (15 cm)
  • Temperature Range: -13 to 5ºF
Summit 20" Wide Built-In All-Freezer ADA Compliant

Available Upgrades

Handle

  • CP Full-Length Copper Pipe Handle
  • TBC Copper Towel Bar Handle

Exterior

  • Alarm
  • CAS3 3" casters
  • CAS6 6" casters
  • TT: Installed thermometer
  • DL2B: Factory installed NIST calibrated digital data logger (DDL)

Lock

  • AC Keypad
  • KEYPAD
  • L-Installed Lock

Manufacturer Resources



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
