Summit 18" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included) - SWC182ZPNRADA

Call for availability
SKU: SWC182ZPNRADA
filler

Price:
Sale price$1,970.00

Description

Summit 18" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included) - SWC182ZPNRADA


SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

Sized just under 18" wide and 32" high, the SWC182ZPNRADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use.

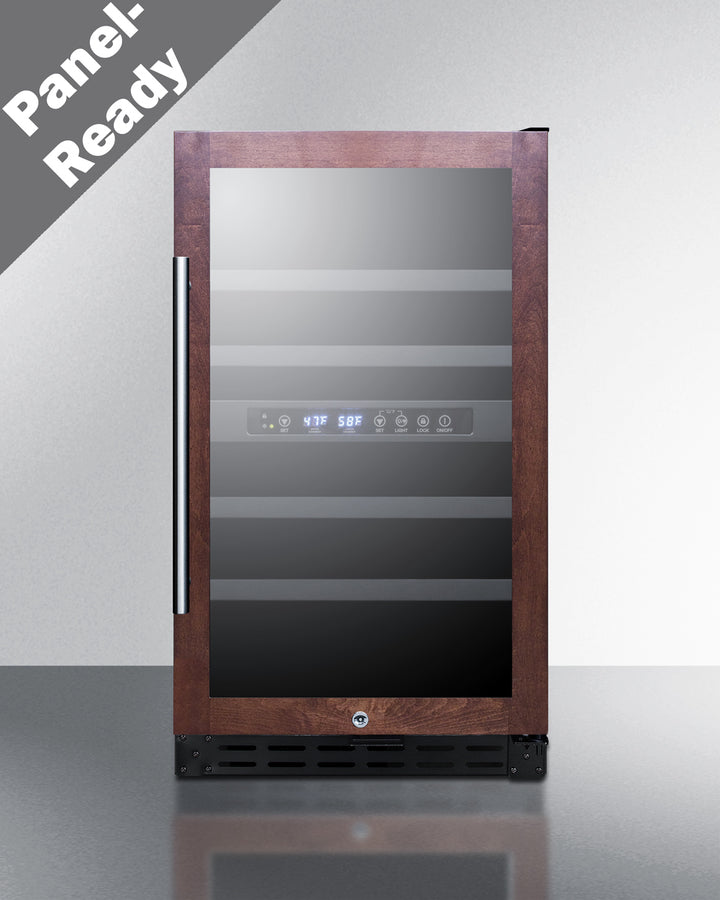

The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). A factory-installed lock and a professional style handle complete the look. NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD.

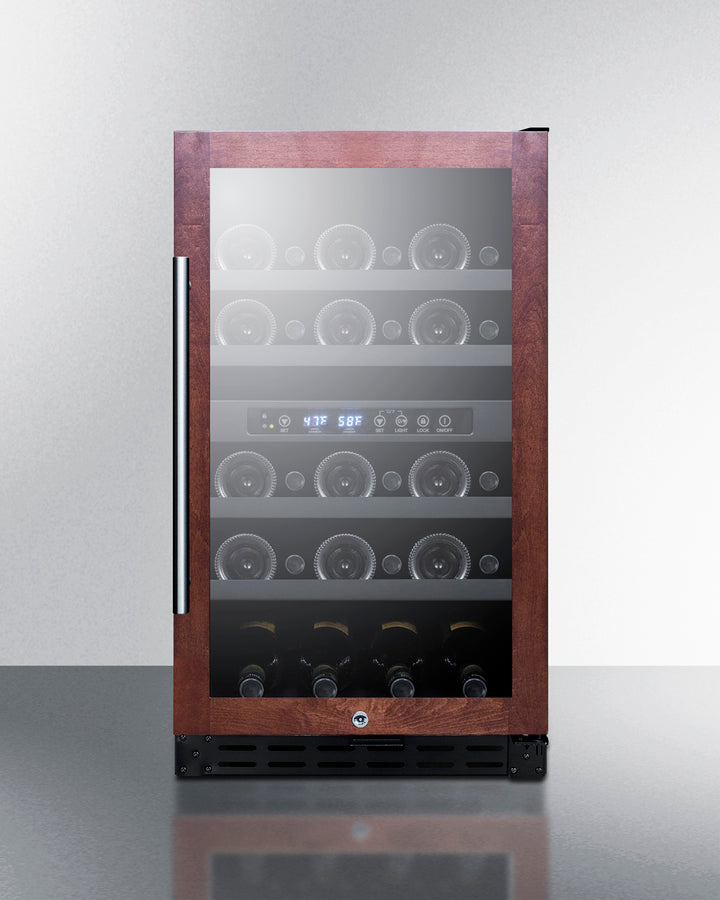

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux-style bottles or 22 wider Burgundy-style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.

With its slim fit and convenient design, the SWC182ZPNRADA makes an attractive addition to any room. For this model in a standard counter height, see the SWC182ZPNR.

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Summit 18" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included)

Features

  • Dual zone storage: Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
  • ADA compliant: 32" height is designed to fit under lower ADA compliant counters
  • Built-in capable: Make the best use of space by installing your appliance under the counter
  • 28 bottle capacity: Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
  • Panel-ready door trim: Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
  • Glass door: Double pane tempered glass to provide an elegant display with added protection
  • Factory installed lock: Keyed lock for a secure interior, with 2 keys included

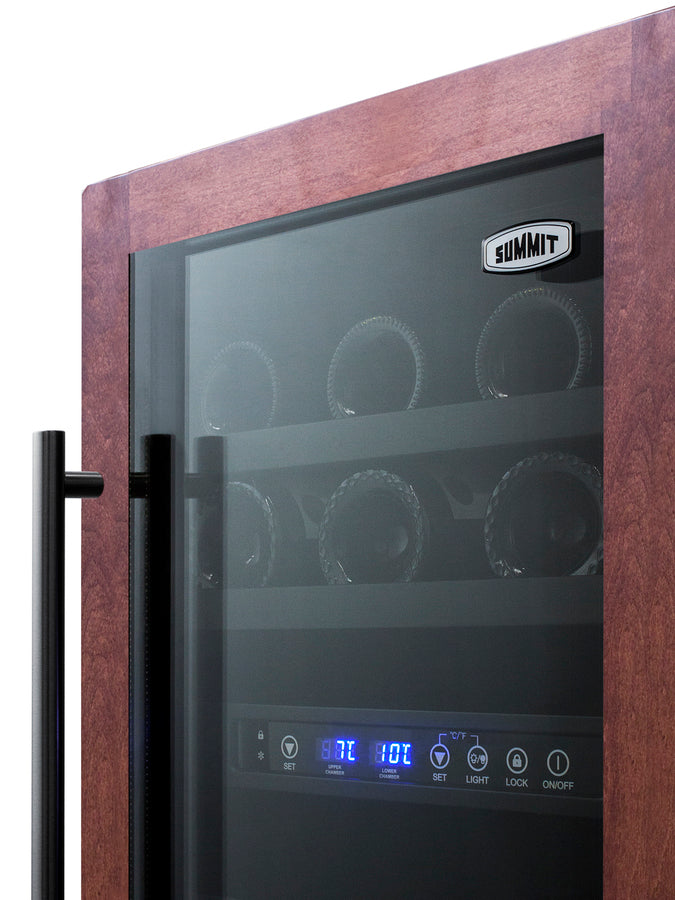

  • Digital thermostat: Electronic controls for precise temperature management.
  • Digital display: Temperature readout can be shown in Celsius or Fahrenheit
  • LED lighting: Gentle illumination for each temperature zone for an elegant presentation
  • Automatic defrost: Reduced maintenance with the convenience of auto defrost
  • Wooden shelves: 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
  • Professional handle: Stainless steel handle completes the look
  • Flush back: Space saving design
  • CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Fully finished black cabinet: Allows the unit to be used freestanding
  • 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals

Specifications

Overview

  • Height of Cabinet: 31.63" (80 cm)
  • Width: 17.75" (45 cm)
  • Depth: 23.5" (60 cm)
  • Depth with Handle: 25.25" (64 cm)
  • Depth with door at 90°: 39.75" (101 cm)
  • Capacity: 3.3 cu.ft. (93 L)
  • Bottles: 28 bottles
  • Defrost Type: Automatic
  • Door: Glass/Panel-Ready Frame
  • Cabinet: Black
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
  • Sanitation: ETL-S
  • Amps: 1.25
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight :95.0 lbs. (43 kg)
  • Shipping Weight: 98.0 lbs. (44 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • UPC: 761101073743
Summit 18" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included)

Wine Cellar

  • Number of Zones: 2
  • Door Swing: RHD
  • Reversible Factory: Reversible
  • Adjustable Shelves: Yes
  • Shelf Type: Wood
  • Shelf Qty: 4
  • Thermostat Type: Digital
  • Interior Light: Yes
  • Fan Type: Interior and Exterior
  • Refrigerant Type: R600a
  • Refrigerant Amount: 1.23 oz.
  • High Side PSI: 150.0
  • Low Side PSI: 50.0
  • Interior Height 1: 10.63" (27 cm)
  • Interior Width 1: 14.25" (36 cm)
  • Interior Depth 1: 18.0" (46 cm)
  • Compressor Step Height: 5.25" (13 cm)
  • Compressor Step Width: 14.25" (36 cm)
  • Compressor Step Depth: 5.0" (13 cm)
  • Level Legs: 4
  • Temperature Range: 41º to 64ºF
  • Interior Height 2: 12.25" (31 cm)
  • Interior Width 2: 14.25" (36 cm)
  • Interior Depth 2: 18.0" (46 cm)

Available Upgrades

Exterior

  • SSK - Stainless steel kickplate
  • LHD - Left hand door swing

Door

  • T4 Door Tint
  • T3 Door Tint
  • T2 Door Tint
  • T1S Door Tint
  • T1 Door Tint

Manufacturer Resources



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
