Summit 12 lb. Drain-Free Icemaker ADA Compliant - BIM25H32

Call for availability
SKU: BIM25H32
filler

Price:
Sale price$2,205.00

Description

Summit 12 lb. Drain-Free Icemaker ADA Compliant - BIM25H32


SUMMIT brings convenient luxury under the counter with built-in icemakers in complete stainless steel.

Summit 12 lb. Drain-Free Icemaker ADA Compliant

Sized at just 15 1/8" wide, the BIM25H32 features a front-breathing design for built-in installation, but also has a fully finished cabinet to allow freestanding use. At 32" high, this unit is specially sized to fit under lower ADA compliant counters.

The cabinet and user-reversible door are wrapped in 304 grade stainless steel for professional style built to last, with a sleek handle mounted horizontally to finish the look. This unit includes a lower non-refrigerated storage compartment with a swing door. It has a sealed back and right angle plug to allow more flush installation.

Inside, the BIM25H32 can produce up to 12 pounds of crescent-shaped ice per day, storing it inside a removable insulated bin. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required for use, offering more flexibility in where you place the unit. The BIM25H32 ships with a connection hose. Other hardware should be supplied by your plumber.

With its complete stainless steel construction and low maintenance design, the BIM25H32 is a great way to finish any under counter kitchen space.

Features

  • ADA compliant design: 32 1/4" height allows installation under lower ADA compliant counters
  • No pump or drain required: Convenient design allows more flexibility in positioning the unit
  • Built-in capable: Make the best use of space by installing your icemaker under the counter and flush with other cabinets

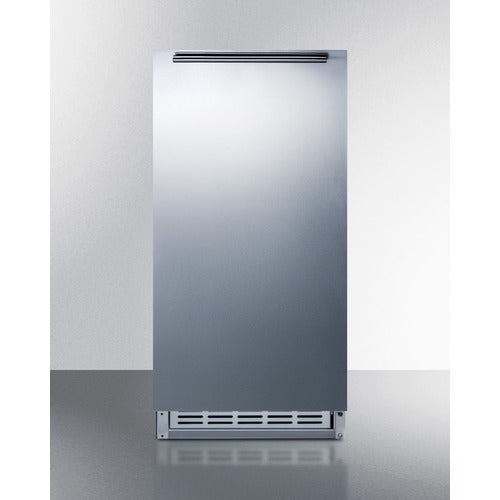

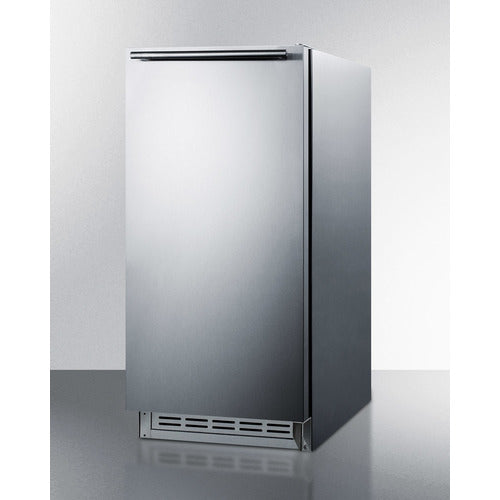

  • Complete stainless steel exterior: Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA
  • Professional handle: Sleek handle in brushed stainless steel is horizontally mounted for a modern look
  • Mid-sized capacity: Produces and stores up to 12 pounds of ice per day cycle

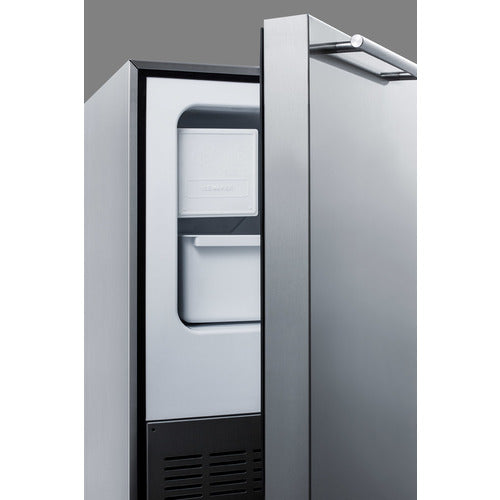

  • Removable bin: Bucket can be removed for fast and easy cleaning
  • Insulated storage bin: Ice stays solid longer in this cold-protected bin

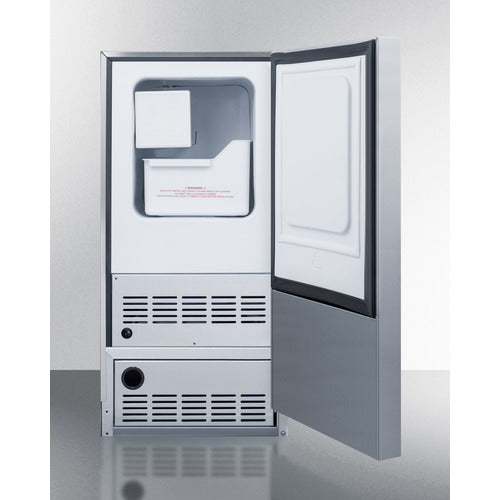

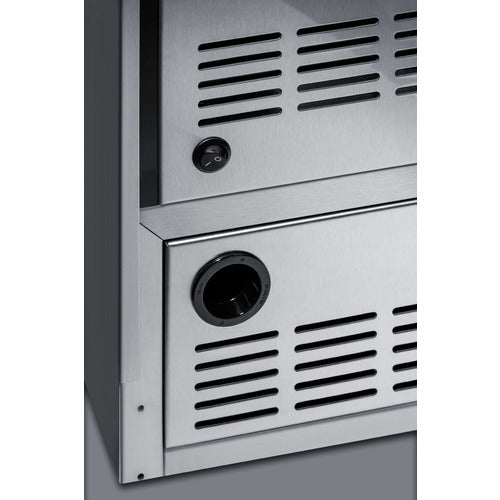

  • Storage compartment: Includes lower compartment for storing non-refrigerated items
  • Reversible door: User-reversible design allows you to change the door swing to better accommodate your setup
  • Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Manual defrost: Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
  • Ice scoop included: Large plastic ice scoop included for your convenience
  • Sealed back: Flush design with no exposed coils for easier cleanup
  • Defrost drain included: Rear-mounted drain for easier cleaning
  • Fully finished cabinet: Allows the icemaker to be used freestanding
  • 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Summit 12 lb. Drain-Free Icemaker ADA Compliant

Specifications

Overview

  • Height of Cabinet: 32.0" (81 cm)
  • Height to Hinge Cap: 32.25" (82 cm)
  • Width: 15.18" (39 cm)
  • Depth: 21.0" (53 cm)
  • Depth with Handle: 22.25" (57 cm)
  • Depth with door at 90°: 34.0" (86 cm)
  • Capacity: 1.0 cu.ft. (28 L)
  • Defrost Type: Manual
  • Door: Stainless Steel
  • Cabinet: Stainless Steel
  • US Electrical Safety: UL
  • Canadian Electrical Safety: ULC
  • Amps: 1.5
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 100.0 lbs. (45 kg)
  • Shipping Weight: 105.0 lbs. (48 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • UPC: 761101058467

Icemaker

  • Door Swing: RHD
  • Reversible: Yes
  • Daily Ice Production: 12.0 lbs. (5 kg)
  • Ice Storage Capacity: 12.0 lbs. (5 kg)
  • Ice Shape: Crescent
  • Number of Ice Cube Sizes: 1
  • Refrigerant Type: R600a
  • Refrigerant Amount: 0.63 oz.
  • High Side PSI: 250.0
  • Low Side PSI: 110.0
  • Interior Height: 11.5" (29 cm)
  • Interior Width: 10.0" (25 cm)
  • Interior Depth: 12.63" (32 cm)
  • Level Legs: 4

Available Upgrades

Exterior

  • Latch for door
  • LHD - Left hand door swing

Manufacturer Resources



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
