MRCOOL Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler - 230V-60HZ - DUCT-09HP-230

Call for availability
SKU: DUCT-09HP-230
Save $371.00
filler

Price:
Sale price$729.00 Regular price$1,100.00

Description

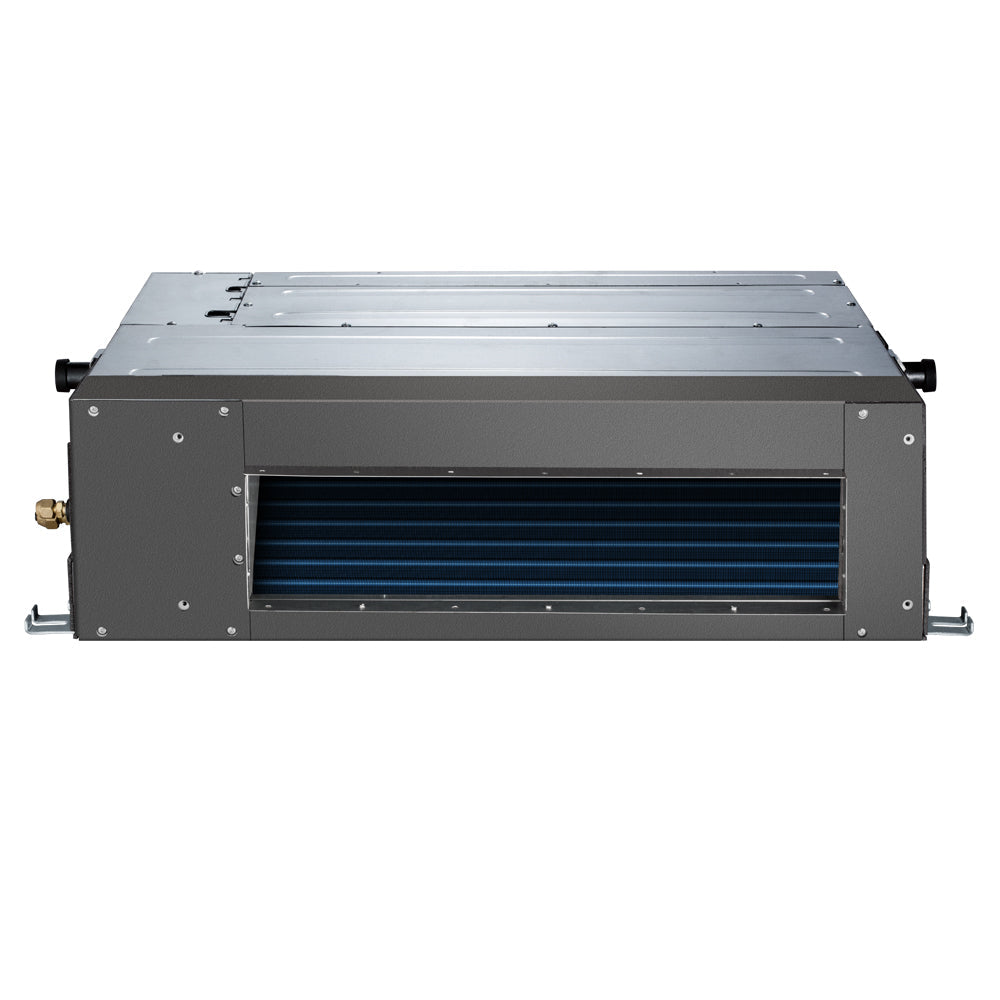

MRCOOL Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler - 230V-60HZ - DUCT-09HP-230

The Mrcool Olympus is The whole house mini-split solution. Up to 5 zones, the Olympus offers aesthetically pleasing wall mounted, and ceiling cassette units. If you don't like saving money this system is not for you, otherwise please enjoy keeping more money in your pocket every month with efficiency ratings up to 23 SEER and 10.3 HSPF.

This 3/4 ton 9,000 BTU Recessed Duct Air Handler can be matched with any Olympus condenser to condition rooms that are approximately 250 sqft.

FEATURES:

  • Equipment should be installed by a qualified professional
  • 7 year compressor warranty and 5 year parts warranty
  • One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
  • R-410A environmentally friendly refrigerant

SPECIFICATIONS & DIMENSIONS:

CFM

176.57/282.52/353.15

TONNAGE

3/4

COOLING CAPACITY

9000 BTU

HEATING CAPACITY

10000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

15 A

MIN CIRCUIT AMPACITY

1.2 A

MOUNT TYPE

Ducted

COLOR

White

COLOR FAMILY

White

MAX COVERAGE AREA

750 sq ft

REFRIGERANT TYPE

R-410A

DECIBEL RATING

39/37/33 dBA

DECIBEL RATING LOW

33 dBA

DECIBEL RATING HIGH

39 dBA

AIR FLOW DIRECTION

Ducted

NUMBER OF SPEEDS

Variable

OSCILLATION

No

INVERTER

Yes

LIQUID LINE FITTING

3/8 in

LIQUID LINE SIZE

1/4 in

SUCTION LINE FITTING

1/2 in

SUCTION LINE SIZE

3/8 in

CONTROL TYPE

LED

BLOWER MOTOR RPM

1010/890/780

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

LOW VOLTAGE COMPENSATION

No

OVERLOAD PROTECTION

Yes

ADJUSTABLE THERMOSTAT

Yes

FAN ONLY OPTION

Yes

QUIET MODE

Yes

SLEEP MODE

No

AUTO COOL

Yes

WIFI COMPATIBILITY

No

APP COMPATIBILITY

No

WORKS WITH IOS

No

WORKS WITH ANDROID

No

REMOTE CONTROL INCLUDED

Wir

UL LISTED

Yes

CSA LISTED

No

ETL LISTED

Yes

ENERGY STAR COMPLIANT

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

5-year Parts/7-year Compressor/1-year Remote

BASE WARRANTY

None

REGISTERED PARTS WARRANTY

5-year

BASE PARTS WARRANTY

None

REGISTERED COMPRESSOR WARRANTY

7-year

BASE COMPRESSOR WARRANTY

None

REGISTERED REMOTE WARRANTY

1-year

BASE REMOTE WARRANTY

None

REGISTERED LABOR WARRANTY

None

BASE LABOR WARRANTY

None

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU PR;VI

NET DEPTH

19.92 in

NET HEIGHT

7.87 in

NET WIDTH

22.55 in

NET WEIGHT

39.02 lbs

GROSS DEPTH

21.26 in

GROSS HEIGHT

11.22 in

GROSS WIDTH

33.85 in

GROSS WEIGHT

48.5 lbs

FREIGHT CLASS

70
