MRCOOL 4 Ton BTU R410A Horizontal Cased Evaporator Coil - MCHP48CNPA

Call for availability
SKU: MCHP48CNPA
Save $222.00
filler

Price:
Sale price$578.00 Regular price$800.00

Description

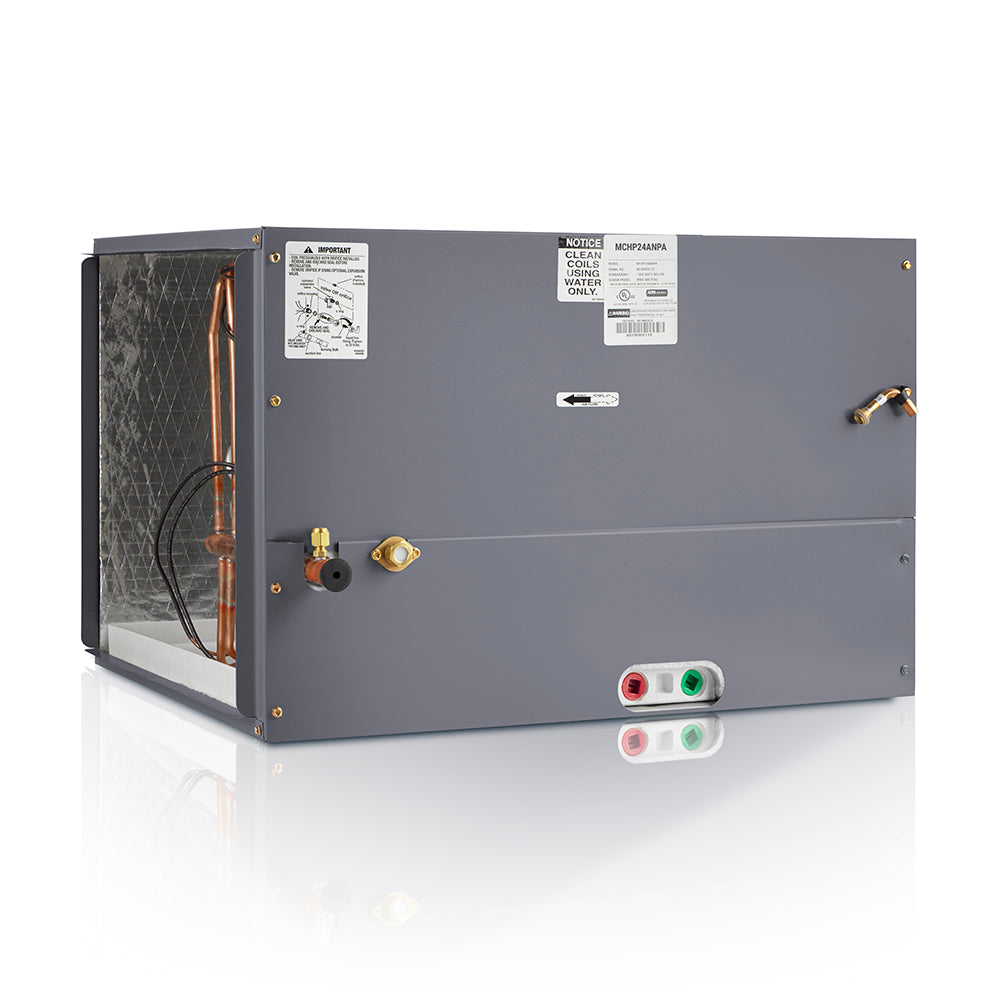

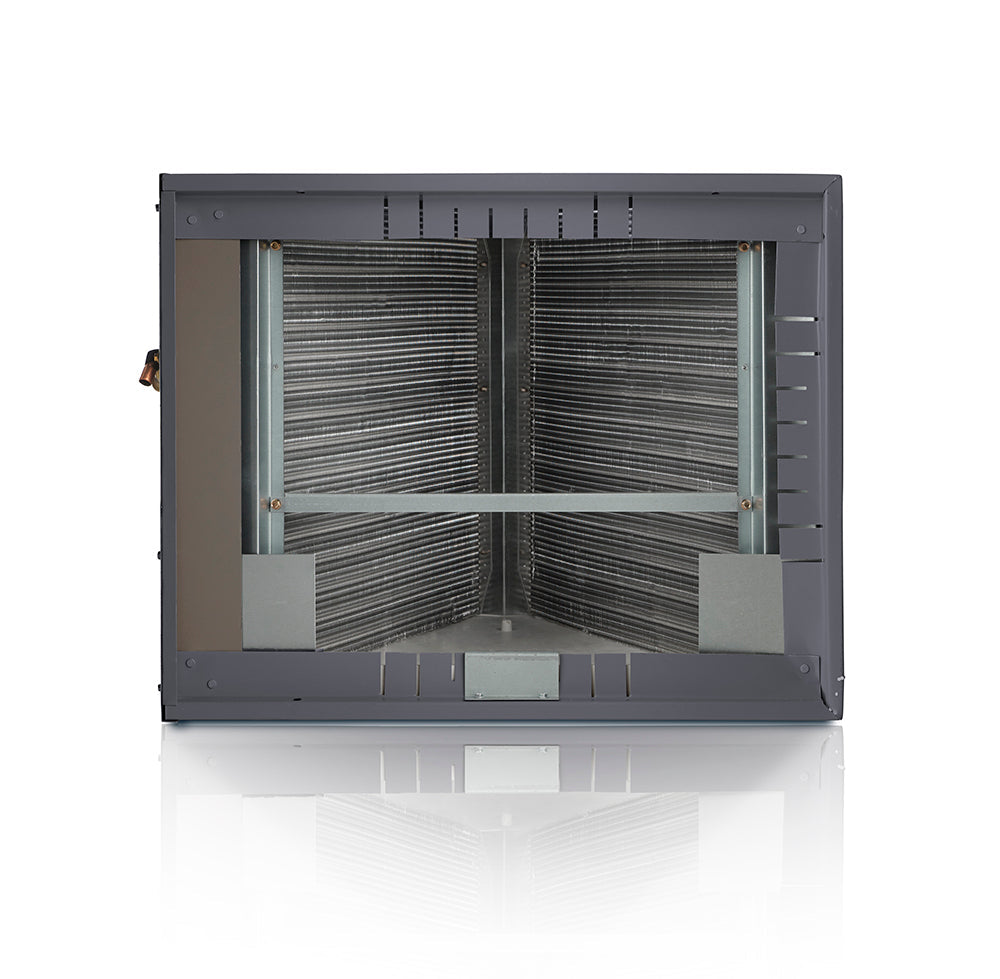

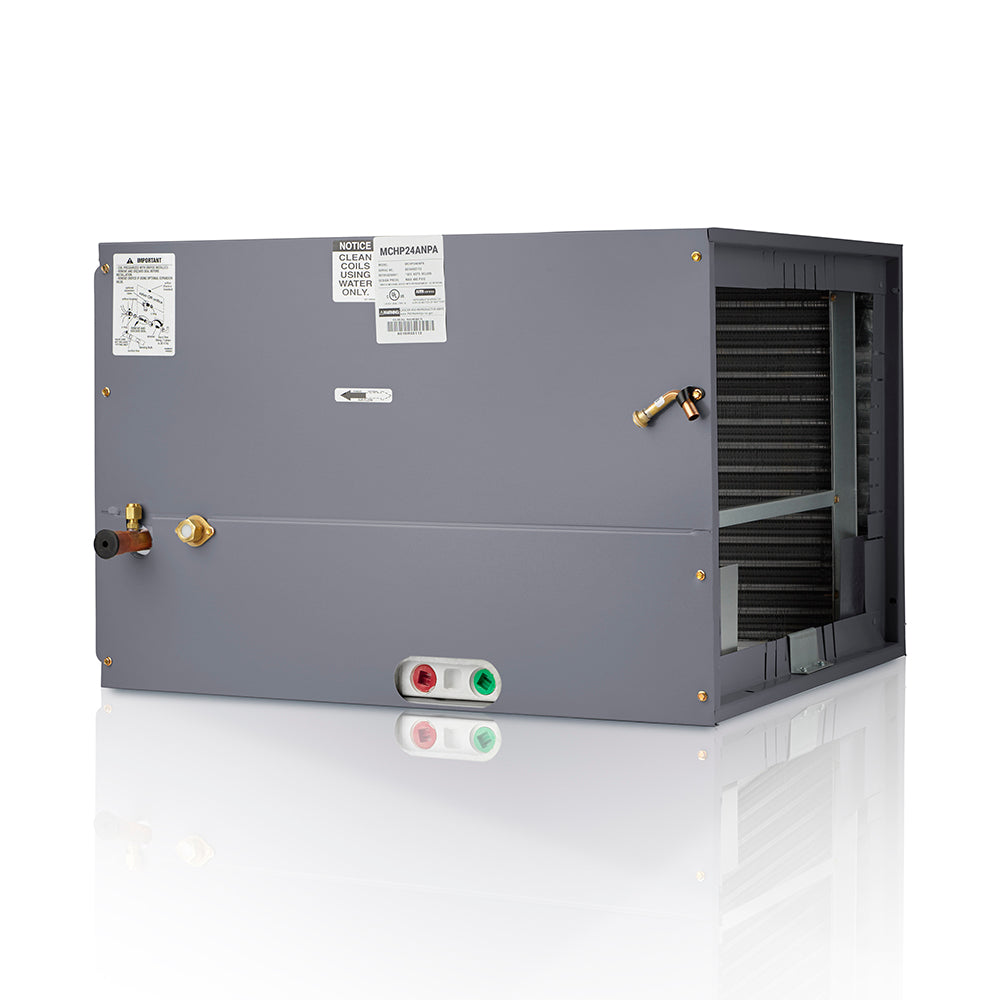

MRCOOL 4 Ton BTU R410A Horizontal Cased Evaporator Coil - MCHP48CNPA

This is a brand new 4 ton, R410A refrigerant, horizontal cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application.

This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

FEATURES:

  • Interlocking door assemblies and snug line seal grommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Insulated galvanized steel case with durable embossed finish
  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Removable top panels for easy service or cleaning
  • Superior service access to components, with tubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty
  • Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Tubing located at door split for easy coil service or cleaning
  • Refrigerant lines extend outside of the cabinet for easy connection

SPECIFICATIONS & DIMENSIONS:

TONNAGE

4

COOLING CAPACITY

48000

COLOR

Gray

COLOR FAMILY

Gray

REFRIGERANT TYPE

R-410A

DRAIN CONNECTION SIZE

3/4

LINESET INCLUDED

No

LINE SET LENGTH

15ft, 25ft, 35ft, 50ft

MAX LINESET LENGTH

50ft

LINESET FITTING TYPE

Sweat

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

7/8

UL RECONIZED

yes

UL LISTED

yes

ENERGY STAR COMPLIANT

no

ENERGY STAR CERTIFIED

no

AHRI CERTIFIED

yes

REGISTERED WARRANTY

Registered 10 Year Parts Warranty

BASE WARRANTY

5 Year Parts Warranty

REGISTERED PARTS WARRANTY

Registered 10 Year Parts Warranty

BASE PARTS WARRANTY

5 Year Parts Warranty

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

No

NET DEPTH

26.5

NET HEIGHT

21

NET WIDTH

21.5

NET WEIGHT

59



PRODUCT MANUALS:
