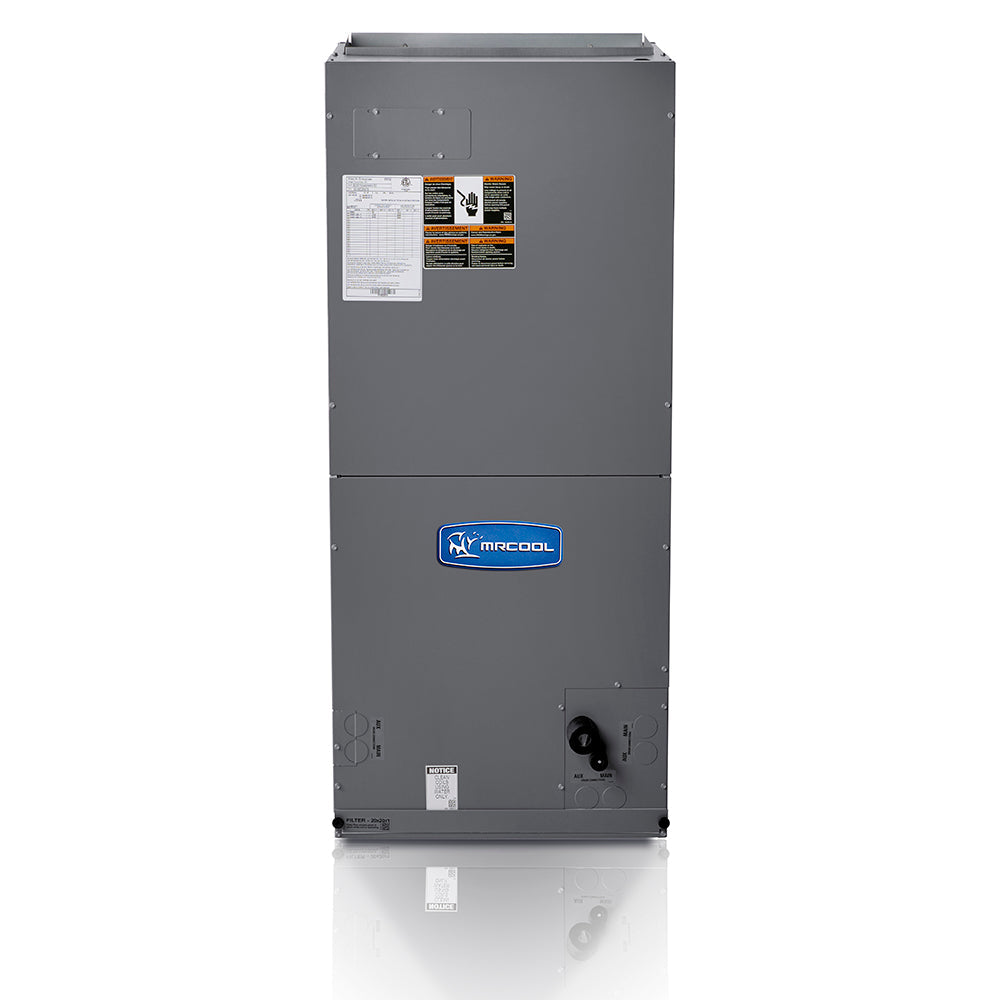

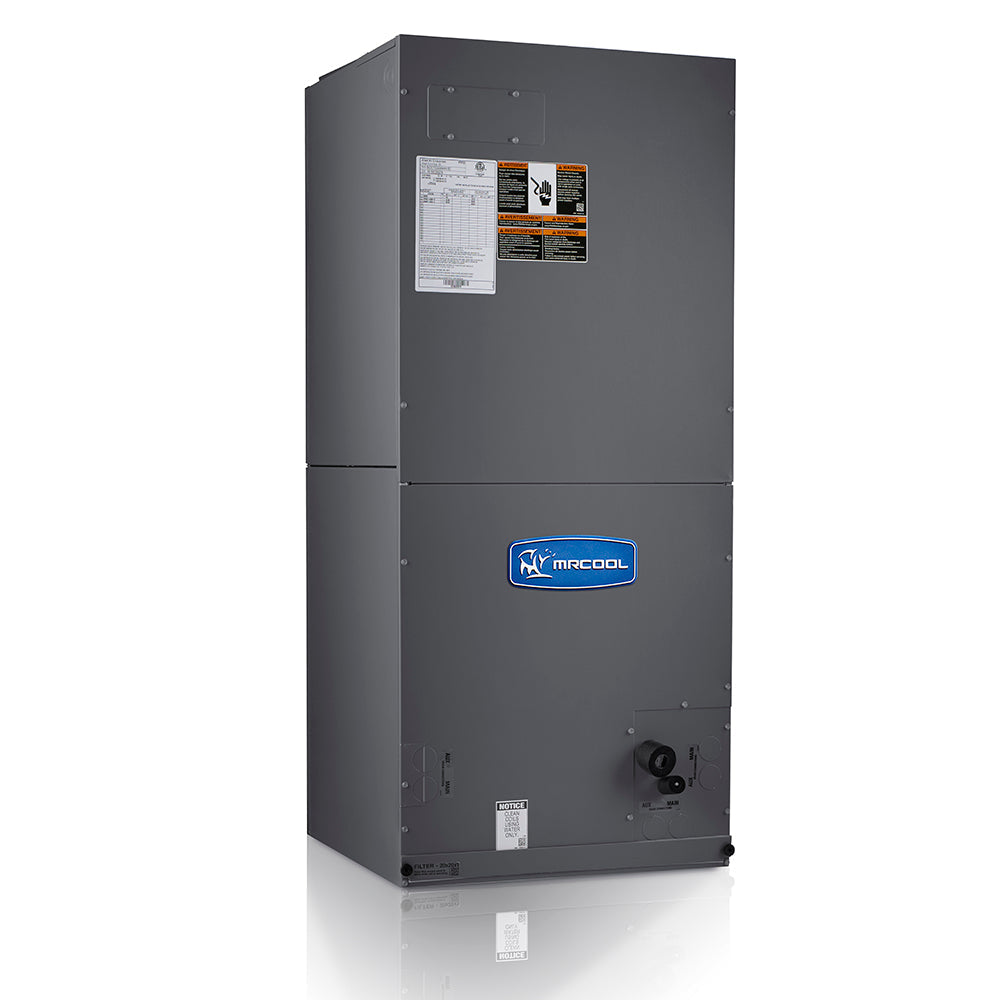

MRCOOL 2.5 Ton 16 SEER Split System Air Handler - MAHM030ETA

Call for availability
SKU: MAHM030ETA
Save $350.00
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$1,250.00 Regular price$1,600.00

Description

MRCOOL 2.5 Ton 16 SEER Split System Air Handler - MAHM030ETA

The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times.

When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.

FEATURES:

  • Smaller profile for closet applications
  • Optional auxiliary heat kits available
  • Baked polyester paint finished over galvanized steel for maximum durability
  • Antimicrobial treated drain pan to resist mold and mildew growth
  • Factory tested for leakproof construction
  • Foil faced insulation for enhanced indoor air quality
  • Cool Guard total corrosion protection technology designed coil
  • Built-in indoor time delay for increased efficiency and comfort
  • One piece design
  • High-strength/heat resistant/corrosion resistance SMC drain pans
  • Multi-position = Upflow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit)
  • AHRI certified and ETL listed

SPECIFICATIONS & DIMENSIONS:

SEER

Up to 16

CFM

1000

TONNAGE

2 1/2

COOLING CAPACITY

30000

VOLTAGE

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER

15

MIN CIRCUIT AMPACITY

5.1

COLOR

Gray

COLOR FAMILY

Gray

MAX COVERAGE AREA

1250

REFRIGERANT TYPE

R-410A

NUMBER OF SPEEDS

5

INVERTER

No

LINESET INCLUDED

No

LINE SET LENGTH

15ft, 25ft, 35ft, 50ft

MAX LINESET LENGTH

50ft

LINESET FITTING TYPE

Sweat

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

BLOWER MOTOR TYPE

ECM

BLOWER MOTOR HP

1/2

BLOWER MOTOR SPEEDS

5 Speed

BLOWER MOTOR RPM

490-1245

FILTER TYPE

replacement

FILTER SIZE

15x20

AUXILIARY HEATER INCLUDED

no

AUXILIARY HEATER AVAILABLE

yes

AUXILIARY HEATER SIZES

10kw, 15kw

UL RECONIZED

No

UL LISTED

No

ETL LISTED

yes

ETL CERTIFIED

no

ISO CERTIFIED

No

LEED CERTIFIED

No

ENERGY STAR COMPLIANT

No

ENERGY STAR CERTIFIED

No

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Registered 10 Year Parts Warranty

BASE WARRANTY

5 Year Parts Warranty

REGISTERED PARTS WARRANTY

Registered 10 Year Parts Warranty

BASE PARTS WARRANTY

5 Year Parts Warranty

HAS BATTERIES

No

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

No

NET DEPTH

16.5

NET HEIGHT

47

NET WIDTH

18.5

NET WEIGHT

133

GROSS DEPTH

27

GROSS HEIGHT

50.5

GROSS WIDTH

22.8



PRODUCT MANUALS:
