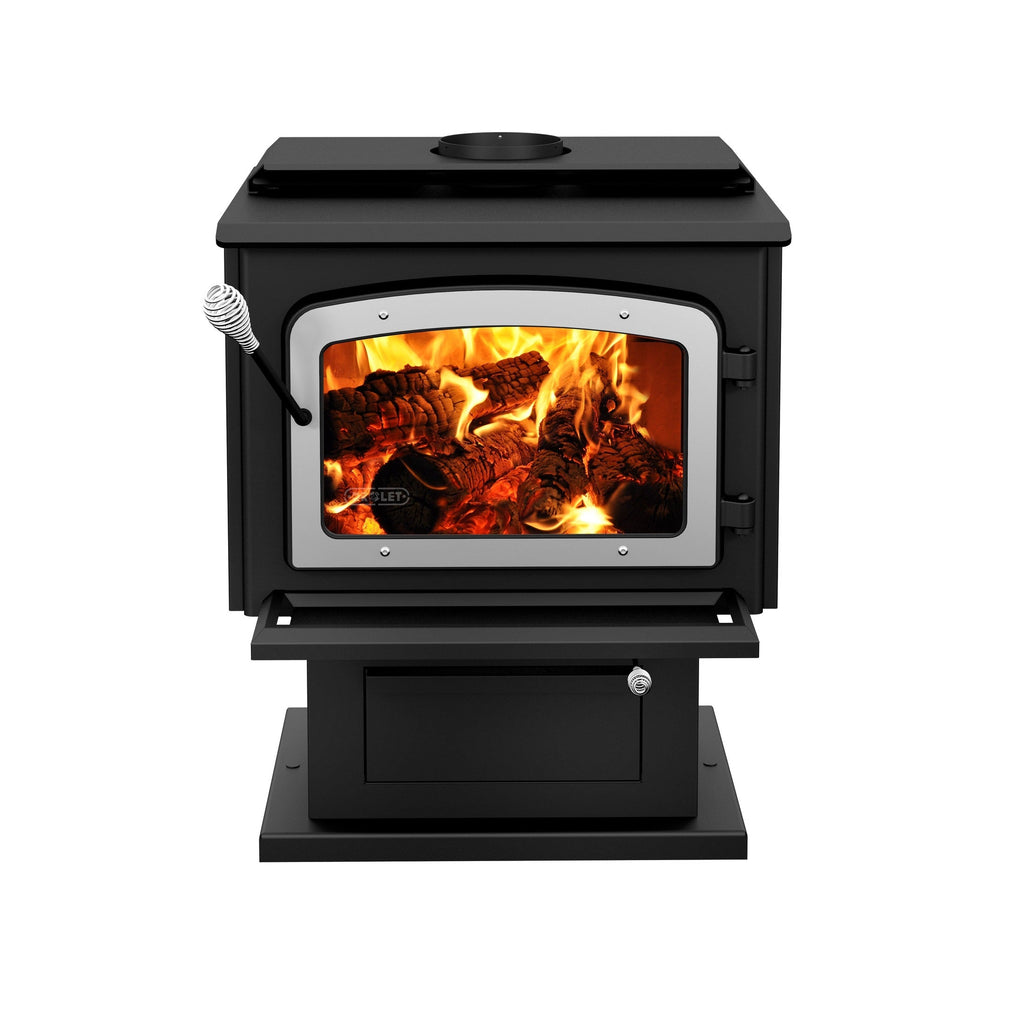

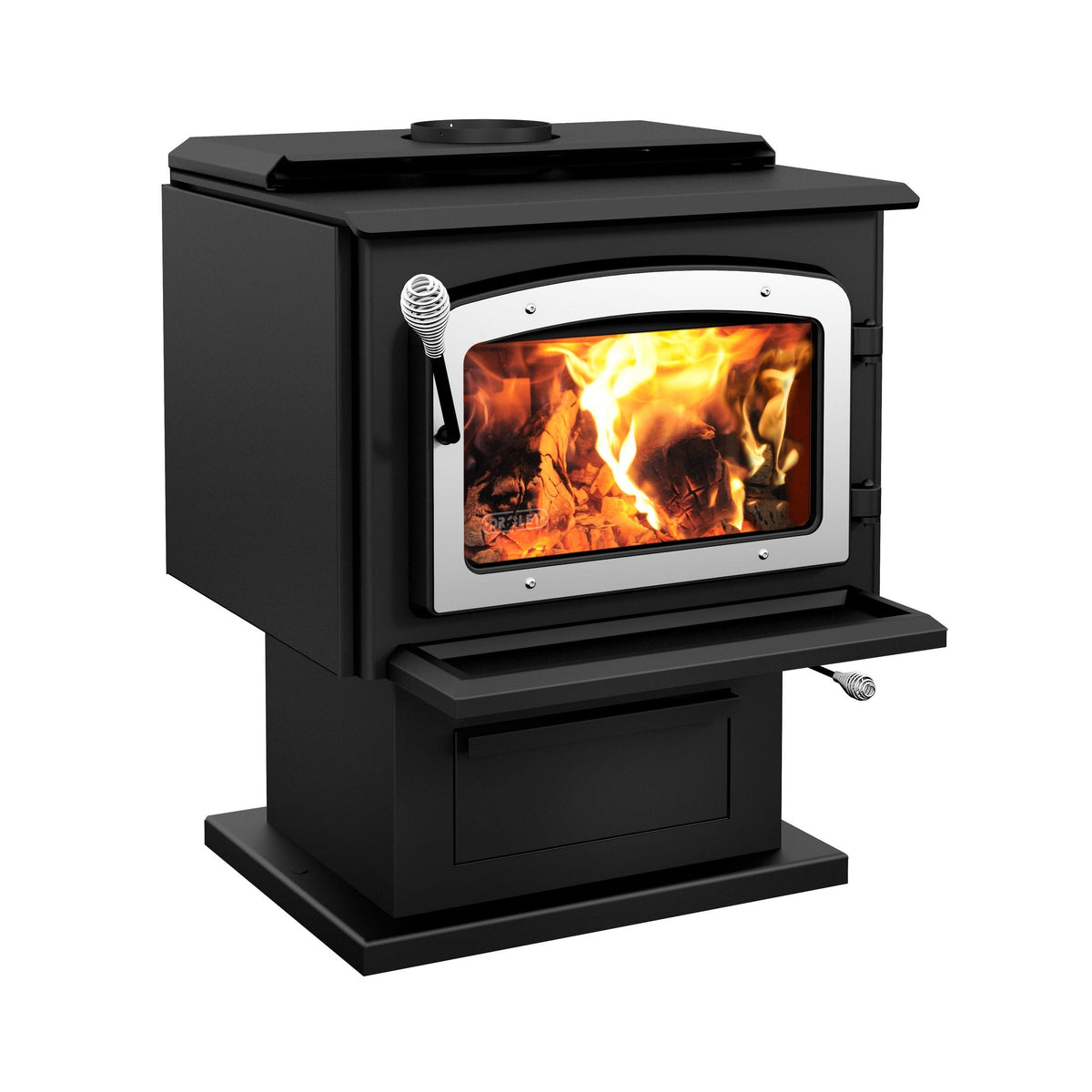

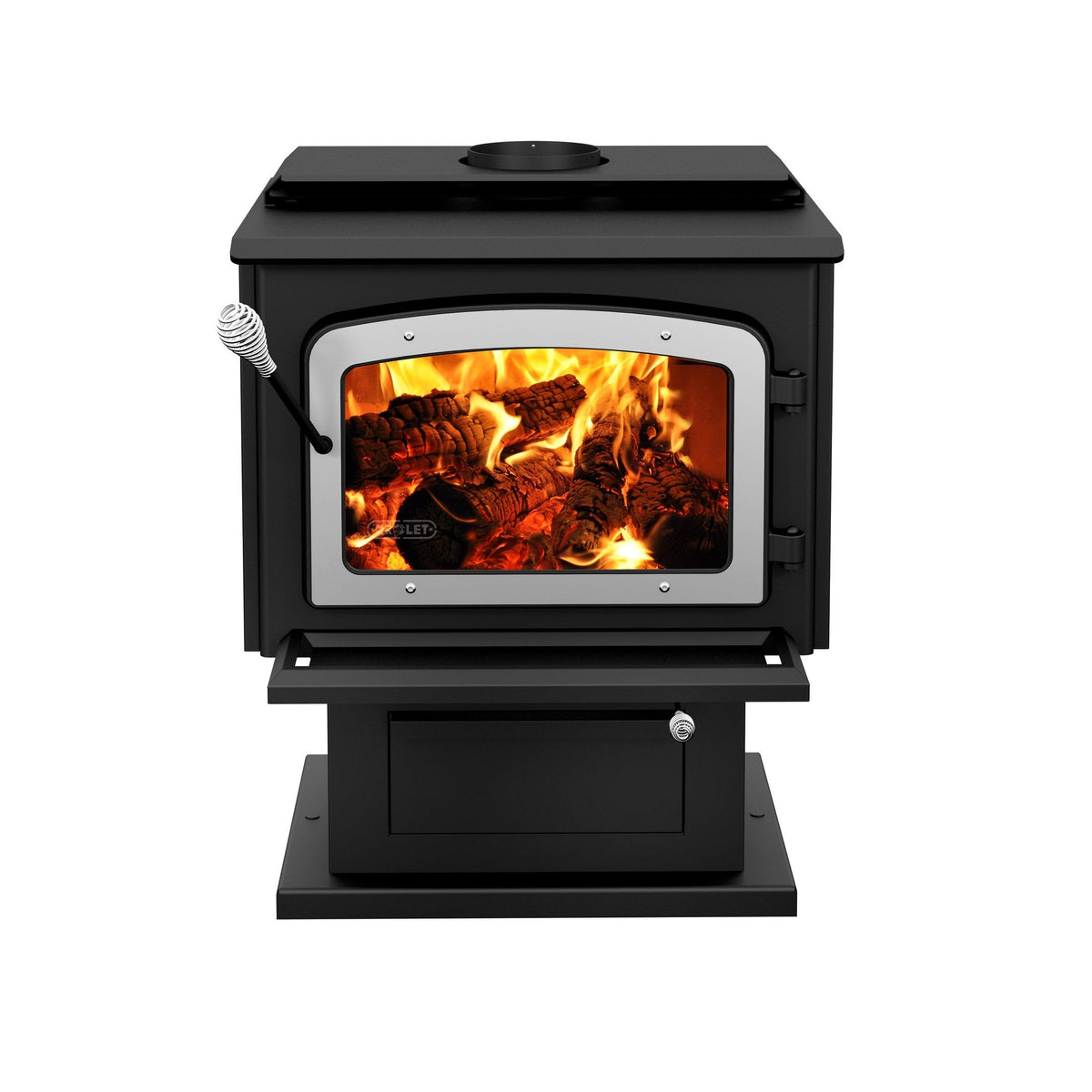

Drolet Escape 1800 Wood Stove - Brushed Nickel Door - DB03111

SKU: DB03111
filler

Price:
Sale price$1,499.00

Description

Drolet Escape 1800 Wood Stove - Brushed Nickel Door - DB03111

Ideal for spaces up to 2,100 ft², this large non-catalytic wood stove produces up to 75,000 BTU/h and emits only 1.54 g/h of fine particles. The unit is equipped with side panels that reduce clearances to combustible materials, and a top heat exchanger that redirects heat to the front of the unit.

Included: pedestal with ash drawer, brushed nickel door overlay, top air deflector, ceramic glass, side panels, ash lip, air damper

FEATURES:

Heating area 500 - 2,100 Ft2
Size 25 5/8" W X 25 3/4" D X 32 5/8" H
Maximum log length 20"
Average particulate emission rate
1.54 g/h
  • Up to 8 hours burn time
  • Up to 20'' logs
  • 2.4 ft³ firebox
  • Heavy duty 5/16'' steel top
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for mobile home and alcove installation

SPECIFICATIONS:

General Features:

Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 6 3/4"
Distance-center of the flue outlet to side unit 12 7/8"
Recommended chimney diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height 12'
Door type Single, glass with cast iron frame
Door opening size (Width) 17 1/2"
Door opening size (Height) 9"
Glass type Ceramic glass
Glass surface - W x H 16" x 9 1/4"
Steel thickness-body 3/16"
Steel thickness-top 5/16"
Firebox size (Width) 21"
Firebox size (Height) 12"
Firebox size (Depth) 16 1/2"
Log positioning Loading over width
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA / ASTM WK47329
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, UL 737



Appliance Performance:

Fuel type Dry cordwood (16" recommended)
Recommended heating area(9) 500 - 2,100 ft²
Overall firebox volume 2.4 ft³
EPA loading volume 2.02 ft³
Maximum burn time(9) 8 h
Maximum heat output-dry cordwood(4) 75,000 BTU/h (22 kW)
Minimum overall heat output rate(4) (5) 14,800 BTU/h (4.34 kW)
Maximum overall heat output rate(4) (5) 28,600 BTU/h (8.38 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6) 69 %
Average overall efficiency-dry cordwood (LHV)(5) (7) 74 %
Optimum efficiency(1) (2) 77 %
Optimum heat transfer efficiency(8) 75 %
Average particulate emission rate(3) 1.54 g/h
Average CO(10) 89.4 g/h
Size Large
Maximum log length 20"
Shipping weight 382 lb (173 kg)
Overall dimension (Width) 25 5/8"
Overall dimension (Height) 32 5/8"
Overall dimension (Depth) 25 3/4"
Warranty Limited lifetime
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM) Optional
Combustion technology Non-catalytic

(1) This appliance is officially tested and certified by an independent agency.

(2) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

(3) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(4) As measured per CSA B415.1-10 stack loss method.

(5) Higher Heating Value of the fuel.

(6) Lower Heating Value of the fuel.

(7) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(8) Optimum overall efficiency at a specific burn rate (LHV).

(9) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

(10) Carbon monoxyde.

Clearances:

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
  United-States
  Single wall pipe Double wall pipe
Clearance – back wall 11" 6"
Clearance - corner 10" 7"
Clearance – side wall 16" 16"
Clearance – top (measured from the platform on which the appliance is installed)** 84" 84"
