Description
Accucold 24" Wide Built-In All-Freezer, ADA Compliant - VT65MLBI7PLUS2ADA
The VT65MLBI7PLUS2ADA is a 24” wide all-freezer designed for built-in use under ADA compliant counters, with a factory installed lock for added security and a digital thermostat for easy temperature management. This manual defrost unit can hold temperatures as low as -25ºC, ideal for many vaccines and laboratory items.

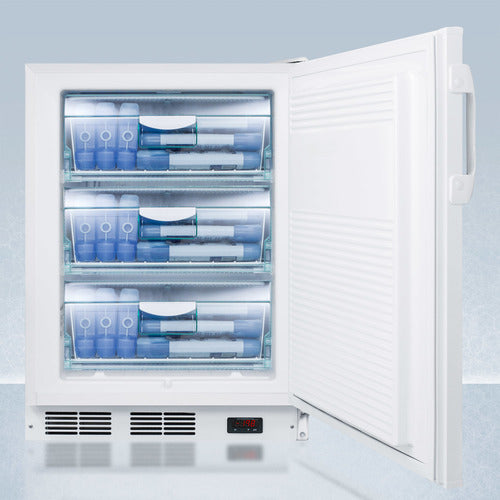

The door includes a thermometer calibrated to NIST standards in our ISO/IEC 17025:2005 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents. The interior features three removable storage baskets with clear plastic fronts for easy storage that stays cold, even when the door is opened.
The VT65MLBI7PLUS2ADA is ETL-S listed to NSF-7 commercial standards. It can be paired with the auto defrost FF6LBI7PLUS2ADA all-refrigerator for a complete matching set.
Accucold's PLUS2 series freezers are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up
Features
- ADA compliant: Sized at 32" high for use under lower ADA compliant counters
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Commercially approved: ETL-S listed to NSF-7 commercial standards
- Factory installed lock: Keyed lock for secure interior
- Buffered temperature probe: Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature
- NIST calibrated temperature display: Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button
- -25ºC capable: Low temperature capability ideal for certain sensitive items
- Manual defrost: Efficient performance with reliable temperature stability
- Digital thermostat: Electronic controls located in the front kickplate for easy temperature management

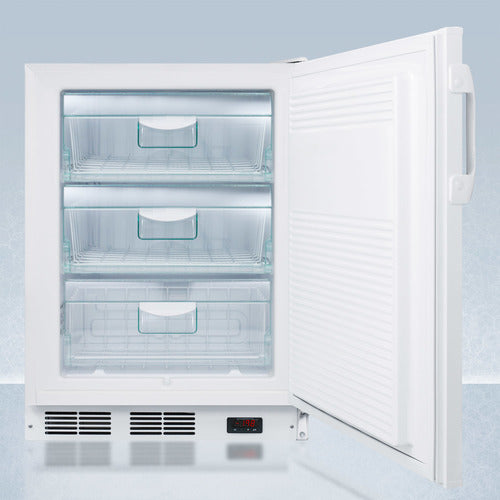

- Pull-out drawers: Clear baskets for convenient and separated storage
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Foamed-in-place cabinet: Designed to ensure a sufficiently insulated interior
- Approved for use in the USA and Canada: ETL and ETL-C listed for North American sales
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory reversible door: Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
- 100% CFC Free: Environmentally friendly design using R404a and without ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.25" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.5" (60 cm)
- Depth with Handle: 24.25" (62 cm)
- Depth with door at 90°: 45.13" (115 cm)
- Capacity: 3.2 cu.ft. (91 L)
- Defrost Type: Manual
- Door: White
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.3
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 105.0 lbs. (48 kg)
- Shipping Weight: 110.0 lbs. (50 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101058016
Freezer
- Door Swing: RHD
- Reversible Factory: Reversible
- Interior Height: 24.25" (62 cm)
- Interior Width: 17.75" (45 cm)
- Interior Depth: 16.5" (42 cm)
- Shelf Type: Glass
- Thermostat Type: Digital
- Fan Type: Exterior
- Refrigerant Type: R134a
- Refrigerant Amount: 2.7 oz.
- High Side PSI: 235.0
- Low Side PSI: 70.0
- Interior Drawers: Yes
- Drawers Qty: 3
- Compressor Step Height: 6.5" (17 cm)
- Compressor Step Width: 17.5" (44 cm)
- Compressor Step Depth: 5.5" (14 cm)
- Temperature Range: -12ºC to -25ºC
Available Upgrades
Lock
- KEYPAD - Battery-powered keypad door lock
- AC Keypad - AC powered keypad lock
Exterior
- Alarm/Thermometer
- Extra key
- SCD - Self-closing door
- ODA - Open door alarm
- LHD - Left hand door swing
- Latch - Factory-installed door latch requires manual release to open unit
- SSK - Stainless steel kickplate
- HG - Hospital grade cord
- Agion Door
- PH - Probe Hole
- DL2B - Factory installed NIST calibrated digital data logger (DDL)
Handle
- TBC Copper Towel Bar Handle
- CP Full-Length Copper Pipe Handle
Door
- STO-Step-To-Open Door Pedal
