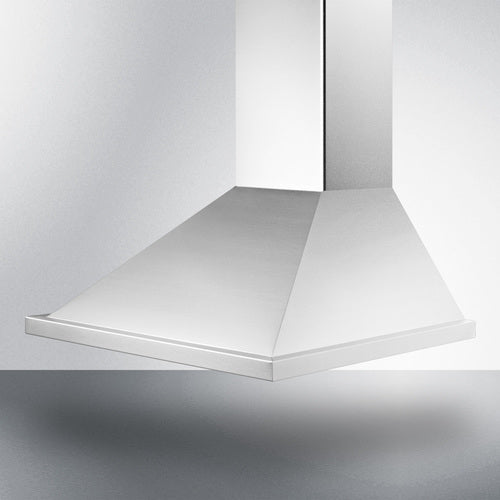

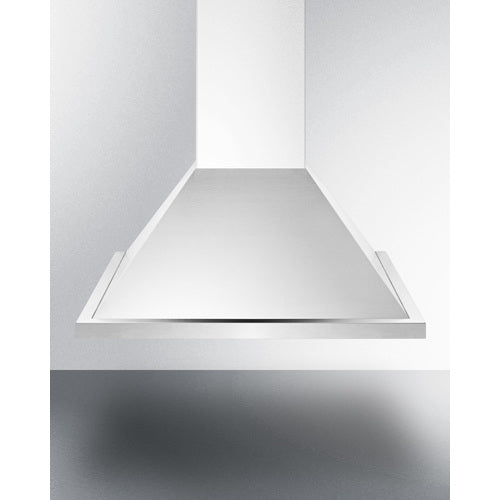

Summit 30" Wide Wall-Mounted Range Hood ADA Compliant - SEH1530CADA

Call for availability
SKU: SEH1530CADA
filler

Price:
Sale price$1,220.00

Description

Summit 30" Wide Wall-Mounted Range Hood ADA Compliant - SEH1530CADA


Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

Made in Spain, the SEH1530CADA is a 30" wide range hood with a pre-installed 530 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two halogen light bulbs are pre-installed, offering an elegant illumination of your range.

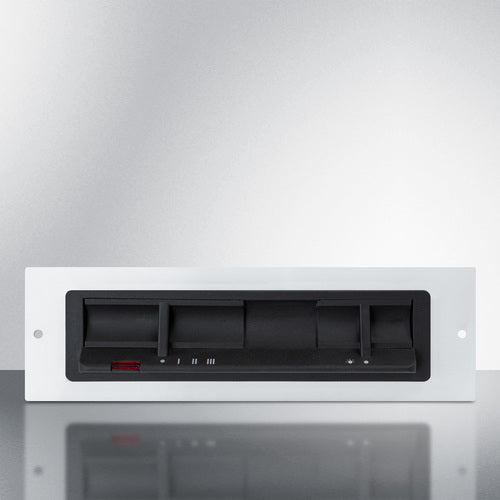

The SEH1530CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required.

This wall-mounted hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Spain and ships in one box. Additional wall-mounted and under cabinet hoods are available in an ADA compliant design.

Summit 30" Wide Wall-Mounted Range Hood ADA Compliant

Features

  • ADA compliant design: Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
  • Stainless steel construction: Quality material with an elegant look in brushed stainless steel
  • 530 CFM blower: Professional motor is preinstalled for easy use
  • Convertible with filter: Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set

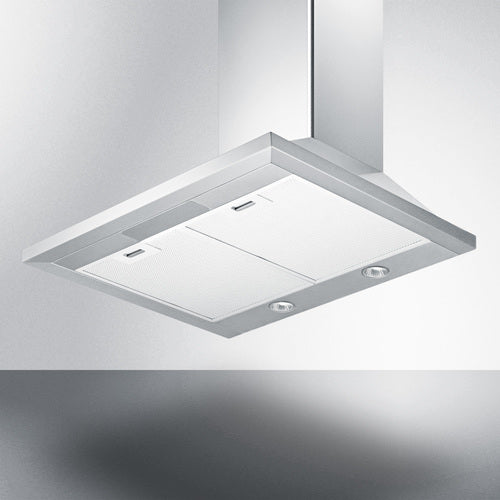

  • Two aluminum cassette filters: Dishwasher safe filters offer wide filtration area for better ventilation
  • Timer function: Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
  • Two 40W lights: Includes two preinstalled incandescent bulbs
  • Three-speed fan: Offers more options for ventilation
  • European made: Designed and manufactured in Spain with all UL-Listed components
  • Height adjustable chimney: Chimney height can be set from 21 3/4" to 41 3/4"
  • 6" round ducting: Ideal for most kitchen settings

Specifications

Overview

  • Height of Cabinet: 32.0" (81 cm)
  • Width: 29.75" (76 cm)
  • Depth: 19.63" (50 cm)
  • Cabinet: Stainless Steel
  • US Electrical Safety: UL
  • Canadian Electrical Safety: ULC
  • Weight: 30.0 lbs. (14 kg)
  • Shipping Weight: 32.0 lbs. (15 kg)
  • Parts & Labor Warranty: 1 Year
  • UPC: 761101063553
Summit 30" Wide Wall-Mounted Range Hood ADA Compliant

Range Hood

  • Installation: Wall-Mounted
  • Venting: Convertible w/ Filter Set
  • Controls: Slide
  • Light: Yes
  • Number of Lights: 2
  • Light Type: Incandescent
  • Number of Fan Speeds: 3
  • Maximum Air Movement: 530.0 CFM
  • Sone Rating: 11
  • Minimum Height: 31.0" (79 cm)
  • Maximum Height: 50.0" (127 cm)
  • Duct Shape: 6" Round

Manufacturer Resources



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
