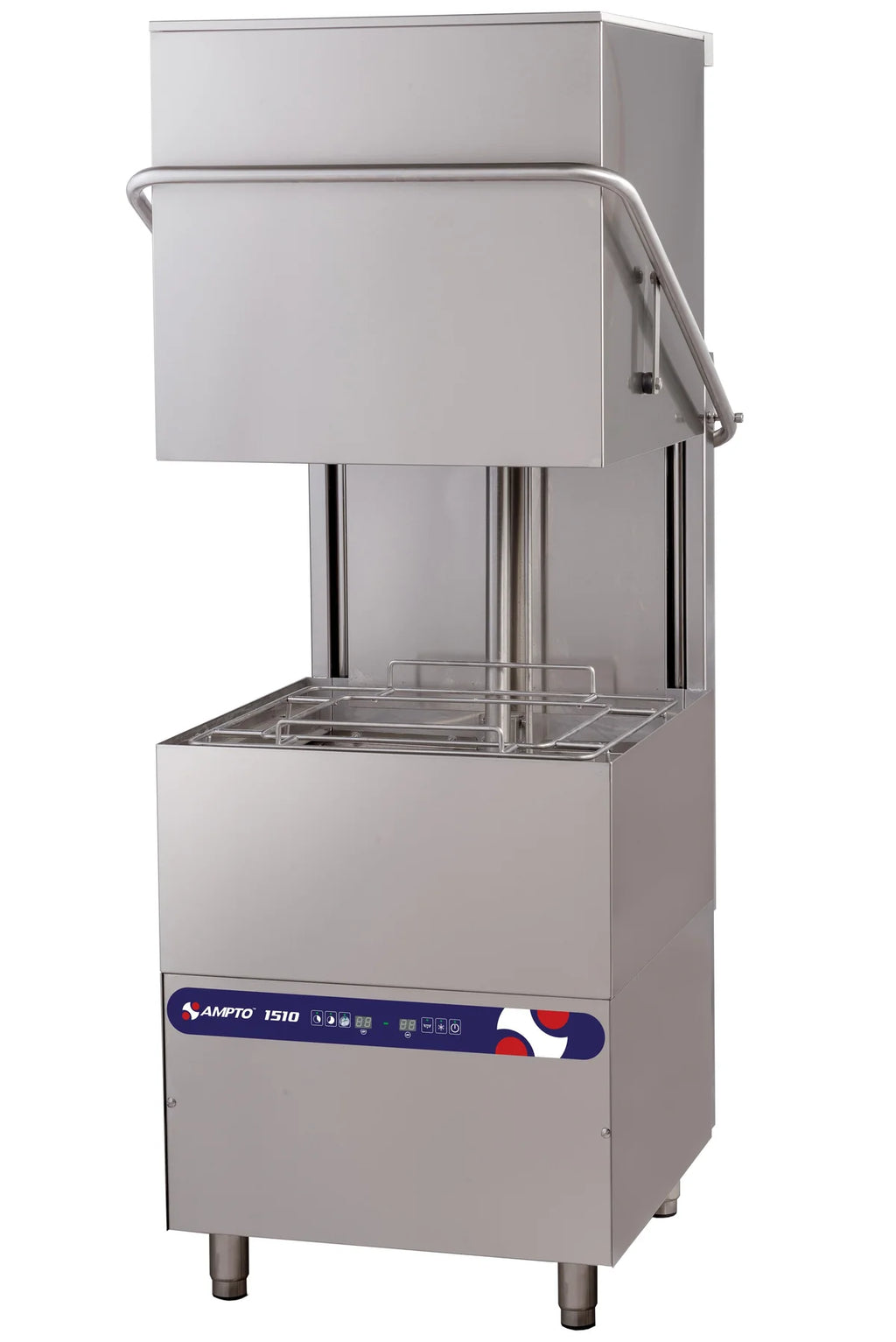

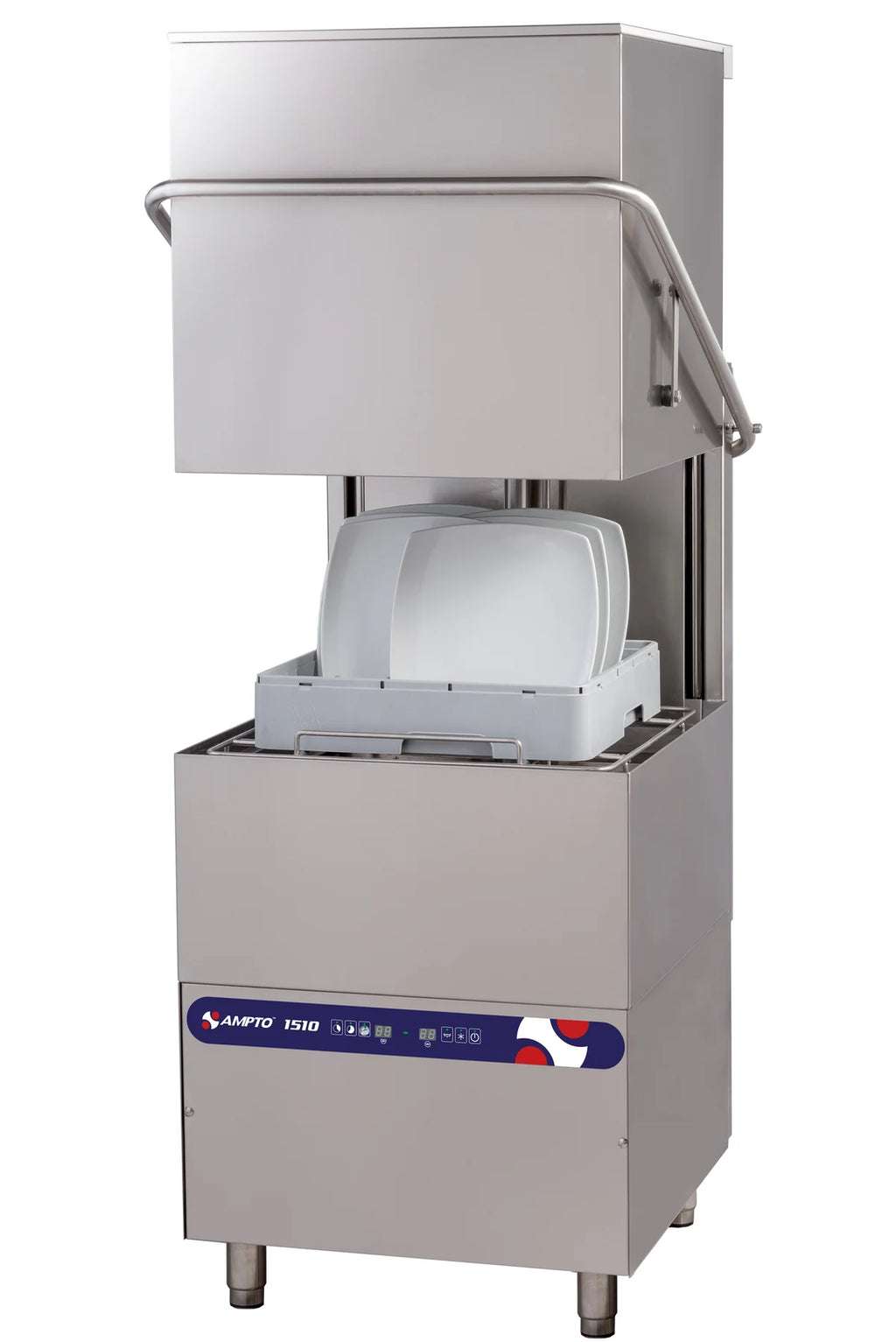

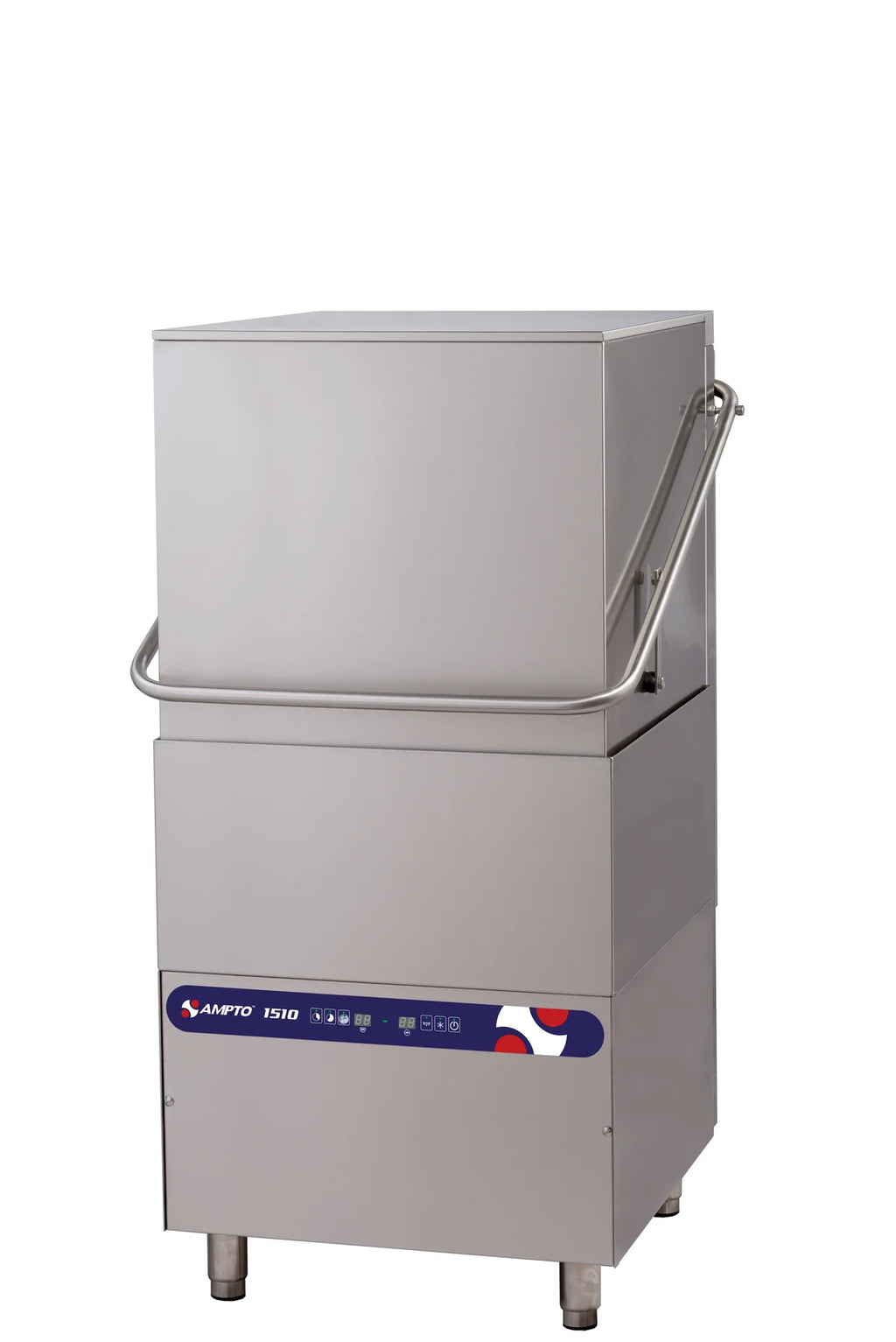

AMPTO Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour - 1510

Call for availability
SKU: 1510
filler

Price:
Sale price$8,803.00

Description

AMPTO Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour - 1510

Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour, detergent & rise-aid pumps, front-mount digital controls, drain pump, (3) operating cycles, , stainless steel exterior panels & interior, 1-1/2 HP, cETLus, ETL-Sanitation

PARTS:

  • NSF certified indicators for wash temperature, rinse temperature and rinse pressure
  • 304 stainless steel body and handle, heavy duty & corrosion resistant
  • Upper and lower wash/rinse arms with high temperature cycles
  • 1 peg rack, 1 flat rack & 1 cutlery tray included

FEATURES:

  •  Automatic Fill
  • Double skin door
  • Automatic drain pump
  • Self-cleaning mode
  • Built in booster heater
  • Built in chemical pumps
  • IP 44 washing pump
  • Guarantee rinse temperature
  • Self-diagnostic mode
  • 3 washing programs available
  • Easy access for maintenance
  • Durable inox construction
  • Standard pressure reducer valve (PRV)
  • Standard back cover

PRODUCT SPECIFICATIONS:

  • BASKET SIZE 20” x 20”/ 500 x 500 mm
  • POWER SUPPLY 208-240V / 60Hz / 1 Ph
  • POWER 10.5 kW
  • AMP 39 A
  • WASH PUMP MOTOR 1.5 HP

WATER CONNECTION:

  • FLOW PRESSURE 20 psi ± 5
  • WATER CONSUMPTION / RACK 0.7 gal (2nd program)
  • WATER CONSUMPTION / HOUR 13.2 gph
  • WATER INLET CONNECTION 3/4”
  • DRAINING CONNECTION 1.2”

CAPACITY:

  • CAPACITY Booster tank: 7.4L, Wash tank: 68L
  • HEATING ELEMENT Booster tank: 7.5 kW, Wash tank: 6 kW
  • RACK / HOUR (1ST PROGRAM) 28
  • RACK / HOUR (2ND PROGRAM) 19
  • RACK / HOUR (3RD PROGRAM) 14
  • WASH CYCLE 1 103 SEC
  • WASH CYCLE 2 223 SEC
  • WASH CYCLE 3 343 SEC
  • RINSE CYCLE 16 SEC

WORKING TEMPERATURE:

  • WASHING 77 °C / 170.6 °F
  • RINSING 74 °C / 165.2 °F

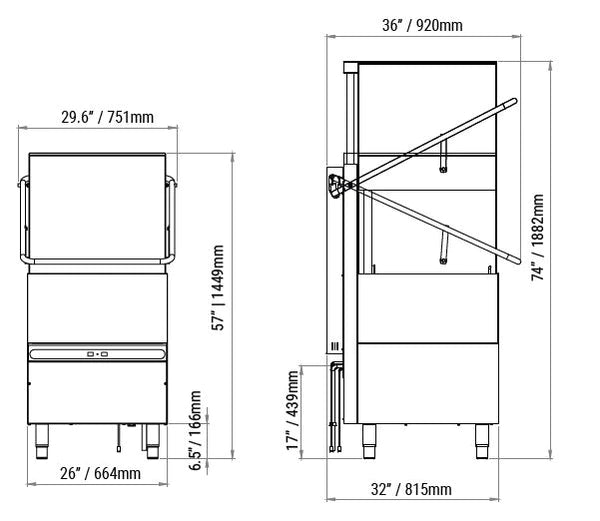

 DIMENSIONS:

  • DOOR CLEARANCE 16” / 400 mm
  • USEFUL DOOR OPENING 15.5” / 395 mm
  • NET DIMENSIONS (WDH) 30” x 36” x 57” / 751 x 920 x 1449 mm
  • (74” / 1882 mm open)

Plug and Wire (not included): Requires a certified electrician to install unit.

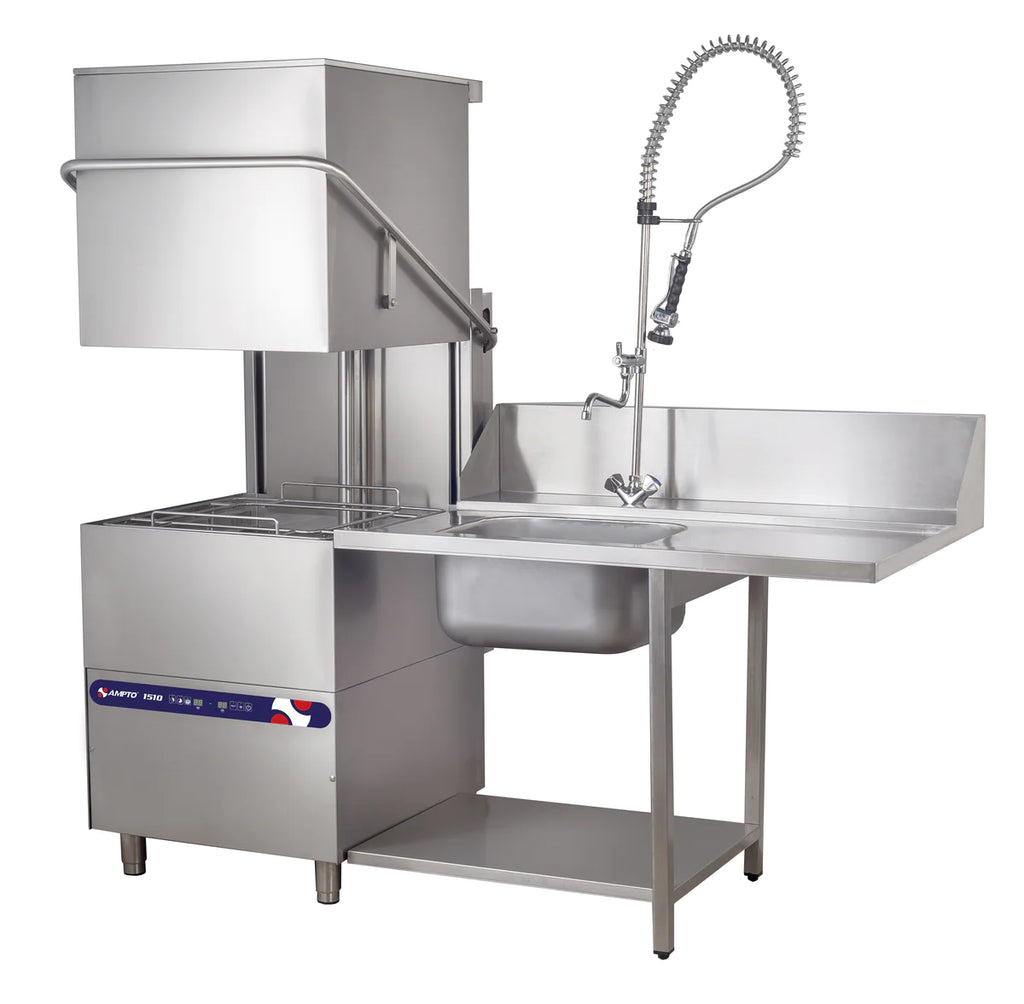

*Dish table do not include

NOTE: Normal operation generates steam that may escape from the door. Materials like wood, laminate etc. are unsuitable for areas exposed to dishwasher steam and only stainless steel surfaces is recommended
