ZLINE 48-Inch Ducted Wall Mount Range Hood in Outdoor Approved Stainless Steel (697-304-48)

In Stock-Ready to Ship!
SKU: 697-304-48
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$1,599.95

Description

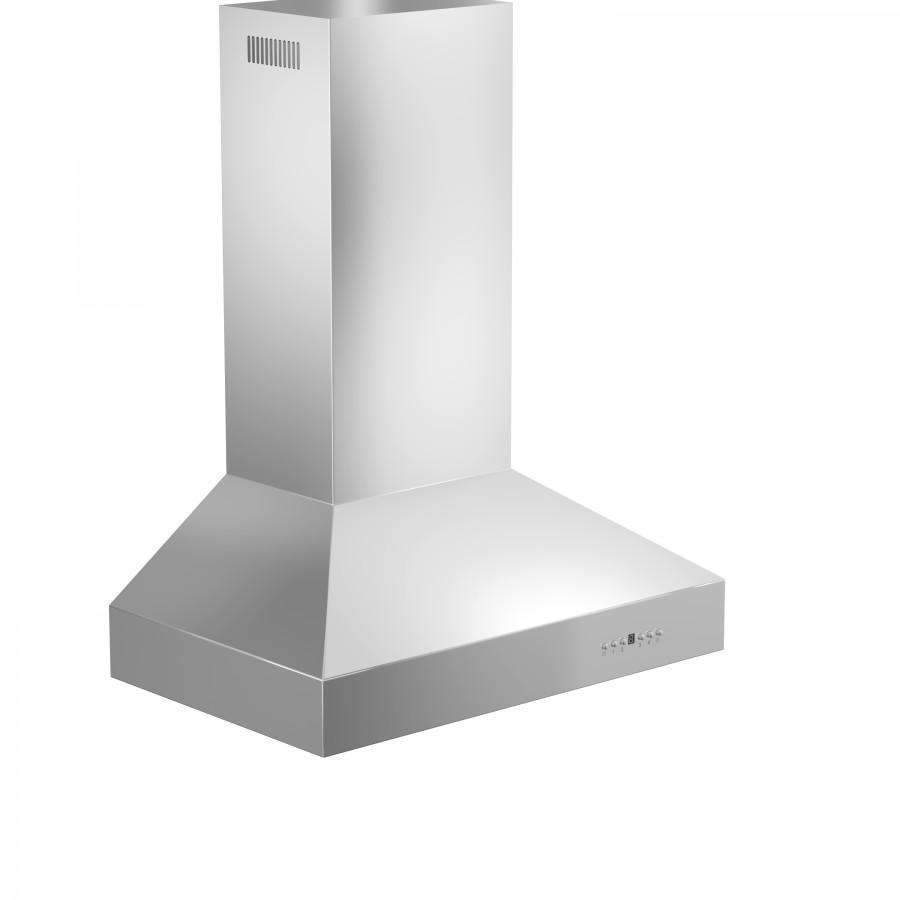

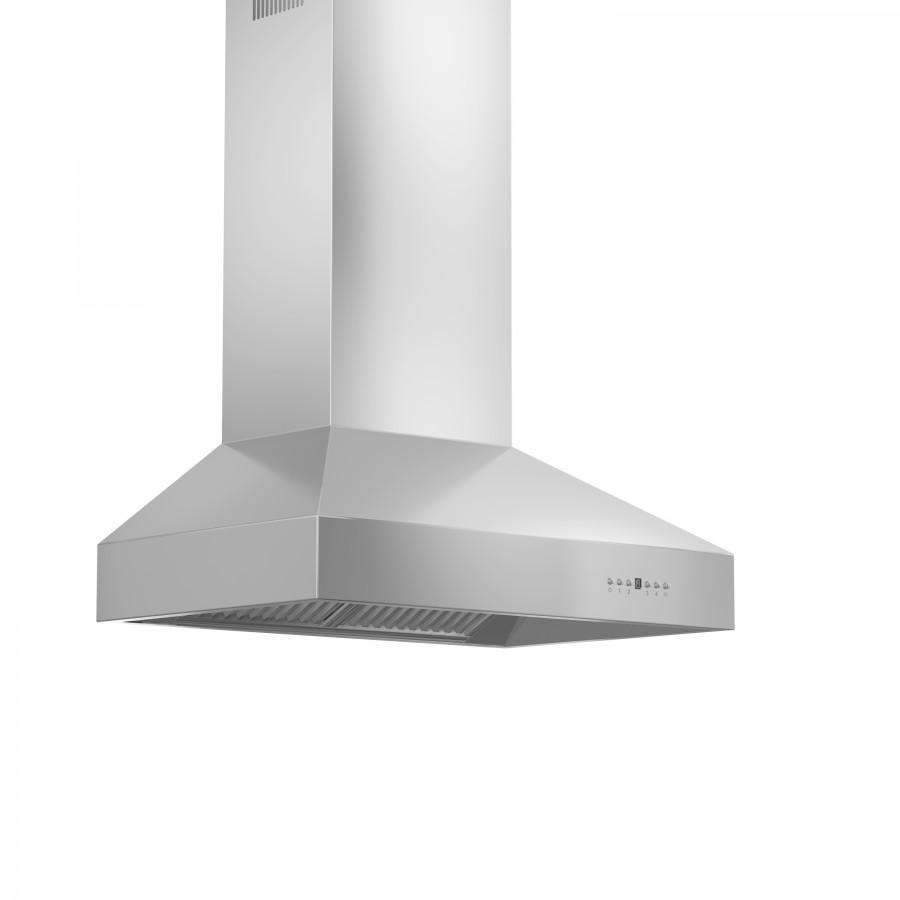

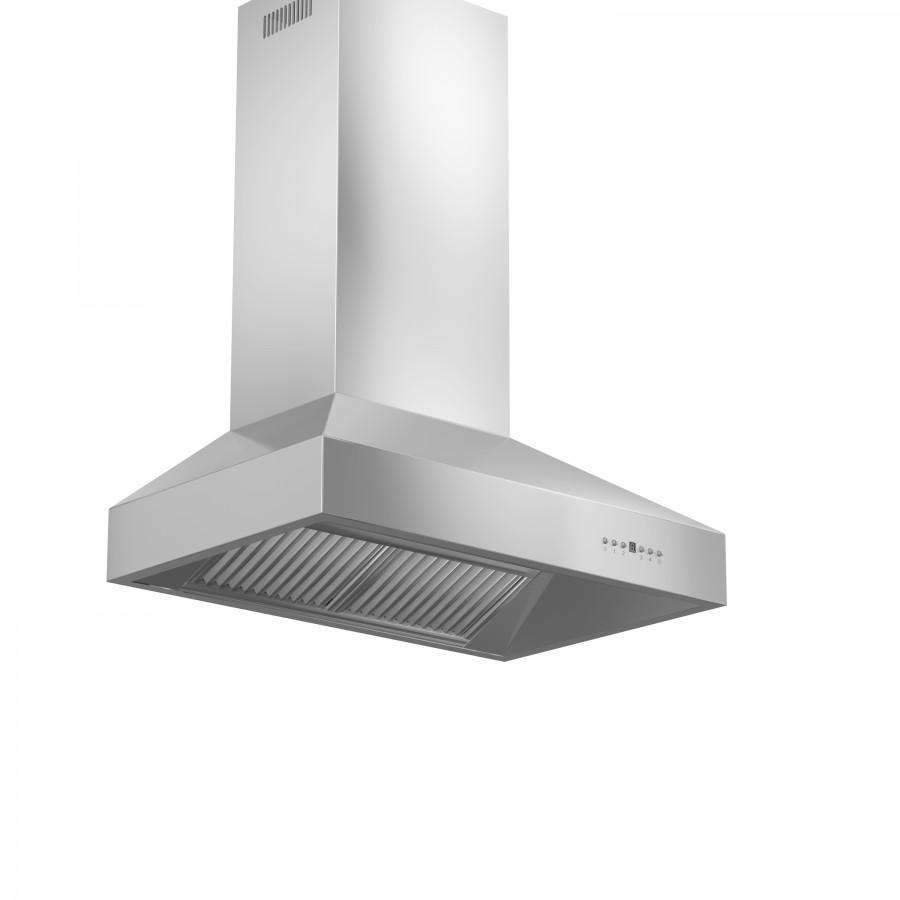

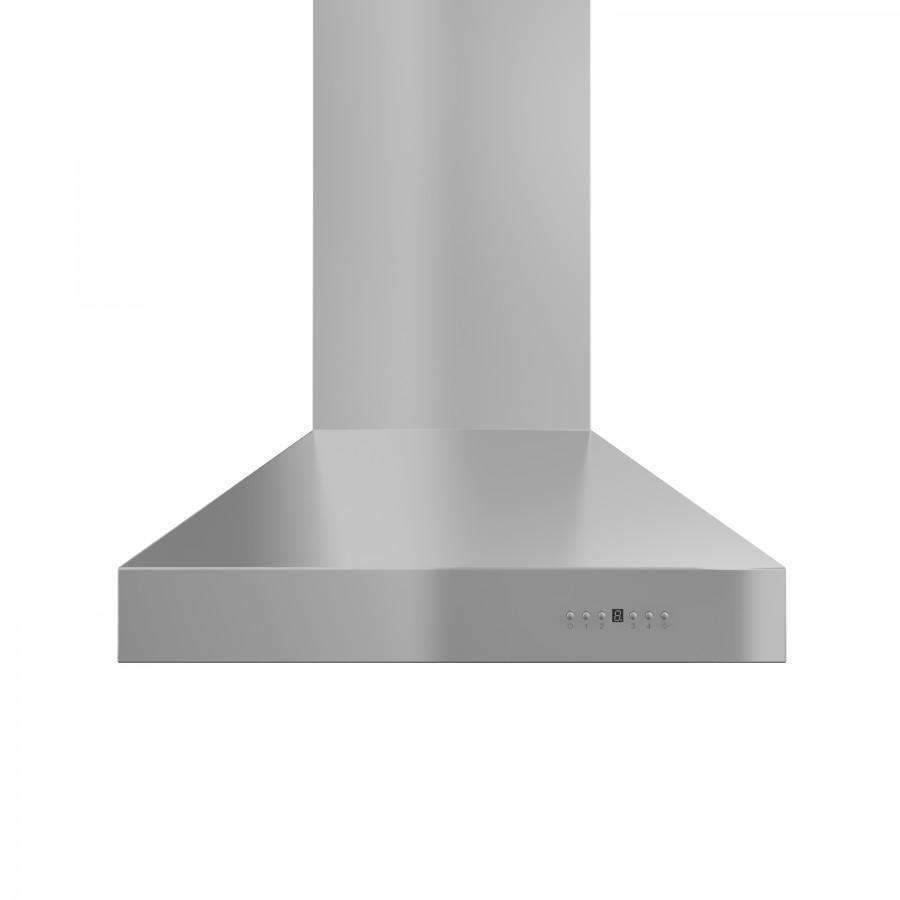

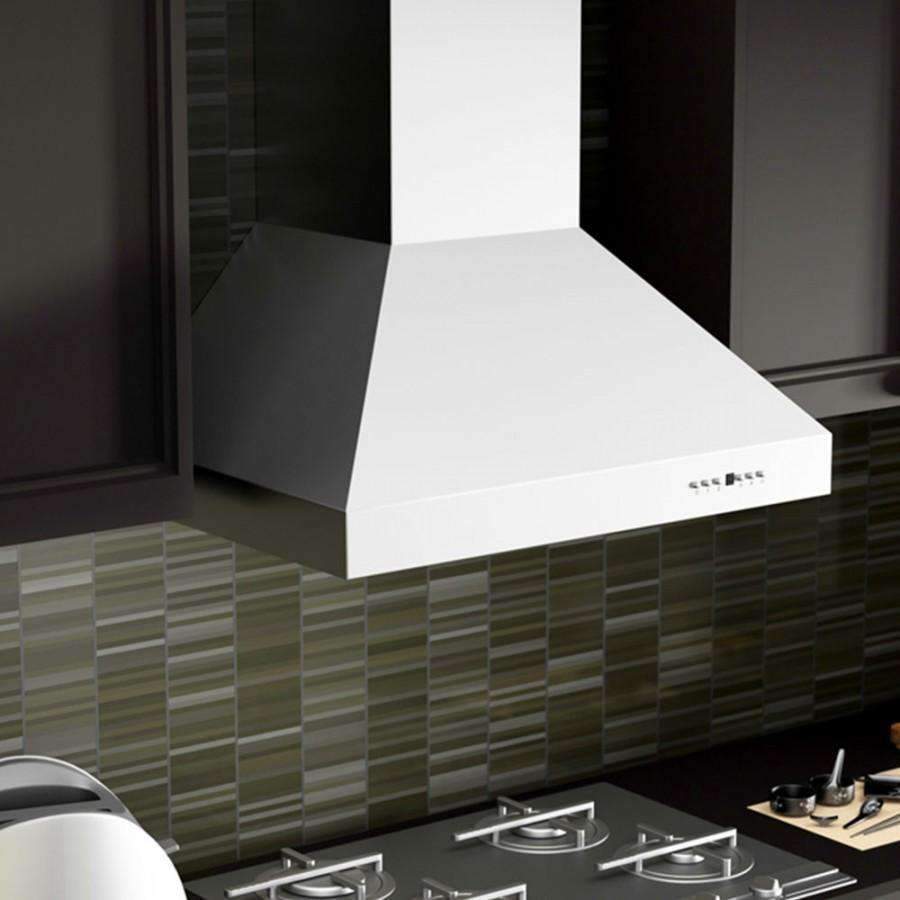

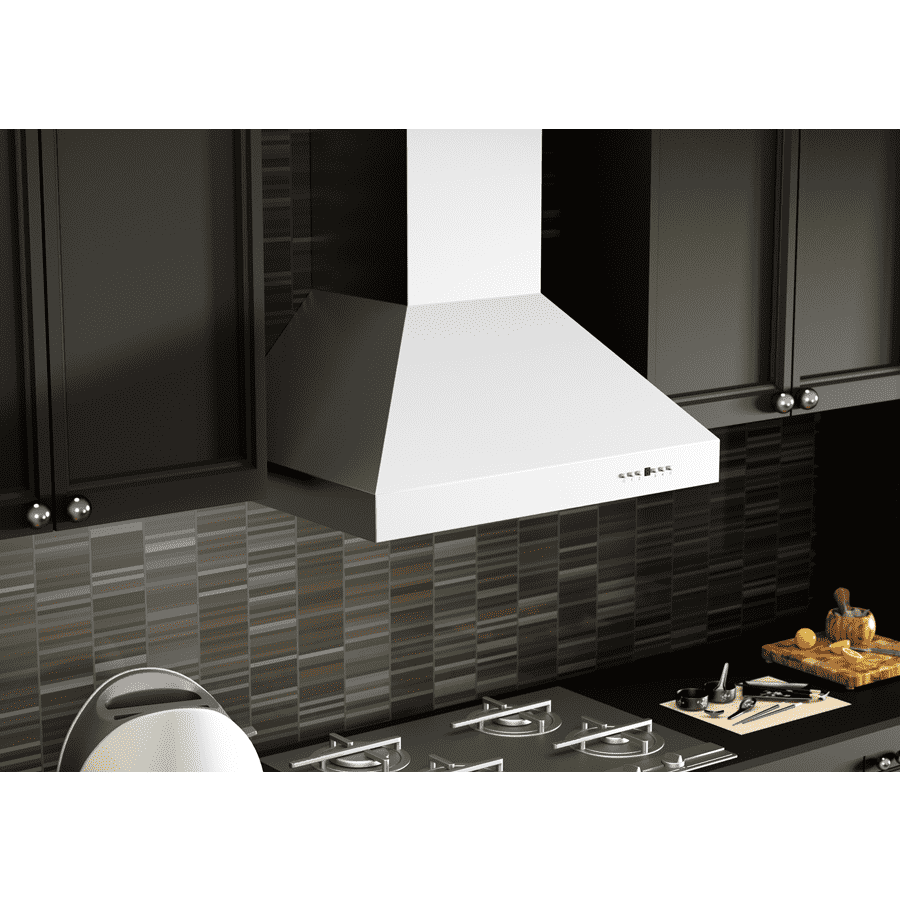

ZLINE 48" Outdoor/Indoor Stainless Wall Range Hood, 697-304-48

The ZLINE 697-304-48 is a 48-inch outdoor professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade, outdoor approved stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:

  • Easy-to-use push button controls let's you easily control fan speed and lighting
  • 4-Speed fan control (280/420/560/700 CFM) to choose the appropriate air flow for your cooking situation
  • 700 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area
  • Dishwasher-safe stainless steel baffle filters
  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • 3 year parts warranty, life-time motor warrantyc
  • Distance from cooktop: ZLINE typically recommends 30” - 36” for indoor settings. For customers installing over a grill, ZLINE recommends 38" - 42” above the grill

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see the table below for detailed options.




ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 697-304-48 ships the next business day when in stock.



Purchasing an outdoor range hood comes with a different set of recommendations than indoor range hoods:

  • Always install your outdoor range hood at least 36 above your outdoor range or grill
  • If purchasing a 760 CFM range hood, your hood should be at least 2 sizes larger than your grill
  • If purchasing a 900 or 700 CFM range hood, your hood should be at least 1 size larger than your grill
  • It is not recommended to use a recirculating range hood, you should always duct away from your cooking area

OPTIONS & ACCESSORIES

  • Ductless/Recirculate Option - No
  • Ceiling Heights Options:
  • Certified Outdoor Use - Yes



Brand:
ZLINE Kitchen and Bath
Dimension:
48" W x 27.5" D x 16.5" H
Chimney (Dimension):
13.5" W x 11.75" D x 16" H (x2) (Telescoping)


Chimney Short Kit and Extension(s) Available:
Short Kit (2-12") ~7-8 ft. Ceilings
1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
2 PC Extension (2-36") ~10-12 ft. Ceilings

Venting Size:
8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H):
280/420/560/700 (CFM)
Lighting:
4 Directional LED Lights (3-Watt)
Noise Level:
30/41/49/52 (Decibels)
Voltage:
110V/60HZ
Motor:
High Performance 700 CFM/4-Speed Motor
Mount Type:
Wall Mount - RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL
Speeds:
4 Speeds
Control Type:
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters:
Stainless Steel Baffle Filters (Dishwasher Safe)
Material:
19g #304 Stainless Steel
Warranty:
3 Year Parts Warranty
Features:

Model No. 697-304-48 (ETL Listed)

UPC:
855187005801
Certifications:
ETL Certified
