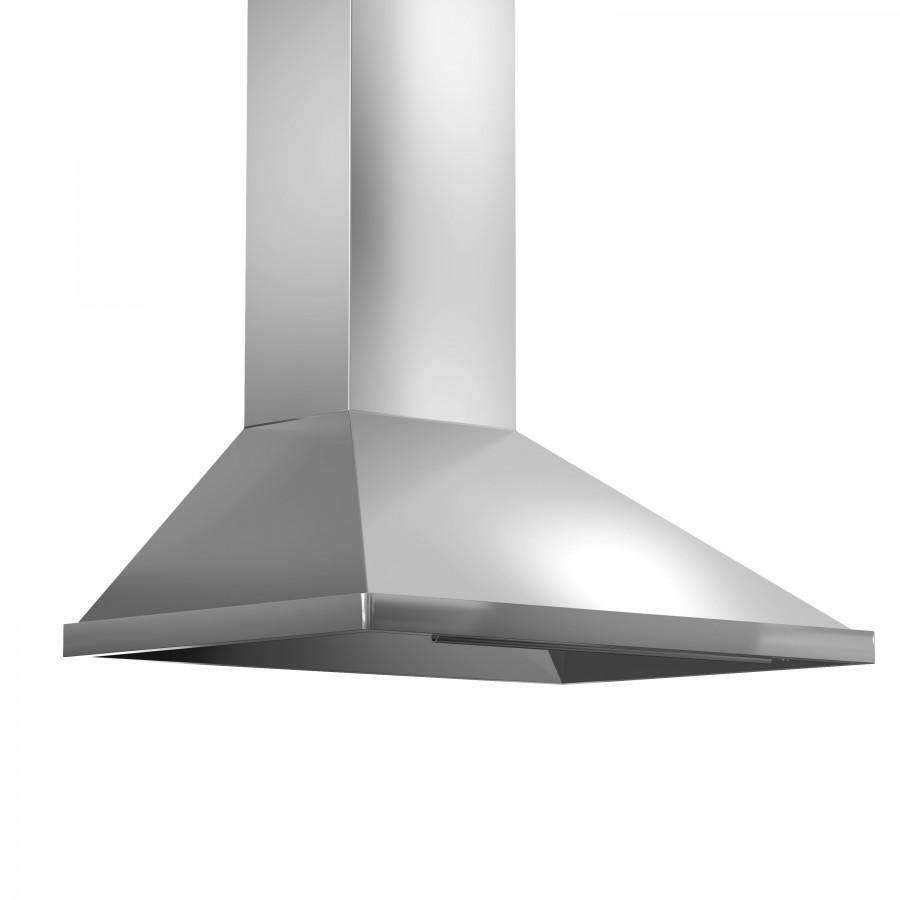

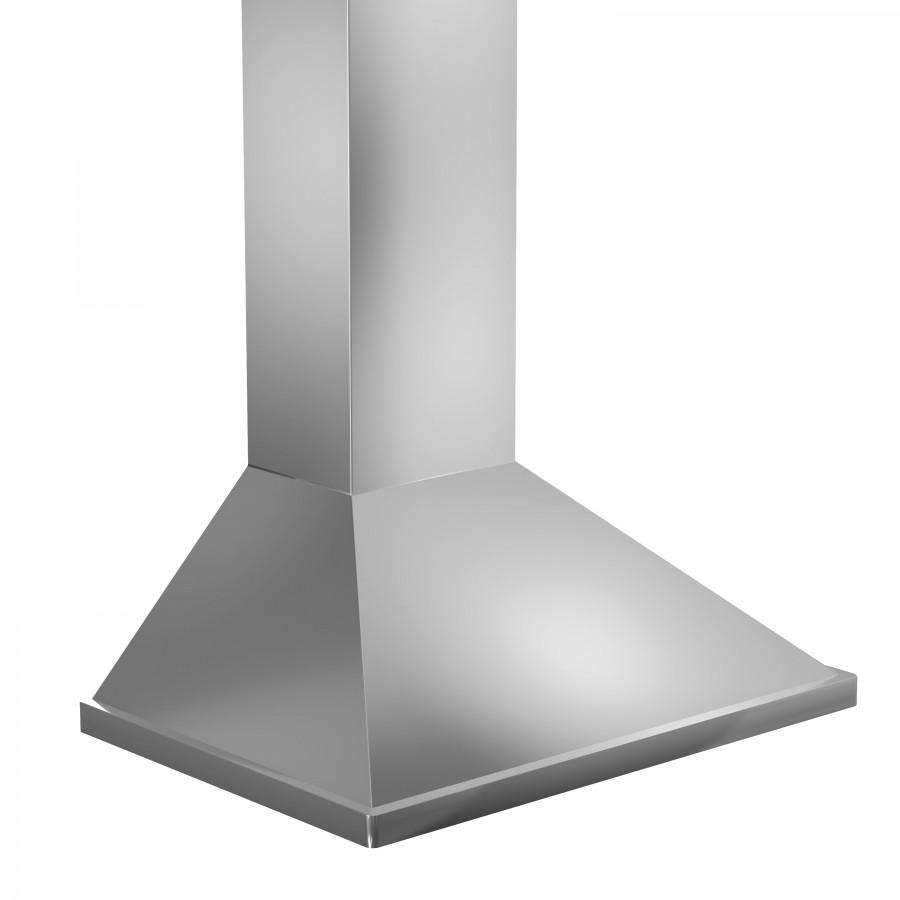

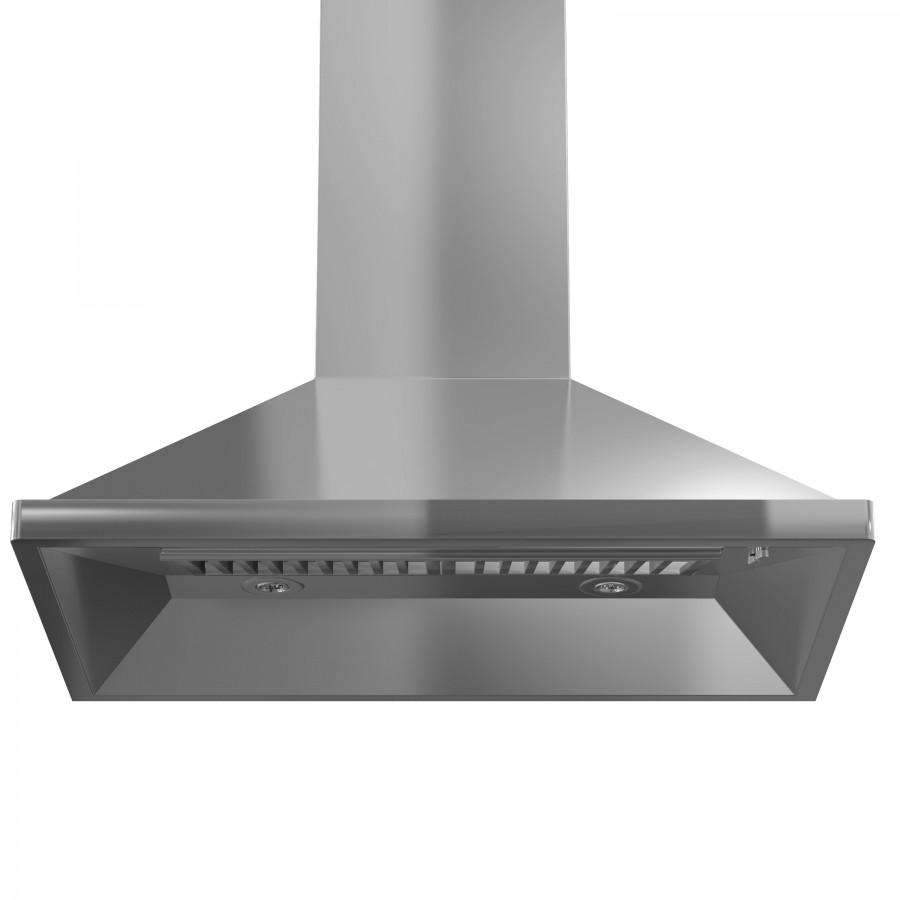

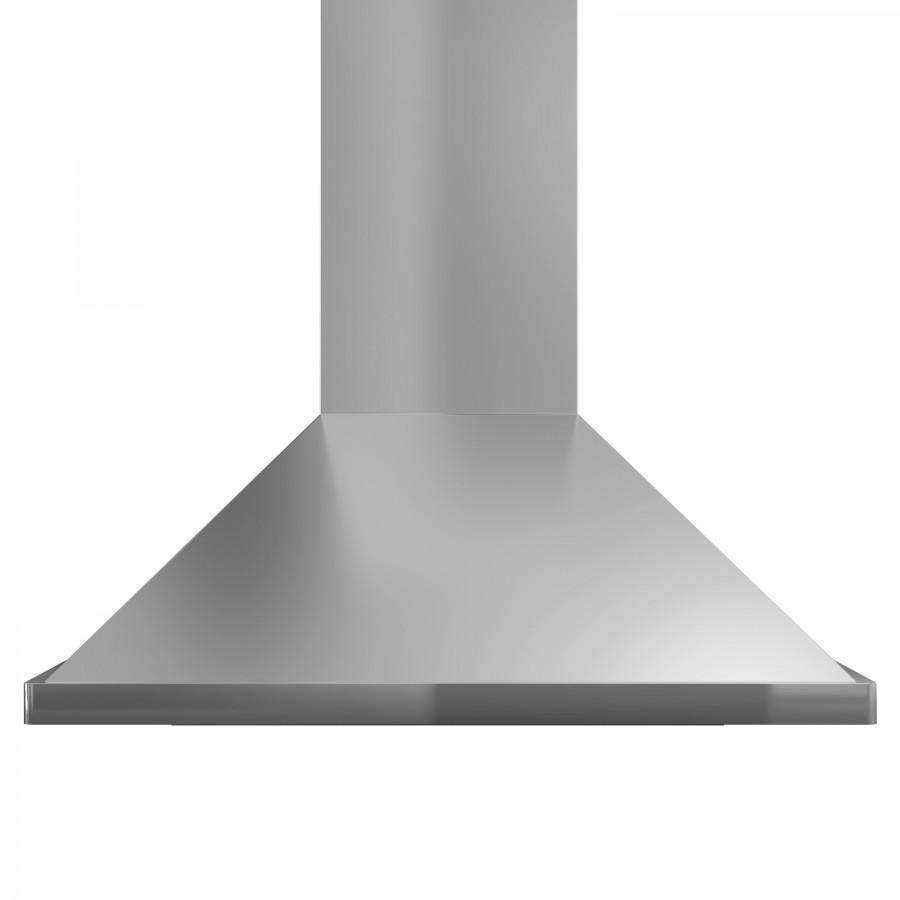

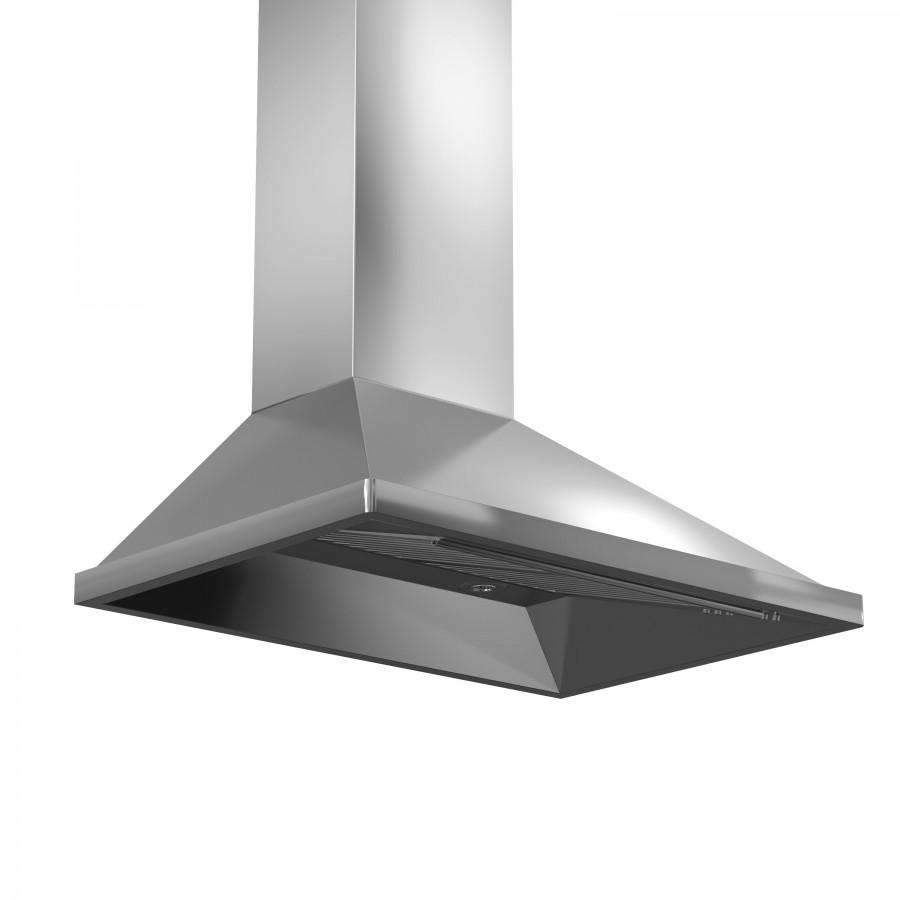

ZLINE 36-Inch Convertible Vent Wall Mount Range Hood in Outdoor Approved Stainless Steel (696-304-36)

In Stock-Ready to Ship!
SKU: 696-304-36
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$799.95

Description

The ZLINE 696-304-36 is a 36 inch outdoor professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade, outdoor approved stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:

  • Convertible range hood - this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors
  • Easy-to-use push button controls let's you easily control fan speed and lighting
  • 4-Speed fan control (280/400/580/1200 CFM) to choose the appropriate air flow for your cooking situation
  • Ductwork easily connects to the top of the range hood for external venting
  • Dishwasher-safe stainless steel baffle filters
  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • 3 year parts warranty, life-time motor warranty

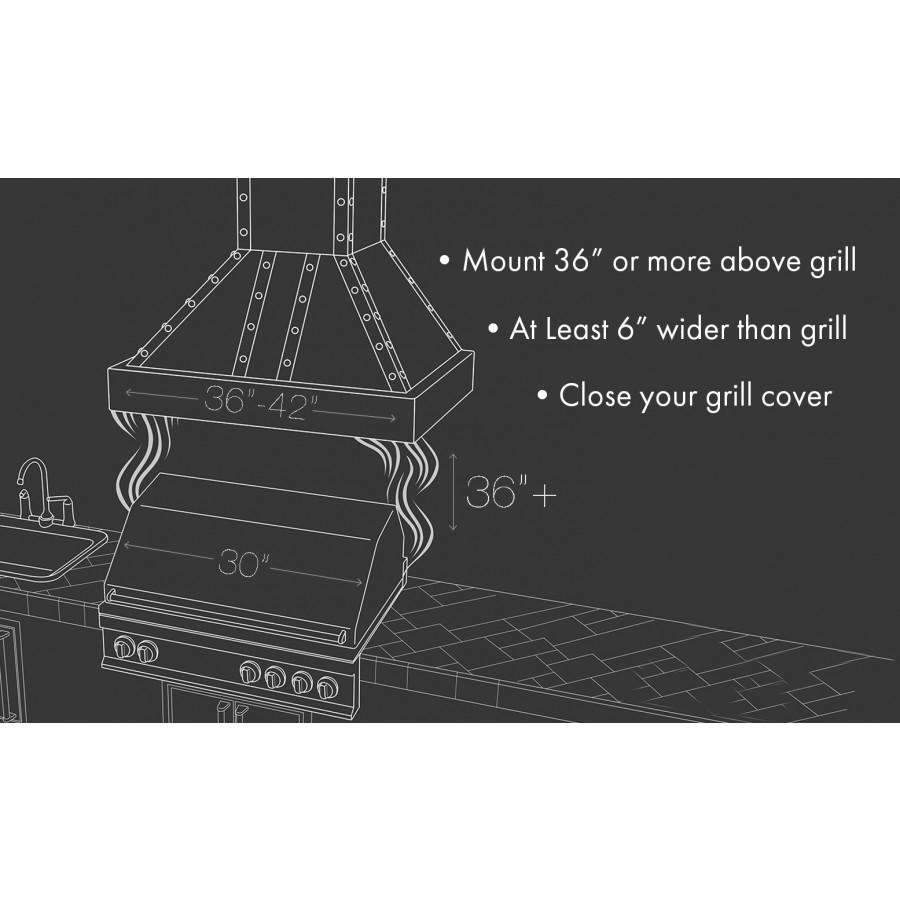

  • Distance from cooktop: ZLINE typically recommends 30” - 36” for indoor settings. For customers installing over a grill, ZLINE recommends 38" - 42” above the grill

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 696-304-36 ships next business day when in stock.



OPTIONS & ACCESSORIES

  • Ductless/Recirculate Option - Yes (CF1 Required)
  • Ceiling Heights Options:
    •    Less 8’ - Require Short Kit SK-696-304
    •    8’ to 9' - No Ext or Short Kit required
    •    9' to 10’ - Require Ext 1PCEXT-696-304
    •    10' to 12’ - N/A
  • Crown Molding(s) - NA
  • Certified Outdoor Use - YES



Brand: ZLINE Kitchen and Bath

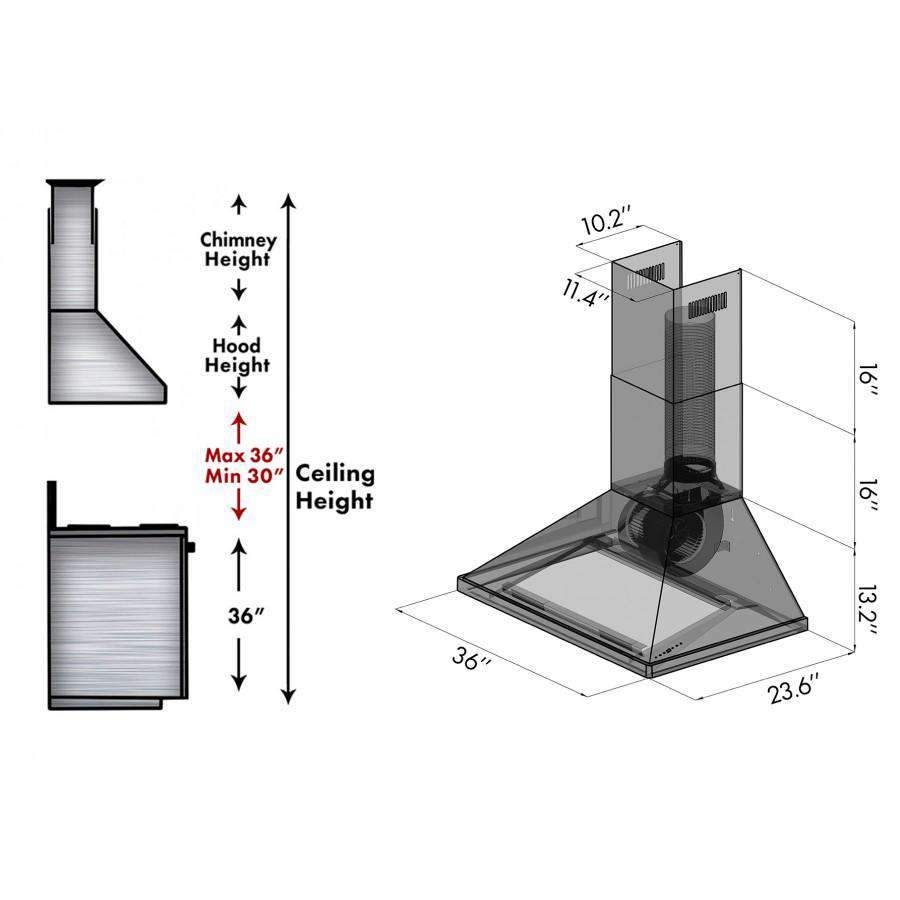

Dimension: 36 in. W x 23.6 in. D x 13.2 in. H
Chimney: 11.4 in. W x 10.2 in. D x 16 H (x2) (Telescoping)

Chimney Short Kit and Extension(s) Available:
  • Short Kit (2-12") ~7-8 ft. Ceilings
  • 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
  • 2 PC Extension (2-36") ~10-12 ft. Ceilings
Venting Size:

6" Outlet (Transition piece with backdraft damper to round ducting included)


Charcoal Filters (not included) required for recirculating/ductless option.

Airflow (Q/L/M/H):
120/240/320/400 (CFM)
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level: 30/41/49/52 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher-safe)
Material: 19g #304 Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Model No. 696-304-36 (ETL Listed)
UPC: 814118022379
Certifications: ETL Certified



Range Hood Decibel Levels



ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.


Chimney Sizing

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size. Watch the video to learn more about sizing your chimney.
