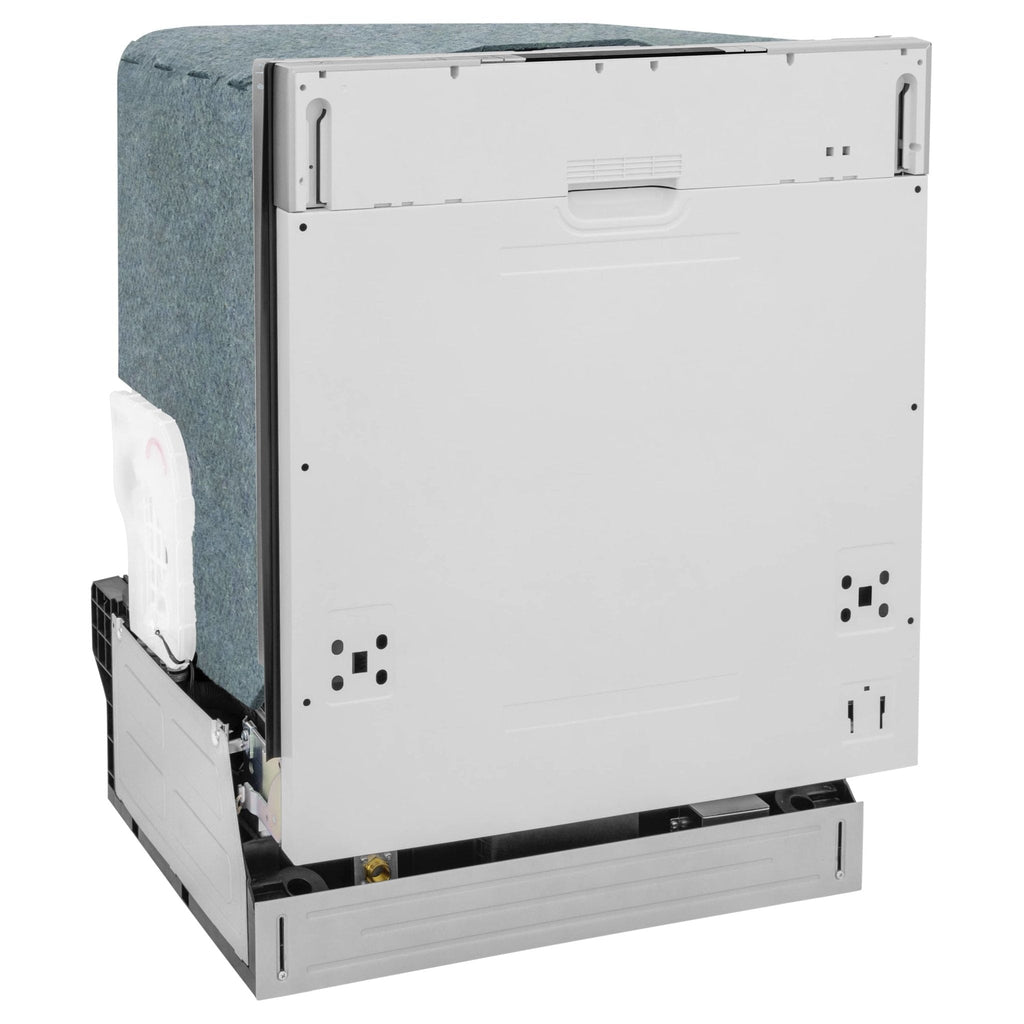

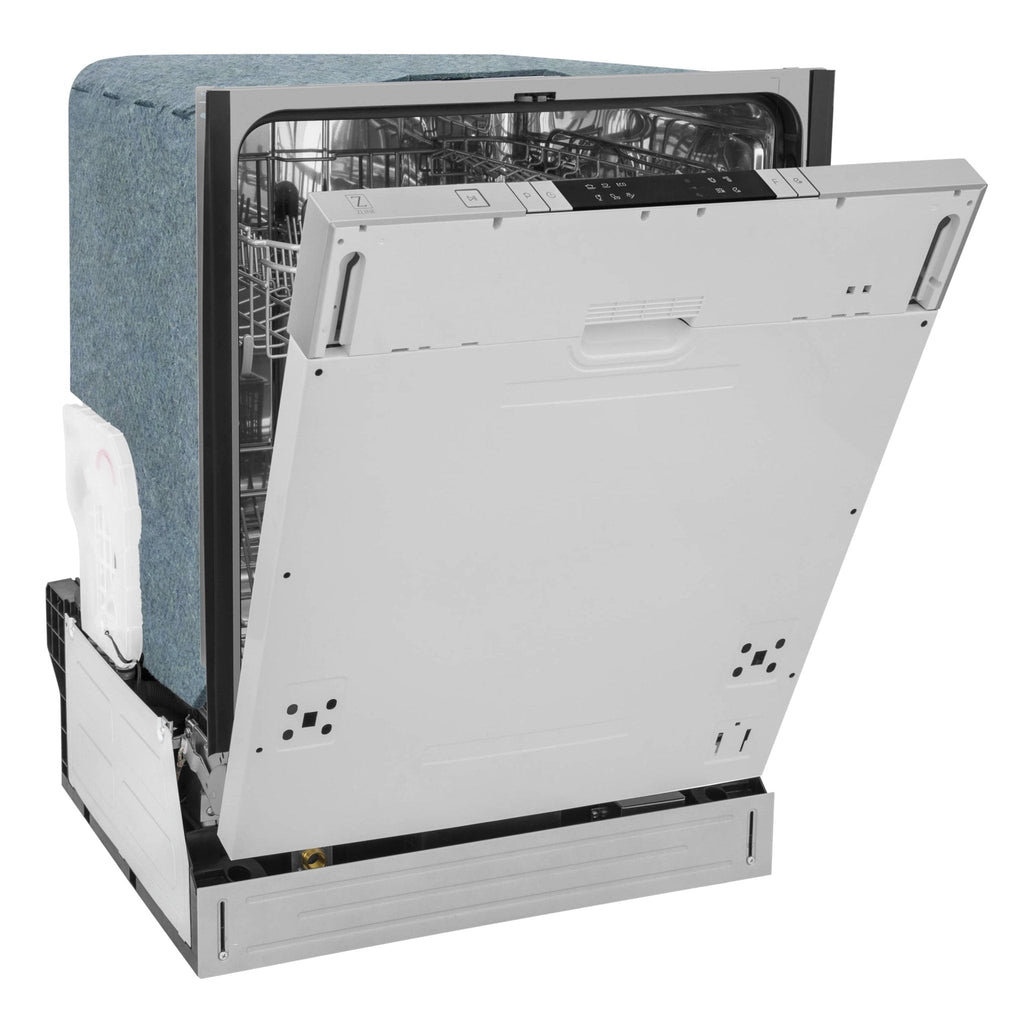

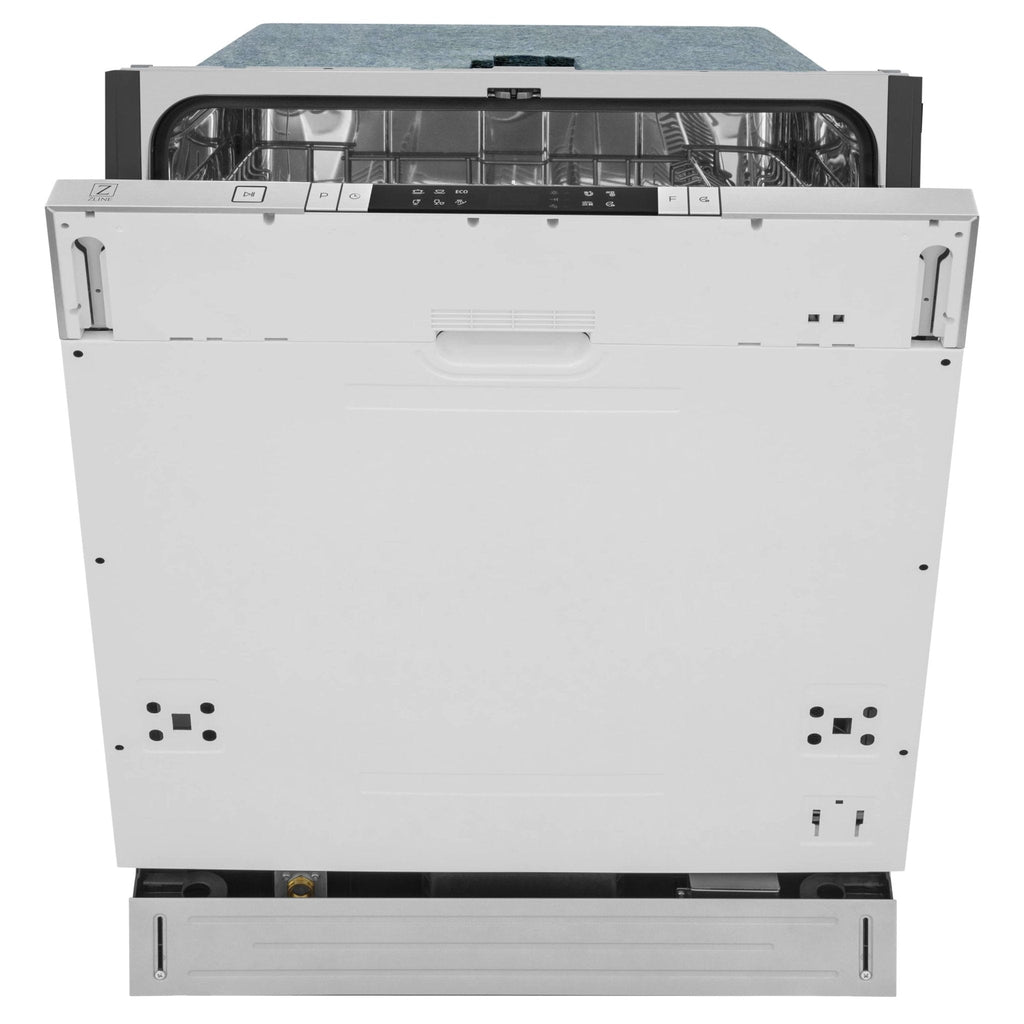

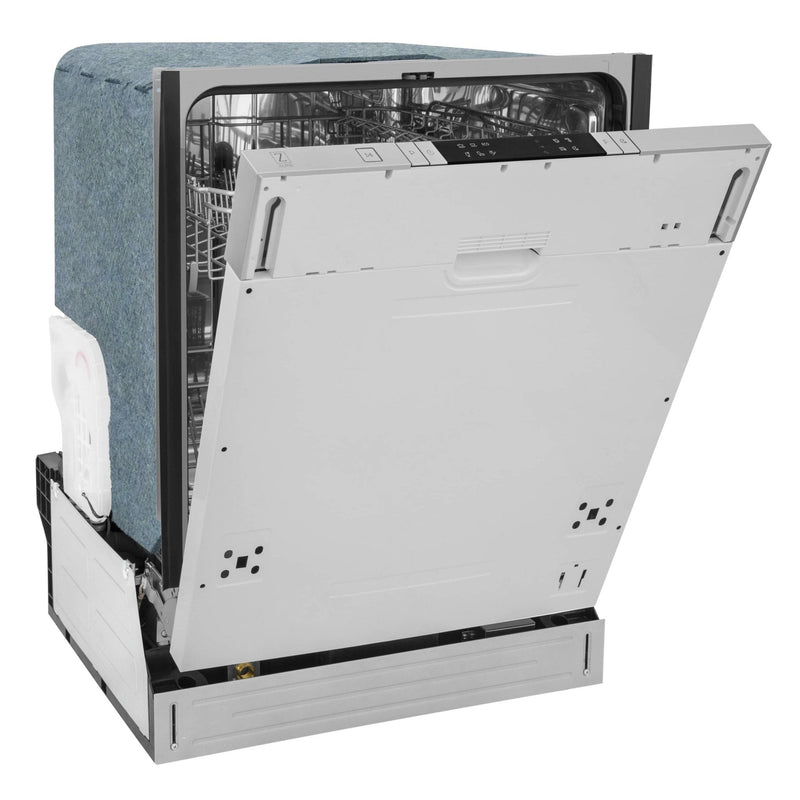

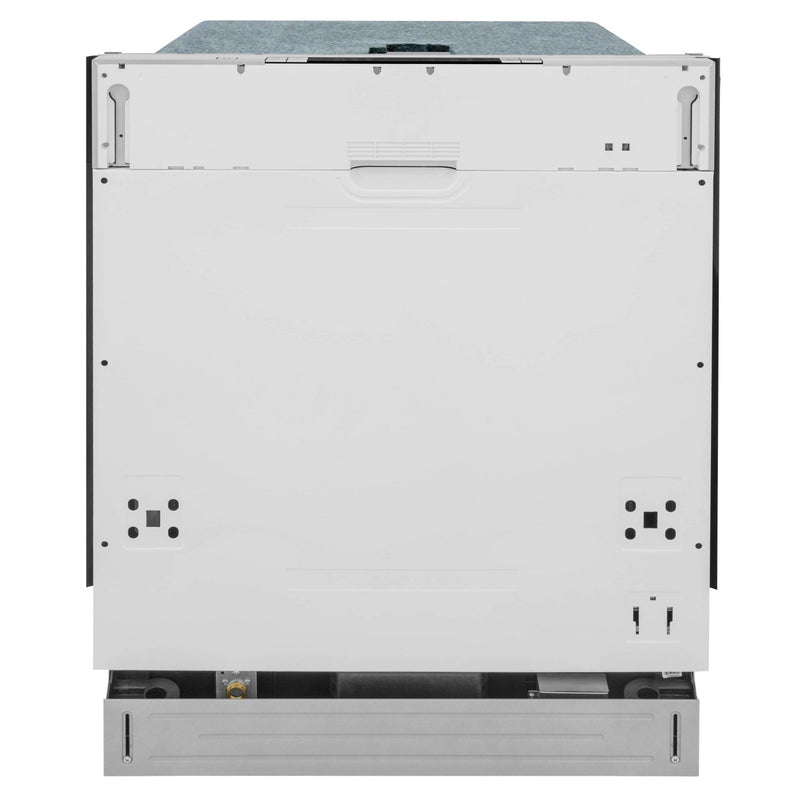

ZLINE 24-Inch Top Control Dishwasher in Custom Panel Ready with Stainless Steel Tub (DW7713-24)

In Stock-Ready to Ship!
SKU: DW7713-24
Save $600.00

Sale price$1,099.95 Regular price$1,699.95


ZLINE 24" Panel Ready Top Control Dishwasher, Stainless Steel Tub (DW7713-24)

Luxury isn’t meant to be desired - it’s meant to be attainable.

Designed in Lake Tahoe, USA, the ZLINE 24 in. Panel Ready Top Control Dishwasher with Stainless Steel Tub, 52dBa provides a professional culinary experience by pairing unmatched performance with timeless style.

Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.


  • Built-in European style dishwasher designed to be low-profile

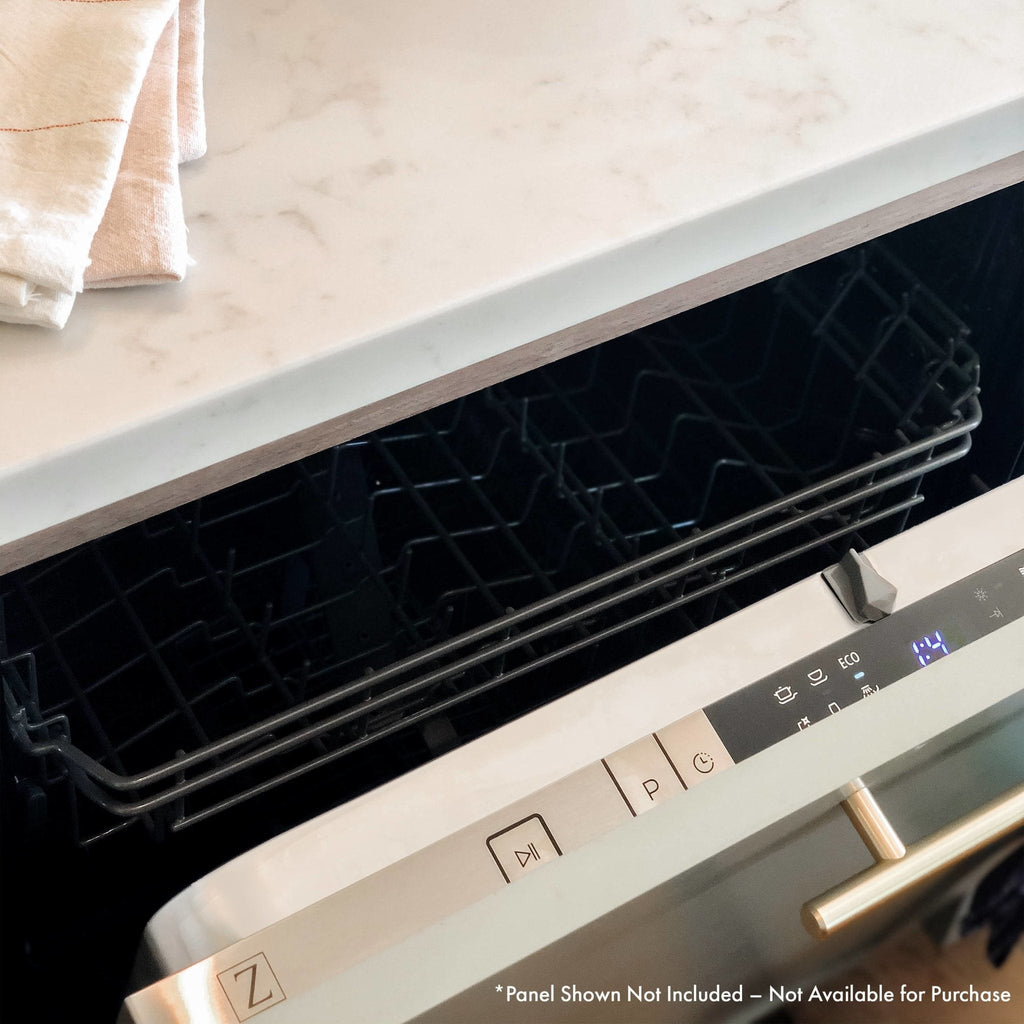

  • Top control for a sleek, concealed look

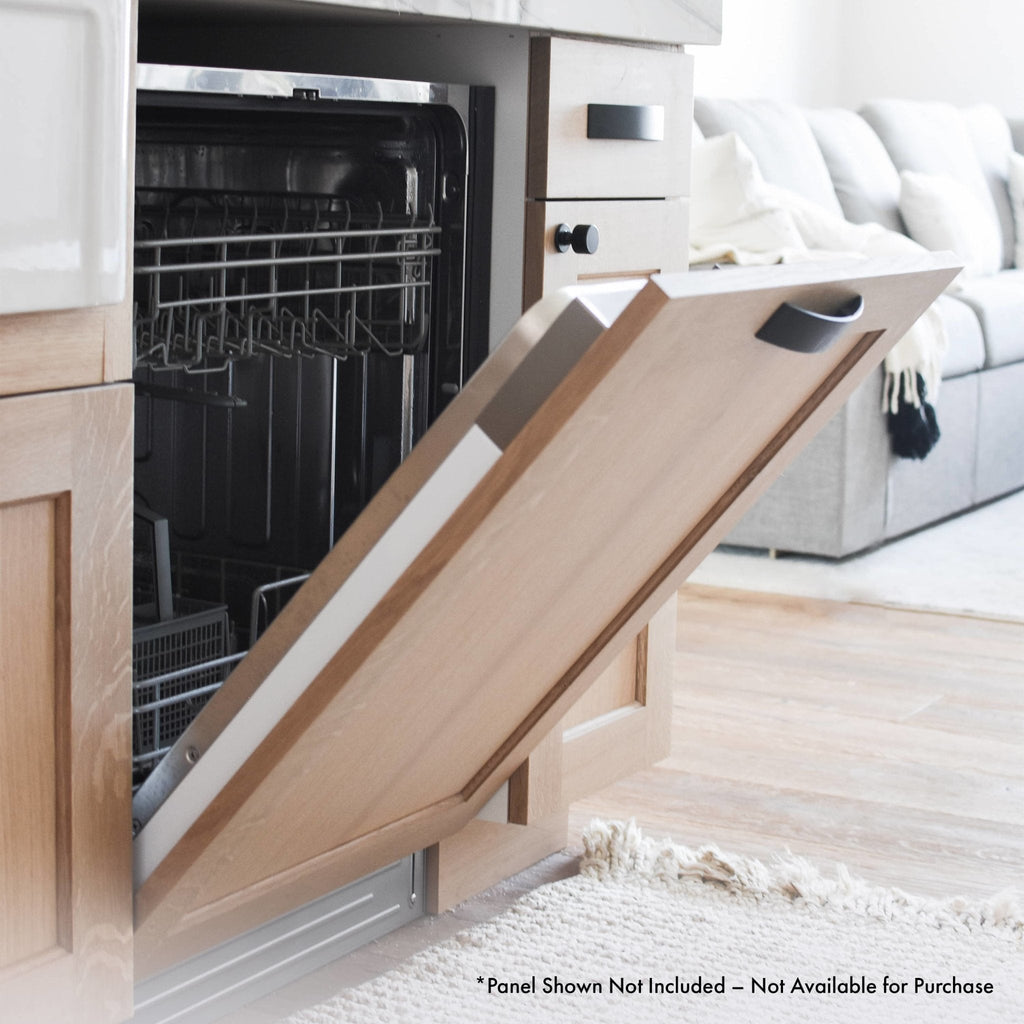

  • ZLINE Panel Ready Dishwasher allow you to interchange the color and design of your dishwasher to adjust to the look of your kitchen.

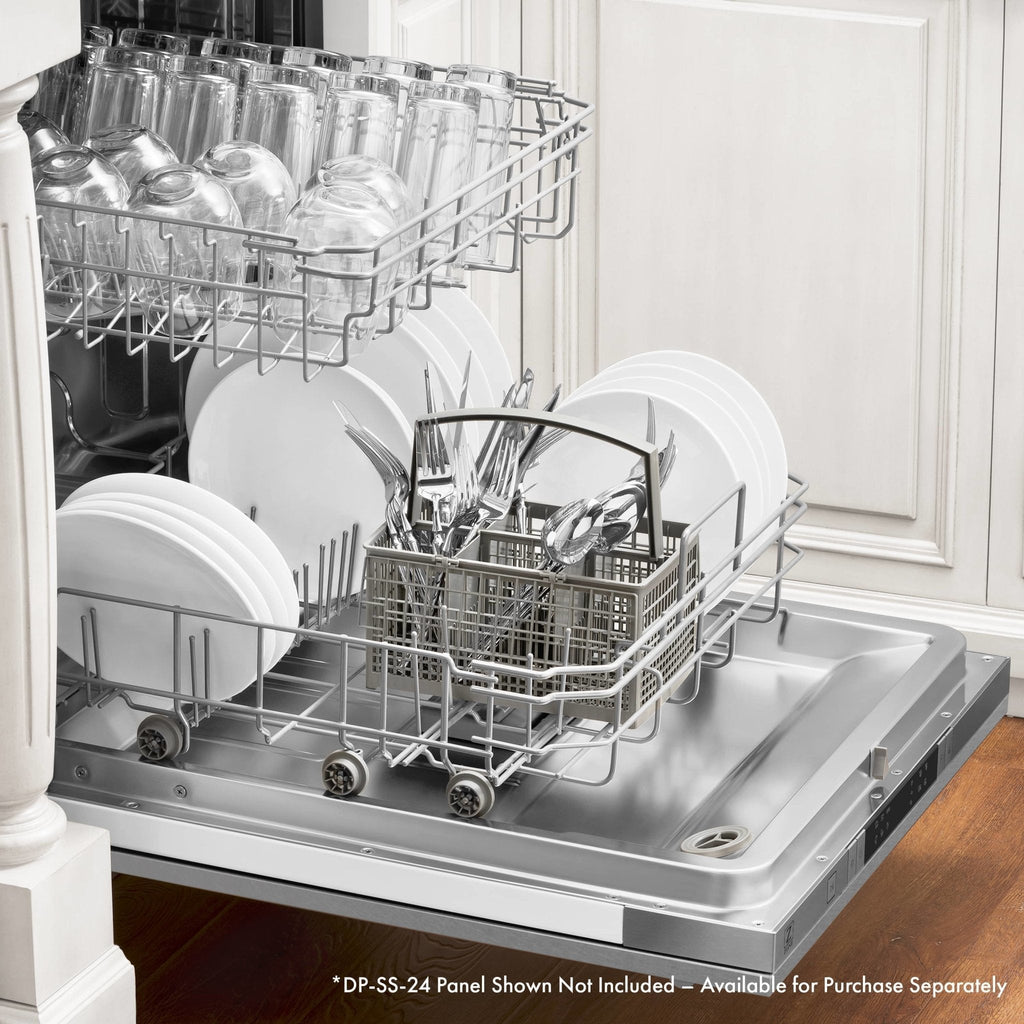

  • Adjustable upper dishwasher rack, providing flexibility for you to load large dishes up to 11 inches in height
  • 6 different wash cycles
  • A sanitize wash option which uses water maintained at 156¬∞ F, eliminating bacteria with a thorough wash
  • With just 52 dBA, you can enjoy a peaceful kitchen while getting a spotless wash, every time
  • ENERGY STAR certified with CEE Tier 1 rating, surpassing industry guidelines for water and energy efficiency by using advanced eco-wash technology
  • Wash Motor 100-Watt Heater 700-Watt
  • 120-Volt/60 Hz/15 Amp
  • UL Listed and Title 20 Compliant
  • 1 year parts warranty
  • Professional installation by a plumber is required as the dishwasher needs to be hard-wired and does not come with a plug

Please Note:

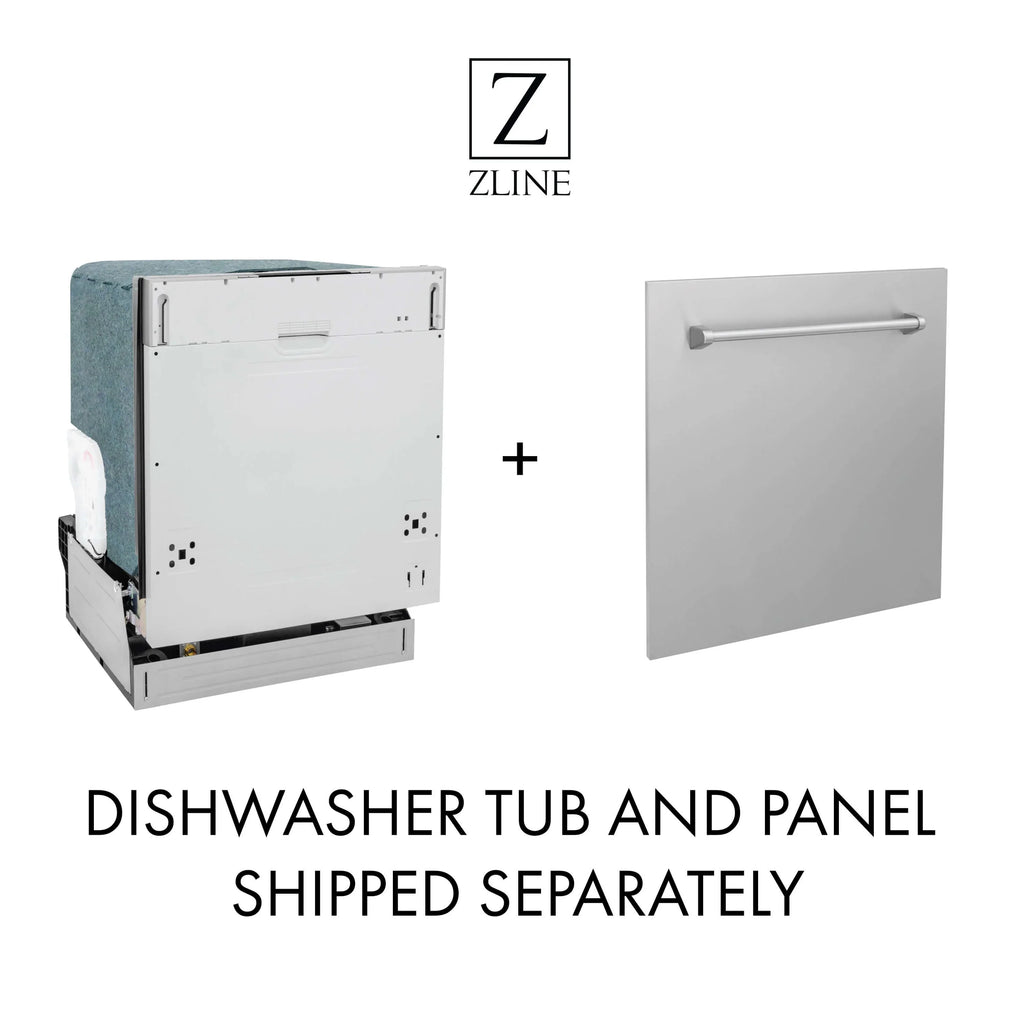

  • The dishwasher tub and panel ship separately. The dishwasher tub and panel may arrive together. Minor assembly is required to connect.

  • Professional installation by a plumber is required as the dishwasher needs to be hard-wired and does not come with a plug

  • This product ships in multiple boxes and requires professional installation.

Brand ZLINE Kitchen and Bath
Product Type Euro Style Dishwasher

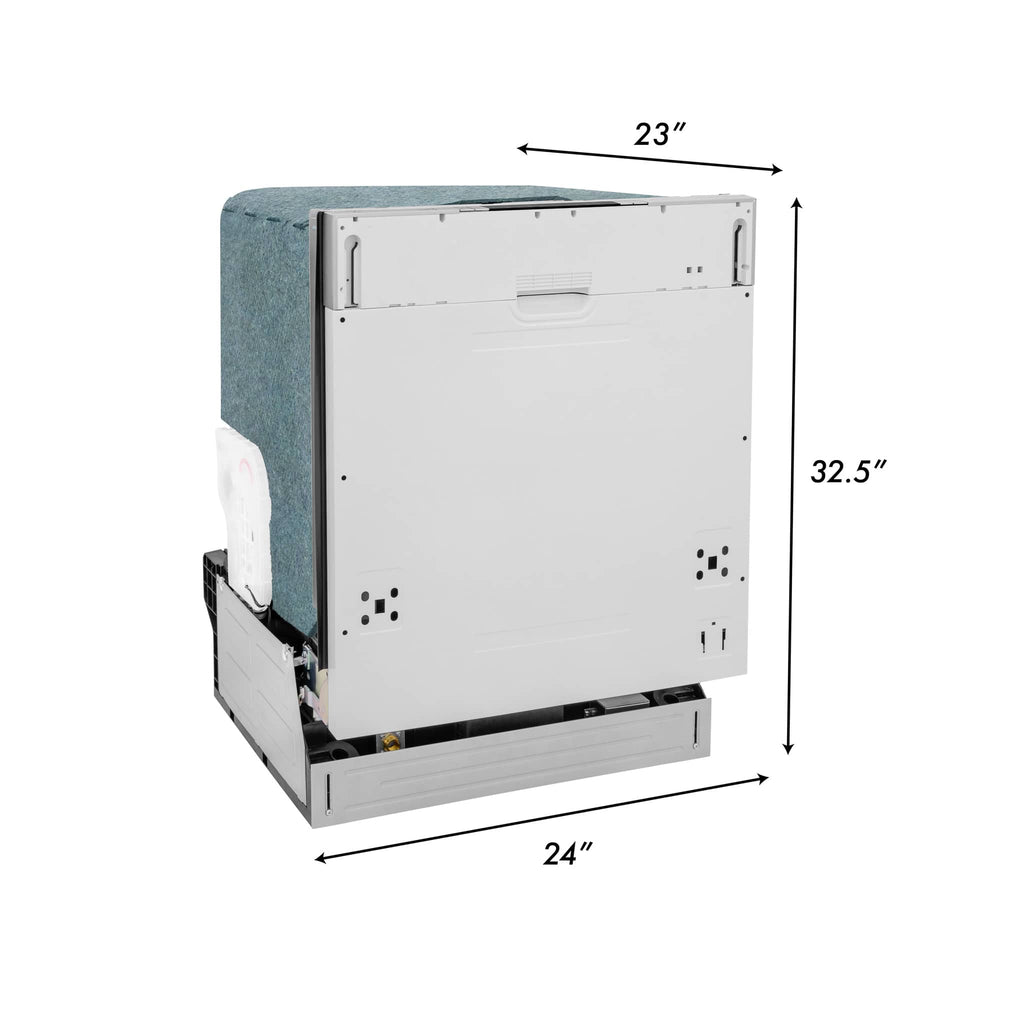

Product Dimensions Including Panel and Handle with Minimum Height (in.) 23.625" W x 24" D x 32.375
Product Dimensions Including Panel and Handle with Max Height (in.) 23.625" W x 24" D x 34.125" H
Cut Out Dimensions (in.) 23.75" W x 24" D x 32.5" H
Weight (lbs) 73.7
Voltage 120vac
Frequency (Hz) 60Hz
Dedicated Circuit 15A
Rated Current (Amps) 6.67A
Motor Wattage 100.8
Heater Wattage 699.6
Motor Amperage 0.84A
Heater Amperage 5.83A

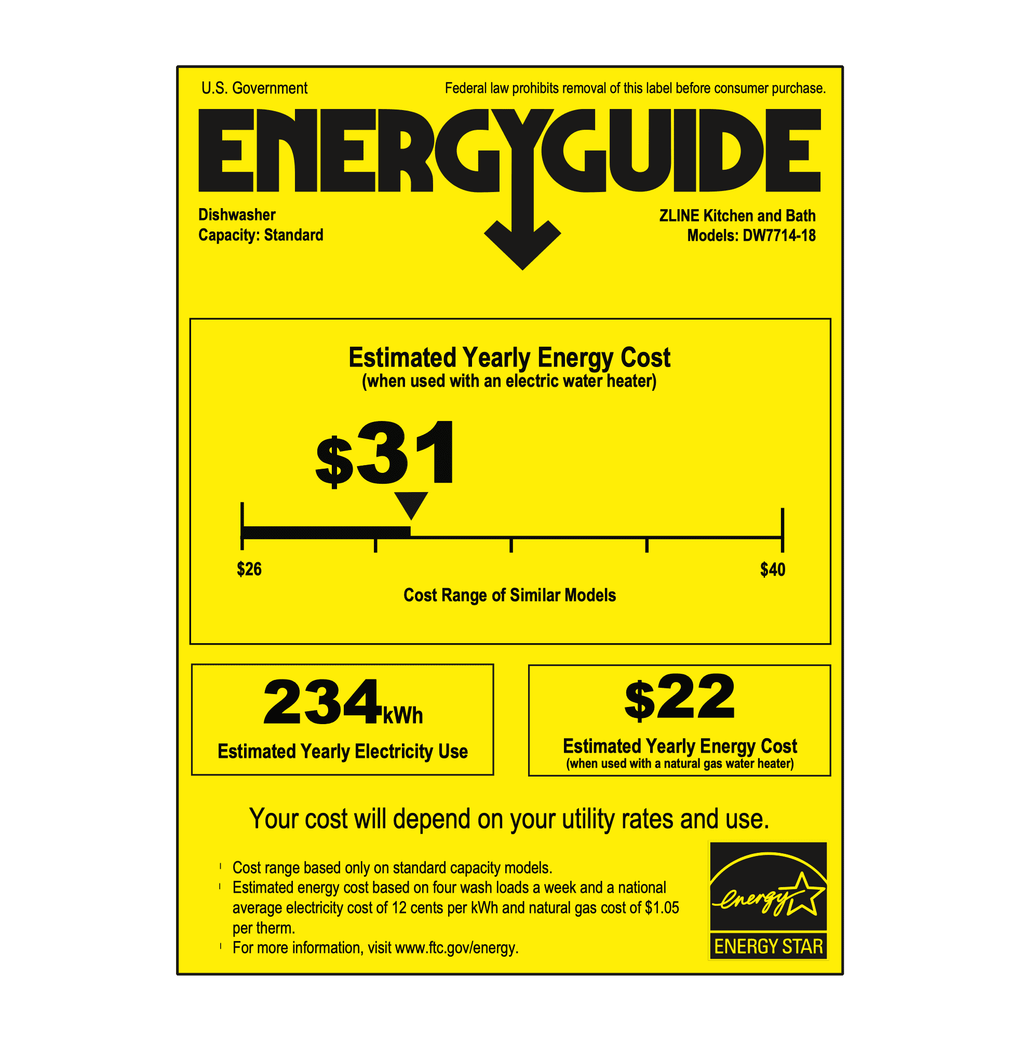

Energy Consumption Per Year (kWh) 237
Water Consumption Per Cycle (Liters/Cycle) 13.2
Water Consumption Per Cycle (Gallons) 3.5
Hose Length (in.) 56
Panel Ready? Y/N Y
Panel Finish Panel Ready
Handle Finish N/A
Drying System Residual Heat Dry
Control Location Top Control
Control Type Touch Control
Decibels 52
Power Cord Hardwired - Junction Box Included
Installation Type Direct Wired
Handle Type N/A
Number of Cycles 6
Programs Normal/Eco/Glass/Rapid/Rinse/Heavy
Number of Place Settings 10
Max Plate Height (in.) 12
Rack Material Nylon

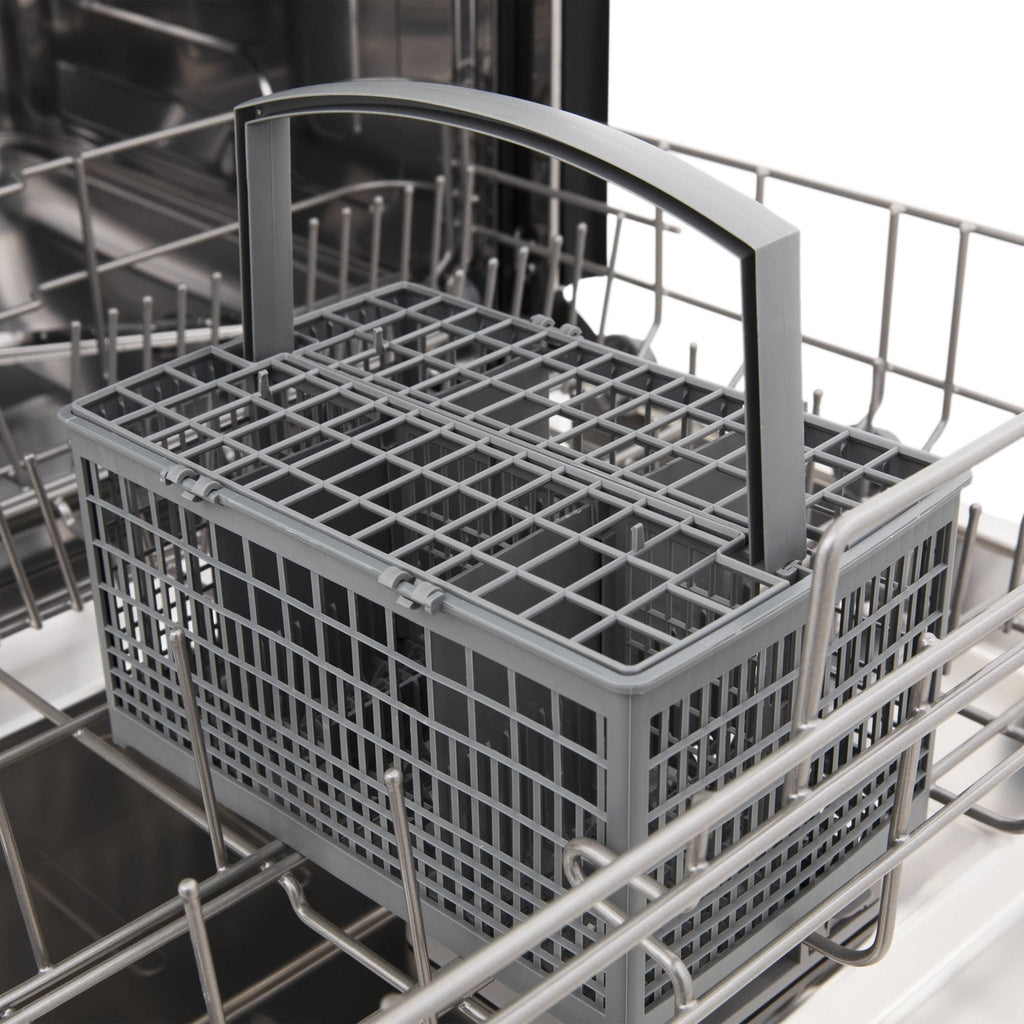

Silverware Basket Location Bottom Rack Center
Steam Function Without Steam

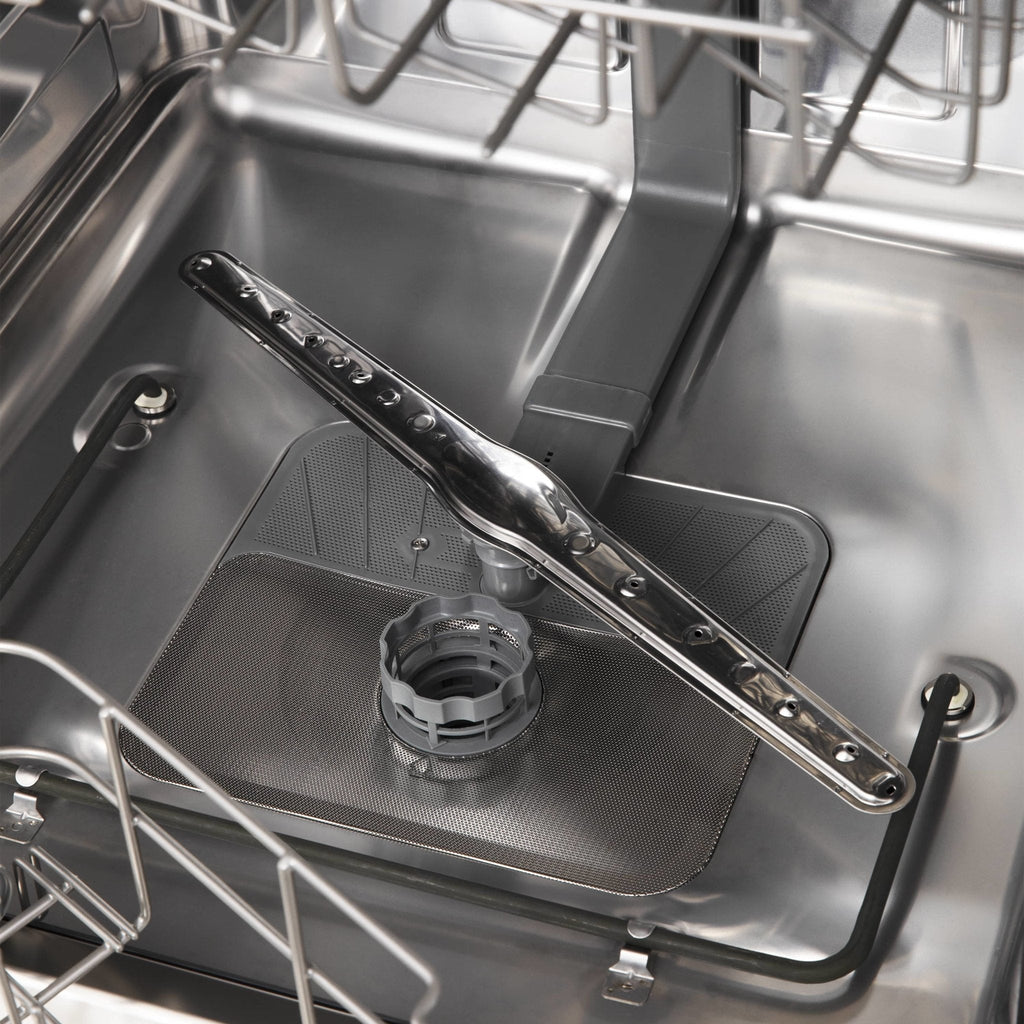

Tub Material Stainless Steel Tub
Certifications Energy Star (CEE Tier 1), CEC, UL, NRCan
Warranty 1 Year Parts


Installation and Users Manual
