MRCOOL E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz - DIY-24-HP-WM-230C25

Call for availability
SKU: DIY-24-HP-WM-230C25
Save $398.00
filler

Price:
Sale price$2,502.00 Regular price$2,900.00

Description

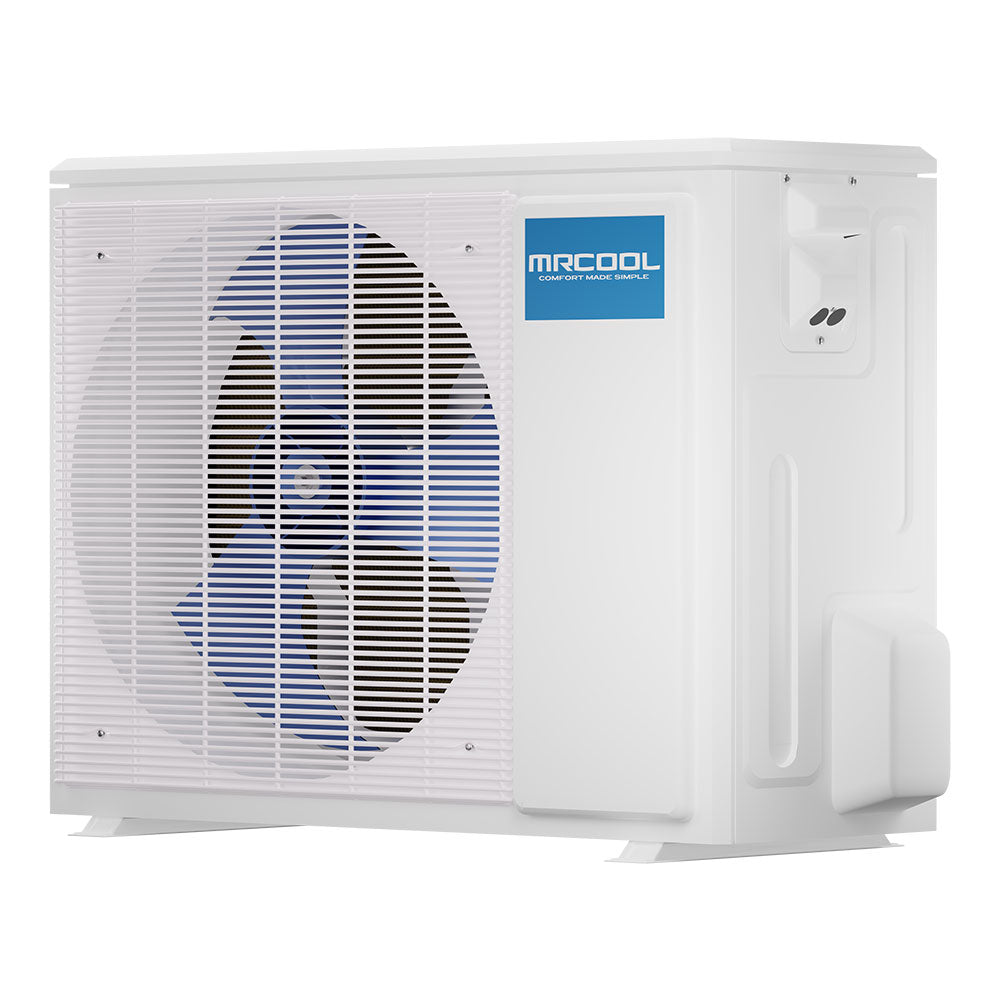

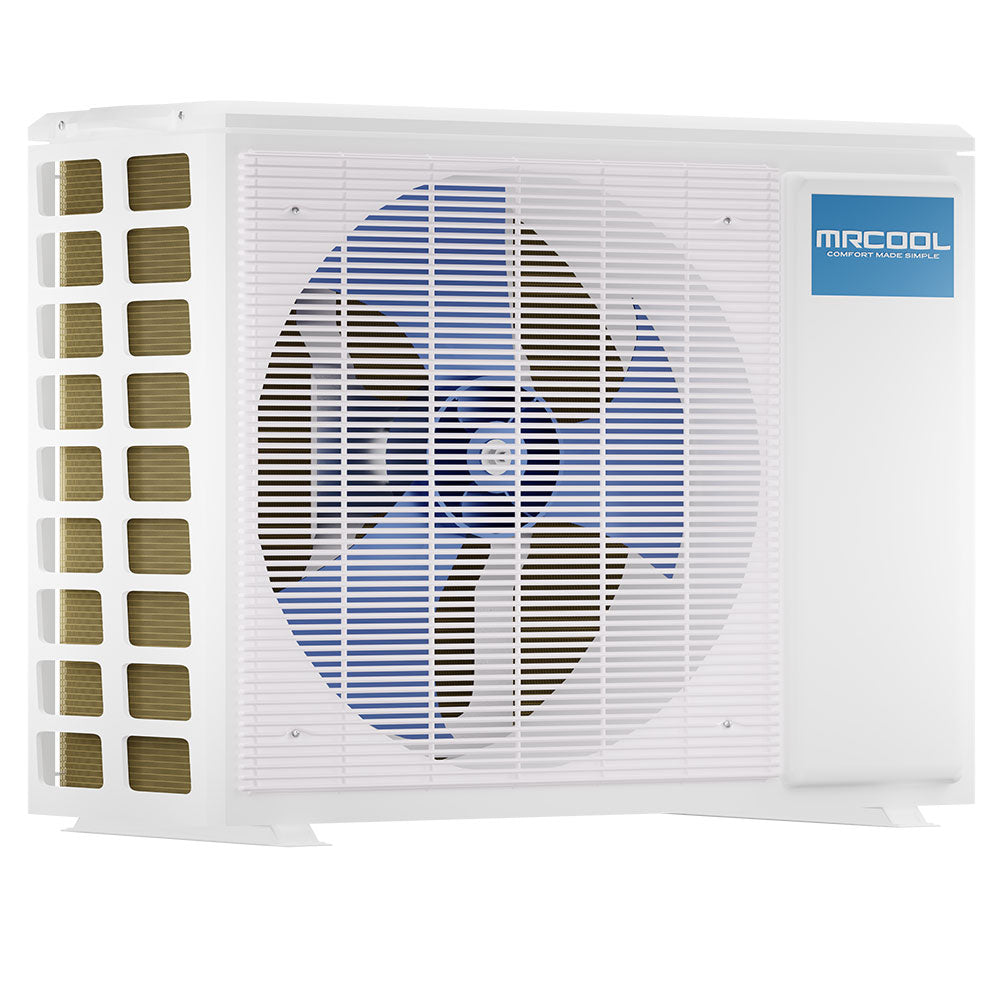

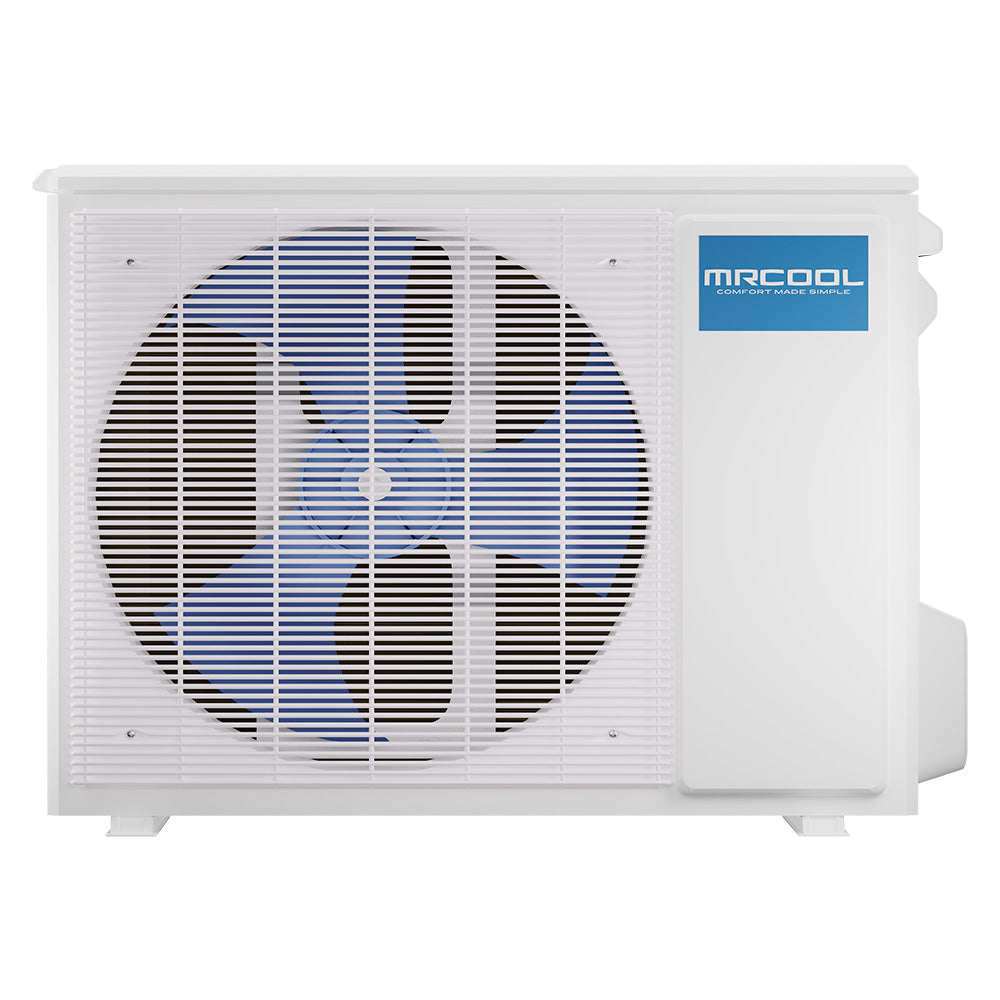

MRCOOL E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz - DIY-24-HP-WM-230C25

The MrCool 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft.

It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system.

Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.

The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app.

Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.

FEATURES:

  • Up to 20.5 SEER
  • Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

SPECIFICATIONS & DIMENSIONS:

SEER

20.5

EER

12.5

COP 47

3.15

HSPF

hspf4/hspf5 : 10.5/9

CFM

605.88/505.88/364.71

TONNAGE

2

COOLING CAPACITY

23000BTU

HEATING CAPACITY

25000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

35 A

MIN CIRCUIT AMPACITY

22 A

COLOR

White

COLOR FAMILY

White

RATED LOAD

0.45 A

MAX COVERAGE AREA

Up to 1000 sqft

ZONE CAPACITY

1

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

81.13 oz

DECIBEL RATING

48.5/43.5/33

DECIBEL RATING LOW

33 dBA

DECIBEL RATING HIGH

48.5 dBA

OSCILLATION

4-W

INVERTER

Yes

MIN AMBIENT COOL

-13F - 122F

MIN AMBIENT HEAT

-13F - 75F

LINE SET LENGTH

25ft

MAX LINESET LENGTH

98.42 ft

LIQUID LINE SIZE

3/8 in

SUCTION LINE SIZE

5/8 in

COMPRESSOR MOTOR TYPE

Twin-Rotary

CONDENSER FAN MOTOR RPM

850/750/700

BLOWER MOTOR RPM

1200/1000/700

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

CONDENSER DEPTH

16.14 in

CONDENSER HEIGHT

31.89 in

CONDENSER WIDTH

37.24 in

CONDENSER WEIGHT

125.22 lbs

AIR HANDLER DEPTH

8.90 in

AIR HANDLER HEIGHT

13.19 in

AIR HANDLER WIDTH

42.52 in

AIR HANDLER WEIGHT

35.27 lbs



PRODUCT MANUALS:
