MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series - DIY-MULTI4-36HP230C

Call for availability
SKU: DIY-MULTI4-36HP230C
Save $742.00
filler

Price:
Sale price$2,107.00 Regular price$2,849.00

Description

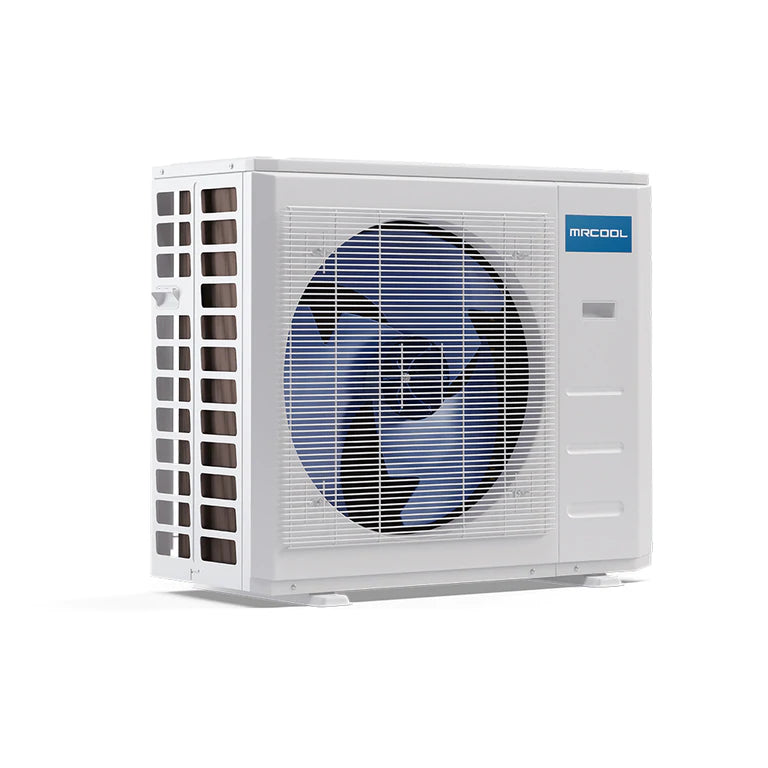

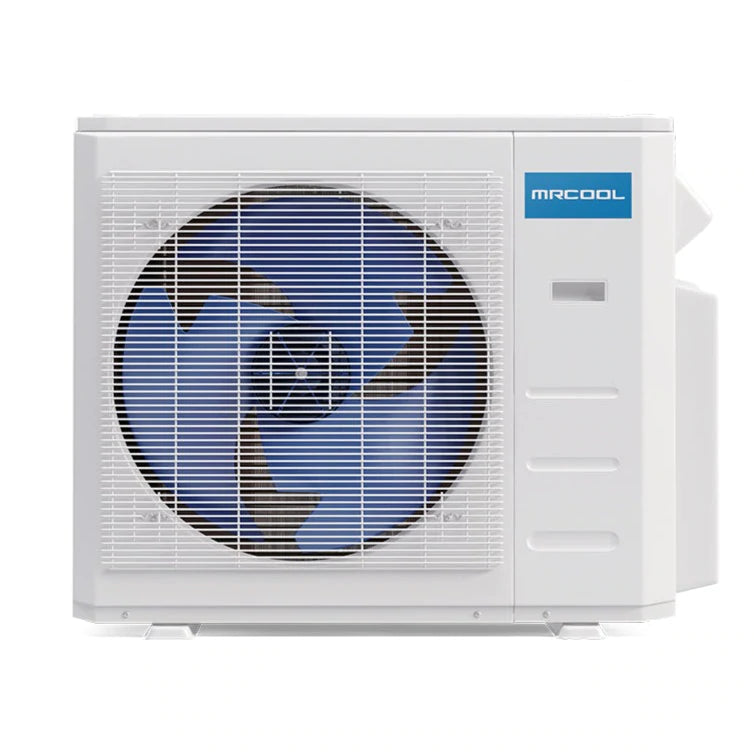

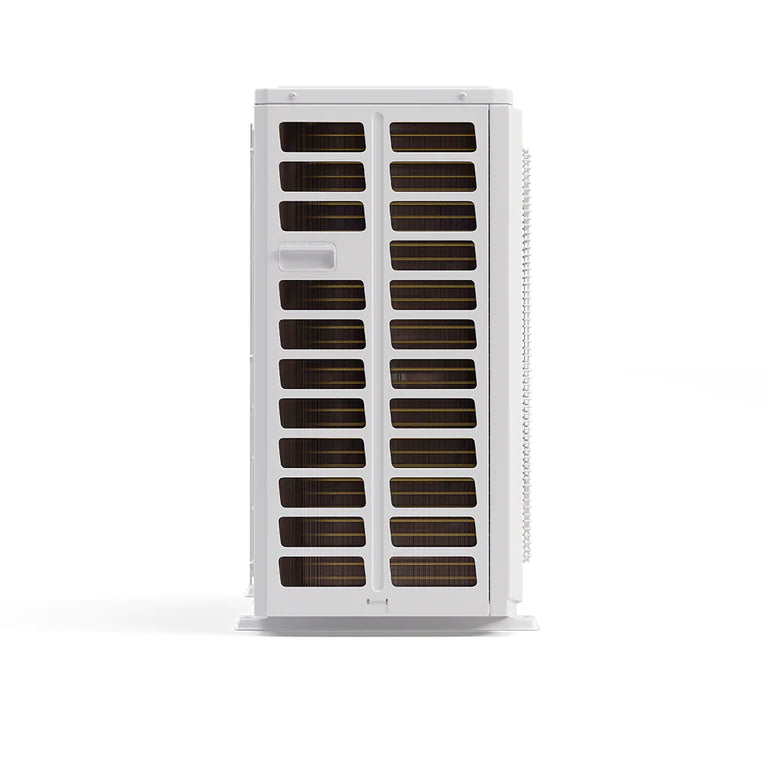

MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series - DIY-MULTI4-36HP230C

The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump (DIY-MULTI4-36HP230C) offers the latest in heat pump innovations. This condenser has the ability to support up to 4 zones and, when paired with select MRCOOL air handlers, can provide a SEER efficiency rating of up to 21.5.

It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MRCOOL stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty.

However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MRCOOL’s patented Pre-Charged Quick Connect Line Sets.

These line sets are pre charged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete.

The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

FEATURES:

  • Up to 21.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

SPECIFICATIONS & DIMENSIONS:

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 170.42 lbs
SEER 21.5
EER 10.5
HSPF hspf4/hspf5 : 11/8.5
CFM 2147.06
Cooling Capacity 36000 BTU
Heating Capacity 36000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 45 A
Min Circuit Ampacity 27 A
Color White
Zone Capacity Up to 4
Refrigerant Type R-410A
Refrigerant Volume 134.04 oz
Decibel Rating 65 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 196.85 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in+1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 1000/900/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty
