MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 25 ft. Install Kit, DIYM227HPW00C01

In Stock-Ready to Ship!
SKU: DIYM227HPW00C01
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$3,154.00

Description

MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 25 ft. Install Kit, DIYM227HPW00C01

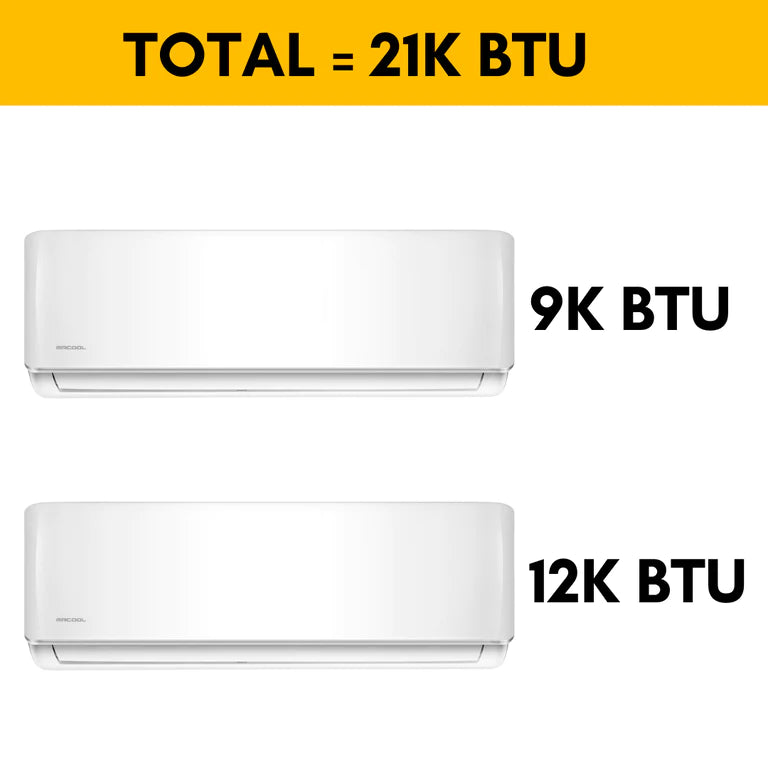

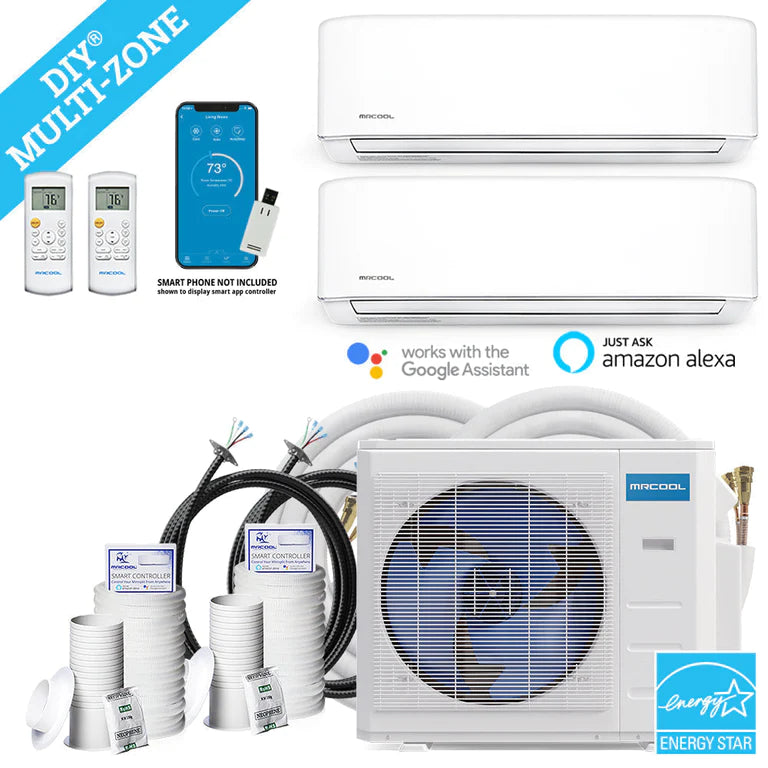

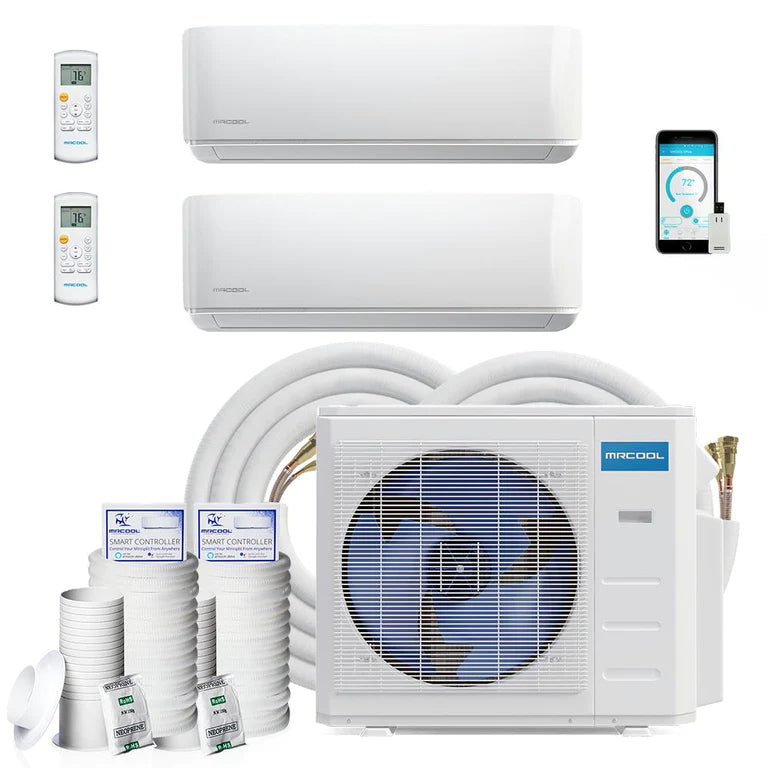

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat two different rooms. You'll be sent: DIY 27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, two Remotes, and 16 ft. and 25 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

Package Includes

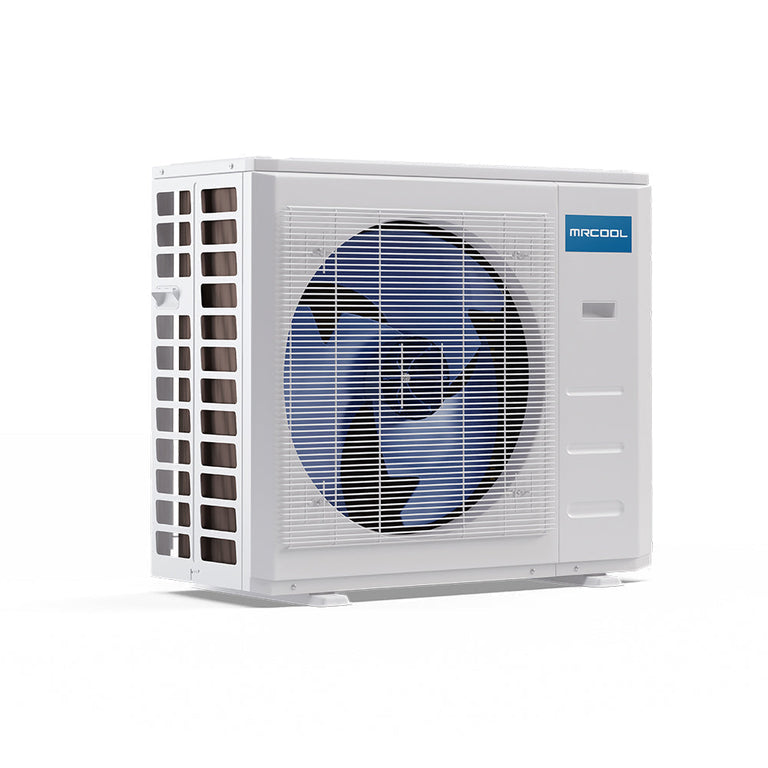

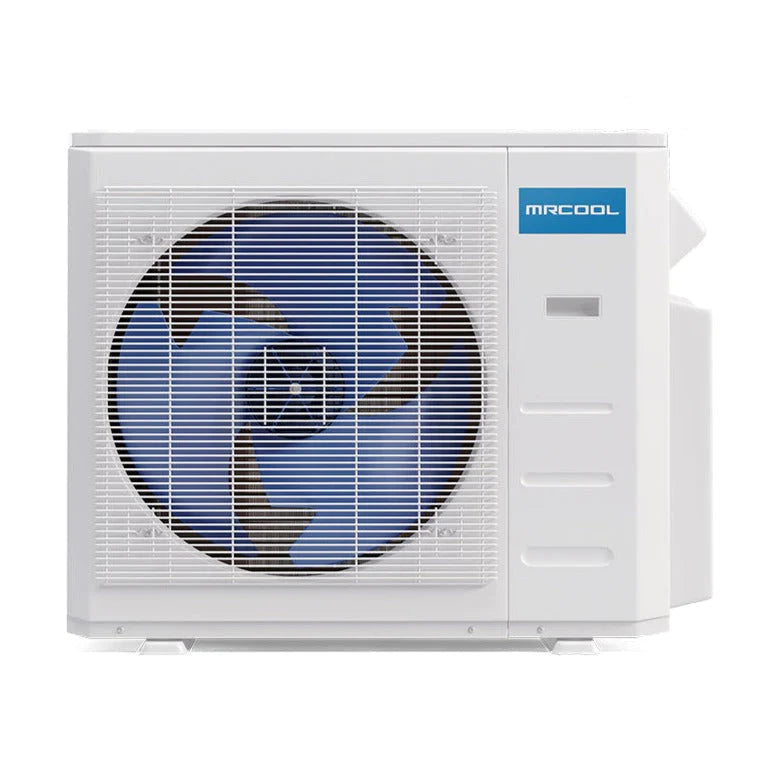

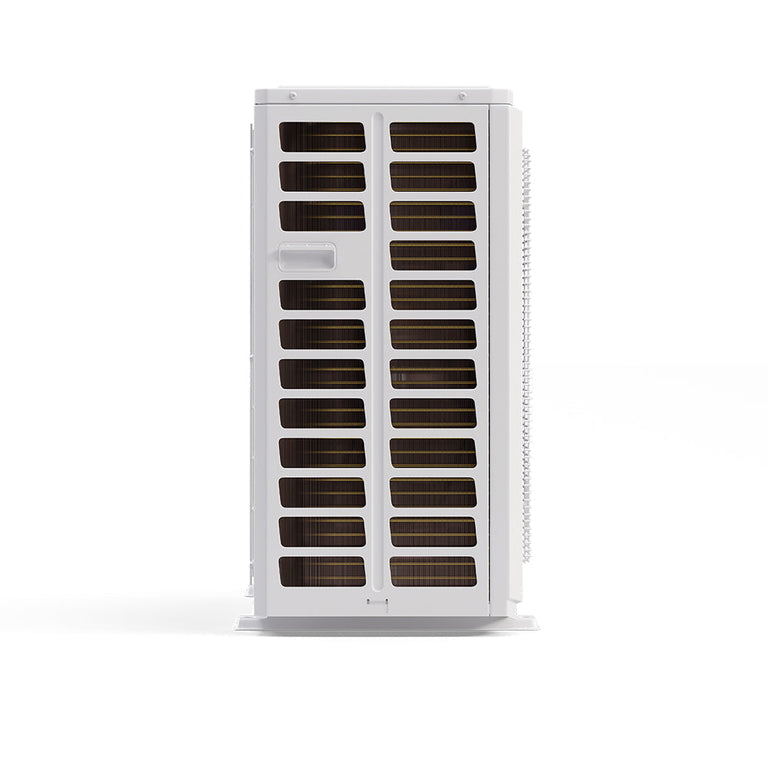

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area 180 to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 250 to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

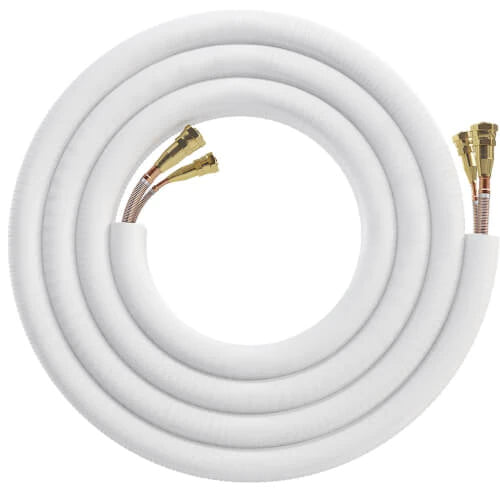

          Line Set 16 ft., Quantity 1

          • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
          • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
          • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

          Line Set 25 ft., Quantity 1

          • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
          • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
          • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

          Condenser

          Product Dimensions 35.04"W x 13.46"D x 26.50"H
          Cooling Capacity 18,000 BTU
          Heating Capacity 19,000 BTU
          Zone Capacity 2
          Min Ambient Cool 5F ~ 122F
          Min Ambient Heat -13F ~ 75.2F
          SEER 21
          EER 12.5
          Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)


          Air Handler 9K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 12K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 12,000 BTU
          Heating Capacity 12,000 BTU
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Line Set

          Length 16 Feet
          Liquid Line Size 1/4"
          Suction Line Size 1/2"


          Line Set

          Length 25 Feet
          Liquid Line Size 1/4"
          Suction Line Size 1/2"



          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          Square Feet: 180-375 | BTU = 9K
          Square Feet: 376-500 | BTU = 12K
          Square Feet: 501-750 | BTU = 18K
          Square Feet: 751-1,000 | BTU = 24K
          Square Feet: 1,001-1,500 | BTU = 36K

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.

          Installation Manual

          Product Brochure
