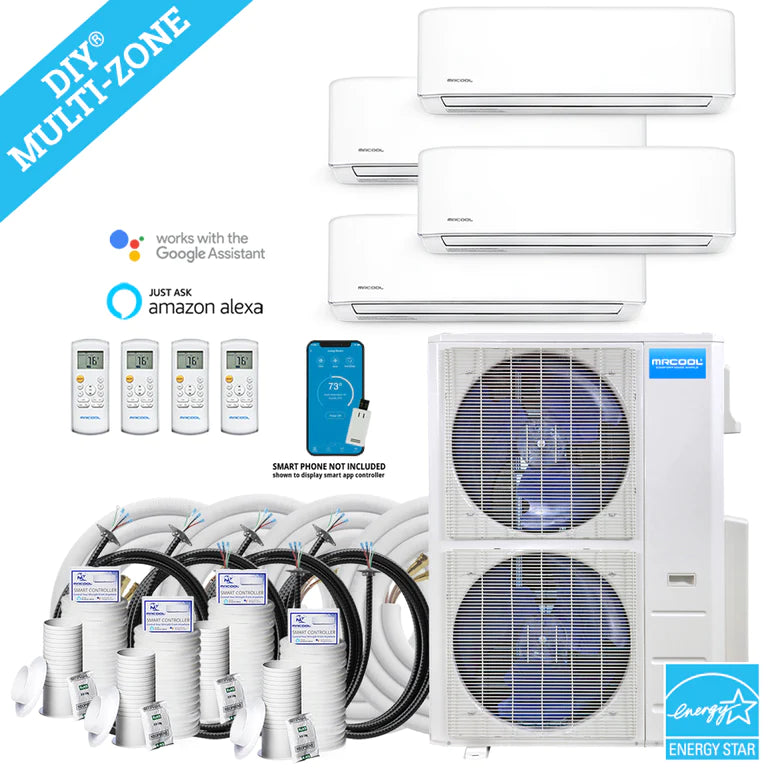

MRCOOL DIY 4th Generation Mini Split 54K BTU 4 Zone Ductless Air Conditioner with Heat Pump and 25 Ft Install Kit - DIYM448HPW09C112

The new 4th Generation MRCOOL DIY 48K BTU Ductless Heat Pump Condenser (DIY-MULTI5-48HP230C) that can support up to 5 zones. When paired with select MRCOOL air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. The MRCOOL DIY 9K and 12K and 24K BTU Ductless Wall Mounted Air Handler (DIY-09-HP-WMAH-230C) is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 and 500 and 1000 sq. ft.

MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation.

PACKAGE INCLUDES:

FEATURES CONDENSER DIY-MULTI5-48HP230C

  • Up to 20.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25 (x2)

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

FEATURES AIR HANDLER DIY-12-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

FEATURES AIR HANDLER DIY-24-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

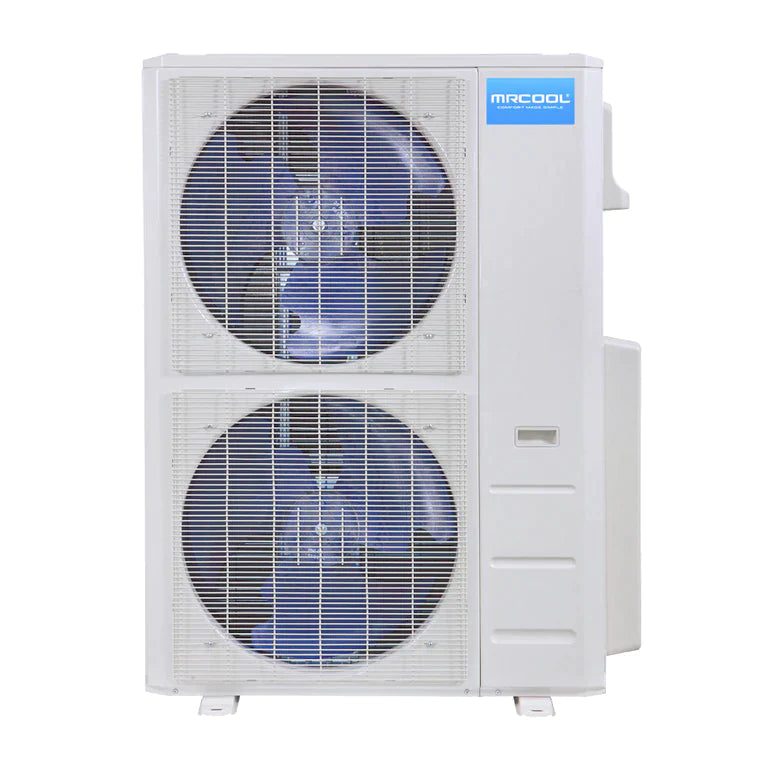

SPECIFICATIONS CONDENSER DIY-MULTI5-48HP230C

Product Dimensions 37.48"W x 16.34"D x 52.48"H
Product Weight 222.89 lbs
SEER 20.5
EER 11
HSPF hspf4/hspf5 : 11/8.5
CFM 4500
Cooling Capacity 48000 BTU
Heating Capacity 48000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 60 A
Min Circuit Ampacity 40 A
Color White
Zone Capacity Up to 5
Refrigerant Type R-410A
Refrigerant Volume 162 oz
Decibel Rating 61.5 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat 5F ~ 75.2F
Max Lineset Length 246.06 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in +1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 900/850/800/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty: Limited Lifetime Compressor



SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25 (x2)

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 9000 BTU
Heating Capacity 9000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 375 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 12000 BTU
Heating Capacity 12000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 500 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS AIR HANDLER DIY-24-HP-WMAH-230C25

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 35.27 lbs
Cooling Capacity 23000 BTU
Heating Capacity 25000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 1000 sqft
Refrigerant Type R-410A
Decibel Rating 48.5/43.5/33
Decibel Rating Low 33 dBA
Decibel Rating High 48.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 3/8 in
Suction Line Size 5/8 in
Blower Motor RPM 1200/1000/700
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Register for limited lifetime compressor warranty!
Restricted States GU;PR;VI

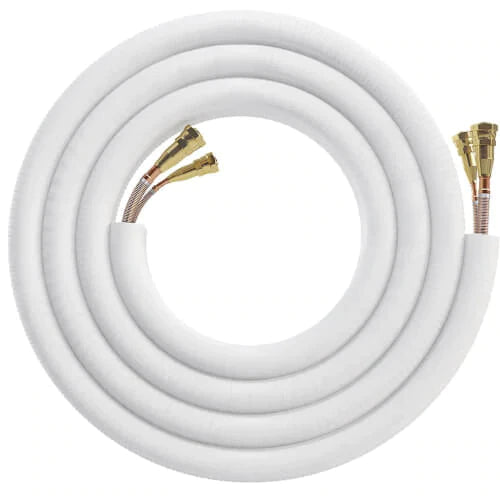

SPECIFICATIONS LINE SET DIY25-3858

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

5/8

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

22.48 lbs

GROSS WEIGHT

25.57 lbs



SPECIFICATIONS LINE SET DIY25-1412 (x3)

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

19.84 lbs

GROSS WEIGHT

22.92 lbs



PRODUCT MANUALS:

CONDENSER MANUALS

9K AIR HANDLER MANUALS

12K AIR HANDLER MANUALS

24K AIR HANDLER MANUALS
