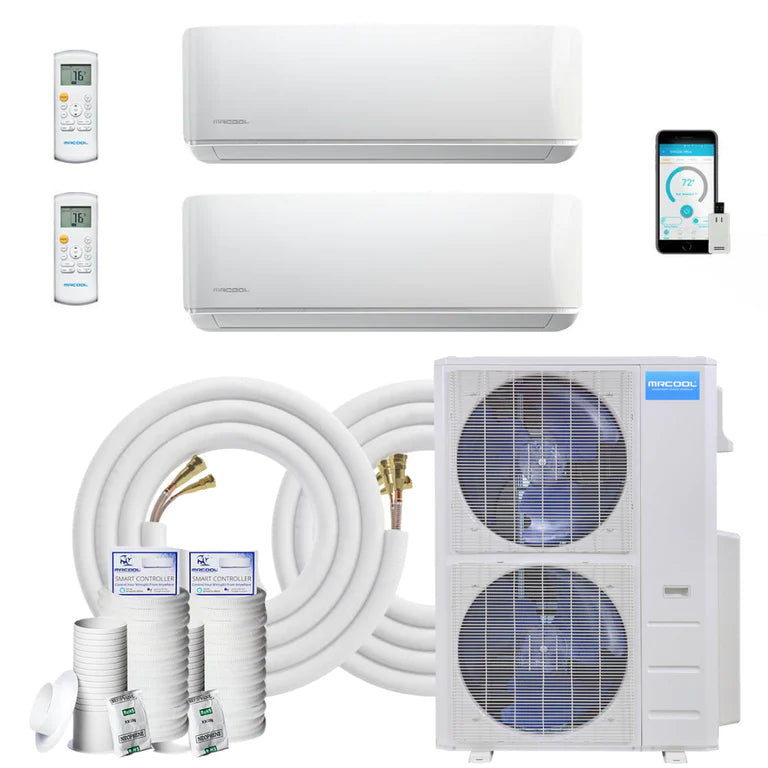

MRCOOL DIY 4th Generation Mini Split 54K BTU 2 Zone Ductless Air Conditioner With Heat Pump and 50 Ft Install Kit - DIYM248HPW04C32

Call for availability
SKU: DIYM248HPW04C32
Save $696.00
filler

Price:
Sale price$5,804.00 Regular price$6,500.00

Description

MRCOOL DIY 4th Generation Mini Split 54K BTU 2 Zone Ductless Air Conditioner With Heat Pump and 50 Ft Install Kit - DIYM248HPW04C32

The 4th Generation MRCOOL DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MRCOOL air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. The MRCOOL4th Generation DIY 18K and 36K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MRCOOL DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 750 and 1500 sq. ft.

Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuum required. The MRCOOL DIY Quick Connect Line Set is intended for use with the MRCOOL DIY Single or Multi-Zone Units.

PACKAGE INCLUDES:

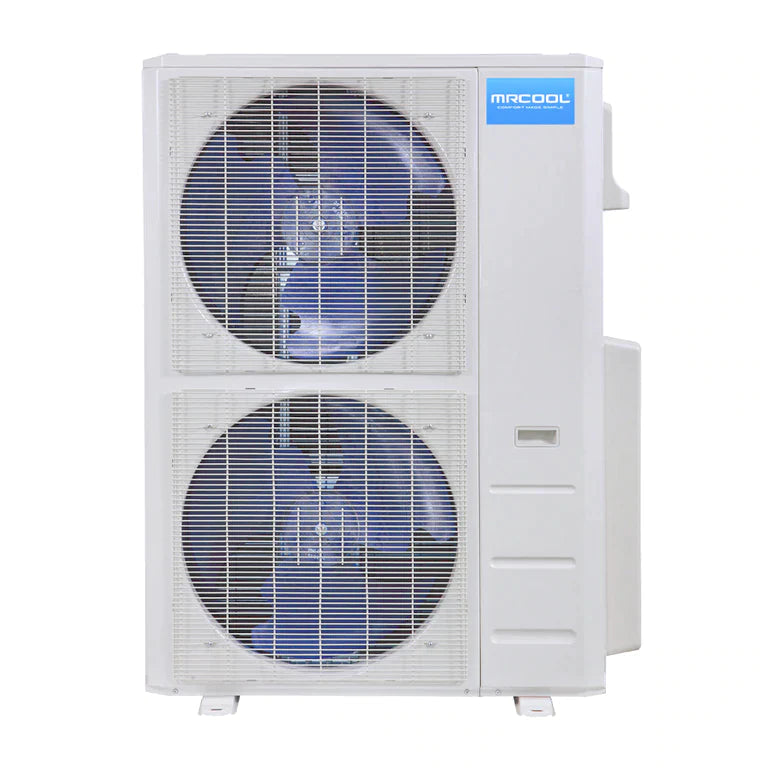

FEATURES CONDENSER DIY-MULTI5-48HP230C

  • Up to 20.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
  • This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system

FEATURES AIR HANDLER DIY-36-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

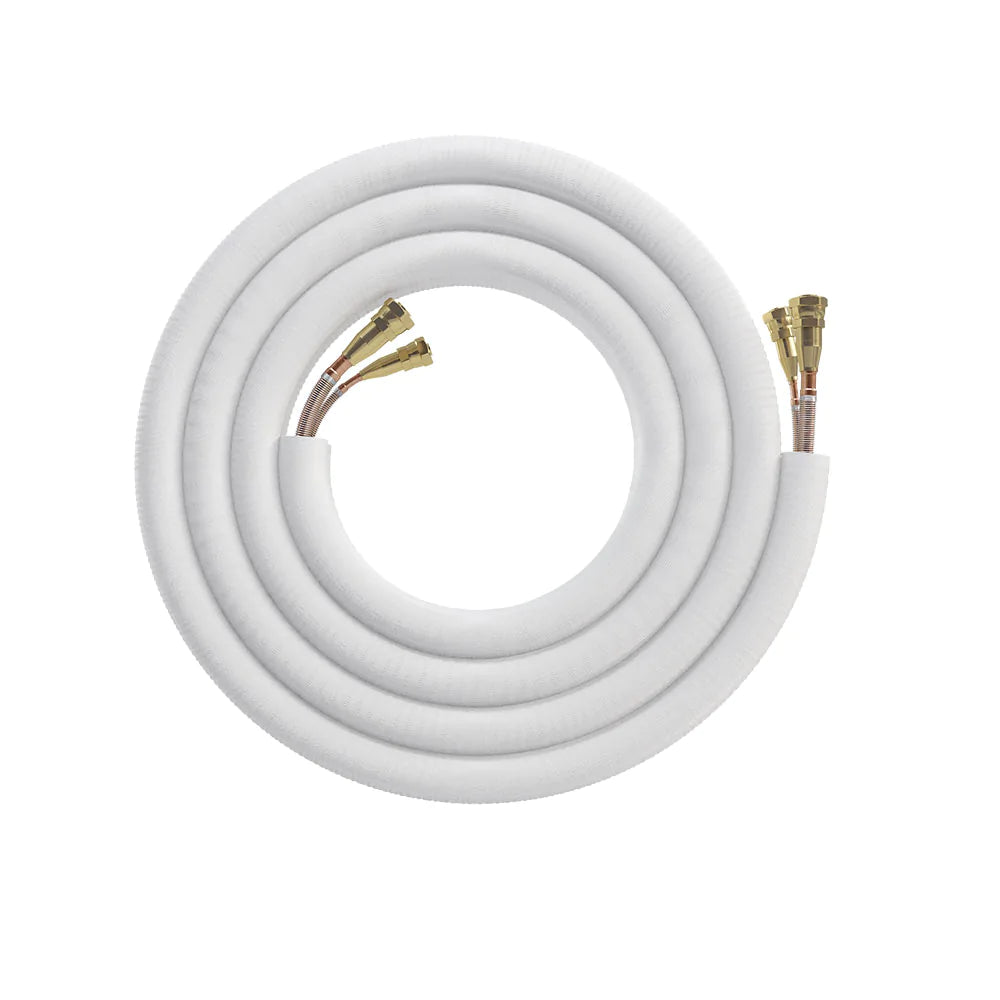

FEATURES LINESET DIY50-3858C

  • Kink Resistant
  • Simple to Use Screw-on Quick Connect Valves
  • Leak Proof
  • No Vacuum Needed

FEATURES LINESET DIY50-1412C

  • Kink Resistant
  • Simple to Use Screw-on Quick Connect Valves
  • Leak Proof
  • No Vacuum Needed

SPECIFICATION CONDENSER DIY-MULTI5-48HP230C

Product Dimensions 37.48"W x 16.34"D x 52.48"H
Product Weight 222.89 lbs
SEER 20.5
EER 11
HSPF hspf4/hspf5 : 11/8.5
CFM 4500
Cooling Capacity 48000 BTU
Heating Capacity 48000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 60 A
Min Circuit Ampacity 40 A
Color White
Zone Capacity Up to 5
Refrigerant Type R-410A
Refrigerant Volume 162 oz
Decibel Rating 61.5 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat 5F ~ 75.2F
Max Lineset Length 246.06 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in +1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 900/850/800/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty: Limited Lifetime Compressor



SPECIFICATION AIR HANDLER DIY-18-HP-WMAH-230C25

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 34.61 lbs
Cooling Capacity 18000 BTU
Heating Capacity 18000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 750 sqft
Refrigerant Type R-410A
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1120/950/700
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATION AIR HANDLER DIY-36-HP-WMAH-230C25

Product Dimensions 49.57"W x 11.10"D x 14.25"H
Product Weight 47.84 lbs
Cooling Capacity 36000 BTU
Heating Capacity 36000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 1500 sqft
Refrigerant Type R-410A
Decibel Rating 52/45/34
Decibel Rating Low 34 dBA
Decibel Rating High 52 dBA
Inverter Yes
Max Lineset Length 213.25 ft
Liquid Line Size 3/8 in
Suction Line Size 5/8 in
Blower Motor RPM 1200/950/750
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATION LINESET DIY50-3858C

  • Length (Feet): 50'
  • Application: Cooling
  • Liquid Line: 3/8"
  • Suction Line: 5/8"

SPECIFICATION LINESET DIY50-1412C

  • Length (Feet): 50'
  • Application: Cooling
  • Liquid Line: 1/4"
  • Suction Line: 1/2"
