MRCOOL DIY 4th Generation Mini Split 42K BTU 2 Zone Ductless Air Conditioner with Heat Pump and 50 Ft Install Kit - DIYM248HPW00C32
The new 4th Generation MRCOOL DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MRCOOL air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. The MRCOOL4th Generation DIY 18K and 24K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MRCOOL DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 750 and 1000 sq. ft.
MRCOOL DIY Quick Connect Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuum required. The MRCOOL DIY Quick Connect Line Set is intended for use with the MRCOOL DIY Single or Multi-Zone Units.

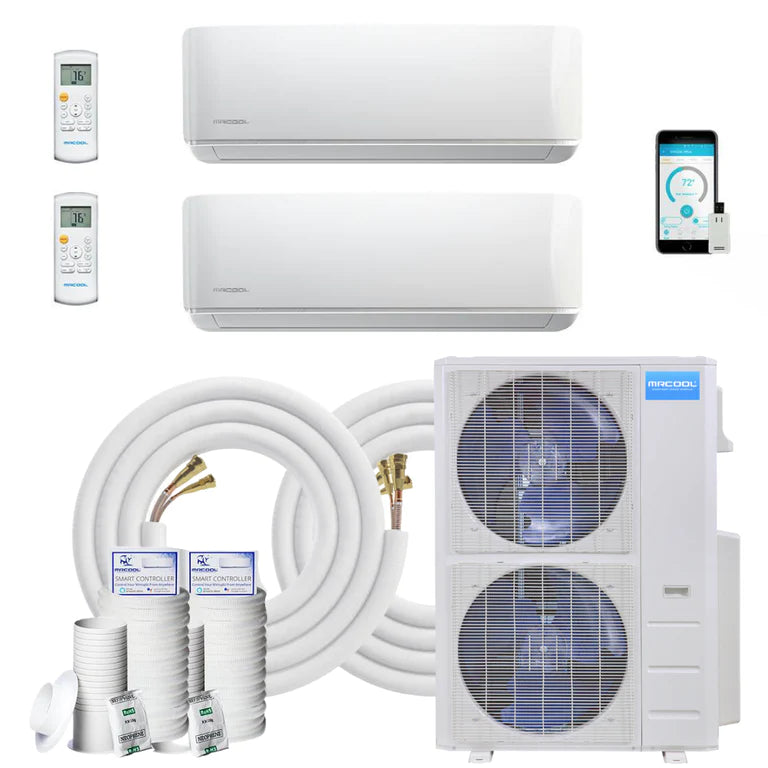

PACKAGE INCLUDES:
- MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series - DIY-MULTI5-48HP230C
- MRCOOL E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler - DIY-18-HP-WMAH-230C25
- MRCOOL E Star DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler - DIY-24-HP-WMAH-230C25
- DIY 4th Generation 50ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor - DIY50-3858C
- DIY 4th Generation 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY50-1412C
FEATURES CONDENSER DIY-MULTI5-48HP230C
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
- This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system
FEATURES AIR HANDLER DIY-24-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES LINE SET DIY50-3858C
- Kink Resistant
- Simple to Use Screw-on Quick Connect Valves
- Leak Proof
- No Vacuum Needed
FEATURES LINE SET DIY50-1412C
- Kink Resistant
- Simple to Use Screw-on Quick Connect Valves
- Leak Proof
- No Vacuum Needed

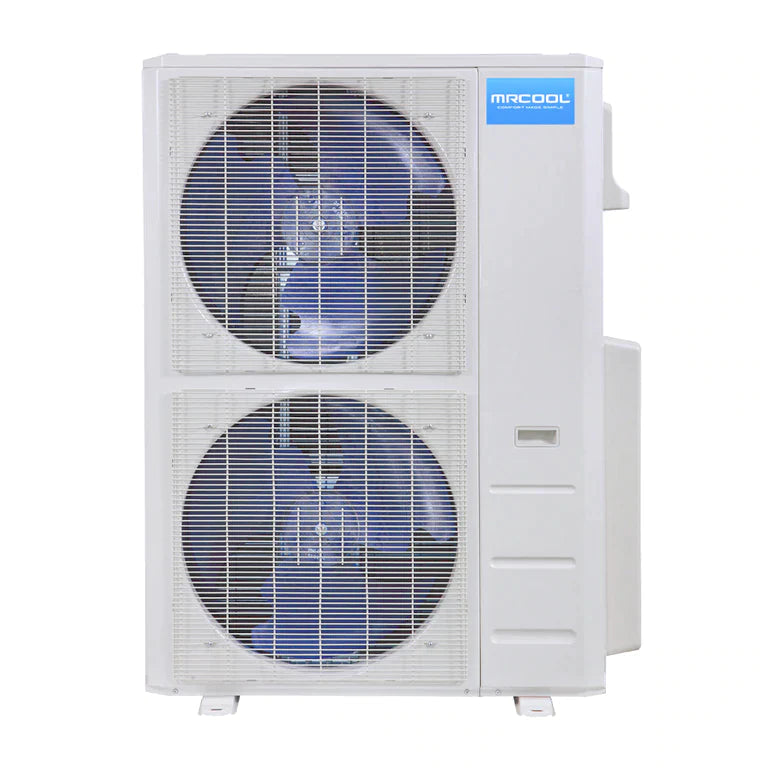

SPECIFICATIONS CONDENSER DIY-MULTI5-48HP230C
Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
Product Weight | 222.89 lbs |
SEER | 20.5 |
EER | 11 |
HSPF | hspf4/hspf5 : 11/8.5 |
CFM | 4500 |
Cooling Capacity | 48000 BTU |
Heating Capacity | 48000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker |
60 A |
Min Circuit Ampacity | 40 A |
Color | White |
Zone Capacity | Up to 5 |
Refrigerant Type | R-410A |
Refrigerant Volume | 162 oz |
Decibel Rating | 61.5 dBA |
Inverter | Yes |
Min Ambient Cool | 5F ~ 122F |
Min Ambient Heat | 5F ~ 75.2F |
Max Lineset Length | 246.06 ft TOTAL |
Liquid Line Size | 1/4in |
Suction Line Size | 3/8in +1/2in |
Compressor Motor Type | Rotary |
Condenser Fan Motor RPM | 900/850/800/750 |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Warranty | 5-year Parts/7-year Compressor Registered Warranty: Limited Lifetime Compressor |

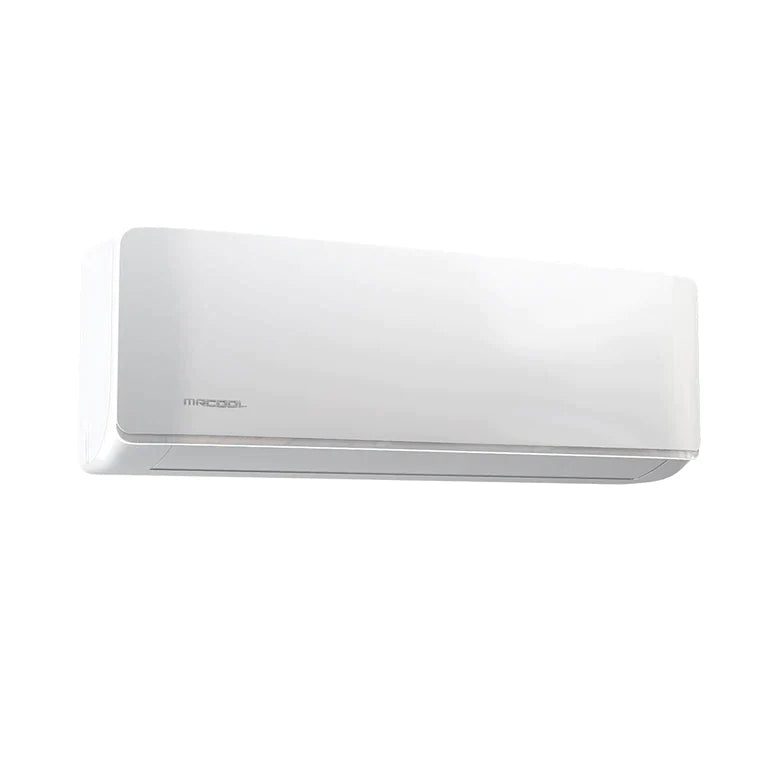

SPECIFICATIONS AIR HANDLER DIY-18-HP-WMAH-230C25
Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
Product Weight | 34.61 lbs |
Cooling Capacity | 18000 BTU |
Heating Capacity | 18000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 750 sqft |
Refrigerant Type | R-410A |
Decibel Rating | 44.5/37/31 |
Decibel Rating Low | 31 dBA |
Decibel Rating High | 44.5 dBA |
Inverter | Yes |
Max Lineset Length | 98.42 ft |
Liquid Line Size | 1/4 in |
Suction Line Size | 1/2 in |
Blower Motor RPM | 1120/950/700 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor |
Restricted States | GU;PR;VI |
SPECIFICATIONS AIR HANDLER DIY-24-HP-WMAH-230C25
Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
Product Weight | 35.27 lbs |
Cooling Capacity | 23000 BTU |
Heating Capacity | 25000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 1000 sqft |
Refrigerant Type | R-410A |
Decibel Rating | 48.5/43.5/33 |
Decibel Rating Low | 33 dBA |
Decibel Rating High | 48.5 dBA |
Inverter | Yes |
Max Lineset Length | 98.42 ft |
Liquid Line Size | 3/8 in |
Suction Line Size | 5/8 in |
Blower Motor RPM | 1200/1000/700 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor Register for limited lifetime compressor warranty! |
Restricted States | GU;PR;VI |

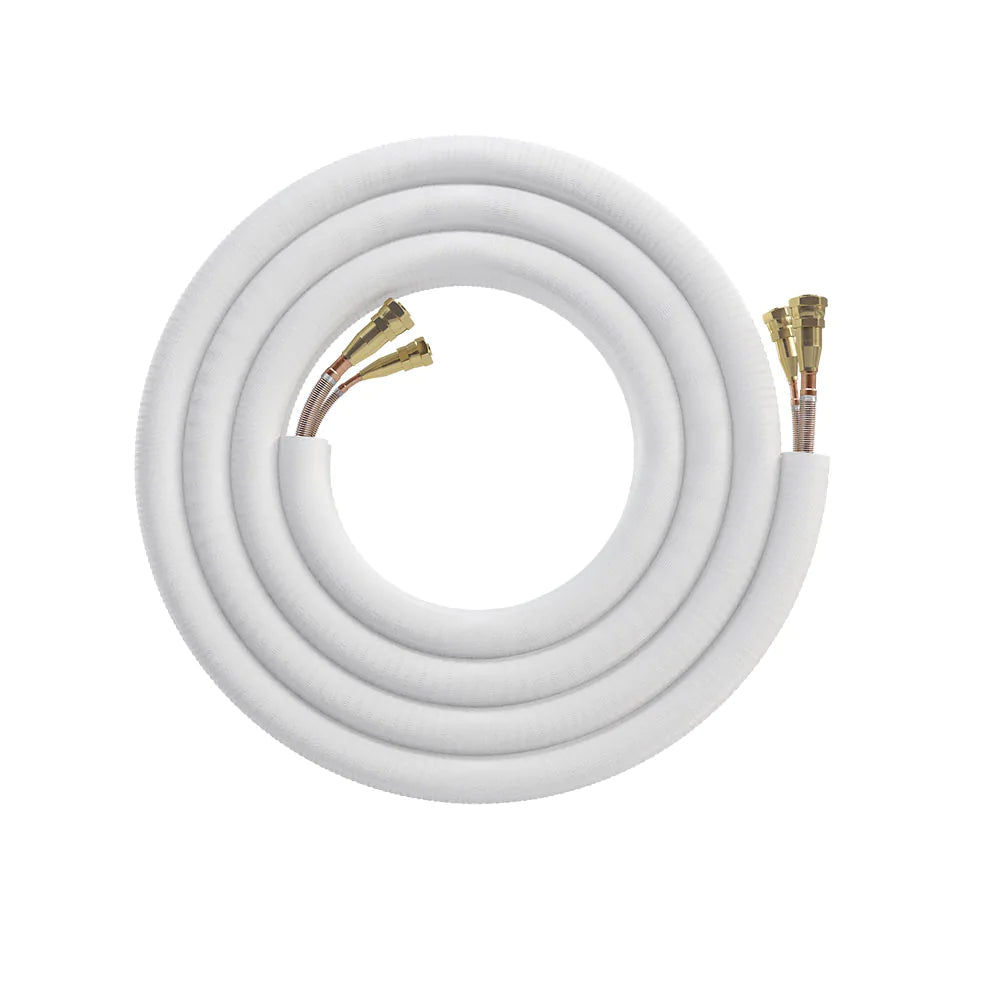

SPECIFICATIONS LINE SET DIY50-3858C
- Length (Feet): 50'
- Application: Cooling
- Liquid Line: 3/8"
- Suction Line: 5/8"
SPECIFICATIONS LINE SET DIY50-1412C
- Length (Feet): 50'
- Application: Cooling
- Liquid Line: 1/4"
- Suction Line: 1/2"
