MRCOOL DIY 4th Generation Mini Split 39,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit - DIYM336HPW05C00

Call for availability
SKU: DIYM336HPW05C00
Save $1,293.98
filler

Price:
Sale price$4,462.00 Regular price$5,755.98

Description

MRCOOL DIY 4th Generation Mini Split 39,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit - DIYM336HPW05C00

 The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump (DIY-MULTI4-36HP230C) offers the latest in heat pump innovations. As part of a MRCOOL DIY system, the MRCOOL DIY 9K BTU Ductless Wall Mounted Air Handler (DIY-09-HP-WMAH-230C) is one of the most efficient air handlers available. The MRCOOL 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL DIY system.

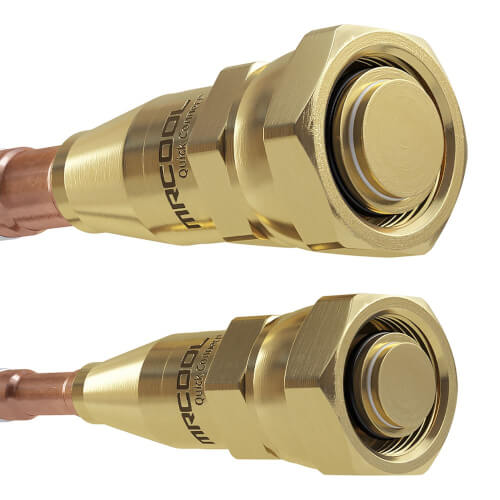

The MRCOOL4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY16-1412 as a means of coupling two of MRCOOL's pre charged line sets together to allow for a longer line for installations that need it, all the while keeping the system pre charged in nature.

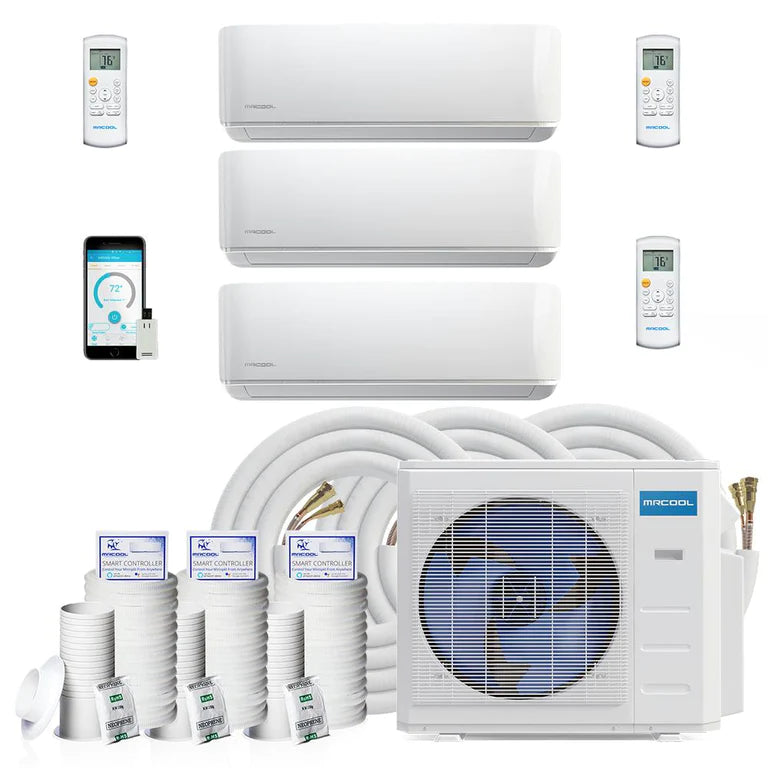

 PRODUCTS INCLUDES:

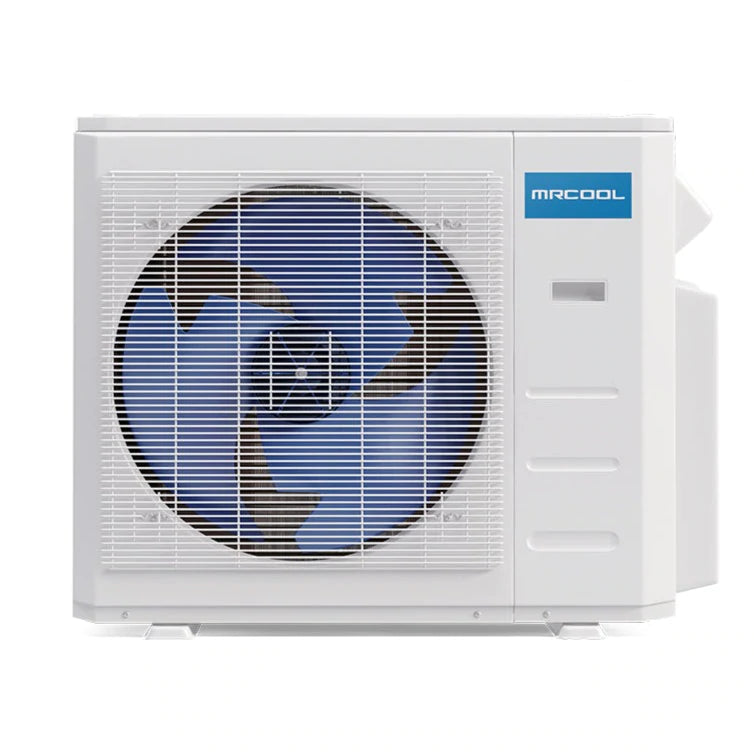

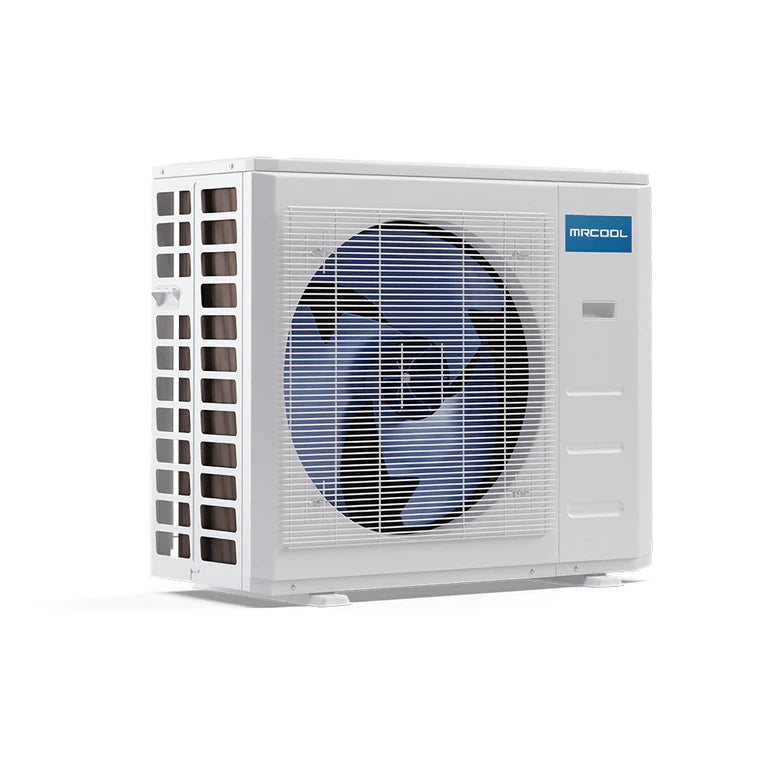

MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series - DIY-MULTI4-36HP230C

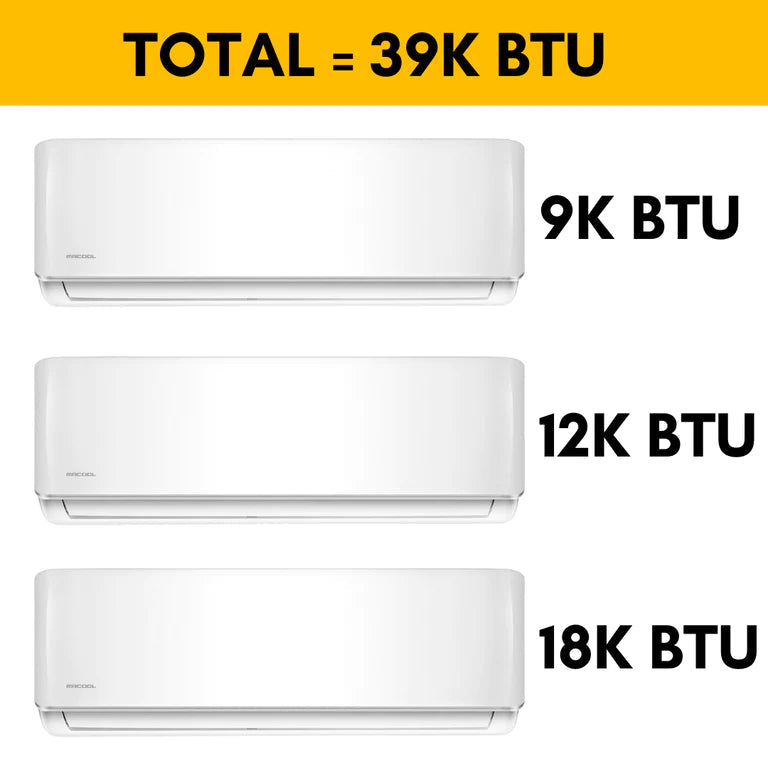

MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler 230 Volt with 25ft DIYPro Cable and Enhanced WiFi - DIY-09-HP-WMAH-230C25

MRCOOL DIY 12k BTU Ductless Mini Split Air Handler, Energy Star, 4th Gen - DIY-12-HP-WMAH-230C25

MRCOOL E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler - DIY-18-HP-WMAH-230C25

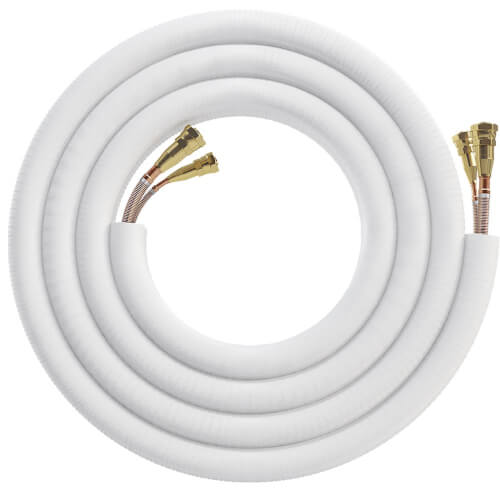

MRCOOL 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY16-1412

FEATURES CONDENSER DIY-MULTI4-36HP230C

  • Up to 21.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

FEATURES AIR HANDLER DIY-12-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
  • This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system

 SPECIFICATIONS CONDENSER DIY-MULTI4-36HP230C

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 170.42 lbs
SEER 21.5
EER 10.5
HSPF hspf4/hspf5 : 11/8.5
CFM 2147.06
Cooling Capacity 36000 BTU
Heating Capacity 36000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 45 A
Min Circuit Ampacity 27 A
Color White
Zone Capacity Up to 4
Refrigerant Type R-410A
Refrigerant Volume 134.04 oz
Decibel Rating 65 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 196.85 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in+1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 1000/900/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty


SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 9000 BTU
Heating Capacity 9000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 375 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only Quiet Mode Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS Android
Includes Remote Batteries
Certifications Energy Star AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI


SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 12000 BTU
Heating Capacity 12000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 500 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only Quiet Mode Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS Android
Includes Remote Batteries
Certifications Energy Star AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI


SPECIFICATIONS AIR HANDLER DIY-18-HP-WMAH-230C25

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 34.61 lbs
Cooling Capacity 18000 BTU
Heating Capacity 18000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 750 sqft
Refrigerant Type R-410A
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1120/950/700
Modes Fan Only Quiet Mode Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS Android
Includes Remote Batteries
Certifications Energy Star AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI


PRODUCT MANUALS:

CONDENSER MANUALS

9K AIR HANDLER MANUALS

18K AIR HANDLER MANUALS

LINESET MANUALS
