MRCOOL DIY 4th Generation Mini Split 36K BTU 2 Zone Ductless Air Conditioner with Heat Pump and 35 Ft Install Kit - DIYM236HPW03C13

Call for availability
SKU: DIYM236HPW03C13
Save $500.00
filler

Price:
Sale price$4,431.00 Regular price$4,931.00

Description

MRCOOL DIY 4th Generation Mini Split 36K BTU 2 Zone Ductless Air Conditioner with Heat Pump and 35 Ft Install Kit - DIYM236HPW03C13

The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump (DIY-MULTI4-36HP230C) offers the latest in heat pump innovations. This condenser has the ability to support up to 4 zones and, when paired with select MRCOOL air handlers, can provide a SEER efficiency rating of up to 21.5. The MRCOOL4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MRCOOL DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 750 sq. ft.

Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuum required. The MRCOOL DIY Quick Connect Line Set is intended for use with the MRCOOL DIY Single or Multi-Zone Units.

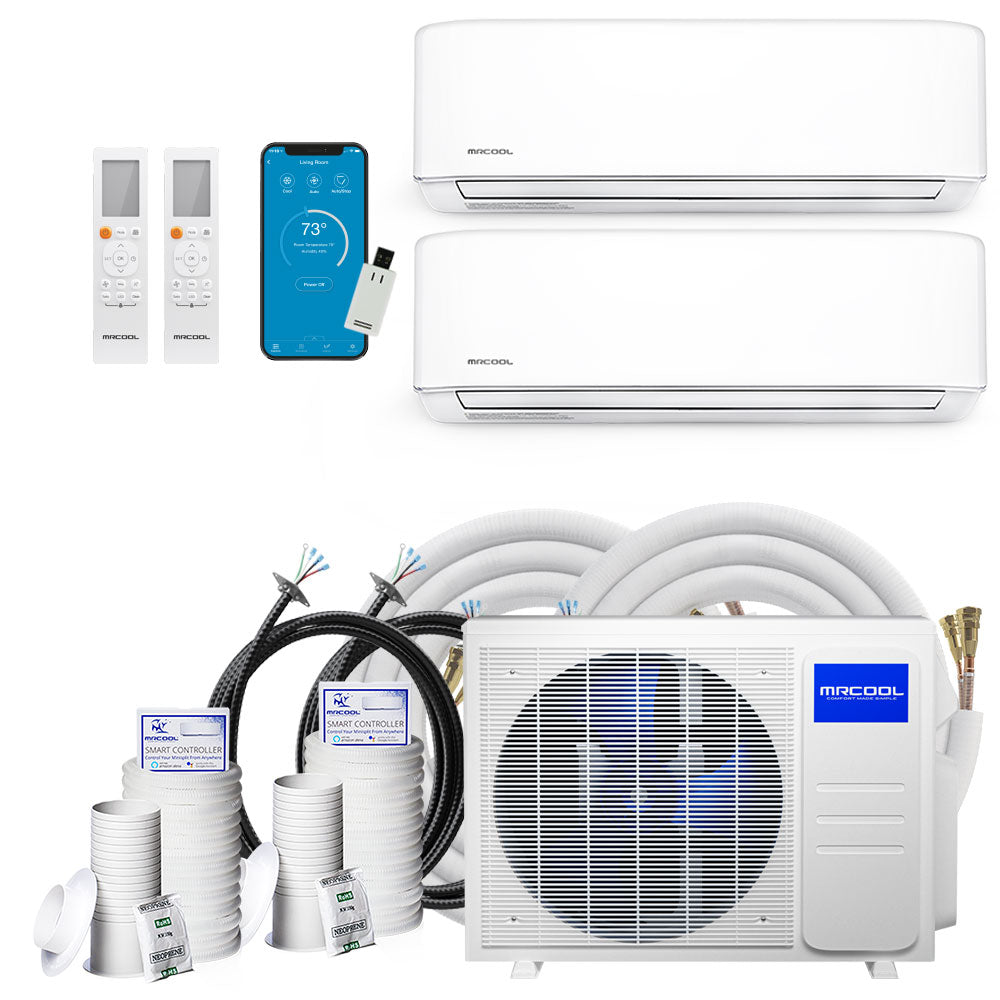

PACKAGE INCLUDES:

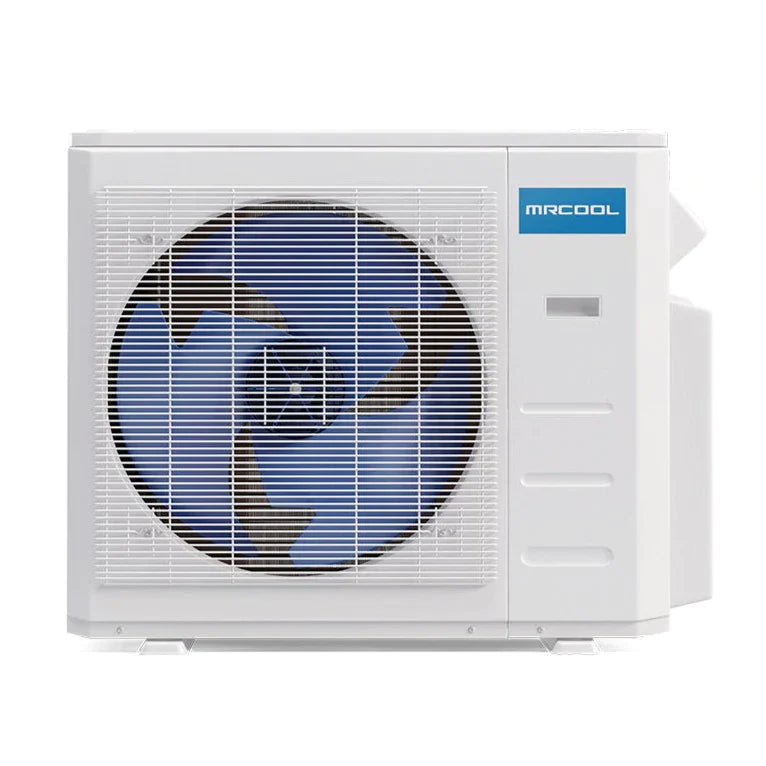

FEATURES CONDENSER DIY-MULTI4-36HP230C

  • Up to 21.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25 (x2)

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
  • This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system

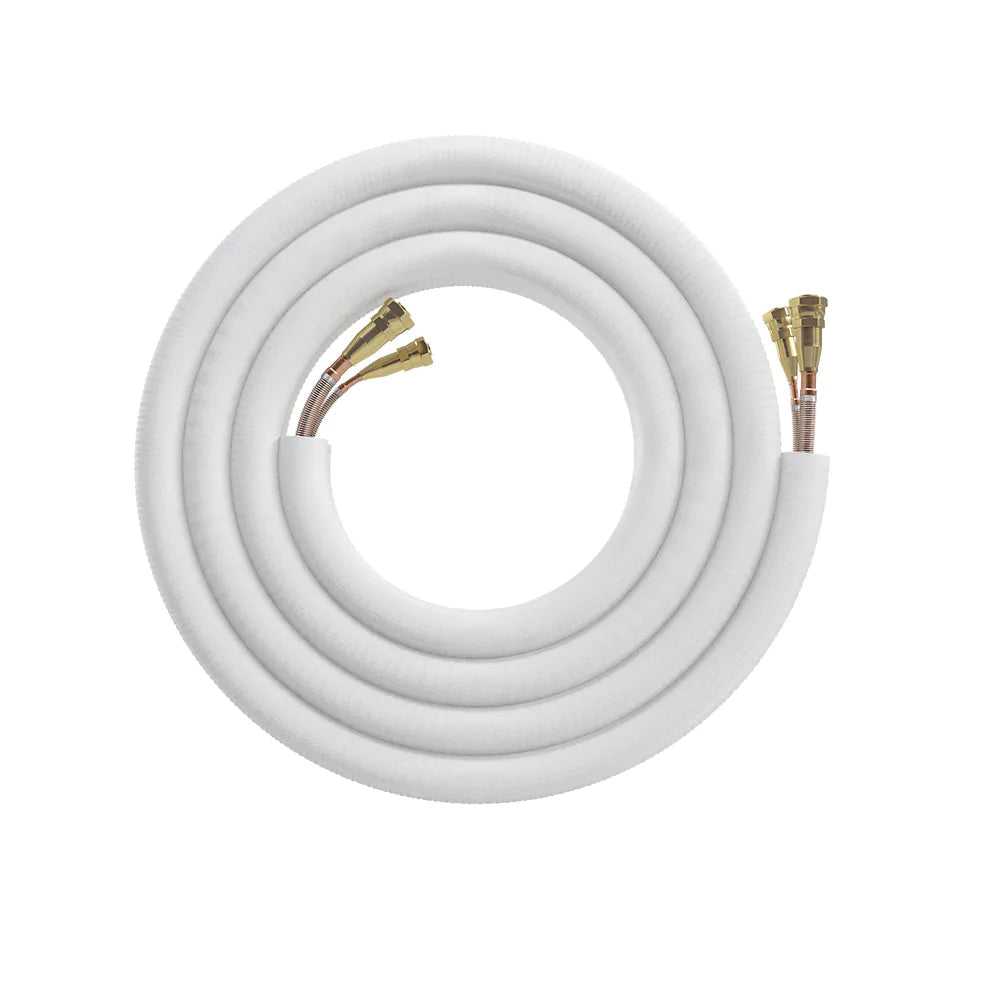

FEATURES LINE SET DIY35-1412C (x2)

  • Kink Resistant
  • Simple to Use Screw-on Quick Connect Valves
  • Leak Proof
  • No Vacuum Needed

SPECIFICATIONS CONDENSER DIY-MULTI4-36HP230C

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 170.42 lbs
SEER 21.5
EER 10.5
HSPF hspf4/hspf5 : 11/8.5
CFM 2147.06
Cooling Capacity 36000 BTU
Heating Capacity 36000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 45 A
Min Circuit Ampacity 27 A
Color White
Zone Capacity Up to 4
Refrigerant Type R-410A
Refrigerant Volume 134.04 oz
Decibel Rating 65 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 196.85 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in+1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 1000/900/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty



SPECIFICATIONS AIR HANDLER DIY-18-HP-WMAH-230C25 (x2)

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 34.61 lbs
Cooling Capacity 18000 BTU
Heating Capacity 18000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 750 sqft
Refrigerant Type R-410A
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1120/950/700
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS LINE SET DIY35-1412C (x2)

  • Length (Feet): 35'
  • Application: Cooling
  • Liquid Line: 1/4"
  • Suction Line:1/2"

PRODUCT MANUALS:

CONDENSER MANUALS

18K AIR HANDLER MANUALS

LINE SET MANUALS
