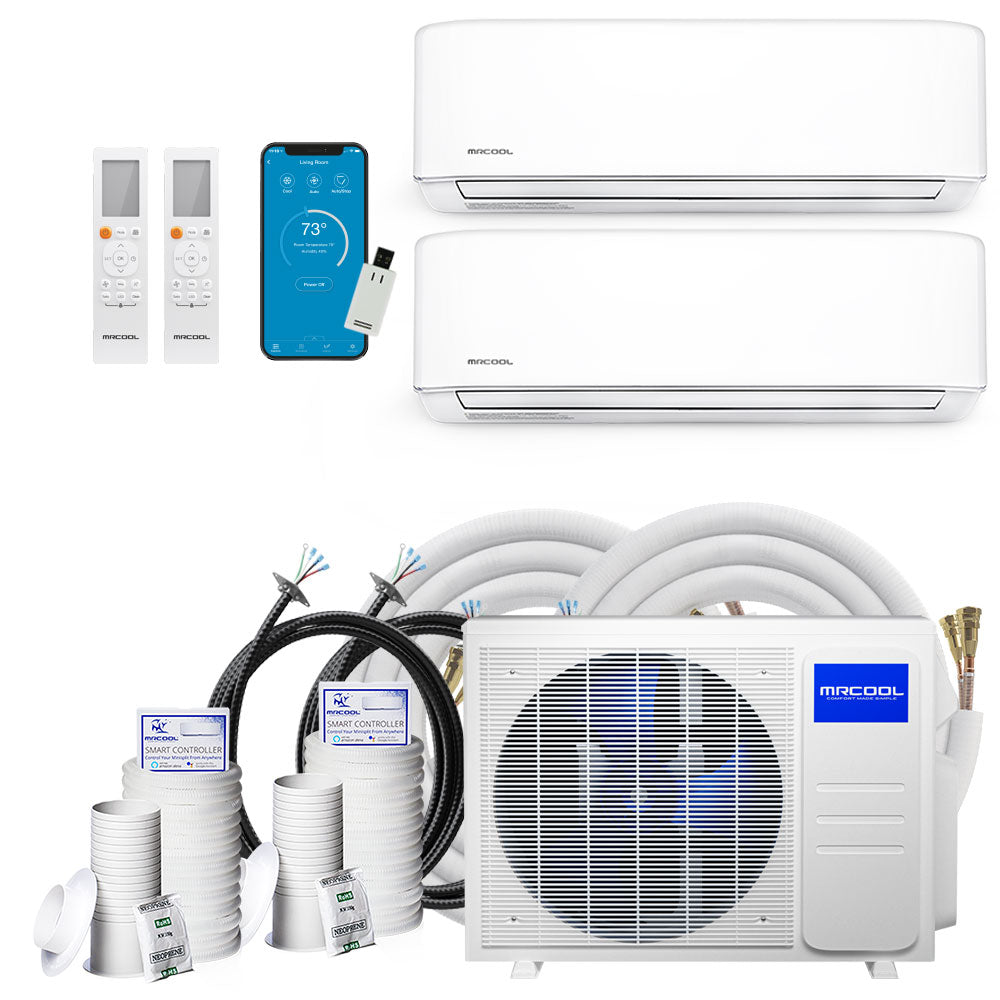

MRCOOL DIY 4th Generation Mini Split 36K BTU 2 Zone Ductless Air Conditioner With Heat Pump and 16 Ft Install Kit - DIYM236HPW03C00

Call for availability
SKU: DIYM236HPW03C00
Save $600.00
filler

Price:
Sale price$3,965.00 Regular price$4,565.00

Description

MRCOOL DIY 4th Generation Mini Split 36K BTU 2 Zone Ductless Air Conditioner With Heat Pump and 16 Ft Install Kit - DIYM236HPW03C00

The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump (DIY-MULTI4-36HP230C) offers the latest in heat pump innovations. This condenser has the ability to support up to 4 zones and, when paired with select MRCOOL air handlers, can provide a SEER efficiency rating of up to 21.5. The MRCOOL4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MRCOOL DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 750 sq. ft.

MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation.

PRODUCT INCLUDES:

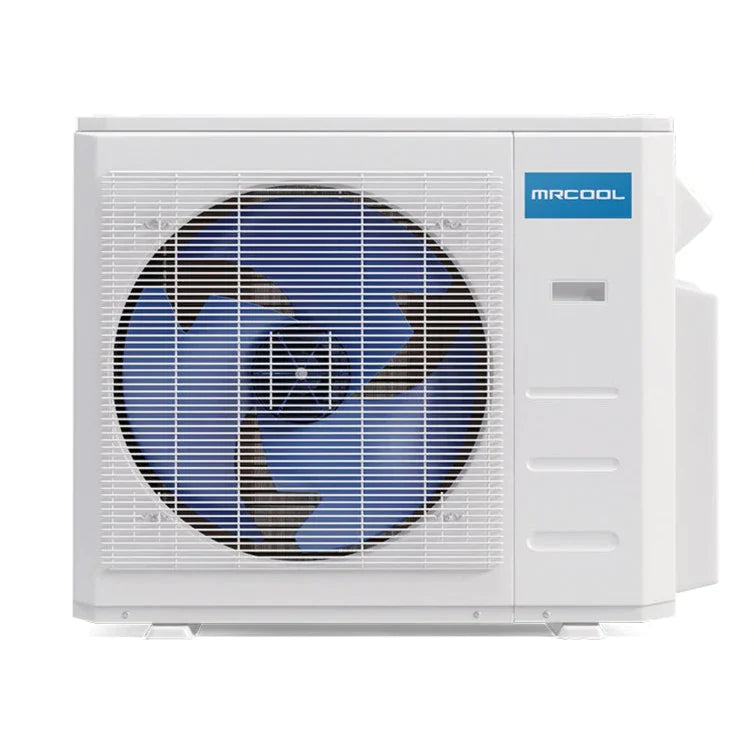

FEATURES CONDENSER DIY-MULTI4-36HP230C

  • Up to 21.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25 (x2)

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
  • This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system

SPECIFICATIONS CONDENSER DIY-MULTI4-36HP230C

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 170.42 lbs
SEER 21.5
EER 10.5
HSPF hspf4/hspf5 : 11/8.5
CFM 2147.06
Cooling Capacity 36000 BTU
Heating Capacity 36000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 45 A
Min Circuit Ampacity 27 A
Color White
Zone Capacity Up to 4
Refrigerant Type R-410A
Refrigerant Volume 134.04 oz
Decibel Rating 65 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 196.85 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in+1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 1000/900/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty



SPECIFICATIONS AIR HANDLER DIY-18-HP-WMAH-230C25 (x2)

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 34.61 lbs
Cooling Capacity 18000 BTU
Heating Capacity 18000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 750 sqft
Refrigerant Type R-410A
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1120/950/700
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI

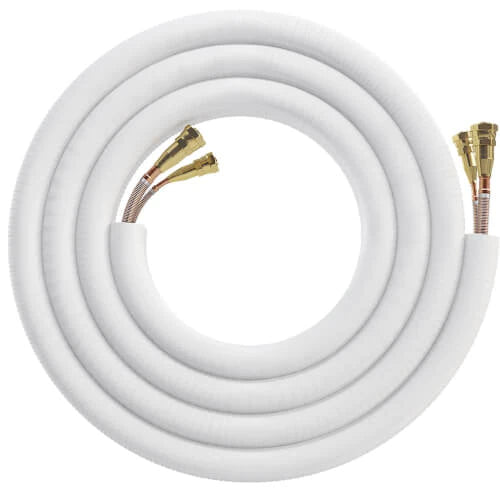

SPECIFICATIONS LINESET DIY16-1412 (x2)

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

14.55 lbs

GROSS WEIGHT

17.19 lbs



PRODUCT MANUALS:

CONDENSER MANUALS

18K AIR HANDLER MANUALS
