MRCOOL DIY 4th Generation Mini Split - 27K BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit - DIYM327HPW00C00

Call for availability
SKU: DIYM327HPW00C00
Save $500.00
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$3,641.00 Regular price$4,141.00

Description

MRCOOL DIY 4th Generation Mini Split - 27K BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit - DIYM327HPW00C00

 Introducing the 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser (DIY-MULTI3-27HP230) which is one of the most capable heat pumps on the market. As part of a MRCOOL DIY system, the MRCOOL DIY 9K BTU Ductless Wall Mounted Air Handler (DIY-09-HP-WMAH-230C) is one of the most efficient air handlers available. Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY16-1412 as a means of coupling two of MRCOOL's pre charged line sets together to allow for a longer line for installations that need it, all the while keeping the system pre charged in nature.

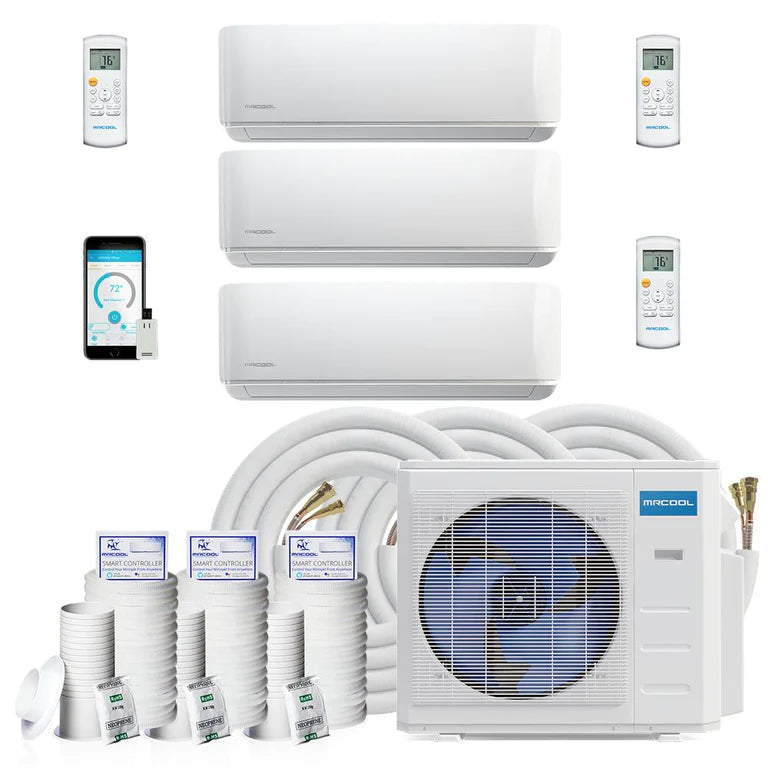

PRODUCT INCLUDES:

MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series - DIY-MULTI3-27HP230C

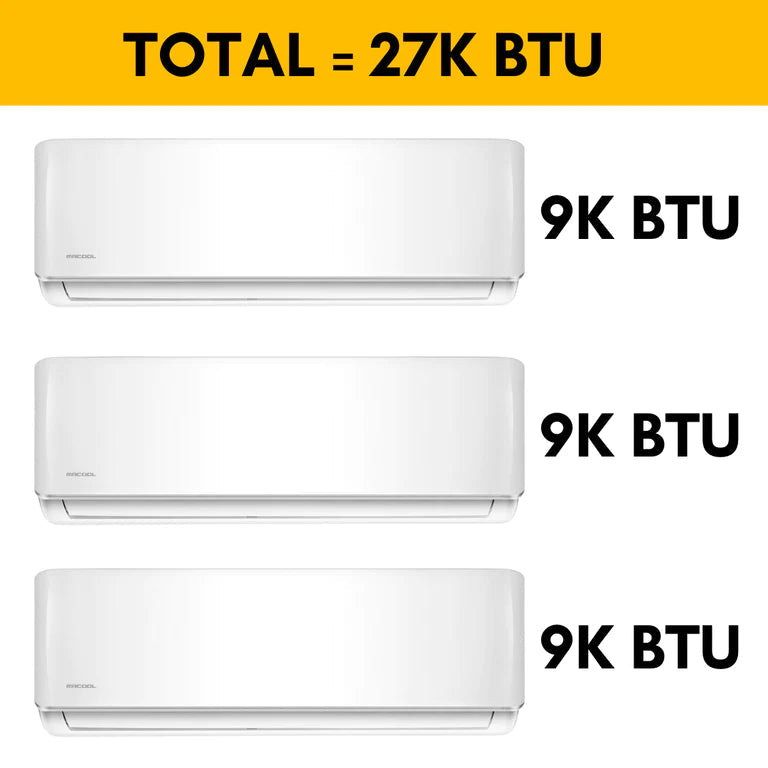

MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler 230 Volt with 25ft DIYPro Cable and Enhanced WiFi - DIY-09-HP-WMAH-230C25 (x3)

MRCOOL 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY16-1412 (x3)

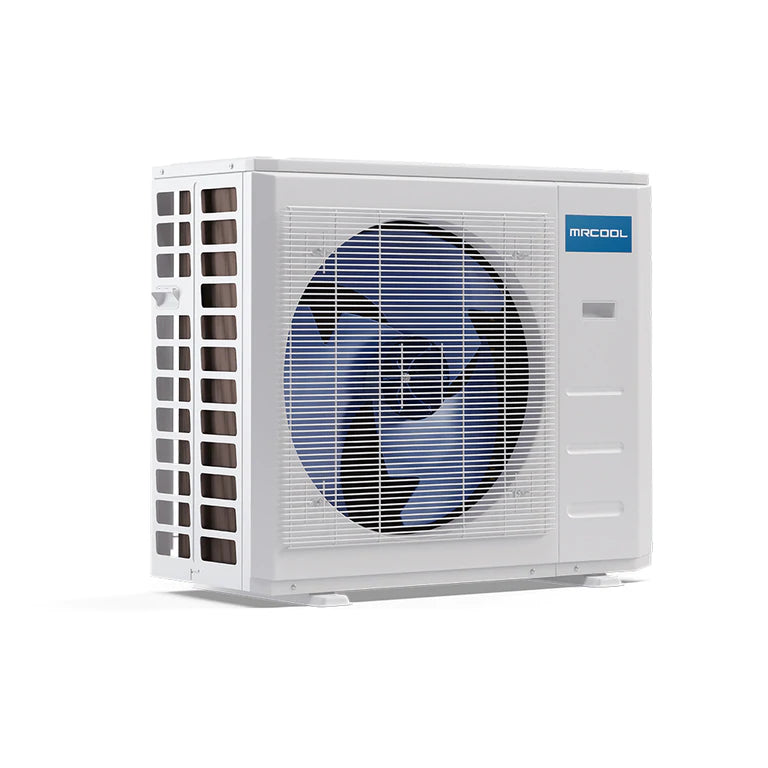

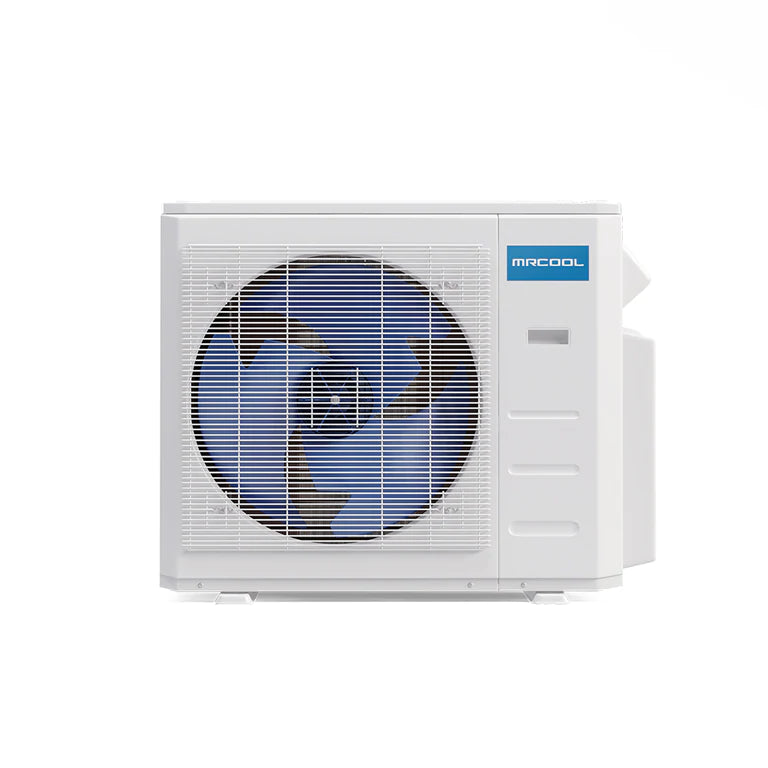

FEATURES CONDENSER DIY-MULTI3-27HP230C

  • Up to 22 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

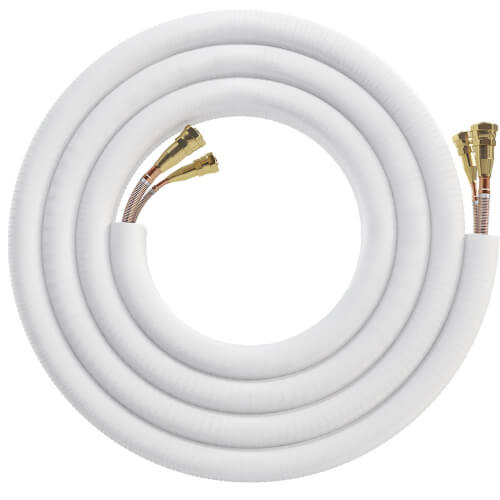

FEATURES LINESET DIY16-1412

  • Easy to install.
  • Pre-charged with R-410A refrigerant.
  • Plugs into air handler and condenser without losing charge or being exposed to environmental contaminants.
  • Liquid line size: 1/4 inch.
  • Suction line size: 1/2 inch.

SPECIFICATIONS CONDENSER DIY-MULTI3-27HP230C

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 139.99 lbs
SEER 22
EER 12
HSPF hspf4/hspf5 : 10.3/8.2
CFM 2129.41
Cooling Capacity 27,000 BTU
Heating Capacity 27,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 40 A
Min Circuit Ampacity 26 A
Color White
Zone Capacity Up to 3
Refrigerant Type R-410A
Refrigerant Volume 91.71 oz
Decibel Rating 61 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 147.64ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in
Compressor Motor Type Twin - Rotary
Condenser Fan Motor RPM 1050/900/850
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor



SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 9000 BTU
Heating Capacity 9000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 375 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS LINESET DIY16-1412

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

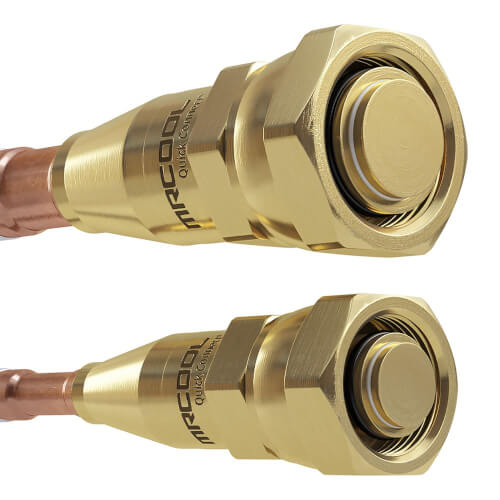

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

14.55 lbs

GROSS WEIGHT

17.19 lbs



PRODUCT MANUALS:

CONDENSER MANUALS

AIR HANDLER MANUALS

LINESET MANUALS
