MRCOOL DIY 4th Generation Mini Split 24K BTU 2 Zone Ductless Air Conditioner with Heat Pump and 25 Ft Install Kit - DIYM227HPW02C07

Call for availability
SKU: DIYM227HPW02C07
Save $486.00
filler

Price:
Sale price$3,314.00 Regular price$3,800.00

Description

MRCOOL DIY 4th Generation Mini Split 24K BTU 2 Zone Ductless Air Conditioner with Heat Pump and 25 Ft Install Kit - DIYM227HPW02C07

The 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser (DIY-MULTI3-27HP230) which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MRCOOL air handlers, it can produce a highly effective 22 SEER efficiency rating. The MRCOOL 4th Generation DIY 12K  BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL DIY system. When paired with a MRCOOL Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 500 sq ft.

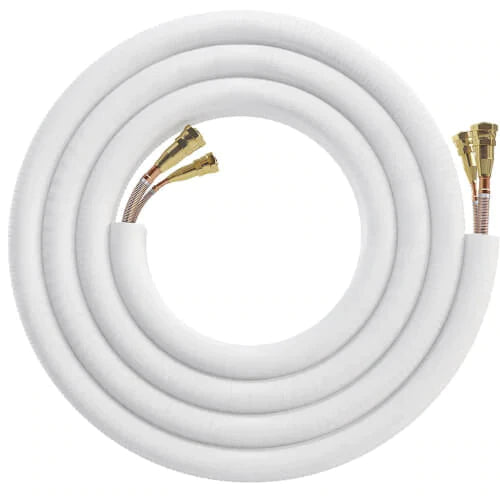

This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

PRODUCT INCLUDES:

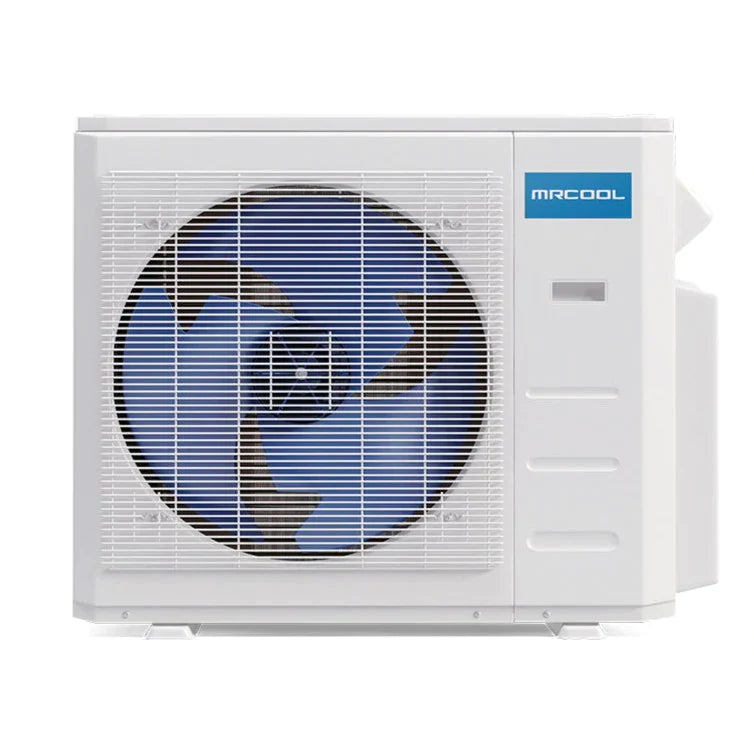

FEATURES CONDENSER DIY-MULTI3-27HP230C

  • Up to 22 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-12-HP-WMAH-230C25 (x2)

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

SPECIFICATIONS CONDENSER DIY-MULTI3-27HP230C

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 139.99 lbs
SEER 22
EER 12
HSPF hspf4/hspf5 : 10.3/8.2
CFM 2129.41
Cooling Capacity 27,000 BTU
Heating Capacity 27,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 40 A
Min Circuit Ampacity 26 A
Color White
Zone Capacity Up to 3
Refrigerant Type R-410A
Refrigerant Volume 91.71 oz
Decibel Rating 61 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 147.64ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in
Compressor Motor Type Twin - Rotary
Condenser Fan Motor RPM 1050/900/850
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor



SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25 (x2)

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 12000 BTU
Heating Capacity 12000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 500 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS LINE SET DIY25-1412 (x2)

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

19.84 lbs

GROSS WEIGHT

22.92 lbs
