MRCOOL DIY 4th Generation Mini Split 18K BTU 2 Zone Ductless Air Conditioner with Heat Pump With 16 and 25 Ft Install Kit - DIYM218HPW00C01

Call for availability
SKU: DIYM218HPW00C01
Save $506.00
filler

Price:
Sale price$2,694.00 Regular price$3,200.00

Description

MRCOOL DIY 4th Generation Mini Split 18K BTU 2 Zone Ductless Air Conditioner with Heat Pump With 16 and 25 Ft Install Kit - DIYM218HPW00C01

The 4th Generation MRCOOL DIY 18K BTU 2-Zone Ductless Heat Pump Condenser (DIY-MULTI2-18HP230) is the latest in heat pump technology. This 2-zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. The MRCOOL DIY 9K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 sq. ft.

MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation.

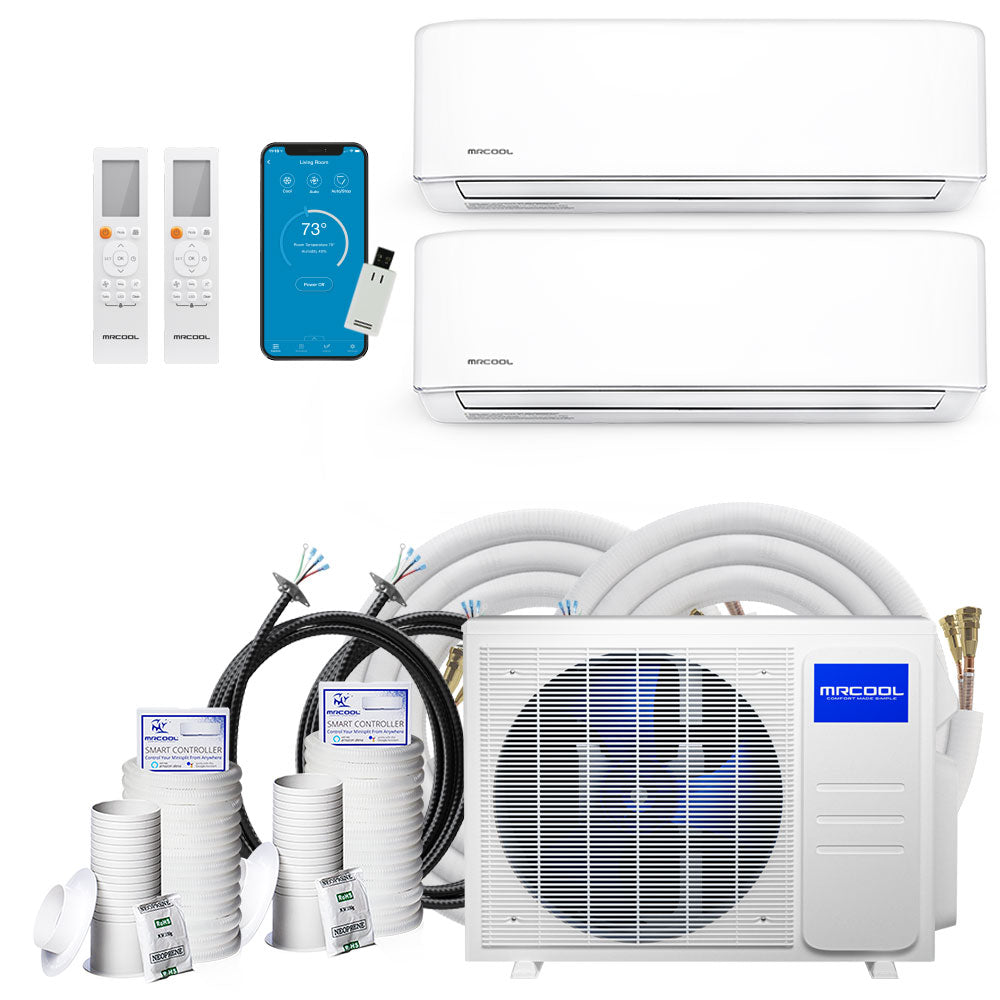

PRODUCT INCLUDES:

FEATURES CONDENSER DIY-MULTI2-18HP230C

  • Up to 21 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25 (x2)

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

SPECIFICATIONS CONDENSER DIY-MULTI2-18HP230C

Product Dimensions 35.04"W x 13.46"D x 26.50"H
Product Weight 100.53 lbs
SEER 21
EER 12.5
HSPF hspf4/hspf5 : 10.6/8.6
CFM 1764.71
Cooling Capacity 18000 BTU
Heating Capacity 19000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60Hz
Min Circuit Ampacity 18A
Color White
Zone Capacity 2
Refrigerant Type R-410A
Refrigerant Volume 65.26 oz
Decibel Rating 59 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 98.42 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in
Compressor Motor Type Twin - Rotary
Condenser Fan Motor RPM 750/600/500
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Warranty Limited Lifetime on the Compressor
5-year Parts on Base Parts



SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25 (x2)

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 9000 BTU
Heating Capacity 9000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 375 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI

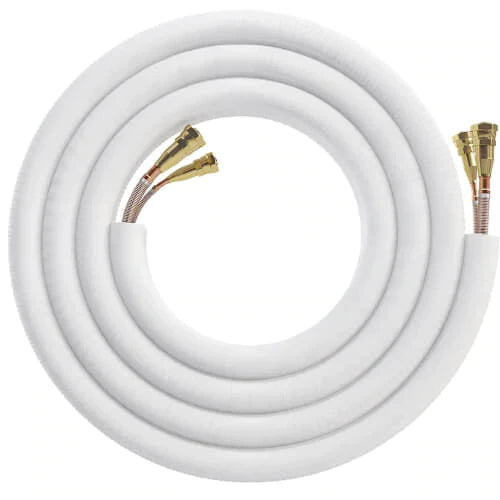

SPECIFICATIONS LINE SET DIY16-1412 (x2)

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

14.55 lbs

GROSS WEIGHT

17.19 lbs



SPECIFICATIONS LINE SET DIY25-1412

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

19.84 lbs

GROSS WEIGHT

22.92 lbs

PRODUCT MANUALS:

CONDENSER MANUALS

9K AIR HANDLER MANUALS
